Electric bicycle

user manual

OLI Guera 8.8-S / 8.8-M

ONE-OLI Guera 8.8-S / 8.8-M

OLI Atland 8.8-S / 8.8-M

ONE-OLI Largo 8.8-S / 8.8-M

OLI Fionna 8.8-S / 8.8-M

OLI Largo 8.8-S / 8.8-M

ONE-OLI Cross 8.8-S / 8.8-M

ONE-OLI Cross low 8.8-S / 8.8-M

OLI Cross 8.8-S / 8.8-M

OLI Cross low 8.8-S / 8.8-M

Enjoy your ride!

Table of Contents

Need help?

Do you have a question about the OLI Guera 8.8-S and is the answer not in the manual?

Questions and answers

Summary of Contents for CRUSSIS OLI Guera 8.8-S

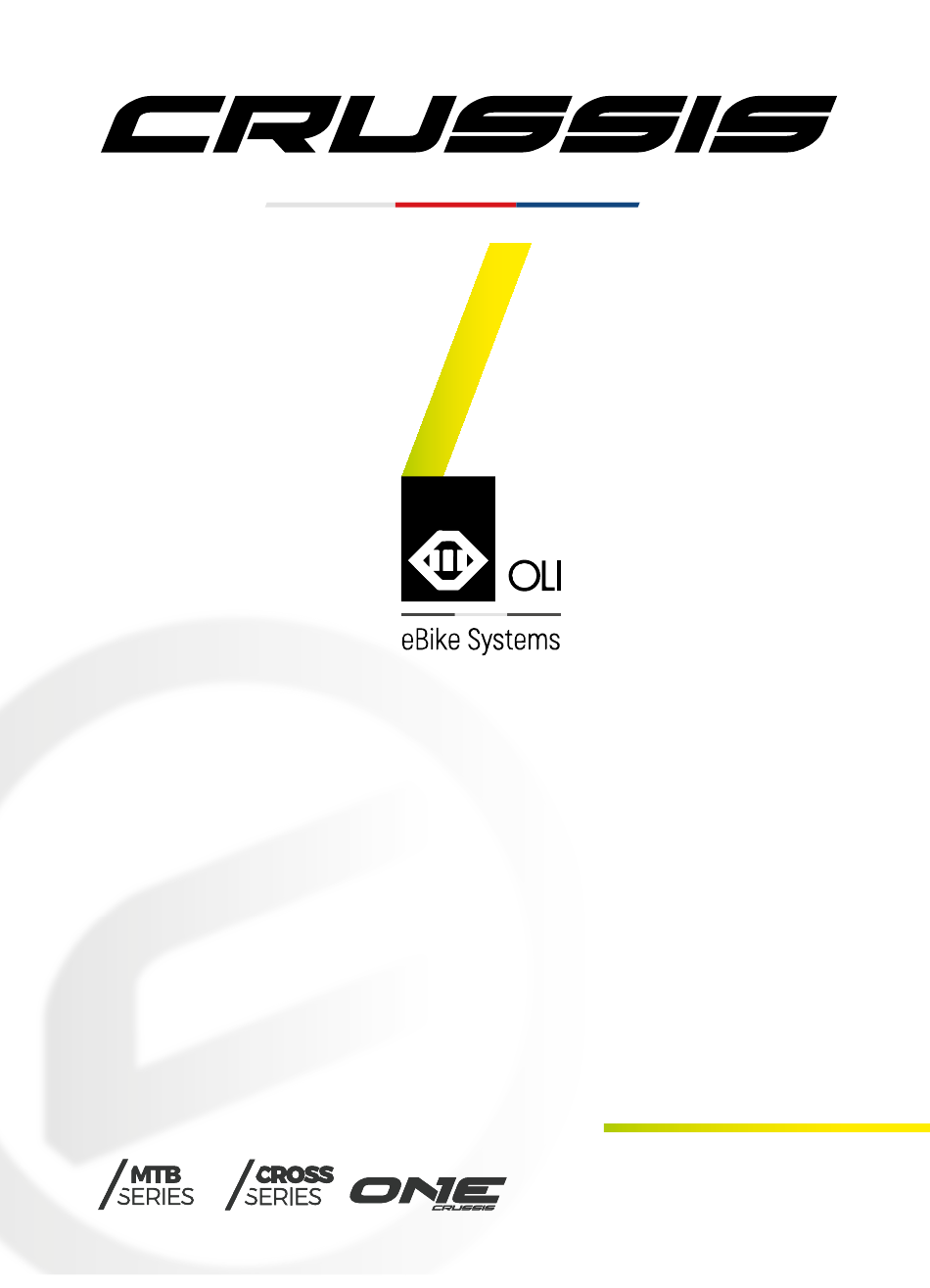

Page 1 M A N U F A C T U R E R E - B I K E S Electric bicycle user manual OLI Guera 8.8-S / 8.8-M ONE-OLI Guera 8.8-S / 8.8-M OLI Atland 8.8-S / 8.8-M ONE-OLI Largo 8.8-S / 8.8-M OLI Fionna 8.8-S / 8.8-M...
Page 2: Table Of Contents
Content Foreword ..........................3-4 General warnings ........................5-9 Electric bike system ......................10-13 Electric bike control (color LCD display) ................13-18 Troubleshooting ........................19 Maintenance and storage ......................20 Notice ............................21 Warranty ............................21...
Page 3: Foreword
FOREWORD Dear users, thank you for purchasing a CRUSSIS e-bike! We appreciate you choosing our product. For proper operation of the CRUSSIS e-bike, read the product information carefully be- fore using it. In this manual we inform you about all the details related to the use of the e-bike (including the installation of the device, settings and normal use of the display).
Page 4 EN 15194-1, is considered as a normal bicycle in terms of the Road Traﬃ c Act. This means that Road Traﬃ c Act. This means that you can ride on cycle paths, you do not need a driving licence and a helmet is only compulsory and a helmet is only compulsory up to the age of 18.
Page 5: General Warnings
GENERAL WARNINGS Riding an e-bike, like other sports, can pose a risk of injury and damage. If you want to use an e-bike, you must learn and follow the rules of safe riding, proper use and maintenance of an e-bike. Regular maintenance and proper use will reduce the risk of injury and extend the life of the product.
Page 6 By loosening or tightening the bowden nut at the shifter lever, ﬁ ne corrections can be achieved. Forks: You can ﬁ nd diﬀ erent types of forks on Crussis e-bikes. You should never lock the fork when riding oﬀ -road or jumping. The fork may be damaged when compressed under heavy loads.
Page 7 RockShox FS Paragon Gold RL Solo Air 700c (OLI Cross 8.8-S / 8.8-M, ONE-OLI Cross 8.8-S / 8.8-M, OLI Cross low 8.8-S / 8.8-M, ONE-OLI Cross low 8.8-S / 8.8-M) Stroke: 65 mm Fork column: 1 1/8“ Suspension: vzduchové Solo Air Locking: from fork (crown) Axis: RU 9 mm IMPORTANT SAFETY INFORMATION...
Page 8 7. The fork is designed to secure the front wheel with a quick release or thru-Axle . Make sure you ease or thru-Axle . Make sure you understand which shaft your wheel has and how to handle it properly. Do not use a screw on the operly.
Page 9 Frame: Do not use a bent or cracked frame. You must never repair or straighten the frame under any circumstances. Consult your Crussis e-bike dealer for frame damage. Crusis frames have a mounting place for bottle holder. We recommend using side bottle holder (to remove the bottle to the side) to avoid breaking the screws.
Page 10: Electric Bike System
ELECTRIC BIKE SYSTEM The motor is activated by means of a torsion (pressure, force) sensor integrated into the central axis. The torsion sensor evaluates the frequency and force of pedaling, which it transmits to the control unit, which doses the motor power according to the force you pedal with. The e-bike motor swit- ches on after about one turn of the pedal cranks.
Page 11 Before each ride, please make sure that the battery is properly seated and locked. There are several types of batteries available with Crussis e-bikes. Unlock the battery by turning the key to the left and release by pressing the button (if equipped), lock by turning to the right.
Page 12 Charging battery connector electric plug LED light electric plug LED light This charger is designed for M/L 720 Wh 20 Ah 900 Wh 25 Ah batteries only battery connector Connect the charger to the battery and then plug the electrical plug into the electrical socket. Once the charger is connected to the electrical socket, the red LED on the charger lights up to indicate that the charging process has started.
Page 13: Electric Bike Control (Color Lcd Display)
FACTORS AFFECTING THE RANGE OF THE ELECTRIC BIKE It is not possible to determine the range of an e-bike accurately because it is inﬂ uenced by many factors. 1. Route proﬁ le and surface: on ﬂ at terrain, the range is higher than when riding on long steep climbs and worse surfaces.
Page 14 Model: OLI Speciﬁ cations Display type: LCD, active area 2“ Weight: 114 g Dimensions: 76x50x76 mm Handlebar holder Ø: 22.2 / 25.4 / 31.8 mm Rated voltage: Operating temperature: -20 ° C - + 60 ° C Protection class: IP 66 Do not expose the LCD display to prolonged sunlight in both oﬀ...
Page 15 OPERATIONS Switching the system on/oﬀ Turn on the power by brieﬂ y pressing the power button on the battery. This switches on the entire e-bike system. To switch oﬀ the e-bike, press and hold the power button on the battery again for approx. 2 se- conds.
Page 16 Switching beatween modes You can switch between the following modes by brieﬂ y pressing the button in following sequence: distance traveled (TRIP) time of the distance traveled Current performance of the cyclist calories motor help in watts General overview including ODO total mileage (cannot be deleted) Walking assistant mode Pedal assistant 1-5 must be selected othervise the walking assistant will not work.
Page 17 1-10 Back TRIP Italiano clear English Français Deutsch Español Český Brightness Zpět Language Miles Back Measure unit Menu Weight 50-150kg Trip reset Back Advanced System info Gender Battery info Back Male Night mode Female Back Back Disable Firmware version Active Automatic Back Pack voltage...
Page 18 Error messages Error Description of a fault Solution 1101 Communication problem Have the connectors between display and motor between the display and the control unit checked Please contact your retailer 0811 High voltage protection Please contact your retailer 0810 Th e signal from the current sensor is abnormal Please contact your retailer 0809...
Page 19: Troubleshooting
TROUBLESHOOTING If the e-bike does not work, ﬁ rst check if you can solved the problem yourself. Never interfere with the motor, battery and electrical connection. In this case visit a service center. 1. If the e-bike range is low although the battery is fully charged The range of the e-bike is aﬀ...
Page 20: Maintenance And Storage
The following statement: the weighted emission sound pressure level-A to the driver‘s ears is less than 70 db (A). The CRUSSIS e-bike user manual is legally obliged to be attached to each product. The e-bike meets the requirements of EN 14619 (class A).
Page 21: Notice
NOTICE! Information on the disposal of electrical and electronic equipment The symbol on the product or in the accompanying documentation means that used electrical or electronic products must not be disposed of with communal waste. In order to dispose of the products correctly, please take the products to the designated collection points where they will be accepted free of charge.
Page 22 VYMĚNIT...
Page 23 Notes...
Page 24 Service records D O N E : S T A M P A ND SI GN AT U RE : D A Y : D O N E : S T A M P A ND SI GN AT U RE : D A Y : D O N E : S T A M P A ND SI GN AT U RE :...
Page 25 Service records D O N E : S T A MP A ND SI GNA T URE : D A Y : D O N E : S T A MP A ND SI GNA T URE : D A Y : D O N E : S T A MP A ND SI GNA T URE : D A Y :...
Page 26 Warranty card E - B I K E M O DE L : ....................F R A ME S E R I AL N UM B E R : ..
Page 28 Your CRUSSIS team CRUSSIS electrobikes s.r.o. www.crussis.com...
