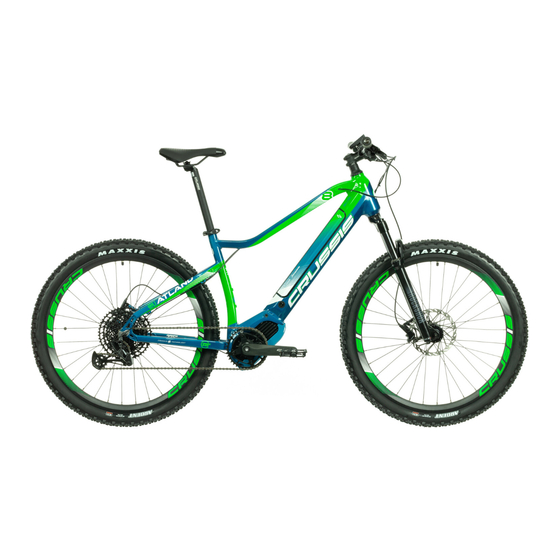

Electric bicycle
user manual
OLI Guera 8.7-S / 8.7-M
ONE-OLI Guera 8.7-S / 8.7-M
OLI Atland 8.7-S / 8.7-M
ONE-OLI Largo 8.7-S / 8.7-M
OLI Fionna 8.7-S / 8.7-M
OLI Largo 8.7-S / 8.7-M
ONE-OLI Cross 8.7-S / 8.7-M
ONE-OLI Cross lady 8.7-S / 8.7-M
OLI Cross 8.7-S / 8.7-M
OLI Cross lady 8.7-S / 8.7-M
Enjoy your e-ride!
Advertisement
Related Manuals for CRUSSIS OLI Guera 8.7-S
Summary of Contents for CRUSSIS OLI Guera 8.7-S

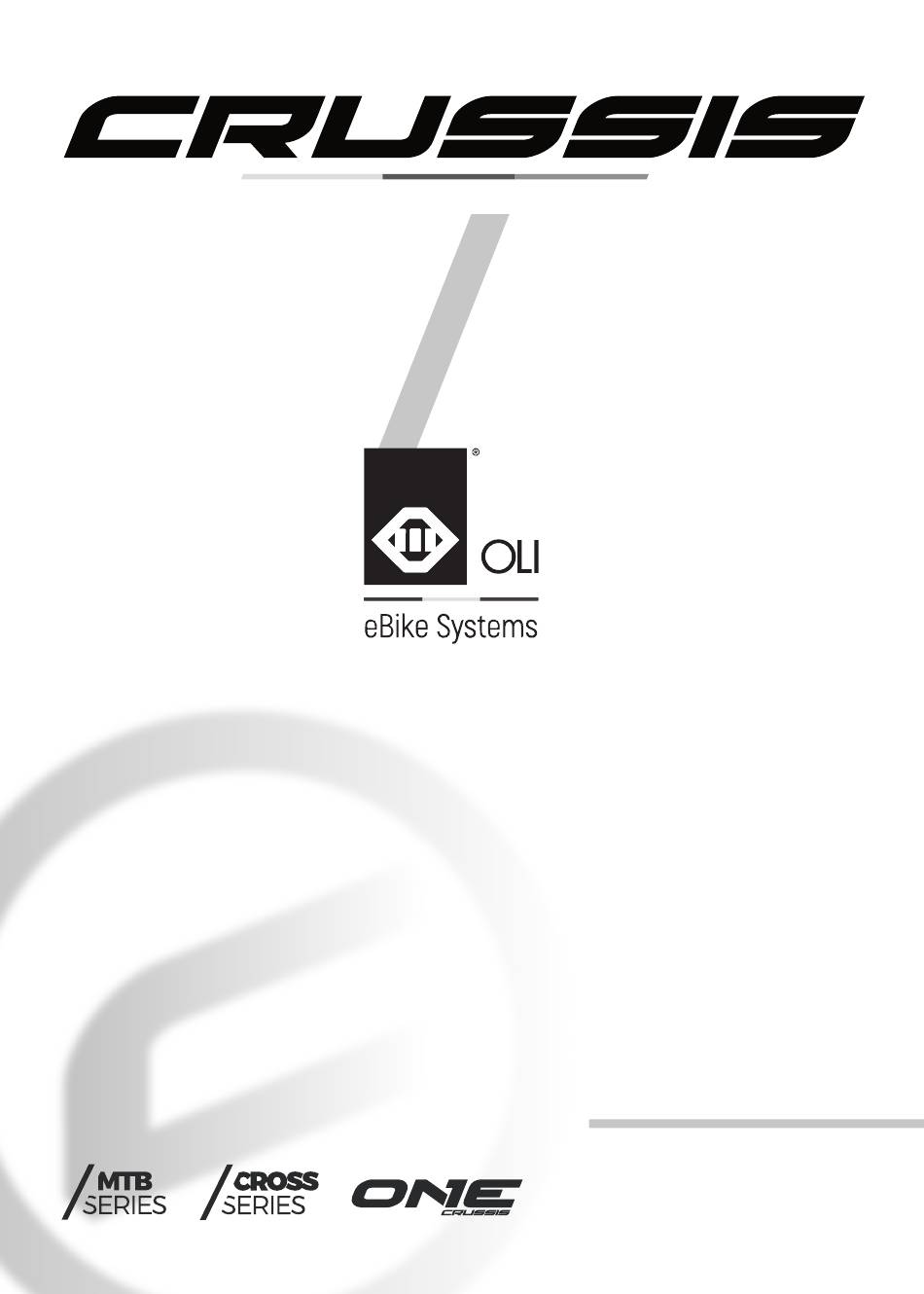

- Page 1 B I C Y C L E S M A N U F A C T U R E R Electric bicycle user manual OLI Guera 8.7-S / 8.7-M ONE-OLI Guera 8.7-S / 8.7-M OLI Atland 8.7-S / 8.7-M ONE-OLI Largo 8.7-S / 8.7-M OLI Fionna 8.7-S / 8.7-M...
-
Page 2: Table Of Contents
Content Foreword ..........................3-4 General warnings ........................5-9 E-bike system ........................10-13 Electric bike control (color LCD display) ................13-18 Problem solving ........................19 Maintenance and storage ......................20 Safety warning ........................20-21 Warranty ............................21... -
Page 3: Foreword
Foreword Dear users, Thank you for purchasing a CRUSSIS e-bike! We appreciate you choosing our product. For proper operation of the CRUSSIS e-bike, read the product information carefully be- fore using it. In this manual we inform you about all the details related to the use of the e-bike (including the installation of the device, settings and normal use of the display). - Page 4 You can set the e-bike in to motion using the control button , which is located on the display con- troller, but only up to the maximum allowed speed, 6km/h (used for walking assistance). The electric bicycle, which complies with the European standard EN 15194-1, is considered to be an ordinary bicycle from the point of view of the Road Traffic Act.
-
Page 5: General Warnings
GENERAL WARNINGS Riding an e-bike, like other sports, can carry risk of injuries and damage. If you want to use an e-bi- ke, you must become familiar with the rules of safe e-bike riding, proper use and maintenance of the e-bike and follow them. Regular maintenance and proper use will reduce the risk of injury and extend the lifetime of the product. - Page 6 By loosening or tightening the bowden nut at the shifter lever, fine corrections can be achieved. Forks: You can find different types of forks on Crussis e-bikes. You should never lock the fork when off-road or jumping. The fork can be damaged when pressed under heavy load.
- Page 7 RockShox FS Paragon Gold RL Solo Air 700c (OLI Cross 8.7-S / 8.7-M, ONE-OLI Cross 8.7-S / 8.7-M, OLI Cross lady 8.7-S / 8.7-M, ONE-OLI Cross lady 8.7-S / 8.7-M) Stroke: 65 mm Fork post: 1 1/8“ Suspension: Air Solo Air Locking: from handlebars (OneLoc Remote) Axis: RU 9 mm IMPORTANT SAFETY INFORMATION...
- Page 8 INSPECTION AND MAINTENANCE Before each ride If you find any cracks, dents, abrasions, deformations, or oil leaks on the fork or other components, contact a qualified mechanic to inspect the fork or e-bike. Check air pressure. Load the fork with all your weight. If you find it soft, pump the fork to the requi- red hardness.
- Page 9 Frame: Do not use a bent or cracked frame. You must never repair or straighten the frame under any circumstances. Consult your Crussis e-bike dealer for frame damage. Crusis frames have a mounting place for bottle holder. We recommend using side bottle holder (to remove the bottle to the side) to avoid breaking the screws.
-
Page 10: E-Bike System
ELECTRIC BIKE SYSTEM The motor is activated by means of a torque (pressure, force) sensor integrated in the central axis. The torque sensor evaluates the frequency and force of pedaling, and transmits it to the control unit, which dispenses motor power according to the force you pedal. The e-bike motor is switched on after approx. - Page 11 There are several types of batteries available with Crussis e-bikes. To unlock the battery, turn the key to the left and release it by pressing the button (if the frame has one), lock it by turning it to the right, or unlock the battery by turning the key to the right, lock it by snapping the battery into the frame.
- Page 12 If the battery overheats, it will turn off automatically. The battery is protected by a tempera- ture sensor. Once the battery has cooled to operating temperature, it is possible to continue driving. Battery warm-up is a common operation. If you leave the e-bike in a public place, we recommend locking the battery with a key.
-
Page 13: Electric Bike Control (Color Lcd Display)
Charge the battery at room temperature (approx. 20 ° C). Always keep a charged battery (e-bike) under charge when charging. Charging the battery in temperatures below 10 ° C and above 40 ° C can cause serious dam- age to the battery. Use only the charger that came with your e-bike to charge the battery. The battery is sensitive to precise charging, using another charger may damage the battery or other parts of the e-bike. - Page 14 Model: OLI Specifications Display type: LCD, active area 2“ Weight: 114 g Dimensions: 76x50x76 mm Handlebar holder Ø: 22.2 / 25.4 / 31.8 mm Rated voltage: Operating temperature: -20 ° C - + 60 ° C Protection class : IP 66 Do not expose the LCD display to long term sunlight when the e-bike is not in use.
- Page 15 OPERATION System turn on / turn off Turn on the battery. This will turn on the entire e-bike system. Turn off the battery will shut down the entire system. Pedal assist level selection On the display controler, briefly press the buttons and set the desired pedal assist level.
- Page 16 Switching beatween modes You can switch between the following modes by briefly pressing the button in following sequence: distance traveled (TRIP) time of the distance traveled Current performance of the cyclist calories motor help in watts General overview including ODO total mileage (cannot be deleted) Walking assistant mode Pedal assistant 1-5 must be selected othervise the walking assistant will not work.
- Page 17 1-10 Back TRIP Italiano clear English Français Deutsch Español Český Brightness Zpět Language Miles Back Measure unit Menu Weight 50-150kg Trip reset Back Advanced System info Gender Battery info Back Male Night mode Female Back Back Disable Firmware version Active Automatic Back Pack voltage...
- Page 18 Error messages Error Description of a fault Solution 1101 Communication problem Let the connectors between between display and motor the display and the control unit checked 0811 High voltage protection Please contact your retailer 0810 The signal from the current Please contact your retailer sensor is abnormal 0809...
-
Page 19: Problem Solving
PROBLEM SOLVING If the e-bike does not work, first check if you can solved the problem yourself. Never interfere with the motor, battery and electrical connection. In this case visit a service center. 1. If the e-bike range is low although the battery is fully charged The range of the e-bike is affected by many factors, such as battery capacity, motor used, route profile, level of assistance used, weight of the rider and his load, rider‘s condition, riding style and smoothness, tire inflation and weather conditions. -
Page 20: Maintenance And Storage
MAINTENANCE AND STORAGE Never immerse the battery, charger or other electrical components in water (any liquids). Store the battery and e-bike in a well-ventilated and dry place, out of direct sunlight and other heat sources. Optimal temperature for storing e-bikes, especially batteriesis 20 ° C. Perform e-bike maintenance at regular intervals to ensure long product life. -
Page 21: Warranty
NOTICE! Information on disposal of electrical and electronic equipment. The symbol on the product or in the accompanying documentation means that used electrical and electronic products must not be disposed of with your other household waste. In order to dispose of the product properly, please return the product to atended collection points, where it will be accepted free of charge. - Page 23 Comment...
- Page 24 Service records DO N E : S T A M P A N D S I G N A T UR E: DA Y : DO N E : S T A M P A N D S I G N A T UR E: DA Y : DO N E : S T A M P A N D S I G N A T UR E:...
- Page 25 Service records DO N E : S TA M P A N D S I G N A T UR E: DA Y : DO N E : S TA M P A N D S I G N A T UR E: DA Y : DO N E : S TA M P A N D S I G N A T UR E:...
- Page 26 Warranty card Crussis electrobikes s.r.o., K Březince 227, 182 00 Praha 8 E- b i k e m o d el : ..................
- Page 28 We wish you a lot of pleasant and safe kilometers on your new e-bike! Your CRUSSIS team CRUSSIS electrobikes s.r.o. K Březince 227, 182 00 Praha 8 IČO: 24819671 www.crussis.cz...
