IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.
Tools Needed
Helpline
If you have any problems with this product or
require any replacement fittings please contact
Customer Services Tel: 0844 844 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found
to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
• Wall fixings are not included.
• We recommend the use of the wall attachment bracket/strap provided for safety reasons.
• Not suitable for use in bathrooms.
PRODUCT INFORMATION
• Made from MDF with a painted finish.
• Made in China.
CARE INSTRUCTIONS
• For general cleaning, periodically dust with a soft cloth.
• Do not rub or scrub the surface when cleaning.
• Always use a non-silicone based furniture polish. Silicone in furniture polishes can break down the lacquer finish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

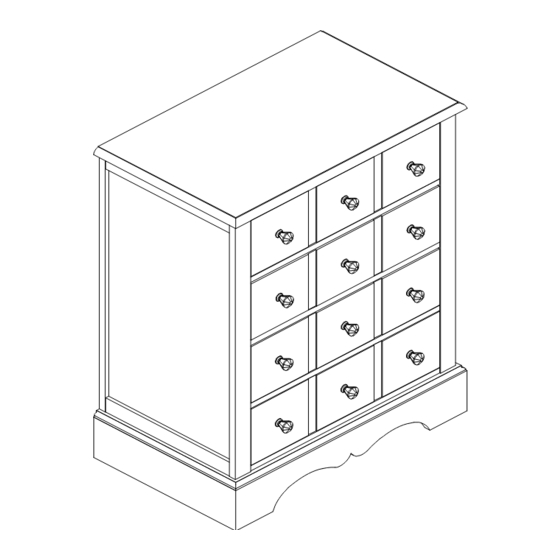

874595 SOPHIE MULTI CHEST
ASSEMBLY INSTRUCTIONS.
Page 1 of 6
Advertisement
Table of Contents
Related Manuals for Next SOPHIE 874595
Summary of Contents for Next SOPHIE 874595
- Page 1 874595 SOPHIE MULTI CHEST ASSEMBLY INSTRUCTIONS. IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY. Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0844 844 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty.
- Page 2 FITTINGS F x 12 B x 12 PARTS STEP ONE 1. Insert 2 x wooden dowels (J) into top panel (1). 2. Attach top front rail (8) to top panel (1) with 3 x screws (E) and tighten with a screwdriver. STEP TWO 1.
- Page 3 STEP THREE 1. Insert 4 x wooden dowels (C) and 4 x cambolts (A) into side panel (2-R). 2. Attach 3 x shelf rails (4) and 1 x back rail (5) to side panels (2-R). 3. Insert 4 x camlocks (B) into 3 x shelf rails (4) and 1 x back rail (5).
- Page 4 STEP SIX 1. Insert 4 x wooden dowels (C) and 4 x cambolts (A) into top panel (1). 2. Attach top panel (1) to the assembled unit. 3. Insert 4 x camlocks (B) into side panels (2-L & 2- R). Ensure the arrow indicator is pointing towards the panel edge before tightening with a screwdriver.
- Page 5 STEP NINE 1. Insert drawers into the unit. STEP TEN 1. Use screw (N) and washer (M) to secure the nylon strap (L) to the top panel. 2. Secure the other end of the strap (L) to the wall with an appropriate screw and wall plug for your wall type.
- Page 6 PACKAGING LAYOUT Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 6 of 6...
