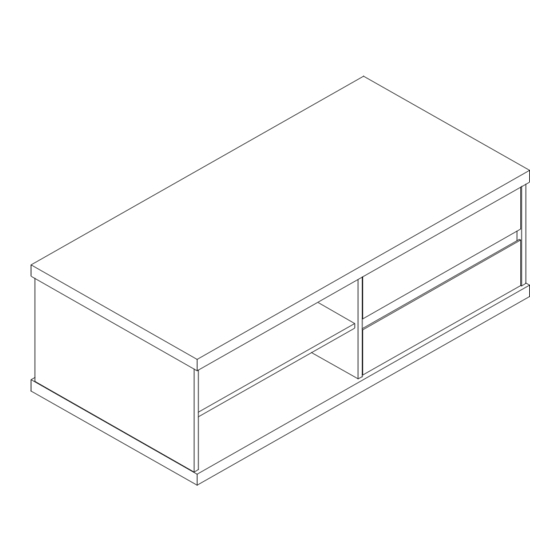

White gloss coffee table

Advertisement

Quick Links

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY

Tools Needed

Helpline

If you have any problems with this product or require
any replacement fittings please contact Customer
Services Tel: 0333 777 8999
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found
to be faulty. Should you need to return the unassembled product, please repack in the original packaging.

IMPORTANT

• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions.
• Carefully check that you have all parts before beginning assembly.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of two persons is required to assemble this product.

PRODUCT INFORMATION

• Made from PB,MDF,hollow board & Honeycomb board with a pvc foil & a wood effect finish.
• Made in China.

CARE INSTRUCTIONS

•Gloss finishes are prone to light surface scratch and it is therefore very important
that you care for this item correctly.
• For general cleaning, periodically dust with a soft clean lint-free cloth or a soft micro fibre cloth. Please note soft
cloths (including yellow dusters) contain abrasive fibres which can lightly scratch the surface, if in doubt please try
your cloth in an inconspicuous area of the furniture first to assess its suitability. A sample of a suitable cloth for
cleaning is included within the hardware pack
• Do not rub or scrub the surface when cleaning.
• Do not use furniture polish.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching or damage.
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or
warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.
874751 MILANO WHITE GLOSS COFFEE TABLE
874751 MILANO WHITE GLOSS COFFEE TABLE
874751 MILANO WHITE GLOSS COFFEE TABLE
874751 MILANO WHITE GLOSS COFFEE TABLE
ASSEMBLY INSTRUCTIONS
Page 1 of 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MILANO 874751 and is the answer not in the manual?

Questions and answers

Summary of Contents for Next MILANO 874751

  • Page 1 874751 MILANO WHITE GLOSS COFFEE TABLE 874751 MILANO WHITE GLOSS COFFEE TABLE 874751 MILANO WHITE GLOSS COFFEE TABLE 874751 MILANO WHITE GLOSS COFFEE TABLE ASSEMBLY INSTRUCTIONS IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY Tools Needed Helpline If you have any problems with this product or require any replacement fittings please contact Customer Services Tel: 0333 777 8999 Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found...
  • Page 2 FITTINGS AX20 BX10 DX30 EX30 ( ? 8 * 3 0 m m ) ( ? 6 * 3 0 m m ) FX12 ( 4 * 3 8 m m ) PARTS STEP ONE Please note: Remove the protective film after assembly of this product - this will prevent accidental scratches during assembly 1.
  • Page 3 STEP TWO 1.Slide panels 14(x2) into the assembled drawer frame. STEP THREE 1. Insert 3 x cambolts (E) into panel 11 and tighten with a screwdriver. 2. Glue(C) and insert 3 x wooden dowels (B) into panels 15, 16 & 17. 3.
  • Page 4 STEP FIVE 1. Insert 14 x cambolts (E) into panels 3(x2), 1 & 2 and tighten with a screwdriver. 3x2pcs STEP SIX 1. Glue and insert the 2 x wooden dowels (B) into panel 1. 2. Attach panel 6 to panel1. 3.
  • Page 5 STEP EIGHT 1. Glue(C) and insert 4 x wooden dowels (A) into panel 2. Attach panel 10 to panels 8 & 9. Please note: There is a choice of Walnut effect or white gloss for the panel 10. The colour you prefer needs to face up upwards &...
  • Page 6 STEP ELEVEN 1. Fix panel 2 to panels 7, 8 & 9 with 8 x screws (J) and tighten with an Allen key (I). STEP TWELVE 1. Insert 10 x cambolts (E) into panel 2 and tighten with a screwdriver. STEP THIRTEEN 1.
  • Page 7 STEP FORTEEN 1. Glue(C) and insert 6 x wooden dowels (A) into panel 2. Attach assembly frame to panel 2. 3. Insert 10 x camlocks (D) into panels 4(x2) & 3(x2) and tighten with a screwdriver. Note :Please note the gloss pvc foil must be faced outside when assembling.
  • Page 8 STEP SEVENTEEN 1.The assembled coffee table as shown. Next Retail Ltd, Desford Road, Leicester, LE19 4AT Page 8 of 8...
