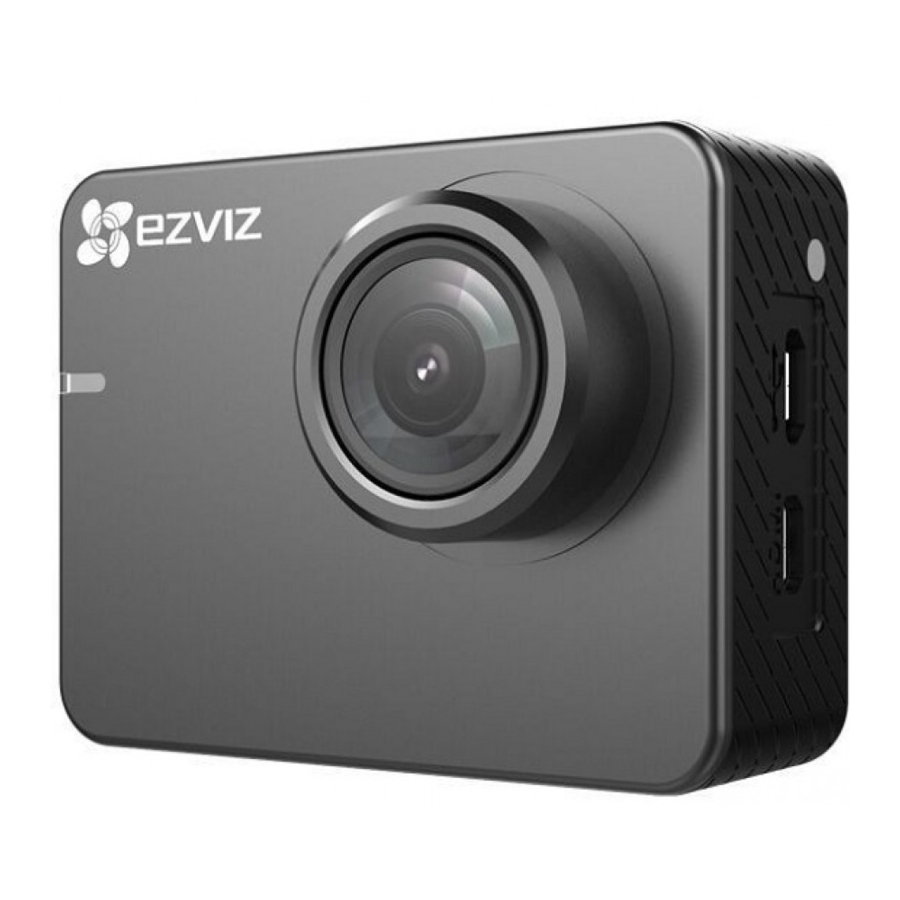

EZVIZ S2 - Action Camera Manual

Basics

Operation

Step 1: Take out the camera.
When using the camera for the first time, take out the camera from the housing to insert the microSD card and charge.

Step 2: Insert the microSD card.
The camera supports video and picture storage in the local memory card.
MicroSD Card Capacity: > 4GB
MicroSD Card Level Requirement: Class 10 and above.
MicroSD Card Recommendation:
SANDISK EXTREME^® 32GB microSDHC^TM
SANDISK EXTREME^® 64GB microSDHC^TM LEXAR^® 32GB microSDHC^TM LEXAR^® 64GB microSDHC^TM
Insert the microSD card into the microSD card slot.

Step 3: Charge the camera.

1. Install the Battery
   Hold down the arrow and push the battery cover according to the arrow direction. Insert the battery with EZVIZ logo facing upward and close the cover.

2. Connect to Power Outlet
   Connect your camera and power outlet via the power cable.

   For the first time use: it's advised to fully charge the camera in the power-off status before you use the camera

Step 4: Power on the camera.

Power on
Hold down the power button until startup sound plays and the camera status LED indicator flashes in green. When the indicator becomes steady green, the camera is power-on and standby.

Power off
Hold down the power button until startup sound plays and the camera status LED indicator turns off.

Please keep the camera powering on when the camera is recording or capturing photos.

Display Introduction

1	Current Recording Mode
		Video
		Burst
		Timelapse
2	Video: Time Already Recorded/Time Left for Recording Photo & Busrt & Timelapse: Captured Picture Number / Left Picture Number Video: Resolution/Frame Rate
3	Photo: Resolution Burst: Resolution/Capture Rate Timelapse: Resolution/Capture Interval
4	Battery Status
5	Live view or playback image
6	Meter Mode/Professional/Dewarping

Use Gestures on Your Camera

Tap the Screen
Open/close display information.

Swipe Left from the Right Edge
Choose the camera mode.

Camera Modes

Press to select the camera mode.

	Video
	Playback
	Setting	Please read the steps below for General Settings.

Setting Steps:

1		Press to open the setting interface of current mode.
2		Press to change the setting item.
3		Press to choose the value for each setting item.
4		Press again to exit the setting interface.

Video

The camera supports three recording modes.

Video		Record video
Photo+Video		Capture picture in a predefined interval while recording video.
Timelapse Video		Continuously capture photos in a predefined interval; Continuously capture photos in a predefined interval and make the photos into a video.

1. Check whether the camer is in the recording mode. If not, move to the left to select.
2. Press to start videoing. The speaker beeps and LED indicator flashes in green.
3. Press to stop videoing. The speaker beeps and LED indicator is in green.

   When SD card is full or the camera is out of power, it will stop videoing and save video/photo files before it stops.

Video Settings

Professional Settings

Professional settings allow you to have photos and videos of high resolution and high quality.
You can set the white balance, sharpness, EV compensation and filter to better fit in your personal style.
Turn on the Professional and then you can set the detailed parameters, After turning it on, the will appear in the main display.

Camera Temperature

When the camera is working in high resolution or frame rate in the warm environment, it may consume more power.
When the camera is overheating, it will power off.
When using camera in high resolution or frame rate, please do not move the camera and not use APP. You can use remote control to replace APP operation. The remote control should be purchased separately.

Video Resolution

Specific data vary according to different cameras.


The camera supports three modes.

Single Shot		Take one single photo.
Burst		Take photos in a predefined interval.
Timelapse		Continuously capture photos in a predefined interval.

1. Check whether the camer is in the recording mode. If not, move to the left to select.
2. Press to take photos. The speaker beeps and LED indicator flashes in green.

Photo Settings

Parameter	Description
Megapixels	A megapixel is equal to one million pixels
Shutter	It decides the time camera may take to enable the shutter.
Burst Rate	Eg. 3/1 Sec means taking 3 photos in 1 second.
Meter Mode Dewarping
Professional	After turning it on, the will appear in the main display.

Playback

View the photos or videos in the camera.

Connect with Display

You can connect the camera and monitor with a HDMI cable to play back videos and photos, record, and get live video.
Connect the camera to the display with a micro-HDMI cable, and power on the camera to show the live view or playback on the display.
The HDMI cable is not included in the box. Please purchase separately.

The LCD screen will be invalid when the camera connects with a display. You can switch the recording mode or enter menu with buttons.
Next Item/Next Mode
Confirm
Return

General Settings

Parameter	Description
Misc Settings
Orientation	Adjust the Display direction.
Default Mode	Set the default Camera Mode for camera powered on.
Vout Mode	Select HDMI or CVBS.
Quick Capture	Turn on Quick Capture and restart the camera. Hold down , so it can work by the default Camera Mode.
LED Blink	Turn on/off the LED indicator.
Flicker Mode	Select according to your frequency of A.C., usually, 60HZ for North America, Japan, etc., 50HZ for China, Europen countries, etc.
On Screen Display	Open/Close screen display icons and digits.
Auto Off	Set the time for camera automatic power-off.
Set Date and Time	Set camera time and date.
Mic Gain	Select the percentage for the Mic Gain.
Speaker Gain	Select the percentage for the Speaker Gain.
Auto Lock	Set the time for screen automatic lock.
Langauage	Select the language you desire.
Camera Reset	Press to reset camera parameters to default.
Wireless Controls
Remote Type	Smart: For Remote Control and Selfie Stick Easy: For Remote Control with Screen
Bind Remote	For remote control connection.
Wi-Fi	On: You can connect the camera with EZVIZ SPORTS app by connecting your mobile devices to camera Wi-Fi. OFF: Turn off the camera Wi-Fi.
SSID	Wi-Fi name.
Key	Wi-Fi password.
Reset Wi-Fi	Press to set the Wi-Fi information to default.
Camera Info	Check the camera information.
Camera Status	Check the camera status.

More Functions

Swipe from upside to downside to enter the interface shown right.

Wireless Control

You can turn on the camera's Wi-Fi to allow the remote control or EZVIZ SPORTS app to connect with the camera.
Tap to turn on Wi-Fi.
You can set the wireless control mode in the setup menu.

• If you select App as the wireless control mode, you can search the "EZVIZ SPORTS" on App Store or Google Play^TM to download and install the app.


  Turn on the Wi-Fi function of your mobile phone, find the Wi-Fi signal of camera and connect with it.
  Wi-Fi Name: EZVIZ_XXXX
  Wi-Fi Password: 1234567890
  The default Wi-Fi name and password are for first-time log-in purposes only. You must change this default password to better protect against security risks, such as the unauthorized access by others to the product that may prevent the product from functioning properly and/or lead to other undesirable consequences.
  The Wi-Fi name and password will be reset to default after the camera is reset.
• If you select Remote as the wireless control mode, refer to the Quick Start Guide of Remote Control for details.

Dash Mode

1. Mount the camera on the front windshield.
2. Connect the camera and car charger with data cable (5V1A), and connect the car charger and automobile cigarette lighter.

3. Enabling the Dash Mode by tapping .


   (Button for Emergency Videoing:
   Hold down the button to protect the video files from being replaced by new files.
   Hold down the Power Button for 3 seconds to shut down.)

Start Videoing
When you turn on the car ignition, the camera starts videoing in the Loop Mode. Please refer to Page 12 for details about Loop Mode.

Stop Videoing
When you stall your car, the camera will stop videoing,

Exit Dash Mode
Swipe down on the screen and tap on the camera logo on the left to exit.

Note

For more information and manual downloading, please go to https://service.ezvizlife.com.
