S5/S5 Plus
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S5 and is the answer not in the manual?

Questions and answers

Related Manuals for Ezviz S5

Summary of Contents for Ezviz S5

  • Page 1 S5/S5 Plus User Manual...

  • Page 2: Box Content

    Box Content USB Cable x1 camera x1 (1m) Power Adapter x1 User Manual x1 and other components The figures in this manual are for reference only and may differ from the actual product.
  • Page 3 Basics...

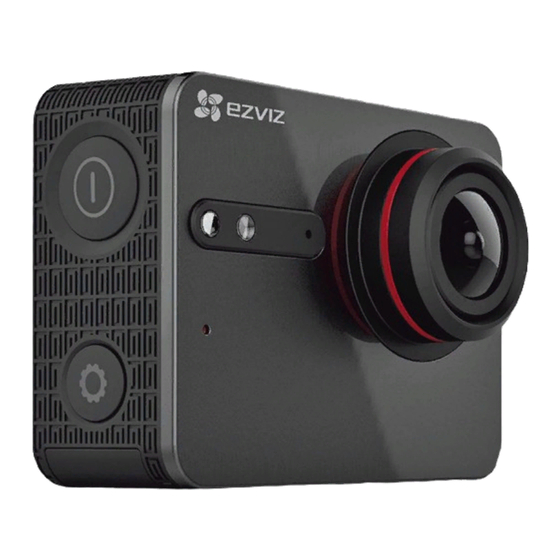

  • Page 4 Shutter Start/Stop Recording Camera Status Steady Blue: Standby. LED Indicator Blue Flicker: Camera is on. Steady Red: No inserted microSD card. Microphone Lens 152° Diagonal View Angle Power/Recording Steady Red: Charging LED Indicator Unlit: Fully charged Other Status: Same as the recording status when not charging.
  • Page 5 Buzzer Audio Alert...
  • Page 6 Various accessories to fulfill different requirements. Wrist-mounted remote control to free your hands. Built-in G-sensor for sensing moving status. Cooperate with EZVIZ SPORTS app to view your videos by mobile phone and share your beautiful moments with your friends via the social network.

  • Page 7: Operation

    Operation Step 1 Take out ONE. ONE is placed inside a waterproof housing by default. For the first time use, you should take out ONE from waterproof housing to insert the microSD card and charge.
  • Page 8 Step 2 Insert the microSD card. ONE only supports video and picture storage in the local storage card. Insert the microSD card into the microSD card slot. (Use the recommended card model and the card capacity should be no less than 4GB.) MicroSD Card Level Requirement: Class 10 and above.
  • Page 9 Step 3 Charge ONE. Charge ONE when it runs out of battery. It’s advised to fully charge ONE in the power-off status before you use ONE for the first time. It will take at most 2 hours to fully charge ONE. Power Socket USB Cable The Power LED Indicator status:...

  • Page 10: Power-On And Power-Off

    Do not power off ONE when it’s recording; ONE will be powered off if no operation in 2 minutes after startup, and the Power LED Indicator goes off. You can configure the auto power-off duration with EZVIZ SPORTS app.
  • Page 11 EZVIZ SPORTS App Download and install the EZVIZ SPORTS app, so you can live view, play video and control the camera (ONE) with your mobile phone. System Requirement: iOS: iOS V6.0 and above. Android: Android V4.0 and above. Install EZVIZ SPORTS app.
  • Page 12 You can change the Wi-Fi name and password with the EZVIZ SPORTS app. The Wi-Fi name and password will be reset to default after ONE is reset. Operate ONE with EZVIZ SPORTS app.

  • Page 13: Recording Modes

    Beep Three Times Video Beep Four Times You can also change the recording mode with EZVIZ SPORTS app. The Burst mode is appropriate for capturing the fast moving object. The Time Lapse mode can continuously capture photos according to the predefined interval.
  • Page 14 11 for details. Start Recording Press the Shutter button or operate on the EZVIZ SPORTS app to start recording. When ONE starts recording, the Camera Status LED Indicator turns blue flicker and the buzzer beeps once.
  • Page 15 Video Parameters Appropriate for all scenes with high-definition and 1080P 60fps high-frame rate video. Appropriate for all scenes with high-definiton and less 1080P 30fps storage space requirement. Appropriate for recording the fast moving object or 720P 120fps handheld recording. Appropriate for recording the fast moving object or 720P 60fps handheld recording.
  • Page 16 Video Mode Normal Mode Recording stops when the microSD card is full. New video and photo files will overwrite the old ones Loop Mode when the microSD card is full with no prompts. Being limited by the file system format, any video file which is greater than 4GB will be divided into several files that is less than 4GB automatically.
  • Page 17 11 for details. Capture a Photo Press the Shutter button or operate on the EZVIZ SPORTS app to capture a photo. While the Camera Status LED Indicator flickers in blue once and the buzzer beeps once.
  • Page 18 Set the recording mode of ONE to the Burst mode by pressing the power button; refer to the page 11 for details. Capture Burst Photos Press the Shutter button or operate on the EZVIZ SPORTS app to capture burst photos according to the pre-defined parameters. Burst Parameters Rate 5pcs/1s Capture 5 photos in 1 second.
  • Page 19 The 30pcs/1s might be too fast for taking burst photos; you should select it discreetly. You are not allowed to execute other operations until all burst photos are saved.

  • Page 20: Time Lapse

    Set the recording mode of ONE to the Time Lapse mode by pressing the power button; refer to the page 11 for details. Capture Time Lapse Photos Press the Shutter button or operate on the EZVIZ SPORTS app to capture time lapse series photos according to the pre-defined parameters. Time Lapse Parameters Interval 0.5s...

  • Page 21: More Settings

    More Settings The following settings are supported by EZVIZ SPORTS app. Open the app and set the parameters in the Settings menu. Default Mode The default recording mode after starting up. Upside Down Flip the image upside down. Auto Power-off Time The time to turn off the ONE automatically.
  • Page 22 Video Standard When you view the video and picture of ONE on a TV/HDTV, the video standard should be the same as the television. NTSC: Appropriate for the TV/HDTV in North America. PAL: Appropriate for most of the TV/HDTV outside of North America. Driving Mode After enabled, ONE records video only when the vehicle is moving.
  • Page 23 Initialize Storge Initialize the inserted microSD card. Card All files on the microSD card will be deleted after initialization. Storage Card Check the microSD card status. Information Set Device Wi-Fi Change the name and password of Wi-Fi.. Device Information Check the model and version of ONE.
  • Page 24 Playback and Live View via HDMI Output You can connect ONE and monitor with a HDMI cable to play back videos and photos, and get live video. Power on ONE, press the power button and shutter button simultaneously to enter the HDMI setting interface for the first time use. The HDMI cable is not included in the box.
  • Page 25 File Synchronizati with PC You can synchronize the videos and photos in ONE to PC in two ways: Power on ONE and connect ONE to PC with a USB cable (ONE switches to the Data Transmission mode and other operations will be invalid); Pull out the microSD card from ONE and plug it into PC with a card reader.

  • Page 26: Specifications

    Specifications H.264 codec and mp4 Compression Standard Sensors Image Sensor: 16.0MP G-sensor: Gravity Sensor Waterproof Performance Water proof to 40m (131 ft) in the waterproof housing. -20°C~45°C (-4°F~113°F) Working Temperature 1160mAh, battery life: ~1.5h Batt ry The battery performance may affected by the settings, environment and other factors.

This manual is also suitable for:

S5 plus
