Service
Manual
Product Valve
Control Panel
Product Identification....................................................Page 1
Table of Contents...........................................................Page 1
Warranty Statement......................................................Page 2
Electrical Specifications.................................................Page 3
Safety Information.........................................................Page 3
General............................................................................Page 3
Important........................................................................Page 3
Tools Required...............................................................Page 4
Operational Flowchart..................................................Page 5
Manager Mode Flowchart............................................Page 6
Service Menu Flowchart...............................................Page 7
SK-1-C1 Cream Dispenser 45386 REV A 01/2019

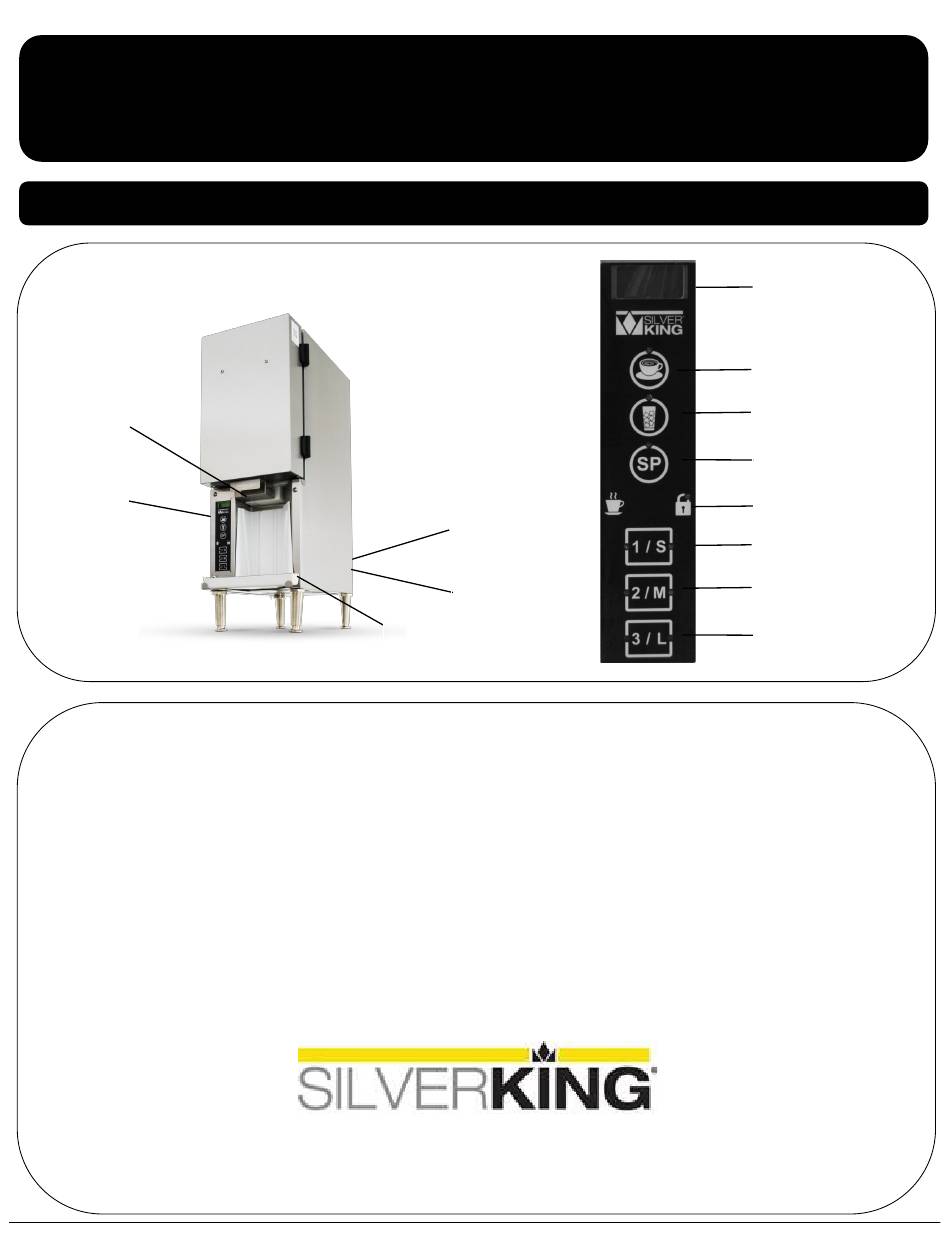

Product Identification
Power Switch
(on back side)
Power Cord
(on back side)
Drip Tray
TABLE OF CONTENTS
Remove/Replace Display Assembly......................... Page 8
Remove/Replace Control Board................................ Page 9
Remove/Replace Load Cell.........................................Page 10,11
Remove/Replace Solenoid..........................................Page 12
Remove/Replace Power Supply.................................Page 13
Troubleshooting Steps.................................................Page 14,15
Parts List and Exploded View......................................Page 16
Wiring Diagram.............................................................Page 17
Allowable Labor Limits.................................................Page 18
1600 Xenium Lane N, Plymouth , MN 55441 USA
Telephone: 763-923-2441 • Toll Free: 1-800-328-3329
Fax: 763-553-1209 • www.silverking.com
Cream Dispenser
Model SK-1-C1
Indicator Panel
Hot Drink Selection
Iced Drink Selection
Special Drink Selection
Lock Button
Small Button
Medium Button
Large Button
Printed in USA 01/2019
Advertisement
Table of Contents
Related Manuals for Silver King SK-1-C1
Summary of Contents for Silver King SK-1-C1
-
Page 1: Table Of Contents
Allowable Labor Limits…...……..…………………………..…Page 18 Manager Mode Flowchart.……………….……………………Page 6 Service Menu Flowchart………………….………….……..….Page 7 1600 Xenium Lane N, Plymouth , MN 55441 USA Telephone: 763-923-2441 • Toll Free: 1-800-328-3329 Fax: 763-553-1209 • www.silverking.com SK-1-C1 Cream Dispenser 45386 REV A 01/2019 Printed in USA 01/2019... -
Page 2: Warranty Statement
Five (5) Year Compressor Warranty Silver King warrants to the original purchaser for a period of five (5) years from the date of original purchase or five (5) years and one (1) month from the date of shipment from the factory, whichever comes first, that it will replace the compressor with one of similar design and capacity, exclusive of delivery and installation charges, if it is found to Silver King’s satisfaction to... -
Page 3: Electrical Specifications
Safety Information General WARNING The SK-1-C1 Cream Dispenser is designed to hold and dispense bulk coffee cream. It will dispense three portion sizes Indicates information important to the proper operation of the – 1 cream packet, 2 cream packets or 3 cream packets. -
Page 4: Tools Required
Cream Dispenser Model SK-1-C1 Tools Required Medium Phillips / Flathead Screwdriver Stubby Phillips Screw Driver Long Phillips Screw Driver Needle Nose Pliers Selection of Small-Sized Nut Drivers... -
Page 5: Operational Flowchart
Cream Dispenser Model SK-1-C1 Operational Flowchart... -
Page 6: Manager Mode Flowchart
Cream Dispenser Model SK-1-C1 Manager Mode Flowchart... -
Page 7: Service Menu Flowchart
Cream Dispenser Model SK-1-C1 Service Menu Flowchart... -
Page 8: Remove/Replace Display Assembly
Cream Dispenser Model SK-1-C1 Remove Display Assembly References Unplug the unit. Remove cream bin from unit. WARNING Failure to disconnect power from the unit before servicing could result in severe bodily injury or death. The ON/OFF Remove the drip tray from the unit Loosen the (4) screws to remove front fascia and ac- cess the electronics. -
Page 9: Remove/Replace Control Board
Cream Dispenser Model SK-1-C1 Reinstall the front fascia onto unit. Ensure (4) screws Remove Control Board are secure. Previously removed in step 3 Unplug the unit. Remove cream bin from unit. Reinstall drip tray and creamer bin. Plug in unit. Verify functionality of unit. - Page 10 Cream Dispenser Model SK-1-C1 Remove Load Cell Unplug the unit. Remove cream bin from unit. WARNING Failure to disconnect power from the unit before servicing could result in severe bodily injury or death. The ON/OFF Remove the drip tray from the unit Loosen the (4) screws to remove front cover and ac- cess the electronics.
-
Page 11: Remove/Replace Load Cell
Cream Dispenser Model SK-1-C1 Replace Load Cell Feed in load cell wiring. Reinstall (4) screws to secure load cell to unit. Previously removed in step 7. Reconnect load cell connection to board. Previously removed in step 6 Reinstall the display cable. Previously removed in step Reinstall the front fascia onto unit. -
Page 12: Remove/Replace Solenoid
Cream Dispenser Model SK-1-C1 Reinstall the front fascia onto unit. Ensure (4) screws Remove Solenoid are secure. Previously removed in step 3 Unplug the unit. Remove cream bin from unit. Reinstall drip tray and creamer bin. Plug in unit. Verify functionality of unit. -
Page 13: Remove/Replace Power Supply
Cream Dispenser Model SK-1-C1 Reinstall the front fascia onto unit. Ensure (4) screws Remove Power Supply Assembly are secure. Previously removed in step 3 Unplug the unit. Remove cream bin from unit. Reinstall drip tray and creamer bin. Plug in unit. Veri- fy functionality of unit. -
Page 14: Troubleshooting Steps
Cream Dispenser Model SK-1-C1 Troubleshooting Steps Master Display Messages PROBLEM PROBABLE CAUSE SOLUTION Compressor will not run No Voltage at wall receptacle Check circuit breaker or fuse Service cord pulled out of wall receptacle Replace. Low voltage causing compressor to cycle on... - Page 15 Cream Dispenser Model SK-1-C1 Troubleshooting Steps ( Continued ) Master Display Messages PROBLEM PROBABLE CAUSE SOLUTION Noisy Tubing Vibrates Check circuit breaker or fuse Internal compressor noise Call for service (800-328-3329). Compressor vibrating on cabinet frame Call for service (800-328-3329).
-
Page 16: Parts List And Exploded View
Cream Dispenser Model SK-1-C1 Parts List and Exploded View Item Part Number Description Item Part Number Description 366-124S ASSEMBLY DOOR 24050S LABEL ELECTRIC SHOCK HAZARD 31126S GASKET DOOR 366-135S POWER SUPPLY ASSEMBLY 25226S HINGE W/SCREWS & COVERS 366-139S ASSEMBLY APRON... -
Page 17: Wiring Diagram
Cream Dispenser Model SK-1-C1 Wiring Diagram... -
Page 18: Allowable Labor Limits
Cream Dispenser Model SK-1-C1 Allowable Labor Limits Procedure Part Number Max Labor Hours Remove/Replace Control Board 366-137S 0.5 Hour(s) Remove/Replace Power Supply Assembly 366-135S 0.5 Hour(s) Remove/Replace Display Assembly 366-139S 0.5 Hour(s) Remove/Replace Solenoid 366-132S 0.5 Hour(s) Remove/Replace Load Cell...
