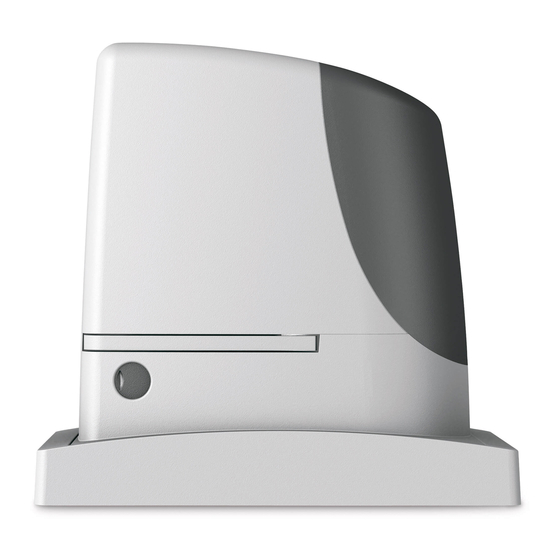

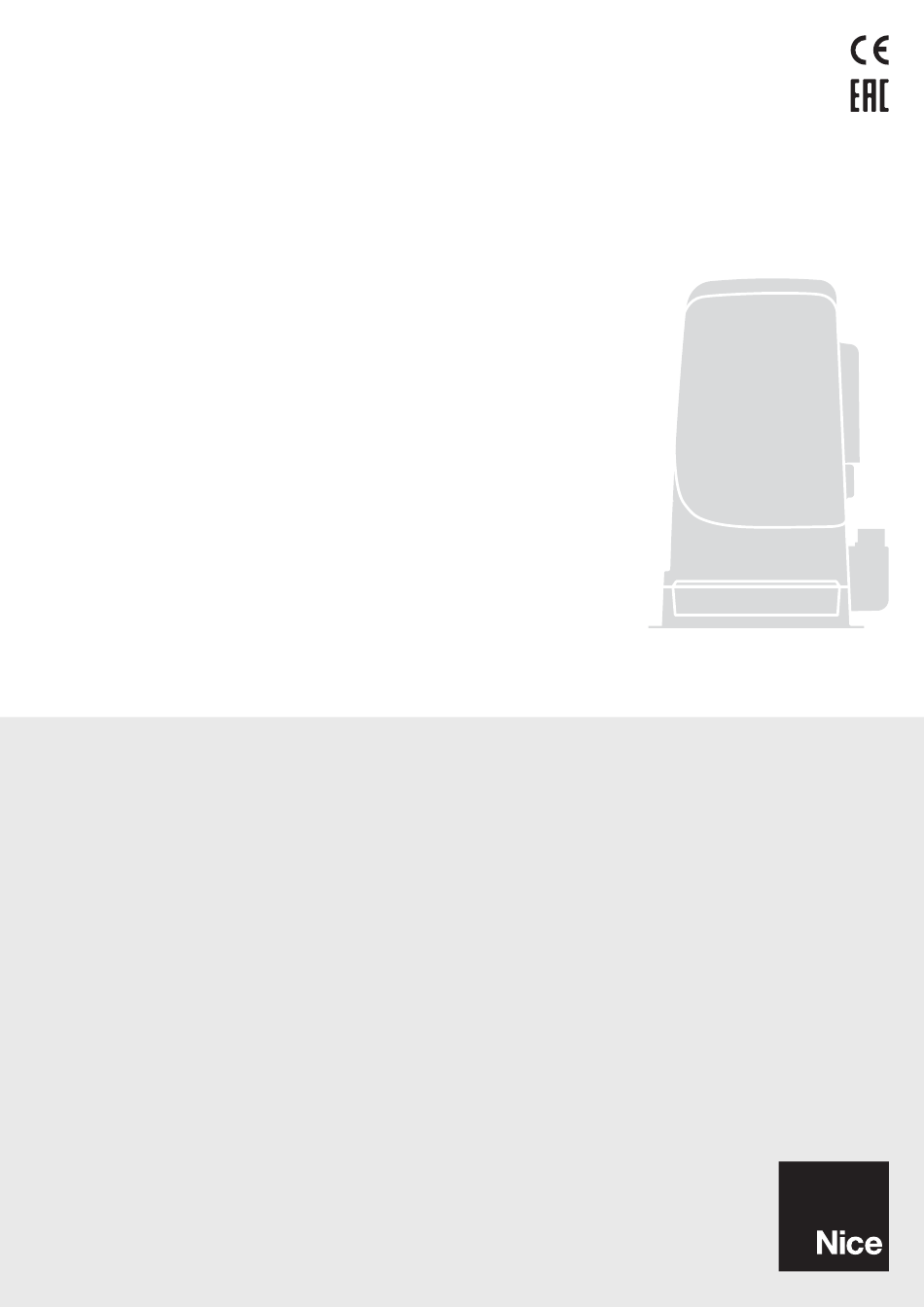

- Page 1 Nice RUN1500 For sliding gates EN - Instructions and warnings for installation and use...
-
Page 2: Table Of Contents
ENGLISH GENERAL SAFETY WARNINGS AND PRECAUTIONS Translation of the original instructions in full GENERAL SAFETY WARNINGS AND PRECAUTIONS 1.1 GENERAL WARNINGS WARNING! Important safety instructions. Observe CONTENTS all the instructions as improper installation may cause serious damages. GENERAL SAFETY WARNINGS AND PRECAUTIONS ..2 1.1 General warnings . -
Page 3: Installation Warnings
If powered from the mains, RUN1500 can house a back-up – Inspect the system frequently, in particular the cables, battery (model PS124, optional accessory) which, in case of a... -
Page 4: Installation
– check that the force required to start moving the gate leaf Table 1 is less than half the “maximum torque”, and that the force RUN1500 - LIMITS IN RELATION TO THE GATE LEAF LENGTH required to keep the gate leaf moving is less than half the Maximum no. of Maximum no. -
Page 5: Product Durability
3.2.1 Product durability The product’s durability is its average economic life value and is strongly influenced by the degree of severity of the manoeuvres: in other words, the sum of all factors that contribute to product 500.000 wear. 450.000 To estimate the durability of your automated device, proceed as follows: 400.000 add the values of the items in “Table 3”... -
Page 6: Pre-Installation Works
3.4 PRE-INSTALLATION WORKS The figure shows an example of an automation system, constructed using Nice components. A Key selector Note 1 If the power supply cable is longer than 30 m, a cable B Photocells on column with larger cross-sectional area (3 x 2.5 mm... -
Page 7: Installing The Gearmotor
3.5 INSTALLING THE GEARMOTOR Incorrect installation may cause serious physical injury to the person working on the system or to its future users. Before starting to assemble the automation, complete the preliminary checks described in the “ Pre-installation checks” and “Product usage limits” paragraphs. - Page 8 check that the clearance between the rack and pinion is place the gearmotor (D) on the plate make sure that the gearmotor lies perfectly parallel with around 1–2 mm along the entire length fasten the rack to the gate leaf with adequate fasteners the leaf and then slightly tighten the four nuts and washers provided 1÷2 mm...
-
Page 9: Adjusting The Mechanical Limit Switches
3.6 ADJUSTING THE MECHANICAL LIMIT ELECTRICAL CONNECTIONS SWITCHES To adjust the limit switches, proceed as follows: ELECTRICAL CONNECTIONS unlock the gearmotor with the relevant key provided (refer to the “Manually unlocking and locking the gearmotor” 4.1 PRELIMINARY CHECKS paragraph) manually perform a complete opening and closing All electrical connections must be made with the manoeuvre to allow the mechanical limit switches to self- system disconnected from the mains electricity and... -
Page 10: Wiring Diagram And Description Of Connections
ELECTRICAL CONNECTIONS Terminals Description Output for one or two Nice or similar type warning lights with 12 V bulb only, maximum 21 W. FLASH “Open Gate Indicator” output; a 24 V (max 4 W) signalling light can be connected. It can also be programmed for other functions; see the “Level 2 programming (adjustable parameters)”... -
Page 11: Final Checks And Start-Up
once this phase terminates, the “Stop” LED must be lit FINAL CHECKS AND START-UP and LEDs “L1” and “L2” must switch off (LEDs “L3” and “L4” could start flashing). It is advisable to position the leaf approximately halfway along its FINAL CHECKS AND START-UP path before starting the automation check and start-up phases, so that the leaf is free to open and close. -
Page 12: Checking The Gate Movement
5.5 CHECKING THE GATE MOVEMENT TESTING AND COMMISSIONING Once the leaf length has been learned, it is advisable to carry out a few manoeuvres in order to verify that the gate moves These are the most important phases of the automation’s properly. -
Page 13: Programming
“Maintenance schedule”, containing the maintenance instructions for all the automation’s devices. For all the above-mentioned documentation, Nice – through its technical assistance service – provides the following: pre-completed forms. ENGLISH – 13... -
Page 14: Level 1 Programming (On-Off)
7.2 LEVEL 1 PROGRAMMING (ON-OFF) All the Level 1 functions are factory-set to “OFF” and can be modified at any time. To check the various functions, refer to “Table 6”. 7.2.1 Level 1 programming procedure The user has maximum 10 seconds to press the buttons consecutively during the programming procedure, after which time the procedure terminates automatically and memorises the changes made up to then. -
Page 15: Level 2 Programming (Adjustable Parameters)
7.3 LEVEL 2 PROGRAMMING (ADJUSTABLE PARAMETERS) All Level 2 parameters are factory-set as highlighted in “GREY” in “Table 7” and can be modified at any time. The parameters can be adjusted to between 1 and 8. To verify the value corresponding to each LED, refer to “Table 7”. 7.3.1 Level 2 programming procedure The user has maximum 10 seconds to press the buttons consecutively during the programming procedure, after which time the procedure terminates automatically and memorises the changes made up to then. -
Page 16: Special Functions
LEVEL 2 FUNCTIONS (ADJUSTABLE PARAMETERS) Entry LED Parameter LED (level) Set value Description “Gate Open Indicator” (G.O.I.) function Enabled if gate leaf closed Adjusts the function associated Enabled if gate open with the OGI output [regardless Enabled with radio output no. 2 of the associated function, the output output –... -
Page 17: Maintenance Notice" Function
To do this: When the safety devices fail to work, the press and hold the button until LED “L1” starts warning light will emit a few flashes to signal flashing the type of problem. To verify the type of release the button when LED “L1”... -
Page 18: Troubleshooting Guide
TROUBLESHOOTING... (troubleshooting guide) TROUBLESHOOTING GUIDE 8.1 TROUBLESHOOTING The table below contains useful instructions to resolve any malfunctions or errors that may occur during installation or in case of a fault. Table 9 TROUBLESHOOTING Problems Recommended checks The radio transmitter does not control the gate and the LED on the Check whether the transmitter batteries are exhausted and replace them if necessary. -
Page 19: Signalling Through Warning Light
8.3 SIGNALLING THROUGH WARNING LIGHT During the manoeuvre, the “FLASH” warning light flashes once every second; whenever anomalies occur, shorter flashes are emitted; the flashes are repeated twice with a one-second pause in between. Table 10 FLASH WARNING LIGHT SIGNALS Fast flashes Cause ACTION... - Page 20 During normal operation, it signals that the “CLOSE” input triggers a partial opening manoeuvre. Function programming in progress. Flashes LED 8 Description During normal operation, it signals that RUN1500 is configured as master. During normal operation, it signals that RUN1500 is configured as slave. Flashes Function programming in progress. 20 – ENGLISH...
-
Page 21: Further Details (Accessories)
9.1.3 Photocells FURTHER INFORMATION To allow the control unit to recognise the devices connected (Accessories) through the “BlueBUS” system, these devices must be addressed. FURTHER DETAILS (Accessories) This operation can be carried out by correctly positioning 9.1 ADDING OR REMOVING DEVICES the electrical jumper present in each device (also refer to Once the automation has been assembled, it is possible to the instruction manual of each device). -
Page 22: Ft210B Photosensor
9.1.4 FT210B photosensor 9.1.5 Gearmotor in SLAVE mode The FT210B photosensor combines in a single device a force The motor can function in SLAVE mode by suitably programming limiting system (type C, in accordance with the EN12453 and connecting it; this operating mode is used to automate two standard) and a presence sensor that detects obstacles on the opposite leaves that must move in a synchronised manner. -
Page 23: Learning Of Other Devices
select the opening direction of the two motors, as shown in the figure (also refer to the “Choosing the direction” paragraph) power the two motors in the SLAVE motor, programme the “SLAVE mode” To do this: function (see “Table 6”) simultaneously press and hold the perform the procedure for acquiring devices on the SLAVE buttons... -
Page 24: Connecting And Installing The Back-Up Battery
If the OXI radio receiver used in “EXTENDED MODE” is installed, 9.1.8 Connecting and installing the back-up battery it may send the commands shown in “Table 15“. The electrical connection of the battery to the Table 15 control unit must be made only after completing OXI / OXIFM /OXIT / OXITFM IN MODE 2 EXTENDED all the installation and programming stages, as the Command... -
Page 25: Connecting The Oview Programmer
The Oview may be connected to multiple control units 9.1.9 Connecting the Oview programmer simultaneously (up to 5 with no particular precautions, up to The control unit has a BusT4 connector to which the “Oview” 60 with the warnings stated) and may be left connected to the programmer can be connected, through the IBT4N interface. -
Page 26: Product Maintenance
PRODUCT MAINTENANCE PRODUCT DISPOSAL The automation must be subjected to regular maintenance PRODUCT MAINTENANCE PRODUCT DISPOSAL This product is an integral part of the operator and to keep its safety level constant and guarantee long-lasting must therefore be disposed of with it. operation;... -
Page 27: Technical Specifications
TECHNICAL SPECIFICATIONS TECHNICAL SPECIFICATIONS All technical specifications stated in this section refer to an ambient temperature of 20°C (± 5°C). Nice S.p.A. reserves the right to apply modifications to the product at any time when deemed necessary, without altering its functions and intended use. -
Page 28: Conformity
“partly completed machinery” Note - The contents of this declaration correspond to declarations in the official document deposited at the registered offices of Nice S.p.a. and in particular to the last revision available before printing this manual. The text herein has been re-edited for editorial purposes. A copy of the original declaration can be requested from Nice S.p.a. (TV) I. -
Page 29: Instructions And Warnings For The User
INSTRUCTIONS AND WARNINGS FOR THE USER Before using the automation for the first time, ask the installer to Safety devices out of order: the automation can also be used explain the origin of any residual risks and take a few minutes when one or more safety devices are defective or out of order. - Page 30 Unlocking and manual movement The gate can only be unlocked once the leaf has come to a standstill. insert the key (A) and turn it clockwise by 90° move the gate leaf manually. 30 – ENGLISH...
- Page 31 NOTES ENGLISH – 31...
- Page 32 Nice SpA Via Callalta, 1 31046 Oderzo TV Italy www.niceforyou.com info@niceforyou.com...
