Related Manuals for Siemens HB86K 72 Series
Summary of Contents for Siemens HB86K 72 Series

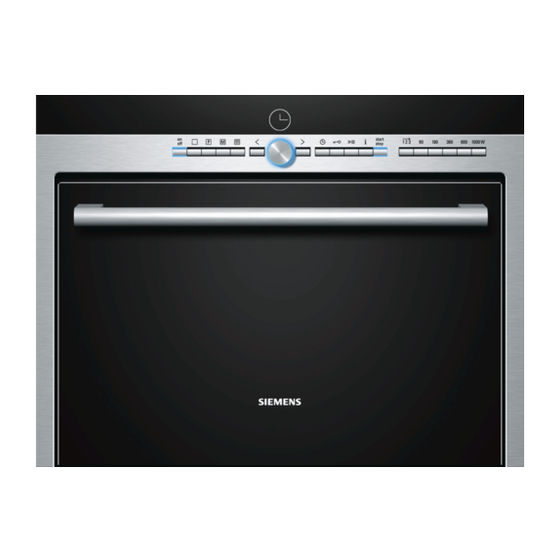

- Page 1 [en] Instruction manual HB86K.72 Compact microwave oven...
-
Page 2: Table Of Contents
Setting a later end time ..............13 Setting the clock ................13 Additional information on products, accessories, replacement Memory ..................13 parts and services can be found at www.siemens-home.com Storing settings in the memory ............. 13 and in the online shop www.siemens-eshop.com Starting the memory................ 13 ã=Safety precautions... -
Page 3: Before Installation
Hot accessories and ovenware Please keep the instructions for use and installation instructions Risk of burns! in a safe place. Please pass on these manuals to the new Never remove ovenware or accessories from the cooking owner if you sell the appliance. compartment without an oven cloth or oven gloves. -
Page 4: Causes Of Damage
Microwave power and time Drying food Risk of fire! Risk of fire! Do not select a microwave power or time setting that is higher Never use the microwave to dry food. than necessary. The food could catch fire and cause damage Food with a low water content to the appliance. -
Page 5: Your New Appliance
Your new appliance Use this section to familiarise yourself with your new appliance. explained. You will find information on the cooking The control panel and the individual operating controls are compartment and the accessories. Control panel Here, you will see an overview of the control panel. Depending on the appliance model, individual details may differ. -
Page 6: Temperature Indicator
Accessories Ñ = turn the rotary selector anti-clockwise If both direction arrows are shown, you can turn the rotary The accessories can be inserted into the oven at 3 different selector in either direction. levels. Temperature indicator The temperature indicator bars show the heating phases or residual heat in the cooking compartment. -
Page 7: Before Using The Appliance For The First Time
Initial setup Press the button. ‡ Once your new appliance is connected, "Uhrzeit einstellen" (set The Siemens logo appears. clock) appears in the status bar at the top. Set the time, and Immediately press the button. " also the text display language, if required. German is the default 3D hot air heating type and a temperature of 160 °C... -
Page 8: Switching Off
Switching off If after a few seconds you have not yet selected any operating mode, “Select function” appears in the status bar. Press the button. ‡ A description of how to make settings is provided in the The oven switches off. individual sections. -
Page 9: Recommended Settings
Setting a later end time Calling up information See the section entitled Time-setting options, Setting a later end Press the ± button briefly. For any information, press the ± time. button again briefly. Recommended settings Setting a later end time See the section entitled Time-setting options, Setting a later end If you choose a dish from the recommended settings, the ideal time. -
Page 10: Microwave Power Settings
The ovenware is unsuitable if it becomes hot or sparks are Set the cooking time using the rotary selector. generated. 0LFURZDYH Microwave power settings Use the button to set the desired microwave power. 6HOHFW ODQJXDJH PLQ VHF (QJOLVK 90 W for defrosting delicate foods 180 W... -
Page 11: Combination
Combination This involves the simultaneous operation of one type of heating &RPELQDWLRQ with the microwave. Using the microwave makes your meals ready more quickly, and they are still nicely browned. You can set a cooking time of up to 1 hour 30 minutes. PLQ VHF ƒ&... -
Page 12: Setting A Series Of Operations
Setting a series of operations Select and set the desired operating mode. Press the button again. Press the button. The 3 for the third operation in the series is highlighted: series of operations appears on the status bar. The 1 is highlighted. -
Page 13: Setting A Later End Time
appropriate time. You can see the cooking time counting Cancelling the cooking time down in the status bar. Press the button to open the menu. Move to the cooking time using the button and set the cooking time to 0:00 ¿... -
Page 14: Sabbath Mode
Press the † button. Changing the memory location The memory setting starts. Once operation has started, you can no longer change the memory location. Changing the settings This can be done at any time. The setting you originally saved appears the next time you start the memory. Sabbath mode When this setting is used, the temperature of the oven remains Use the button... -
Page 15: Changing The Basic Settings
= more intensive ÙÙÙÙÙØÙ to the left = less intensive Display brand logo: The Siemens logo appears after the oven is switched on 3D hot air from 30 to max. 250 °C Permanently change default temperature for Suggestion: 160 °C... -
Page 16: Automatic Switch-Off
Switch to the right-hand settings area using the ¿ button and You can now make further changes to the basic settings by change the value using the rotary selector. switching to the basic setting using the ¾ button and making the adjustments as described under points 2 and 3. -
Page 17: Cleaning The Glass Cover
Use both hands to slide it back into the two catches. (Fig. B). Notes Never treat the self-cleaning surfaces with oven cleaner. If ■ oven cleaner accidentally gets onto the back wall or ceiling, remove it immediately with a sponge and plenty of water. Never use abrasive cleaning agents. -
Page 18: Malfunction Table
Push the door panel downwards, lift it slightly and hook it in Fully open the door, while holding the panels firmly with one at the top. (Fig. B). hand. (Fig. C). Push the door downwards again and tighten the screws hand-tight using a flat-bladed screwdriver (blade width 8- 11 mm), close the door. -
Page 19: Replacing The Oven Light Bulb
Problem Possible cause Remedy/information Microwave operation has been The microwave has a fault. If this fault occurs repeatedly, please call the cancelled for no apparent reason. after-sales service. Oven operation without microwave is possible. With microwave operation, the The microwave power setting is too low. Select a higher power setting. -
Page 20: Energy And Environment Tips
01450 2655 After-sales service Trust the expertise of the manufacturer, and rest assured that the repair will be carried out by trained service technicians using original spare parts for your domestic appliance. Please note that there will be a fee for a visit by a service technician in the event of a malfunction, even during the This appliance corresponds to the standards EN 55011 and warranty period. -
Page 21: Adjusting Individually
Place the food in the cold cooking compartment. The programme has ended ■ A signal sounds. The oven stops heating. You can cancel the A table of suitable types of food with appropriate weight ■ signal earlier by pressing the button. - Page 22 Programme group Suitable food Weight range Ovenware/accessories, shelf height Programme in kg Fish fillet** Fillet of pike, cod, salmon, rosefish, pol- 0.20 - 1.00 Shallow ovenware without lid, wire rack, level 1 lock, pike-perch Fish steak** Cod, pike, haddock, salmon steak 0.20 - 1.00 Shallow ovenware without lid, wire rack, level 1 * Signal to turn after the cooking time is approximately halfway through.
- Page 23 Programme group Weight range in kg Ovenware/accessories, shelf height Programme Cereal products Long grain rice* 0.10 - 0.50 Deep ovenware with lid, wire rack,level 1 Basmati rice* 0.10 - 0.50 Deep ovenware with lid, wire rack,level 1 Brown rice* 0.10 - 0.50 Deep ovenware with lid, wire rack,level 1 Polenta*** 0.10 - 0.50...
- Page 24 Cook turkey breast without the skin. Add 100 to 150 ml of Poultry ■ liquid to the turkey breast. Add another 50 to 100 ml of liquid Notes after turning if necessary. Place chicken or poulard in the ovenware breast-side down. ■...
-
Page 25: Tested For You In Our Cooking Studio
Programme group Suitable food Weight range Ovenware/accessories, shelf height Programme in kg Rabbit, fresh 0.50 - 2.00 Deep ovenware with lid, wire rack,level 1 * Signal to turn after the cooking time is halfway through ** Signal to turn after of the cooking time has elapsed. - Page 26 aluminium foil. The foil must not touch the cooking Leave defrosted items to stand at room temperature for a ■ compartment walls. You can remove the foil half way through further 10 to 60 minutes so that the temperature can the defrosting time.
- Page 27 Defrosting, heating up or cooking Weight Microwave power setting in Notes frozen food watts, cooking time in minutes Slices or pieces of meat in sauce, 500 g 600 W, 12-17 mins Ovenware with lid e.g. goulash 1 kg 600 W, 25-30 mins Fish, e.g.
-
Page 28: Microwave Tips
Cooking food Weight Microwave power in watts, Notes Cooking time in minutes Whole chicken, fresh, no giblets 1.5 kg 600 W, 25-30 mins Turn halfway through the cooking time Fish fillet, fresh 400 g 600 W, 8-13 mins Fresh vegetables 250 g 600 W, 6-10 mins Cut into equal-sized pieces;... - Page 29 Cakes in tins Accessories Level Type of Temperature °C Microwave power Cooking time heating in watts in minutes Sponge cake, simple Ring tin/round tin 160-180 90 W 30-40 Sponge cake, delicate (e.g. Ring tin/round tin 150-170 60-80 pound cake) Sponge flan base Flan tin 160-180 25-35...
-
Page 30: Baking Tips
Top/bottom heating 3D hot air ■ ■ Small baked items Accessories Level Type of heat- Temperature in °C Cooking time in minutes Biscuits Universal pan 150-170 20-30 Biscuits Universal pan + 140-160 30-40 Enamel baking tray* Macaroons Universal pan 120-140 35-45 Macaroons Universal pan +... -
Page 31: Roasting And Grilling
You have measured the temperature of the The oven temperature is measured by the manufacturer after a specified period of oven using your own meat thermometer time using a test rack in the centre of the cooking compartment. Ovenware and and found there is a discrepancy. - Page 32 Veal Accessories Level Type of Temperature in Microwave power in Cooking time heating °C, grill setting watts in minutes Joint of veal, approx. 1 kg Ovenware with lid, 210-220 90 W 60-70 wire rack Joint of veal, approx. 1.5 kg Ovenware with lid, 200-210 90 W 70-80...
- Page 33 Lamb and game Accessories Level Type of Temperature °C Microwave power Cooking heating in watts time in min- utes Joint of venison, Ovenware with lid, 200-220 90-100 approx. 1.5 kg Wire rack Rabbit, approx. 1.5 kg Ovenware with lid, 200-220 90 W 25-35 Wire rack...
-
Page 34: Tips For Roasting And Grilling
Poultry Accessories Level Type of Temperature in Microwave power Cooking time in heating °C, grill setting in watts minutes Turkey drumsticks, Ovenware with lid, wire 210-230 360 W 45-50 approx. 1.3 kg rack * Add 50 ml of water to the universal pan. Fish For braised fish, cook the whole fish in its swimming position. -
Page 35: Convenience Products
Bakes, gratins, toast with Accessories Level Type of Temperature in Microwave power in Cooking time toppings heating °C, grill setting watts in minutes Bake, sweet, approx. 1.5 kg Ovenware with lid, 140-160 360 W 25-35 Wire rack Soufflé Ovenware without lid, 160-180 40-45 Wire rack... -
Page 36: Tips For Slow Cooking
Select Slow cook and a temperature between 70 and In order to check whether the meat is cooked, use a meat ■ 100 °C. Preheat the cooking compartment, thus warming the thermometer. A core temperature of 60 °C should be ovenware at the same time. -
Page 37: Baking
Microwave cooking Dish Microwave power setting in watts, cooking Note time in minutes Custard 360 W, 10 mins + 180 W, 20-25 mins Place Pyrex dish on the wire rack at level 1. Sponge 600 W, 8-10 mins Place 22 cm Pyrex dish on the wire rack at level 1. Meat loaf 600 W, 20-25 mins Place Pyrex dish on the wire rack at level 1. -
Page 38: Acrylamide In Foodstuffs
Acrylamide in foodstuffs chips, toast, bread rolls, bread, fine baked goods (biscuits, Which foods are affected? Acrylamide is mainly produced in grain and potato products gingerbread, cookies). that are heated to high temperatures, such as potato crisps, Tips for keeping acrylamide to a minimum when preparing food General Keep cooking times to a minimum. - Page 40 Siemens-Electrogeräte GmbH Carl-Wery-Straße 34 81739 München Germany *9000664941* 9000664941 1 910413...
