Panasonic PT-TW230EA Operating Instructions Manual

Panasonic PT-TW230EA Operating Instructions Manual

Hide thumbs Also See for PT-TW230EA:
Table of Contents

Advertisement

Quick Links

Thank you for purchasing this Panasonic Product.
Before operating this product, please read the instructions carefully and save this manual
J
for future use.
For information on using the product via a network, refer to "Operating Instructions – Network
Operations".

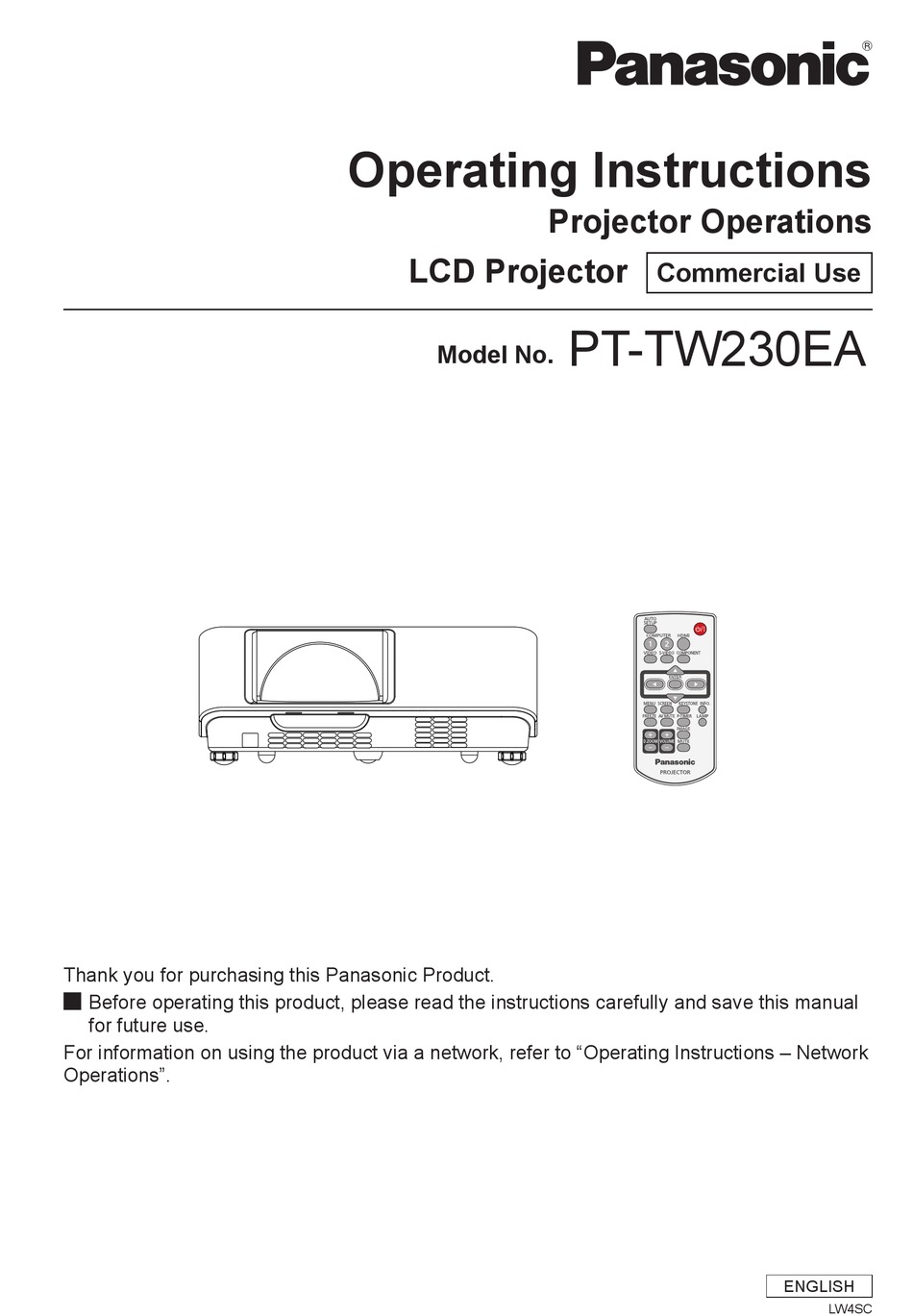

Operating Instructions
LCD Projector
Model No.
Projector Operations
Commercial Use
PT-TW230EA
ENGLISH
LW4SC

Advertisement

Table of Contents
loading

Summary of Contents for Panasonic PT-TW230EA

  • Page 1 Commercial Use PT-TW230EA Model No. Thank you for purchasing this Panasonic Product. Before operating this product, please read the instructions carefully and save this manual for future use. For information on using the product via a network, refer to “Operating Instructions – Network Operations”.
  • Page 2: Read This First

    Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779.
  • Page 3 Read this first! IMPORTANT: THE MOULDED PLUG (U.K. only) FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.
  • Page 4 Read this first! WARNING: POWER „ The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. If foreign objects or water get inside the projector, cut off the power supply.
  • Page 5 If liquid enters inside of the projector, consult your dealer. Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Defects in the ceiling mount bracket will result in falling accidents. Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
  • Page 6 Read this first! WARNING: ACCESSORIES „ Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire. Do not use unspecified batteries. Do not disassemble dry cell batteries. Do not heat the batteries or place them into water or fire.
  • Page 7 Read this first! CAUTION: POWER „ When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result. When not using the projector for an extended period of time, disconnect the power plug from the wall outlet and remove the batteries from the remote control.
  • Page 8 Read this first! Trademarks HDMI, the HDMI logo and High-Definition Multimedia Interface is a trademark or registered trademark of HDMI • Licensing LLC. • Other names, company names or product names used in these operating instructions are the trademarks or registered trademarks of their respective holders.
  • Page 9 Quick steps Auto Setup Function For details, see the corresponding pages. This function enables Input search and Auto PC adj. by pressing the 1. Set up your projector. <AUTO SETUP> button on the Æ page 21) remote control. Direct Power Off Function 2.
  • Page 10: Table Of Contents

    Contents Be sure to read “Read this first!”. ( pages 2 to 8) Basic operations by using the remote Important Information control........... 31 Read this first! ........... 2 Using the Auto setup function ........31 Switching the input signal ..........31 Contents ...........
  • Page 11 Contents Image adjust..........43 Fan control ..............56 Video delay control ............56 Contrast ................ 43 Lamp runtime ............... 56 Brightness ..............43 Filter counter ..............57 Color ................43 Warning log ..............57 Tint ................43 Factory default .............. 57 Color temp.
  • Page 12: Precautions For Use

    Precautions for Use Cautions when transporting When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may damage the internal parts and result in malfunctions. Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet. Cautions when installing Do not set up the projector outdoors.
  • Page 13: Security

    Make your password as difficult to guess as possible. Change your password periodically. Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry. The connecting network must be secured by firewall or others.
  • Page 14: Cautions On Use

    It is recommended to have authorized engineer or your dealer replace the lamp unit. Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany - ENGLISH...
  • Page 15: Accessories

    Precautions for Use Accessories Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the number of accessories. Power cord (x1) CD-ROM (x1) Batteries (AAA/R03 or Remote control unit (x1) (6103580203) (6103589312) AAA/LR03 type) (x2) (6451053893) (6103580210) (for remote control unit)
  • Page 16: Optional Accessories

    Precautions for Use Contents of the supplied CD-ROM The contents of the supplied CD-ROM are as follow. [  : Instructions/List (PDF),  : Software] Operating Instructions – Projector Operations  Operating Instructions – Network Operations.  Multi Projector Monitoring & Control Software 2.6(Windows) ...
  • Page 17: About Your Projector

    About Your Projector Remote control (17) (9) <VOLUME +/- > Buttons Adjusts the volume of the speaker. ( page 33) Æ (10) < >Button (10) Turn the projector on or off. ( page 27) Æ (11) <KEYSTONE> Button Correct keystone distortion. ( page 32) Æ...
  • Page 18: Projector Body

    About Your Projector Projector body Bottom View � (11) (12) (10) (13) (1) Control panel ( Æ page 19) (12) AC IN (2) Lamp cover ( page 63) (13) Adjustable feet Æ The lamp unit is located inside. Adjusts the projection angle. (3) Remote control signal receiver WARNING: (4) Projection Lens...
  • Page 19: Control Panel

    About Your Projector Control panel (1) < >button Turn the projector on/off. (2) ▲▼◄► (VOL -/+) buttons Navigate the MENU screen. (3) <ENTER> button Execute the selected item. (4) <MENU> button Displays the MENU screen. ( page 34) Æ (5) <KEYSTONE> button Correct the keystone distortion.
  • Page 20: Using Remote Control

    Using Remote control Installing and Removing batteries Open the cover Install batteries and close the cover (Insert the – side first.) Remove the batteries in the reverse order of installation. Setting Remote control ID numbers When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single remote control, if unique ID number is assigned to each projector.
  • Page 21: Setting Up

    Setting up Projection method You can use the projector with any of the following 4 projection methods. To set the desired method in the projector. Mounting on the ceiling and Setting on a desk/floor and projecting forward projecting from rear (Using translucent screen) Mounting on the ceiling and Setting on a desk/floor and...
  • Page 22: Screen Size And Throw Distance

    Setting up Screen size and throw distance Place the projector referring Projected image to the diagram on the right and the figures of throwing Screen distance. You can adjust the display size. Projection distance (m) Height of the projection area (m) Width of the projection area (m) Screen Diagonal length of the projection area (m)
  • Page 23: Adjusting Front Adjustable Feet

    Setting up Adjusting front adjustable feet Projection angle can be adjusted up to 10.0 degrees with the adjustable feet. Rotate the adjustable feet and tilt the projector to the proper height; to raise the projector, rotate the both feet clockwise. To lower the projector or to retract the adjustable feet, rotate the both feet counterclockwise.
  • Page 24: Connections

    Connections Before connecting to the projector Read carefully the instruction manual for the device to be connected. Turn off the power switch of the devices before connecting cables. If any connection cable is not supplied with the device, or if no optional cable is available for connection of the device, prepare a necessary system connection cable to suit the device.
  • Page 25: Basic Operation

    Basic Operation Powering ON/OFF Connecting the power cord Be sure to insert the attached power cord securely to its base to prevent it from coming off. Power cord holder A power cord holder is designed to prevent the AC power cord from coming off the projector. Please insert the power cord into the power cord holder correctly as Picture (1) shown: AC Power cord holder Clamp...
  • Page 26: On(G)/Standby(R) Indicator

    Powering ON/OFF ON(G)/STANDBY(R) indicator The ON(G)/STANDBY(R) indicator informs you the status of the power. Confirm the status of the <ON(G)/ STANDBY(R)> indicator before operating the projector. indicator ON (G)/STANDBY(R) Indicator status Status No illumination or flashing The power cord is unplugged. The power cord is plugged.
  • Page 27: Turning On The Projector

    Powering ON/OFF Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The <ON(G)/STANDBY(R)> indicator lights red. Open the lens cover. Press the <...
  • Page 28: Enter A Pin Code

    Powering ON/OFF Enter a PIN code Press ▲▼ to enter a number. Press ► to fix the PIN Code Input Dialog Box number and move the red frame pointer to the next box. The number changes to  . If you fixed an incorrect number, use the ◄...
  • Page 29: Turning Off The Projector

    Powering ON/OFF Turning Off the Projector Press the < > button on the control panel or on the remote control, and Power off? appears on the screen. Power off? disappears after 4 seconds. Press the < > button again to turn off the projector.
  • Page 30: Projecting

    Projecting Æ Check the connections of the peripheral devices and connection of the power cord ( page 25) and switch on the Æ power ( page 27) to start the projector. Select the image and adjust the state of the image. Selecting the image Select an input signal.
  • Page 31: Basic Operations By Using The Remote Control

    Basic operations by using the remote control Switches to Computer 1(RGB)/ COMPUTER 1 Computer 1(Scart) input. Switches to Computer 2(RGB) COMPUTER 2 input. HDMI Switches to HDMI input. VIDEO Switches to Video input. S-VIDEO Switches to S-video input. Switches to Computer 1 COMPONENT (Component) input.
  • Page 32: Using The Keystone Button

    Basic operations by using the remote control Using the KEYSTONE button Using the FREEZE function This function allows you to correct keystone distortion. You can freeze the projected image and stop the sound temporarily, regardless of the playing condition of the connected device. button button Press the <KEYSTONE>...
  • Page 33: Using The Av Mute Function

    Basic operations by using the remote control Using the AV MUTE function Using the LAMP button This function allows you to select the lamp mode for changing the brightness on the screen. button button Press the <AV MUTE> button on the remote control to black out the image.
  • Page 34: Menu Navigation

    Menu Navigation Note Navigating through the menu Some items may not be adjusted or used for certain signal formats input to the projector. The MENU items Operating procedure that cannot be adjusted or used are shown in gray characters, and they cannot be selected. Press the <MENU>...
  • Page 35: Main Menu

    Menu Navigation Main menu Sub menu The main menu consists of the following 9 menu The sub-menu screen of the selected main menu items. appears, and you can set and adjust the various items When a main menu item is selected, the screen in the submenu.
  • Page 36 Menu Navigation Image adjust [ Setting [ Sub-menu item Factory default Page Sub-menu item Factory default Page Language English Contrast Menu position Center Brightness Auto setup Color* Background Blue Tint* Display Color temp. Logo HDMI setup Green Terminal Computer 2 Blue Power management Shut down...
  • Page 37: Input Menu

    Input menu There is no signal input from the computer. - - - - Select [Input] from the Main Menu (see Check the connection between your “Navigating through the menu” on page 34), computer and the projector. then select the item from the sub-menu. The preset system is manually adjusted in Mode 1 Remote control...
  • Page 38 Input menu PAL/SECAM/NTSC/NTSC4.43/PAL-M/PAL-N If the projector cannot reproduce proper video image, select a specific broadcast signal format from among [PAL], [SECAM], [NTSC], [NTSC 4.43], [PAL-M] and [PAL-N]. Component Auto The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. COMPONENT VIDEO SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format...
  • Page 39: Auto Pc Adjust

    AUTO PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 34), then select the item from the sub-menu. Control panel Remote control Auto PC adj. Auto PC adjustment function is provided to automatically adjust Fine sync, Total dots, Horizontal and Vertical positions to conform to your computer.
  • Page 40: Manual Pc Adjust

    Manual PC adjust Horizontal Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 34), then select the item from the sub-menu. Press ▲▼ to select [Horizontal]. Press the <ENTER> button to display Control panel Remote control the adjustment dialog box.
  • Page 41: Current Mode

    Manual PC adjust Current mode Reset To reset the adjusted data, all adjustments will return Press ▲▼ to select [Current mode]. to their previous figures. Press ► or the <ENTER> button to Press ▲▼ to select [Reset]. enter the next submenu to show Press the <ENTER>...
  • Page 42: Image Select

    Image select Blackboard(Green) Select [Image select] from the Main Menu (see “Navigating through the menu” on page 34), For the image projected on a blackboard. then select the item from the sub-menu. Press ▲▼ to select [Blackboard(Green)] and then press the <ENTER> button. This mode helps enhance the image projected Remote control Control panel...
  • Page 43: Image Adjust

    Image adjust Color Select [Image adjust] from the Main Menu (see “Navigating through the menu” on page 34), then select the item from the sub-menu. Press ▲▼ to select [Color]. Press the <ENTER> button to display Remote control Control panel the adjustment dialog box.
  • Page 44: Red

    Image adjust Sharpness Press ▲▼ to select [Red]. Press ▲▼ to select [Sharpness]. Press the <ENTER> button to display Press the <ENTER> button to display the adjustment dialog box. the adjustment dialog box. Press ◄► to adjust the setting value. Press ◄►...
  • Page 45: Progressive

    Image adjust Progressive Press ▲▼ to select [Progressive]. Press the <ENTER> button to display the dialog box. Press ◄► to select the desired item. An interlaced video signal can be displayed in progressive mode. Select one of the following options. [Progressive] cannot be selected when [480p], [576p], [720p], [1035i], [1080i] or [1080p] is selected.
  • Page 46: Screen

    Screen True Select [Screen] from the Main Menu (see “Navigating through the menu” on page 34), Provide the image in its original size. When the then select the item from the sub-menu. original image size is larger than the panel size (1280 x 800), the projector enters to the panning mode Remote control Control panel...
  • Page 47: Custom Adj

    Screen To exit the Digital zoom +/– mode, press any button Custom adj. except the <D.ZOOM +/–>, <ENTER> and ▲▼◄► buttons. Adjust the screen scale and position manually with this function. To return to the previous screen size, select a screen Press ▲▼...
  • Page 48: Ceiling

    Screen Ceiling Reset This function is used to project the image from a To reset the adjusted data, all adjustments will return ceiling-mounted projector. to their previous figures. Press ▲▼ to select [Reset] and then Press ▲▼ to select [Ceiling] and then press the <ENTER>...
  • Page 49: Sound

    Sound Select [Sound] from the Main Menu (see “Navigating through the menu” on page 34), then select the item from the sub-menu. Remote control Control panel Volume Press ▲▼ to select [Volume] and then Press the <ENTER> button. Press ◄► to adjust the volume. Adjustment Operation Adjustment...
  • Page 50: Setting

    Setting Menu position Select [Setting] from the Main Menu (see “Navigating through the menu” on page 34), This function is used to change the position of the On- then select the item from the sub-menu. Screen Menu. Press ▲▼ to select [Menu position]. Control panel Remote control Press the <ENTER>...
  • Page 51: Background

    Setting Background Logo Select the background screen for when no input signal This function allows you to customize the screen logo is detected. with [Logo select], [Logo PIN code lock] and [Logo PIN code change] functions. Press ▲▼ to select [Background]. Press ▲▼...
  • Page 52: Hdmi Setup

    Setting Logo PIN code change Terminal Logo PIN code can be changed to your desired four- The COMPUTER IN 2/MONITOR OUT terminal on digit number. the back of the projector is switchable for computer 2 Press ▲▼ to select [Logo PIN code input or monitor output.
  • Page 53: Direct On

    Setting Direct on The P-timer display 000:00 appears on the screen and the Count up count up starts. (000:00-180:00) Press ▲▼ to select [Direct on] and The time set in the Timer setting then press the <ENTER> button. Count down appears on the screen and the Press ▲▼...
  • Page 54: Closed Caption

    Setting Closed caption Lamp power The closed caption is mainly used in the north This function allows you to change brightness of the America. This function shows the text information screen. contained in the image signal. Captions may not be Press ▲▼...
  • Page 55: Remote Control

    Setting Remote control Security This switching function prevents remote control This function allows you to use the Key lock and PIN interference when operating several projectors or code lock function to set the security for the projector video equipment at the same time. operation.
  • Page 56: Fan

    Setting PIN code change have less cooling effect). The PIN code can be changed to your desired four- Note digit number. Failure to set the running speed of cooling fans properly may affect the projector life. Press ▲▼ to select [PIN code change] The fan noise becomes louder in [On 1] and [On 2].
  • Page 57: Filter Counter

    Setting Filter counter Factory default This function is used to set a frequency for the filter This function returns all setting values except for the replacement. [PIN code lock], [Logo PIN code lock], [Lamp runtime], [Filter counter] and the logo transferred by "Logo Press ▲▼...
  • Page 58: Information

    Information Lamp power Select [Information] from the Main Menu (see “Navigating through the menu” on page 34), The selected lamp mode is displayed. then select the item from the sub-menu. Lamp runtime Remote control Control panel The cumulative lamp operating time is displayed. Power management [Off] , [Ready] or [Shut down], and [timer] are displayed.
  • Page 59: Lamp And Warning Indicators

    LAMP and WARNING Indicators Managing the indicated problems If a problem should occur inside the projector, the <ON(G)/STANDBY(R)>, <LAMP> and/or <WARNING> indicators will inform you. Manage the indicated problems as follow. CAUTION Before you take a remedial measure, follow the procedure of switching the power off indicated in “Turning Off the projector”. Æ...
  • Page 60: Replacement

    Replacement Before replacing the unit When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect Æ the power plug from the wall outlet. ( pages 25, 29) Æ Be sure to observe the procedure “Turing Off the projector” ( page 29) when performing power supply operation.
  • Page 61: Replacing The Unit

    Replacement Replacing the unit Air filter unit Filter prevents dust from accumulating on the optical elements inside the projector. Should the filter become clogged with dust particles, it will reduce cooling fans’ effectiveness and may result in internal heat buildup and adversely affect the life of the projector.
  • Page 62 Replacement Lamp unit The lamp unit is a consumable component. You can check the total usage time using Lamp runtime in the Information menu on page 58. It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer. Consult your dealer to purchase a replacement lamp unit (ET-LAT100).
  • Page 63 Replacement Replacing the Lamp unit CAUTION: When the projector is mounted on a ceiling, do not work with your face close to the projector. Attach the lamp unit and the lamp cover securely. When you experience difficulty in installing the lamp, remove it and try again. If you use force to install the lamp, the connector may be damaged.
  • Page 64: Attaching The Lens Cover

    Replacement Attaching the Lens Cover When moving this projector or while not using it over an extended period of time, attach the lens cover. Attach the lens cover according to the following procedures. Thread the string through the hole on the lens cover and then tie a knot in the string to secure it in place.
  • Page 65: Troubleshooting

    Troubleshooting Please check following points. For details, see the corresponding pages. Reference Problem Cause page The power cord may not be connected. — No electric supply is at the wall outlet. — Power does not turn The circuit breakers have tripped. —...
  • Page 66 Troubleshooting Reference Problem Cause page Is the HDMI cable securely connected? Picture from a HDMI device does not Turn off the power of the projector and the connected devices. Then turn — appear or picture is the power of the projector and the connected devices back on. not stable.
  • Page 67: Technical Information

    Technical Information Serial terminal The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. Connection Connecting terminals on projector Computer...
  • Page 68 Technical Information Basic format Transmission from the computer begins with STX, then the command, parameter, and ETX are sent in this order. Add parameters according to the details of control. Colon (1 byte) Start 3 command Parameter (1 byte) characters (undefined length) (1 byte) (3 bytes)
  • Page 69 Technical Information Cable specifications [When connected to a computer] Computer (DTE Projector specifications) Control commands When controlling the projector from a computer, the following commands are available: [Projector control command] Command Control contents Remarks Power [ON] Power [OFF] (Parameter) VID = Video SVD = S-video INPUT selection RG1 = Computer 1(RGB)
  • Page 70: Other Terminals

    Technical Information Other terminals Pin assignments and signal names of <S-VIDEO IN> terminal Pin No. Signal names Outside view GND (luminance signal) GND (color signal) Luminance signal Color signal Pin assignments and signal names of <COMPUTER IN 1/COMPONENT IN> terminal Pin No.
  • Page 71: List Of Compatible Signals

    Technical Information List of compatible signals The following table specifies the types of signals compatible with the projectors. Format : V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YP , H = HDMI Scanning Display Dot clock Picture frequency Mode...
  • Page 72 Technical Information Scanning Display Dot clock Picture frequency Mode resolution * frequency Format quality * (dots) (MHz) H (kHz) V (Hz) 63.970 60.190 107.99 SXGA + 1400 x 1050 65.350 60.120 122.85 65.120 59.900 122.43 ○ 48.36 60.00 65.00 68.677 84.977 94.504 ○...
  • Page 73 Technical Information Scanning Display Dot clock frequency Picture Mode resolution * frequency Format quality * (dots) (MHz) H (kHz) V (Hz) 47.776 59.870 79.50 ○ 60.289 74.893 102.25 1280 x 768 68.633 84.837 117.50 55.993 69.991 94.964 57.675 72.004 97.817 49.600 60.050 79.360...
  • Page 74 Technical Information Scanning Display Dot clock frequency Picture Mode resolution * frequency Format quality * (dots) (MHz) H (kHz) V (Hz) 47.700 60.00 86.670 1360 x 768 56.160 72.000 100.19 46.500 50.000 67.40 1366 x 768 48.360 60.00 86.67 1376 x 768 48.360 60.00 86.67...
  • Page 75: Specifications

    Specifications Model No. PT-TW230EA Power supply AC100 V - 240 V 50 Hz/60 Hz 100 V - 240 V 3.6 A-1.8 A 310 W When [Standby mode] of [Setting] is set to [ECO]: 0.42 W Power consumption When [Standby mode] of [Setting] is set to [Network]: 9.5 W Panel size 1.5 cm (0.59") (aspect ratio 16 : 10)
  • Page 76 Specifications Model No. PT-TW230EA 1 (D-sub 15 pin female) [RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω COMPUTER IN 1/ HD/SYNC TTL high impedance, automatic positive/negative polarity compatible COMPONENT IN VD TTL high impedance, automatic positive/negative polarity compatible signal] Y: 1.0 V [p-p] including synchronization signal, P...
  • Page 77: Dimensions

    Specifications Dimensions <Unit : inch (mm)> Actual dimension may differ by product.  6.56(166.7) 6.29(159.8) 7.53(191.3) 4.33(110) 0.56(14.2) 0.72(18.4) 3.54(90) 4.23(115) 5.60(142.2) 3.94(100) 6.77(172) 15.11(383.9) Ceiling mount bracket safeguards Installation work of the ceiling mount bracket should only be carried by a qualified technician. Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions.
  • Page 78: Index

    Index Input search ........50 Setting the ID number.....20 Installing and Removing batteries ..20 Setting up ........21 About Your Projector.......17 Accessories ........15 Sharpness ........44 Sound ..........49 Adjusting front adjustable feet ..23 Keystone........32, 47 Specifications .........75 Attaching the Lens Cover ....64 AUTO PC adjust ......39 Standard .........42 Standby mode ........53 Auto setup ........50...
  • Page 79 Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ SS0212-0 © Panasonic Corporation 2012...
