Summary of Contents for QSC WCP-1

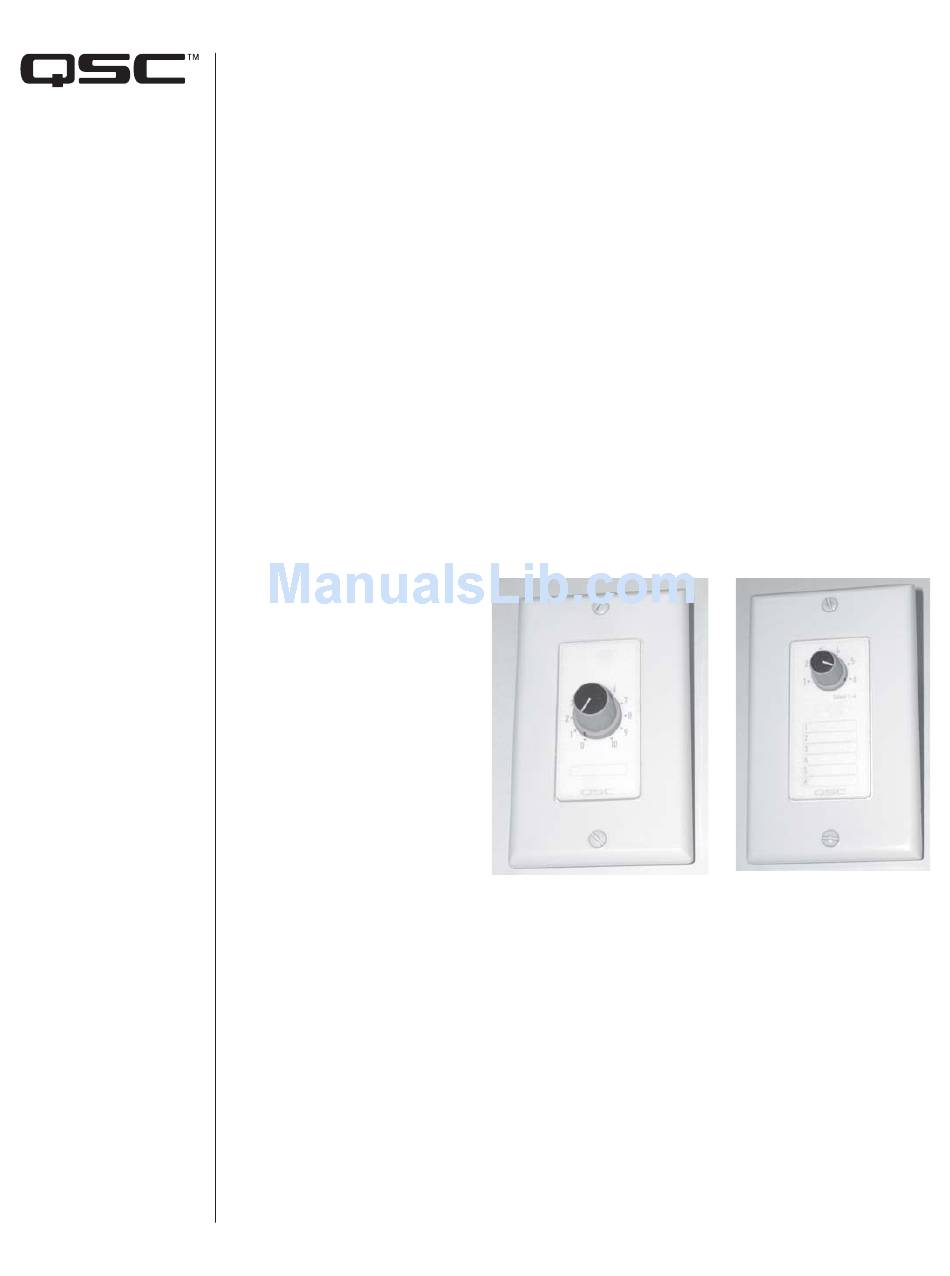

- Page 1 ▼ ▼ ▼ ▼ ▼ WCP-1 ▼ ▼ ▼ ▼ ▼ WCP-2 QSControl.net™ Wall Control Plate Accessories Installation Guide Rev. B QSControl.net™ Wall Control Plate Accessories I N S TA L L AT I O N G U I D E...
- Page 2 RJ-45 jack, for use with Cat 5 or Cat 6 network cable, or a screw II. WCP-1 ROTARY POTENTIOMETER CONTROL The control element of the WCP-1 is a 10 kΩ linear taper potentiometer with 11 detents marked 0 (fully counterclockwise) to 10 (clockwise). It connects to any OmniPort on the QSControl.net unit and can be wired so...
- Page 3 The WCP-1 can be used for non-QSControl.net analog applications, such as variable passive signal attenuation or a variable voltage divider (see Figure 5). The WCP-1 has two circuit board locations where you can mount resistors to adjust the full clockwise and/or counterclockwise values of the resistances and thereby change the range of attenuation or voltage variation from minimum to maximum.
- Page 4 QSC Audio Products, Inc., 1675 MacArthur Boulevard QSControl2 is a trademark of QSC Audio Products, Inc. “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office. PRODUCT RETURN GUIDELINES Pack the product securely for protection during shipment. QSC will provide factory packaging free of charge, on request.
