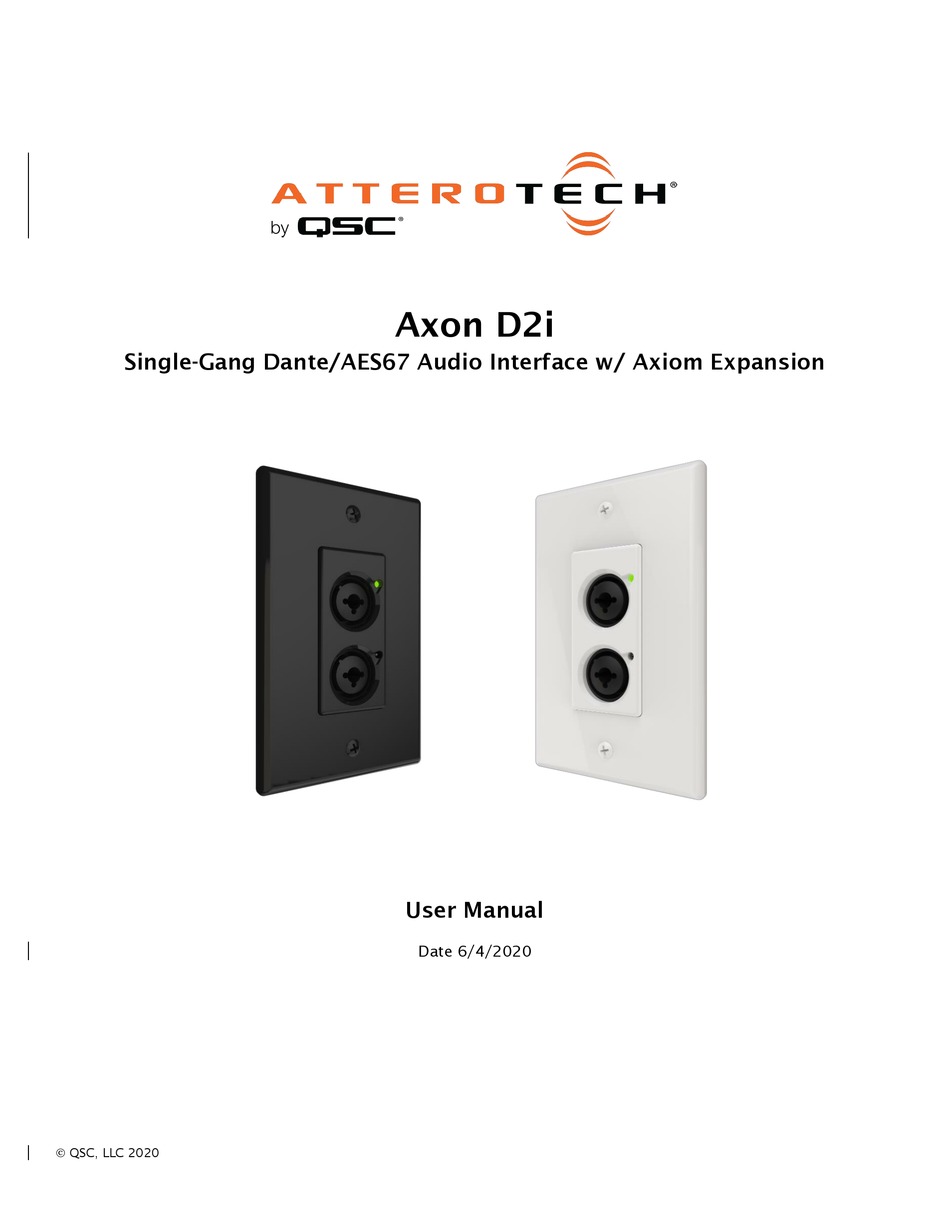

- Page 1 Axon D2i Single-Gang Dante/AES67 Audio Interface w/ Axiom Expansion User Manual Date 6/4/2020 QSC, LLC 2020...
- Page 2 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by Attero Tech by QSC 12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus.
- Page 3 Should any defect develop, QSC, LLC will, at our option, repair or replace any defective parts without charge for either parts or labor. If QSC, LLC cannot correct the defect in the equipment, it will be replaced at no charge with a similar new item. QSC, LLC will pay for the cost of returning your equipment to you.
-
Page 4: Table Of Contents
3.1 – IP Address Setup ..................................3 3.2 – Software Control ..................................3 3.3 – 3 Party Contol ..................................3 3.4 – Factory Reset ................................... 4 3.5 – Firmware Updates ................................... 4 ARCHITECTS & ENGINEERS SPECIFICATION ..................................0 Device Specifications............................................8 QSC, LLC 2020... -
Page 5: Overview
(1) Black US Single Gang Decora® cover plate w/screws (2) Wall plate mounting screws 1.2 – Optional Extras The following are available as options for the D2i and that may be ordered separately: AXIOM ML1 AXIOM USB1 AXIOM BT1 unBT2A QSC, LLC 2020... -
Page 6: Mounting
D2i may be mounted in larger gang boxes with other single gang form factor products to provide flexible AV system modularity where needed. *Note: CAD drawings can be downloaded from the QSC website. Please contact QSC for any further product Figure 4- Dimensional Drawing related information that is not accessible on the website. -
Page 7: Status Reporting
LED states below are reflected when in STATUS mode. The status and output channels won’t be visible and routing of audio to and LEDs may be disabled using Attero Tech by QSC unIFY Control from the D2i will not be possible. -
Page 8: Factory Reset
The D2i has the ability to be updated in the field should it be required. Updates are applied via the network using Attero Tech by QSC unIFY Control Panel’s smart firmware update facility. The latest D2i SFU file is available from the website. -
Page 9: Architects & Engineers Specification
The Dante™/AES67 interface shall be compliant with the RoHS, WEEE and REACH directives. The Dante™/AES67 interface unit shall be Compliant with the EMC/ESD requirements for FCC and CE. The unit shall be the Attero Tech AXON D2i interface. QSC, LLC 2020... -
Page 10: Device Specifications
Regulatory Compliance FCC Part 15, Subpart B, Class A EMC Cable Quality CAT-5e or better, UTP CE (EN55032 EMC / EN55024 ESD) Certifications WEEE RoHS REACH Environmental Operating Specifications Operating Temperature 0 to 40 ° C QSC, LLC 2020...
