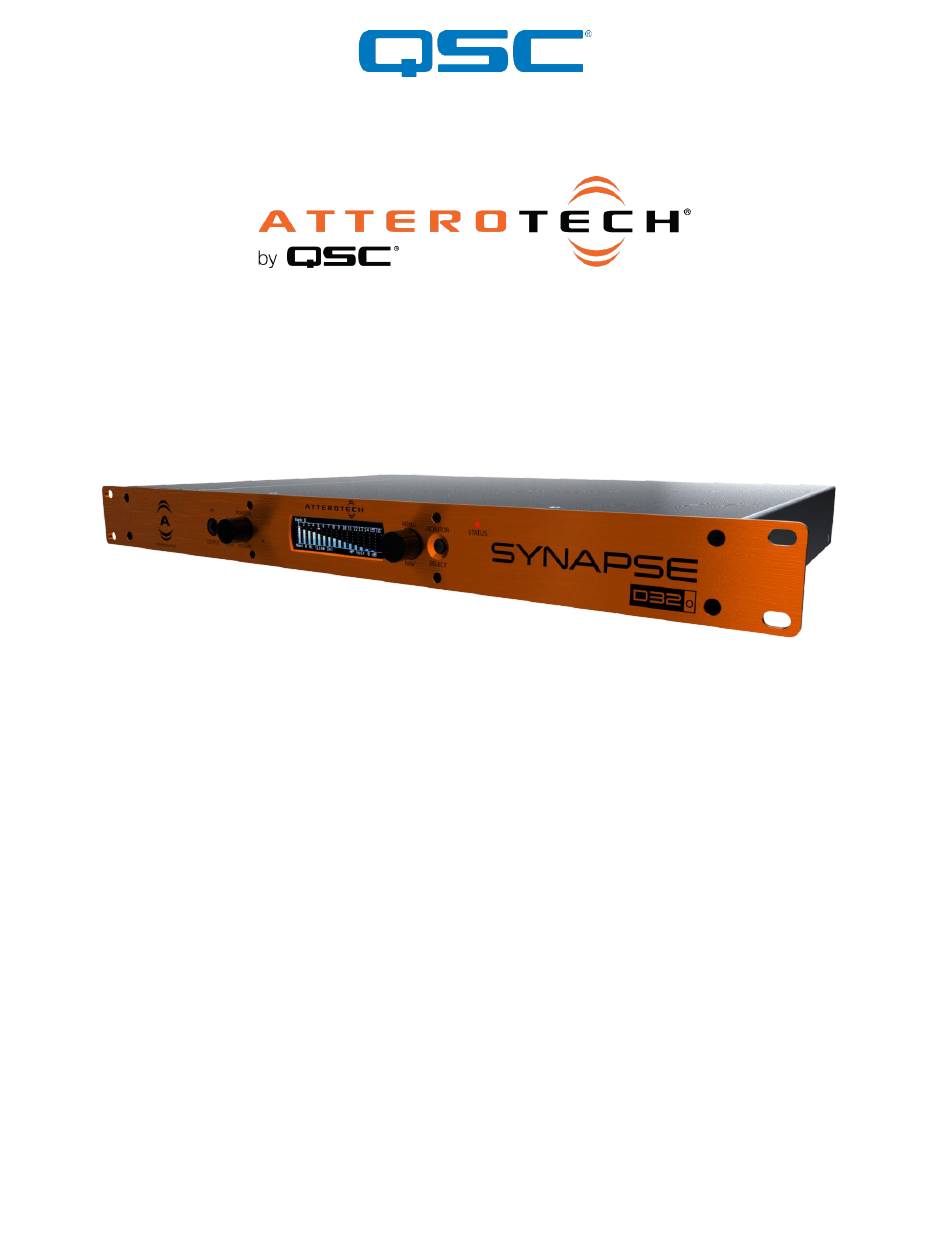

Dante™/aes67 network audio interface - 32 analog outputs

Advertisement

Quick Links

Synapse D32o
Dante™/AES67 Network Audio Interface -
32 Analog Outputs
User Manual
1675 MacArthur Boulevard • Costa Mesa, CA 92626
Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174
© 2020 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other
trademarks are the property of their respective owners. Patents may apply or be pending.
www.qsc.com
614-00049

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATTEROTECH Synapse D32o and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for QSC ATTEROTECH Synapse D32o

  • Page 1 Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174 © 2020 QSC, LLC all rights reserved. QSC and the QSC logo are registered trademarks of QSC, LLC in the U.S. Patent and Trademark office and other countries. All other trademarks are the property of their respective owners. Patents may apply or be pending.
  • Page 2 Synapse D32o Attero Tech by QSC User Manual IMPORTANT SAFETY INSTRUCTIONS The symbols below are internationally accepted symbols that warn of potential hazards with electrical products. This symbol, wherever it appears, alerts you to the presence of un-insulated dangerous voltage inside the enclosure -- voltage that may be sufficient to constitute a risk of shock.
  • Page 3 User Manual WARRANTY INFORMATION For a copy of the QSC Limited Warranty, visit the QSC website at www.qsc.com Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules and EN55022. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 4: Table Of Contents

    Synapse D32o Attero Tech by QSC User Manual Contents 1 – Overview ..................................................5 1.1 – What’s in the Box ....................................5 1.2 – Optional Extras ....................................... 5 2 – Device Installation ............................................... 7 2.1 – Mounting ........................................ 7 2.2 – Audio Connections ....................................7 2.2.1 –...
  • Page 5: Overview

    Synapse D32o Attero Tech by QSC User Manual 1 – Overview The Synapse D32o is a 1RU high-density Dante™ break-out Audinate’s Dante™ Controller or other 3rd party manufacturer's interface. Featuring 32 line-level balanced outputs, the Synapse Dante™ routing software can be used to control the Dante™ audio...
  • Page 6 Synapse D32o Attero Tech by QSC User Manual DEVICE FEATURES FRONT PANEL REAR PANEL 1 - Headphone Jack 9 - Bank A (Outputs 1-16) 2 - Headphone Mute Indicator 10 - Bank B Outputs 17-32) 3 - Headphone Volume/Mute Knob...
  • Page 7: Device Installation

    Synapse D32o Attero Tech by QSC User Manual 2 – Device Installation 2.2.1 – Balanced Output to Balanced Input Balanced Output XLR-M Terminal Block Plug 2.1 – Mounting The case for the D32o is designed ready to fit in a standard 19”...
  • Page 8: Power Supply

    Synapse D32o Attero Tech by QSC User Manual 2.3 – Power Supply 2.4.1 – AES67 Audio Network Note For successful deployment of Attero Tech’s AES67 enabled Use the provided AC power cable to connect a standard AC outlet products, it is necessary to insure the AES67 audio network is to the power supply input connector.
  • Page 9: Using On Standalone Network

    Synapse D32o Attero Tech by QSC User Manual Once connections to the main primary and secondary networks For full flexibility in a standalone network, the D32o should be have been made, the unused ports can be used to create a daisy reconfigured to “Switched”...
  • Page 10: Device Operation

    Synapse D32o Attero Tech by QSC User Manual 3 – Device Operation 3.1.2 – Channel Metering Views Chan nel Name (Dante Tx Name) Certain features of the D32o such as channel mutes, output level, and front panel lockout are controlled using...
  • Page 11: Version View

    The volume is controlled Product Firmware page on the QSC website. with the monitor volume knob just to the right of the output jack itself. Turning the knob clockwise increases volume while turning it counter-clockwise decreases the volume level.
  • Page 12: Architects & Engineers Specification

    Synapse D32o Attero Tech by QSC User Manual ARCHITECTS & ENGINEERS SPECIFICATION The Dante™ interface shall have 32 balanced line level outputs available on terminal blocks. The Dante™ interface shall support AES67 interoperability. The output attenuation level shall be configurable in 1 dB increments from 0 to -100 dB.
  • Page 13: Device Specifications

    Synapse D32o Attero Tech by QSC User Manual Device Specifications Power Specifications Analog Audio Outputs AC Power 120V AC 32 - Balanced 3-pin line level (Terminal Block option) Output Type 4 – TASCAM-pinout compatible DB25 balanced analog Power Consumption < 20W Max...
