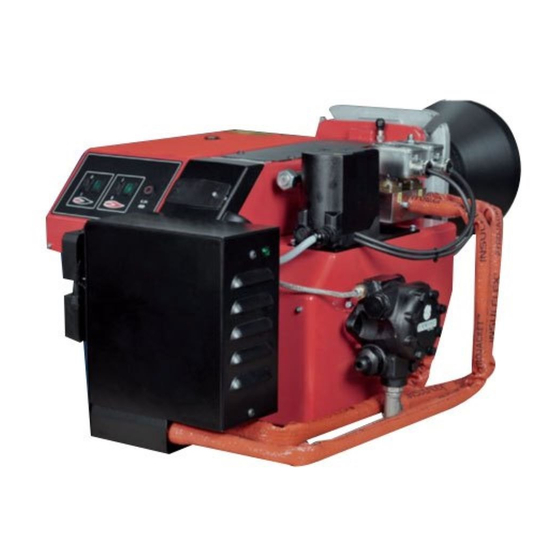

Bentone B 45-2 MF Installation And Maintenance Instruction
Hide thumbs
Also See for B 45-2 MF:
- Installation and maintenance instruction (56 pages) ,
- Installation and maintenance instruction (52 pages) ,
- Installation and maintenance instruction (44 pages)
Related Manuals for Bentone B 45-2 MF
Summary of Contents for Bentone B 45-2 MF
- Page 1 178 140 56-6 CR00619 2023-03-29 Providing sustainable energy solutions worldwide Installation- and maintenance instruction B 45-2 MF LMO24.255C2E E 4N CK Translation of the original instructions.
- Page 2 1~230V 1,0A 50Hz IP 20 Motor supply MADE IN SWEDEN BY 1. Manualer på övriga språk 1. Manuals in other languages 1. Manualer på andre sprog 2. www.bentone.com\ 2. www.bentone.com\ 2. www.bentone.com\ nedladdning download download eller scan QR- eller scanna QR-koden.
-
Page 3: Table Of Contents
4.3 Brake plate adjustment ............. 22 General requirements FAME/RME ..........6 Settings Damper motor, 2-stage ..........22 Technical data ...............7 Return Oil Pressure Switch............24 Dimensions B 45-2 MF ..............7 Burner installation ................ 7 Preheater ................25 2.3 Working field .................. 8 6.1 Technical data ................ -
Page 4: General Information
Make sure that the burner is suitable for the application (see Technical • Data). All components must be installed without being bent, twisted or • subjected to mechanical or thermal forces that affect components. 165 105 01-2 2021-12-07 Bentone... - Page 5 When in operation, the burner’s noise level can exceed 85 dBA – use • hearing protection! - Operation: Carry out all stipulated settings, service and inspection work within • the set time. • If the oil burner control has a solid red light, contact your installer. Bentone...
-
Page 6: General Requirements Fame/Rme
Annual cleaning and checking for the presence of water in the tank • should be done to avoid corrosion and microorganisms. 165 405 06 2021-12-07 Bentone... -
Page 7: Technical Data
FAME/RME according to EN 14214. • Fuel oil according to DIN 51603-1. • Fuel oil A Bio 10 according to DIN 51603-6. • Dimensions B 45-2 MF Ø B Ø C * Min. recommended distance to fl oor. Burner installation 2.2.1 Hole patten Make sure the hole pattern on the boiler is designed for burner fl ange. -
Page 8: Working Field
9.0-55.0 kg/h 90-570 kW mbar Do not exceed working field. -1,0 Used lower calorific value of 10.00 kWh/kg for rapeseed oil in accordance with DIN 51605:2010-10. Setting for nozzle assembly and air damper Air settings Nozzle assembly Scale Burner output Bentone... -
Page 9: Technical Specification
Technical specification B 45-2 MF Main supply, Operating 230V 1~ 5,1A 50Hz IP20 Main supply, Preheater 400V 3x10A Max fuse rating, Operating Max fuse rating, Preheater 3xC10A -class Noise level 87dBA Preheater excluded. Measurements according to EN 15036-1:2006 Alt.1 The noise level of the burner can be reduced by equipping the burner with silencer. -
Page 10: Oil Grades
In the case of a standstill in which the oil can be expected to change structure, for example aging or phase transitions due to temperature and storage, the burner must be flushed with fuel oil after the standstill. This procedure ensures a good start after standstill. Altered structure of the oil can give rise to altered viscosity, pumpabilty and ignitability. This can cause the pump, valves and nozzles to get blocked. Bentone... -
Page 11: Nozzle For Bio Oils, 20-28 Bar
54,1 56,6 58,9 61,1 11,00 54,1 56,7 59,3 61,7 64,0 11,50 56,5 59,3 61,9 64,5 66,9 12,00 59,0 61,9 64,6 67,3 69,8 Rapeseed oil compliant with DIN 51605:2010-10 Viscosity: 36.0 mm / s, at 40 °C Preheater 160 °C. Bentone... -
Page 12: 2.10 Nozzle For Fossil Oils, 22-28 Bar
720,96 63,08 748,18 11,00 63,04 747,63 65,84 780,87 68,53 812,76 71,12 843,44 12,00 70,75 839,1 73,9 876,41 76,91 912,2 79,82 946,63 The table applies to oil with a viscosity of 4.4 mm /s at a density of 830 kg/m Bentone... -
Page 13: 2.11 Components
Valve needle Measuring nipple, fan pressure Spring pressure piston Valve block Pressure piston max. load Valve seat Flame tube Burner fl ange Front nozzle holder Pressure outlet pump Pressure piston min. load Pump Air intake Return pump Brake plate Bentone... - Page 14 4-pole Euro plug (max. load) Relay box 7-pole Euro plug (min. load feed) Ignition transformer Air damper Fan wheel Connecting pipe, valve block return Air intake Connecting pipe, preheater valve block Capacitor Connecting pipe, pump preheater Motor Damper motor Fan housing Bentone...
-
Page 15: Electric Equipment
The cables of the safety system must be separated so that the outgoing signal is not placed in the same cable as the incoming signal. Wiring diagram Brown Blue Green Yellow Gn/Ye Green/Yellow Black Grey White Orange Violet 165 205 76-2 Bentone... -
Page 16: Function
< 1 s < 1 s Ambient temperature -20 - +60°C -5 - +60°C Min detector current required (with fl ame) 45 µA dc 45 µA dc Max perm. detector current (without fl ame) 5.5 µA dc 5.5 µA dc Bentone... -
Page 17: Colour Codes
If the reset button is instead kept pressed a second time for at least 3 seconds, you can, via an interface, obtain the corresponding information on a computer or flue gas analyser. To return to normal operation: Press the reset button for 1 second. Bentone... -
Page 18: Installation
Bleed the oil system. The oil pump/oil preheater may be damaged if • run dry. The vacuum in the suction line should not fall below 0.3 bar during start-up. 165 205 19-3 Bentone... -
Page 19: Electrical Connection
Electrical connection must be done in accordance with the applicable • regulations. Burners must be connected to an all-pole switch. • • Connection must conform to the wiring diagram. Use appropriately sized fuses. • If any electrical connection is used other than that recommended by Enertech, there may be a risk of damage to property and personal injury. Bentone... -
Page 20: Installation
Transport damage must be reported to the shipping company. Preparing for installation Check that the burner’s dimensions and capacity range are suitable for the relevant boiler. The power data on the rating plate refers to the burner’s minimum and maximum power. 165 405 34 Bentone... -
Page 21: Oil Distribution
5-pole connector supplies the burner preheater with a separate 3-phase supply. See connection under Electrical equipment. Switch off the main switch. Connect the Euro plugs, (see Electrical equipment). Make sure the burner operations switch (S1) is off. Turn on the main switch. If any electrical connection is used other than that recommended by Enertech, there may be a risk of damage to property and personal injury. Bentone... -
Page 22: Mounting
Check oil line seals When the burner has been installed and put into operation, the tightness of the various coupling elements should be checked, in case of leakage - retighten the coupling elements. 165 205 78-2 Bentone... - Page 23 1 Transport oil pump / Transportoljepump Transport oil fi lter Basket fi lter Overfl ow valve 0.5 – 2.0 bar Seal fi lter Pressure gauge 1 Pressure gauge 2 Bentone...
-
Page 24: Functional Description
This process extinguishes the burner fl ame. In the same process, oil heating is also interrupted. Oil pump Preheater Nozzle assembly Leak pipe Nozzle 1 Nozzle 2 Solenoid valve 1 NO Solenoid valve 2 NC Cut valve 1 Cut valve 2 165 205 90 Bentone... -
Page 25: Examples Of Basic Settings
The setting value for maximum load 500 kW and minimum load 200 kW according to the basic settings tables. For the correct procedure when implementing settings, see 4.7 Nozzle assembly control, brake plate B 45-2 MF and 4.9 Air setting B 45-2 MF Damper motor 2-stage, (see Technical data). -
Page 26: Brake Plate Adjustment
Set the desired position on the scale (C) using the set screw (D) (left turn reduces pressure loss, the brake plate is moved outward). If pulsation occurs, changing the pressure drop over the brake plate may cause the pulsation to stop. Bentone... -
Page 27: Settings Damper Motor, 2-Stage
Excess air fl ue gases Max % CO % CO Lambda 1.2 3 - 5 15.4 ≈12.5 Solenoid valve High load (black) High load (red) Low load (orange) Closed air damper (blue) Release button 165 205 39-3 2022-10-27 Bentone... -
Page 28: Return Oil Pressure Switch
The pressure switch may be set to max. 3.5 bar, which is the highest pressure for which the oil pump is designed at the return side. Setting a higher pressure will damage the gaskets in the pump. Reset button Setting, Pressure switch 165 205 83 Bentone... -
Page 29: Preheater
If the burner stops during operation because the temperature in the preheater is too low, preheater function should be checked. Check, for example, safety thermostats, power to the immersion heater(s), function immersion heater(s), etc. 165 205 82 Bentone... -
Page 30: Adjustment Of Preheater Operating Thermostat
5-10 mm²/s is after preheating. In some instances, a different temperature than that indicated in the above table may be required due to the characteristics of the oil, e.g. ignition propensity. When using a new oil grade, check combustion and adjust the burner settings in order to achieve good combustion. When servicing/replacing components that affect combustion, an analysis and soot test shall be carried out on the installation. Bentone... -
Page 31: Pump E4Nc-1069
Change the oil pump oil fi lter in accordance with the following. • Close the oil valves Unscrew the cover on the pump. • Replace the oil fi lter. • Replace head gasket. • Mount the cover on the pump. • Open the oil valves. • 165 105 86-2 2022-05-17 Bentone... -
Page 32: Function
Vacuum gauge port 5. Inlet Oil under pressure 1. Gear set By passed oil returned to tank, or to suction 2. By-pass hole 6. Pressure adjustment 7. To nozzle 3. Pressure gauge port 4. By-pass plug installed 8. Return Bentone... -
Page 33: Service
500,000 starts 500,000 starts Contactor 10 years Pressure piston max. load, 10 years 80 000 starts Pressure piston min. load + O-ring, Valve seat The burner and its components must be recycled according to applicable regulations. 165 105 60-2 2022-11-08 Bentone... -
Page 34: Combustion Device
Switch on the main power and open the fuel supply. be reconnected with the Start burner and check/adjust combustion. burner tube installed. NB: When soiled, always replace nozzles with new nozzles. Do not clean. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. 165 205 92-3 Bentone... -
Page 35: Air Damper
Install the intake grille for the air intake. Fit the burner and the burner fl ange together and secure with the nut (H). Switch on the main power and open the fuel supply. Start burner and check/adjust combustion. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone... -
Page 36: Replacement Of Damper Motor
Connect the damper motor electrically. Set the damper motor notches as on the motor that has been replaced. Switch on the main power and open the fuel supply. Start burner and check/adjust combustion. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone... -
Page 37: Replacement Of Oil Pump
Switch on the main power and open the fuel supply. Bleed the pump. Start burner and check/adjust combustion. The burner pump has a service life of about 3-5 years if the oil is of a grade that is compliant with standard DIN 51605:2010- 10. If oil of diff erent grade is used, and especially if it contains contaminants such as grit, pumice, metal shavings, etc. or is chemically aggressive, the pump may be expected to have a signifi cantly shorter service life. Use caution when operating the burner, surfaces may be hot. When servicing oil bearing components, check for oil leakage when the burner is commissioned after servicing. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone... -
Page 38: Replacement Of Preheaters
Commission the motor only to fi ll the system with oil. Commissioning the motor can be easily done by using the test equipment, internal test. Start burner and check/adjust combustion. Use caution when operating the burner, surfaces may be hot. When servicing oil bearing components, check the oil density when the burner is commissioned after servicing. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone... -
Page 39: Replacement Of Preheater Overheating Protector
Fit the preheater hood using the screws (S). Switch on the main power and open the fuel supply. Start burner and check/adjust combustion. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone... -
Page 40: Check Oil Line Seals
Restore the burner to operating condition. Switch on the main power and open the fuel supply. Start burner and check/adjust combustion. Pressure piston (V) and O-ring (Z) should be replaced at least every 10 year. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone... -
Page 41: 8.11 Replacement Of Pressure Piston And Seat
(see technical data) Fit the burner and the burner fl ange together and secure with the nut (H). Switch on the main power and open the fuel supply. Start burner and check/adjust combustion. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone... -
Page 42: 8.12 Immersion Heaters For Extra Preheating
Route the cable in the same track as the immersion heater to the pump. Plug the immersion heater electrically, see Wiring diagram. Switch on the main power and open the fuel supply. Start burner and check/adjust combustion. When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone... - Page 43 Route the cable through the new hole specifi cally intended for the purpose and on into the connection point. Switch on the main power and open the fuel supply. Start burner and check/adjust combustion. B45-2 MF 30-60 When servicing/replacing components that aff ect combustion, fl ue gas analysis and soot test must be carried out following installation. Bentone...
-
Page 44: 8.13 Check/Service Oil Pre-Filter
Cleaning is done by turning a knob on the filter that scrapes the surface of the filter. Where a self-cleaning filter is installed, the reliability of the burner may be increased without having to perform a complete service of the filter. When servicing/replacing components that affect combustion, flue gas analysis and soot test must be carried out following installation. Bentone... -
Page 45: Replacement Of Electrical Components
Note the connection of the existing component and disassemble. Fit new component with same connection or with specified alternative connection. Switch on the main power and check the operation of the new component. Start burner and check/adjust combustion. When servicing/replacing components that affect combustion, flue gas analysis and soot test must be carried out following installation. 165 105 11-3 Bentone... -
Page 46: Fault Location
Preheater temperature too low Check preheater function New oil type Adjust the preheater‘s set operating temperature Check that the oil used has the physical parameters that the burner is rated for. If not, change the oil. 165 105 09-2 2021-01-21 Bentone... -
Page 47: Delayed Ignition
Check that the oil used has the physical parameters that the burner is rated for. If not, change the oil. Temperature of the oil from the tank is too low, increase the temperature of oil from tank Clean the pump filter Bentone... -
Page 48: Pump Pressure
Change the oil or the pump‘s oil parameters Pump worn Replace the pump Pump run using impure oil that has worn the Replace pump and install self-cleaning pump out prematurely filter in the oil system Blocked pump filter Check, clean pump filter Bentone... -
Page 49: Log Of Flue Gas Analysis
Log of flue gas analysis Tel. no: Owner Adresss Tel. no: Installation Boiler Type Make Power kW Burner Type Model Serial no. Fuel Step 1 Step 2 Step 3 Draught in fireplace Fan Press mbar Filter smoke number Flue gas temp. °C Setting brake disc Setting Air damper Pump pressure... - Page 50 EU Declaration of conformity Bentone Oil Burners Type: BF 1 ST 133 B 40 B 65 ST 108 ST 146 B 45 B 70 ST 120 B 30 B 55 B 80 This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 51 UK Declaration of conformity Bentone Oil Burners Type: BF 1 ST 133 B 40 B 65 ST 108 ST 146 B 45 B 70 ST 120 B 30 B 55 B 80 This declaration of conformity is issued under the sole responsibility of the manufacturer.
- Page 52 Enertech AB. P.O Box 309, SE-341 26 Ljungby. www.bentone.com...
