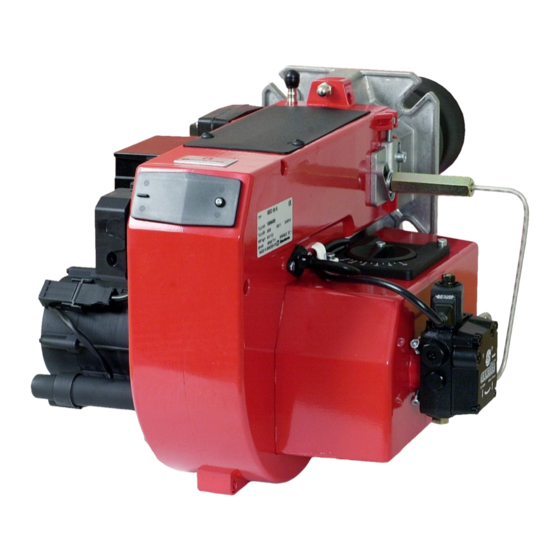

Bentone B40A Installation And Maintenance Instruction
  1. Manuals
  2. Brands
  3. Bentone Manuals
  4. Burner
  5. B40A
  6. Installation and maintenance instruction

Bentone B40A Installation And Maintenance Instruction

Hide thumbs

Advertisement

Table of Contents

Installation- and maintenance instruction
B40A
171 615 82 05-01
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B40A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bentone B40A

Summary of Contents for Bentone B40A

  • Page 1 Installation- and maintenance instruction B40A 171 615 82 05-01...
  • Page 2 178 004 53...
  • Page 3 DESCRIPTION COMPONENTS 1. Shrouded disc 8. Control box 15. Air adjustment 2. Nozzle 9. Reset button 16. Air damper 3. Ignition electrodes 10. Cover, inspection glass 17. Solenoid valve 4. Nozzle assembly 11. Fan wheel 18. Air intake 5. Ignition cable 12.

  • Page 4: Technical Data

    TECHNICAL DATA Type designation B40A DIMENSIONS ø114 200-230 Burner tube Length of burner tube Measure B OUTPUT RANGE AND NOZZLES RECOMMENDED Recommended Recommended Burner tube Oil capacity Nozzle Pump pressure kg/h Mcal/h Angle Type 9,0-29,5 107-350 92-301 45° - 60° S, B, R, PLP 10-15 The net calorific value of 11,86 kWh/kg for light oil has been used.

  • Page 5: General Instructions

    GENERAL INSTRUCTIONS GENERAL RULES ADJUSTMENT OF BURNER The risk increases if the area of the The installation of an oil burner should be To obtain a correct adjustment a flue carried out in accordance with local chimney flue is too large. The tempera- gas analysis and a temperature regulations.

  • Page 6: Maintenance

    MAINTENANCE Warning: Before doing any service switch off power at the main switch and cut off the oil supply. SERVICE OF BURNER HEAD Open the cover and disconnect the connecting pipe by loosening screw 1. Loosen or swing out the burner from the boiler.

  • Page 7: Electric Equipment

    ELECTRIC EQUIPMENT OIL BURNER CONTROL: LOA21... / LOA24... FUNCTION WIRING DIAGRAM Switch on operating switch and twin thermostat (1)(2) The burner motor starts, an ignition spark is formed, the prepurge goes on till the prepurge period expires and the solenoid valve opens (2). Solenoid valve opens Oil mist is formed and ignited.
  • Page 8 INSTRUCTIONS PUMP TYPE SUNTEC AS67C TECHNICAL DATA Viscosity range: 2-12 mm Pressure range: 9-15 bar Oil temperature: max 60°C COMPONENTS 1. Pressure adjustment 2. Return plug 3. Nozzle outlet G 1/8" 4. Pressure gauge port G 1/8" 5. Vacuum gauge port G 1/8" 6.
  • Page 9 APPLICATIONS FOR Solenoid valve closed Solenoid valve open SUNTEC AS67C Light oil. Nozzle flow up to 75 l/h (approx. Pressure regulating Pressure valve 765 000 kcal/h - 890 kW). adjustment One or two-pipe system. To nozzle To shaft seal and PUMP OPERATING PRINCIPLE Shaft seal return...
  • Page 10 NOZZLE TABLE Pump pressure bar kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h kg/h kW Mcal/h 0,40 1,33 1,41 1,49 1,56 1,63 1,70 1,76 1,82 0,50 1,66 1,76 1,86 1,95...

  • Page 11: Fault Location

    FAULT LOCATION BURNER FAILS TO START Situation Possible causes Remedies Motor runs Flame instabillity Check nozzle to burner head dimension and Incorrect head settings Burner pre-purges electrode position Check oil pressure Low oil pressure Adjust air damper Flame occurs Excess air Burner locks out Photocell not seeing light Check that photocell is clean and unobstructed...

  • Page 12: Declaration Of Conformity

    DECLARATION OF CONFORMITY (supplier´s name) BENTONE ............(address) P.O. Box 309, S-341 26 Ljungby, Sverige ..............declare under our sole responsibility that the product (name, type or model, batch or serial number, possibly sources and number of items) ST 97, ST 108, ST 120, ST 133, ST 146, B 9, B 10, B 11, B 20, B 30, B 40, B 45, B 50, B 60, B 70, B 80, ......................................
  • Page 13 To fulfil the demands according to the Efficiency directive 92/42/EEC, Article 2, we herewith state the following parameters. Burner Capacity Test report No. Pressure in combustion Product ID-No. as per type kg/h (kW) TÜV chamber mbar EC-Type Examination Certificate ST 97 1,2-2,6 3728 -0,2 to+1,4...
  • Page 14 To fulfil the demands according to the Efficiency directive 92/42/EEC, Article 2, we herewith state the following parameters. Burner Capacity Test report No. Pressure in combustion Product ID-No. as per type kg/h (kW) TÜV chamber mbar EC-Type Examination Certificate B 50-2F 12,0-59,0 3390 -0,2 to +9,4...
