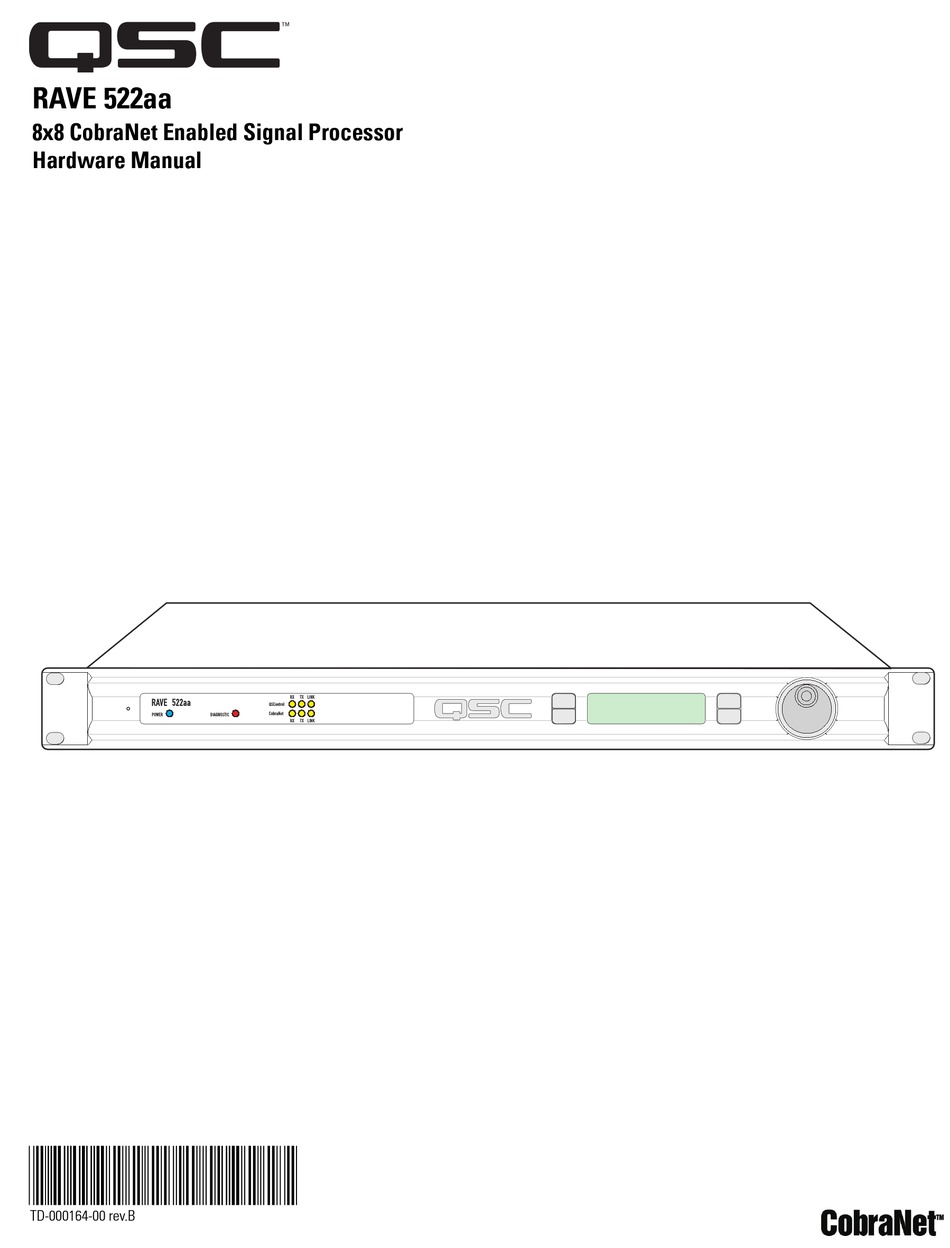

RAVE 522aa
8x8 CobraNet Enabled Signal Processor
Hardware Manual
*TD-000164-00*
TD-000164-00 rev.B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RAVE 522aa and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for QSC RAVE 522aa

  • Page 1 RAVE 522aa 8x8 CobraNet Enabled Signal Processor Hardware Manual *TD-000164-00* TD-000164-00 rev.B...
  • Page 2 - Consult the dealer or an experienced radio or TV technician for help. © Copyright 2004 QSC Audio Products, Inc. QSC® is a registered trademark of QSC Audio Products, Inc. “QSC” and the QSC logo are registered with the U.S. Patent and Trademark Office. All trademarks are the property of their respective owners.
  • Page 3 Unlike many configurable DSP boxes, the intrinsic process- ing latency of the RAVE 522aa is both short and fixed at 0.396 milliseconds. When analog input and analog outputs are used, the total delay is 2.354 milliseconds. The delay does not change regardless of the DSP configuration, unless the configuration intentionally adds more delay.
  • Page 4 DSP-30. The RAVE 522aa brings all that technology together in one compact, powerful, easy to use system. We are confident that your new RAVE 522aa will provide years of dependable service and we hope it will help you, the sys- tem designer and implementer, to express your creative audio system ideas.
  • Page 5 Second, CobraNet audio must traverse either a repeater domain or a network switch domain. The point here is that the CobraNet port on a RAVE 522aa must connect directly to, and only to, either a repeater LAN or a switched Ethernet LAN. Hybrid networks containing both repeaters and switches are not permitted on the audio segment.
  • Page 6 CM16a and RAVE networks. For this very reason we continue to support connectivity to network repeater hardware with the RAVE 522aa. Support for network repeaters exist only with the Two Wire Interface. That is to say that the QSControl port and the CobraNet port must be connected to separate repeater LANs.
  • Page 7 Example #2 - CobraNet X-over mode: This is the simplest connection you can make between the RAVE 522aa and any of the other RAVE/BASIS models. You use a CAT-5 crossover cable connected between the CobraNet ports of each unit. No network switch is required. This connection allows audio to pass between the two RAVE/BASIS units over CobraNet.
  • Page 8 Example #3 - Single Wire Interface: Here all QSControl and CobraNet traffic shares the same single CAT-5 cable between the RAVE 522aa and an unmanaged Ethernet switch. The QSControl.net system manages traffic flow efficiently and reliably so that all audio and control data is delivered to its appropriate destination anywhere on the network.
  • Page 9 Example #4 - Two-Wire Interface (shared network hardware): This example illustrates the Two-Wire Interface with a managed Ethernet switch. The switch is configured with multiple virtual local area networks (VLANs). Ethernet deliveries can only reach destination ports belonging to the same VLAN from which it was sourced.
  • Page 10 Example #5 - Two-Wire Interface (separate network hardware): Example #5 is conceptually similar to example #4. The difference here is that separate networks are created by providing each local area network (LAN) with its own network switch. Therefore, traffic segmentation is physical rather than logical. Example #5 also pro- vides an additional level of fault tolerance, although at the expense of additional network hardware.
  • Page 11: Rack Mounting

    2-pin terminal block connector Mounting The RAVE 522aa can be used in or out of an equipment rack. Rack mounting is optional. Adhesive rubber feet are included for non-rack mount installations. Use them to prevent the unit from scratching or marring support surfaces.
  • Page 12 Computer Requirements & Software Installation Installing QSControl.net is easy. All you need to do is choose the folder where the program is to be stored (the default setting is accept- able for most applications). We recommend your system meet the following minimum requirements: 1- IBM PC compatible computer with a Pentium 4 processor.
  • Page 13: Amplifier Setup

    Configuration Memories The RAVE 522aa has non-volatile storage locations that contain settings for the device as well as DSP signal flow. The storage loca- tions make it possible to set up the RAVE for different situations and quickly recall the setup with or without QSControl.net software...
  • Page 14 AC Power Cord Insert the molded receptacle of the AC power cord into the AC power inlet on the back of the RAVE 522aa. Plug the AC line connector into the AC outlet. The power supply will accept from 100 to 240 Volts AC, 47 to 440 Hertz, without any changes.
  • Page 15: Relay Out

    “finger tight”. Communications should be 9600 baud, no parity, 8 data bits, 1 stop bit, and flow control Xon/Xoff. LED Indicators When the RAVE 522aa is plugged into a properly functioning AC outlet, it will power up and briefly display a welcome screen on the LCD dis- play.
  • Page 16: Lcd Display And Controls

    LCD Display and Controls The RAVE 522aa has a 2 line X 16 character LCD display. The display and the multi-function push-button switches on either side provide data access and editing capability. The push-button switches on either side of the display are used to navigate through the menus.
  • Page 17 LCD Navigation Map (typical) Left side buttons have screen dependent functions. This read-only screen is the “out of the box” default dis- play after power up. This is the most desired information when first setting up a net- work system. Once user moves to a different screen, the last screen accessed becomes the new power up...
  • Page 18: Getting Started

    2- Connect a CAT-5 crossover cable from the computer’s network interface card (NIC) to the RAVE QSControl jack (example 1, page 6). 3- Reconnect the power cord to the RAVE 522aa (turn it on). Using the RAVE LCD display and controls, navigate the menu to the IP Address and make a note of it.
  • Page 19 Subnet masks are set correctly, and verify AC power is properly applied to the RAVE. 19- Click on the RAVE 522aa in the inventory root. A view of applicable device tabs will open. Click the DSP tab and the current DSP configuration of the RAVE will be displayed.
  • Page 20: Operation

    16 may be selected to forward to the signal processing chain (DSP engine). The RAVE 522aa will support the delivery of up to 32 channels via up to 4 outbound bundles (to the network). Of these 32 channels, up to 24 may be unique (processed individually...
  • Page 21: Safe Mode Switch

    If the RAVE 522aa operates in an unexpected way or is not responding to any communications after a new firmware file is uploaded to it, it is likely the file was corrupted during transfer. If this occurs, there is a “backup” program in the RAVE 522aa that will enable you to communicate with it.
  • Page 22 6) The Hyper Terminal main window will appear next, but blank. Type the letter “h” (for help) and then the “Enter” key. This will prompt the RAVE 522aa to post its menu text. The “h” key is the Help prompt for the RAVE 522aa. A text menu will appear. This is sent by the RAVE 522aa and will detail your options and instructions for changing the address information.
  • Page 23: Telnet Access

    Basic procedure for opening a Telnet session: 1- To open the Telnet session- Click START, select RUN, type “Telnet” followed by a space, then the IP address of the RAVE 522aa you want to communicate with in the text box and click OK.
  • Page 24 Preliminary Specification Dynamic Range (AES-17, -60dB Method, all sensitivities) unweighted A weighted Distortion (20Hz-20 KHz, all sensitivities) +4dBu (max) 2dB below clip (max) Crosstalk (20Hz - 20KHz) inter-channel (max) inter-channel (typ) intra-channel (max) intra-channel (typ) Frequency Response 20Hz - 20KHz (max) 20Hz - 20KHz (typ) Input Impedance Balanced (nominal)
  • Page 25 Preliminary Specification Relay Outputs Connector Type Configuration Pinout Switching Capacity (nom) Logic Outputs Connector Type Configuration Pinout Omni Inputs Connector Type Configuration Pinout Normal Operating Range Potentiometer Operation Voltage Tolerance Current Output RS-232 Port QSControl CobraNet Indicators QSControl Status CobraNet Status Power Diagnostic LCD Data Display...
  • Page 26: How To Contact Qsc Audio Products

    QSC Audio Products 3 Year Limited Warranty QSC Audio Products, Inc. ("QSC") guarantees its products to be free from defective material and / or workmanship for a period of three (3) years from date of sale, and will replace defective parts and repair malfunctioning products under this warranty when the defect occurs under normal installation and use - provided the unit is returned to our factory or one of our authorized service stations via pre- paid transportation with a copy of proof of purchase (i.e., sales receipt).
