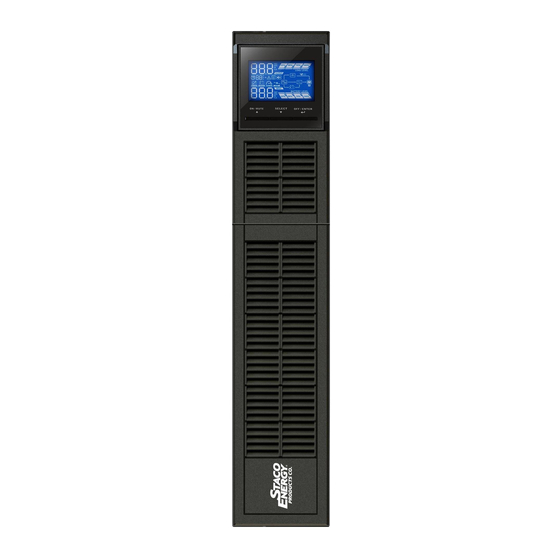

- Page 1 UNISTAR V 120-230V 50/60Hz 1 to 3kVA USER MANUAL 003-2519, Rev J...
- Page 2 No reproduction of any part of this manual, even partial, is permitted without the authorization of Staco Energy Products Company. The Staco Energy Products Company reserves the right to modify the product described herein, in order to improve it, at any time and without notice.
-
Page 3: Table Of Contents
Table of Contents 1. Important Safety Warnings ........................1 1.1 Transportation ..........................1 1.2 Preparation ............................. 1 1.3 Installation ............................1 1.4 Operation ............................1 1.5 Maintenance, Service and Faults ....................2 1.6 WEEE ............................. 3 1.7 FCC (120V Models) ........................3 1.8 EMC (230V Models) ........................ -
Page 4: Important Safety Warnings
1. Important Safety Warnings Please strictly comply with all warnings and operating instructions in this manual. Save this manual and carefully read the following instructions before installing the unit. Do not operate this unit before reading through all safety information and operating instructions carefully. 1.1 Transportation Transport the UPS system only in the original package to protect against shock and impact. -
Page 5: Maintenance, Service And Faults
1.5 Maintenance, Service and Faults • The UPS system operates with hazardous voltages. Repairs may be carried out only by qualified maintenance personnel. • CAUTION - Risk of electric shock. Even after the unit is disconnected from the mains (building wiring outlet), components inside the UPS system are still connected to the battery and electrically live and dangerous. -
Page 6: Weee
1.6 WEEE Information for Protection of the Equipment UPS SERVICING – This UPS and batteries makes use of components dangerous for the enviroment (electronic cards, electronic components). The components removed must be taken to specialized collection and disposal centers. Notice to European Union Customers: Disposal of Old Appliances – This product has been supplied rom an enviromentally aware manufacturer that complies with Waste Electrical and Electrnic Equipment (WEEE) Directive 2002/96/CE. -
Page 7: Installation And Setup
2. Installation and setup NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged. Please keep the original package in a safe place for future use. NOTE: There are two different types of online UPS: standard and long-run models. Please refer to the following model table. -
Page 8: Kva
3 kVA 120V version 240V version 1. Programmable outlets: connect to non-critical loads. 2. Output receptacles: connect to mission-critical loads. 3. AC input 4. Input circuit breaker 5. Emergency power off function connector (EPO) 6. USB communication port 7. RS-232 communication port 8. -
Page 9: Install The Ups
2.2 Operating principle The UPS is composed of mains input, TVSS and EMI/RFI filters, rectifier/PFC, inverter, battery charger, DC-to-DC converter, battery, dynamic bypass and UPS output. 2.3 Install the UPS For safety consideration, the UPS is shipped out from factory without connecting battery wires. Before installing the UPS, please follow the below steps to re-connect battery wire. -
Page 10: Rack-Mount Installation
2.3.1 Rack-mount Installation CAUTION – Do NOT use the mounting brackets to lift the unit. The mounting brackets are only for securing the unit to the rack. Install UPS alone Install UPS and external battery 2.3.2 Tower Installation Install UPS alone Install UPS and external battery NOTE: When installing the UPS or battery pack with feet, keep 2.76in distance from the edge of the unit. -
Page 11: Setup The Ups
2.4 Setup the UPS Step 1: UPS input connection Plug the UPS into a two-pole, three-wire, grounded receptacle only. Avoid using extension cords. CAUTION: For 1 and 2 kVA models, to reduce the risk of fire, connect only to a circuit provided with 20 amperes maximum branch circuit overcurrent protection in accordance with the National Electric Code, ANSI/NFPA 70. - Page 12 Step 5: Disable and enable EPO function Keep pin 1 and pin 2 closed for UPS normal operation. To activate EPO function, cut the wire between pin 1 and pin 2. Short terminals for UPS normal operation. Step 6: External battery connection Connect one end of external battery cable to UPS unit and the other end to battery pack.
-
Page 13: Battery Replacement
2.5 Battery Replacement NOTICE: This UPS is equipped with internal batteries and only service personnel can replace the batteries. CAUTION!! Consider all warnings, cautions, and notes before replacing batteries. NOTE: Upon battery disconnection, equipment is not protected from power outages. Step 1 Step 2 Step 3... -
Page 14: Battery Kit Assembly (Option)
2.6 Battery Kit Assembly (option) NOTICE: Replacement battery pack comes fully assembled from the factory. Consult factory for details. 2-battery kit – 1kVA Step 1 Step 2 Step 3 Step 4 Step 1: Remove adhesive tapes. Step 2: Connect all battery terminals by following below picture. Step 3: Put assembled battery packs on one side of plastic shells. - Page 15 4-battery kit – 2kVA Step 1 Step 2 Step 3 Step 4 Step 1: Remove adhesive tapes. Step 2: Connect all battery terminals by following below picture. Step 3: Put assembled battery packs on one side of plastic shells. Step 4: Cover the other side of plastic shell as shown below. Then, battery kit is fully assembled. 6-battery kit –...
-
Page 16: Frequency Converter Mode
2.7 Frequency Converter Mode To set-up the unit to run as a Frequency Converter Mode follow the instructions below. 1. Install the UPS system per the instructions above. 2. Verify mains input is connected correctly, and the UPS input breaker is at “ON” position. 3. -
Page 17: Power Conditioner Set-Up
2.8 Power Conditioner Set-Up To set-up the unit to run as a Power Conditioner (no batteries connected) follow the instructions below. 1. Install the UPS system per the instructions above. 2. Verify mains input is connected correctly, and the UPS input breaker is at “ON” position; 3. -
Page 18: Permanently Silence Audible Alarm
2.9 Permanently Silence Audible Alarm WARNING: This procedure will not allow the audible alarm to activate for any alarm or fault. 1. On CD that came with unit, install ViewPower software per software instructions. 2. Connect USB cord from computer to UPS unit (see Section 2.1 Rear panel view). 3. -
Page 19: Operation
3. Operation 3.1 Button operation Button View Button Function Turn on the UPS: Press and hold ON/Mute button for at least 2 seconds to turn on the UPS. Mute the alarm: After the UPS is turned on in battery mode, press and hold this button for at least 5 seconds to disable or enable the alarm system. -
Page 20: Lcd Panel
3.2 LCD Panel Display Function Remaining backup time information Indicates the remaining backup time in pie chart. Indicates the remaining backup time in numbers. H: hours, M: minute, S: second Fault information Indicates that warning and fault occurred. Indicates the warning and fault codes. The codes are listed in detail in section 3-5. -
Page 21: Audible Alarm
Battery information Indicates the Battery level by 0-25%, 26-50%, 51-75%, and 76-100%. Indicates the battery is at fault. Indicates low battery level and low battery voltage. Input & Battery voltage information Indicates the input voltage or frequency or battery voltage. Vac: Input voltage, Vdc: battery voltage, Hz: input frequency 3.3 Audible Alarm Battery Mode... -
Page 22: Ups Settings
3.5 UPS Settings There are three parameters to set up the UPS. Parameter 3 Parameter 1: Program alternatives. Refer to below table. Parameter 2 and Parameter 3 are the setting options or values Parameter 1 for each program. Parameter 2 01: Output voltage setting Interface Setting... - Page 23 04: ECO enable/disable Interface Setting ENA: ECO mode enable DIS: ECO mode disable(Default) 05: AECO enable/disable Interface Setting ENA: Advanced ECO mode enable DIS: Advanced ECO mode disable(Default) 06: Bypass mode enable/disable when UPS is off Interface Setting ENA: Bypass mode is enabled when UPS is off DIS: Bypass mode is disabled when UPS is off (Default) 07: Programmable outlets enable/disable Interface...
- Page 24 08: Programmable outlets setting Interface Setting 0-999: setting the backup time limits in minutes from 0-999 for programmable outlets which connect to non-critical devices on battery mode. 09: Acceptable input voltage range setting Interface Setting For 200/208/220/230/240 VAC models, you may choose the following selection for acceptable input voltage range: 110/300 flashing in turns: The acceptable input voltage range is from 110V to 300V.
-
Page 25: Operating Mode Description
3.6 Operating Mode Description Operating Description LCD display mode When the input voltage is within acceptable Online mode range, UPS will provide pure and stable AC power to output. The UPS will also charge the battery in online mode. ECO mode When the input voltage is within setting range (Efficiency (±3%Vo max), UPS will bypass voltage to... -
Page 26: Faults Reference Code
Standby mode UPS is powered off and without output power, but the battery still can be charged. The UPS is in fault mode when no output power is supplied from the UPS and the fault Fault mode icon flashes on the LCD display, although the UPS information can be displayed on the screen. -
Page 27: Troubleshooting
4. Troubleshooting If the UPS system does not operate correctly, use the table below to check problem. Symptom Possible cause Remedy No indication and alarm even though Check if input power cord The AC input power is not the main is normal. firmly connected to the connected properly. - Page 28 Symptom Possible cause Remedy Battery backup time is shorter than Charge the batteries for at nominal value least 5 hours and then check Batteries are not fully capacity. If the problem still charged persists, consult the manufacturer. Contact the manufacturer to Batteries defective replace the batteries.
-
Page 29: Storage And Maintenance
5. Storage and Maintenance 5.1 Operation The UPS system contains no user-serviceable parts. If the battery service life (3-5 years at 25°C ambient temperature) has been exceeded, the batteries must be replaced. In this case, please contact the manufacturer for replacement battery packs. Be sure to deliver the spent battery to a recycling facility. -
Page 30: Ups Specifications
6. UPS Specifications 6.1 120V Specifications MODEL (SCV) 10001 10001-LB 15001 15001-LB 20001 20001-LB 30001 30001-LB 1000 VA 900 VA 1500VA 1250VA 2000 VA 1700 VA 3000 VA 2500 VA Capacity 900 W 810 W 1350W 1125W 1800 W 1530 W 2700 W 2250 W INPUT... -
Page 31: 230V Specifications
6.2 230V Specifications MODEL (SCV) 10002 10002-LB 15002 15002-LB 20002 20002-LB 30002 30002-LB 1000 VA 1500VA 2000 VA 3000 VA Capacity 900 W 1350W 1800 W 2700 W INPUT Rated 220-240 VAC voltage Low Line 160 VAC/140 VAC/120 VAC/110 VAC ± 5 % Transfer (based on load percentage 100%-80% / 80%-70% / 70%-60% / 60%-0) Voltage... -
Page 32: Battery Pack Specification
6.3 Battery Pack Specification Model SCV-BAT-1K SCV-BAT-1.5K SCV-BAT-2K SCV-BAT-3K Used with UPS 1.5K Models Battery Type 12V 9Ah 12V 9Ah 12V 9Ah 12V 9Ah Battery Numbers Dimensions 15.78 x 17.24 x 3.39 15.78 x 17.24 x 3.39 19.72 x 17.24 x 3.39 24.44 x 17.24 x 3.39 (D”xW”xH”) Net Weight(lbs) NOTE: Battery cabinet should be used with corresponded UPS. - Page 33 Notes: Page | 30...
