Bush Hog RBX 720 Operator's Manual

Retractable shank box blade

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

Published 09/20

This Operator's Manual is an integral part of the safe operation of this machine and must

be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety

and Operation Instructions contained in this manual before operating the equipment. C01-

Cover

BUSH HOG

2501 Griffin Ave.

Selma, AL 36703

334-874-2700

www.bushhog.com

RETRACTABLE SHANK BOX BLADE

OPERATOR'S MANUAL

RBX 720

RBX 780

RBX 840

Part No. 50037881

$0.00

Table of Contents

Need help?

Do you have a question about the RBX 720 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bush Hog RBX 720

Page 1 RBX 720 RBX 780 RBX 840 RETRACTABLE SHANK BOX BLADE Published 09/20 Part No. 50037881 OPERATOR’S MANUAL This Operator's Manual is an integral part of the safe operation of this machine and must be maintained with the unit at all times. READ, UNDERSTAND, and FOLLOW the Safety and Operation Instructions contained in this manual before operating the equipment.
Page 2 BEFORE YOU START! Read the safety messages on the implement and shown in your manual. Observe the rules of safety and common sense! For future reference, record your Bush Hog product model number and serial number. Dealer Telephone Model Number...
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY SECTION ......................1-1 General Safety Instructions and Practices ......................1-2 PARTS INFORMATION ............................. 1-8 Decal Location ..............................1-9 Decal Description ............................. 1-10 FEDERAL LAWS AND REGULATIONS ......................1-11 INTRODUCTION SECTION ....................2-1 OPERATION SECTION ....................... 4-1 Standard Equipment and Specifications ......................
Page 5: Safety Section
SAFETY SECTION Safety Section 1-1...
Page 6: General Safety Instructions And Practices
SAFETY General Safety Instructions and Practices A careful operator is the best operator. Safety is of primary importance to the manufacturer and should be to the owner/operator. Most accidents can be avoided by being aware of your equipment, your surroundings, and observing certain precautions.
Page 7 SAFETY Never operate the Tractor or Implement until you have read and completely understand this Manual, the Tractor Operator’s Manual, and each of the Safety Messages found in the Manual or on the Tractor and Implement. Learn how to stop the tractor engine suddenly in an emergency.
Page 8 SAFETY Never allow children to operate, ride on, or come close to the Tractor or Implement. Usually, 16-17 year-old children who are mature and responsible can operate the implement with adult supervision, if they have read and understand the Operator’s Manuals, been trained in proper operation of the tractor and Implement, and are physically large enough to reach and operate the controls easily.
Page 9 SAFETY Transport only at speeds where you can maintain control of the equipment. Serious accidents and injuries can result from operating this equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.
Page 10 SAFETY Always read carefully and comply fully with the manufacturer’s instructions when handling oil, solvents, cleansers, and any other chemical agent. (SG-22) Never run the Tractor engine in a closed building or without adequate ventilation. The exhaust fumes can be hazardous to your health. (SG-23) Never allow children to play on or around Tractor or Implement.
Page 11 SAFETY Relieve hydraulic pressure prior to doing any maintenance or repair work on the Implement. Place the Implement on the ground or securely blocked up, disengage the PTO, and turn off the tractor engine. Push and pull the Remote Cylinder lever in and out several times prior to starting any maintenance or repair work.
Page 12: Parts Information
These parts are made and tested to Bush Hog specifications. Non-genuine "will fit" parts do not consistently meet these specifications. The use of “will fit” parts may reduce equipment performance, void warranties, and present a safety hazard. Use genuine Bush Hog parts for economy and safety.
Page 13: Decal Location
SAFETY Decal Location NOTE: Bush Hog supplies safety decals on this product to promote safe operation. Damage to the decals may occur while in shipping, use, or reconditioning. Bush Hog cares about the safety of its customers, operators, and bystanders, and will replace the safety decals on this product in the field, free of charge (Some shipping and handling charges may apply).
Page 15: Federal Laws And Regulations
SAFETY FEDERAL LAWS AND REGULATIONS This section is intended to explain in broad terms the concept and effect of federal laws and regulations concerning employer and employee equipment operators. This section is not intended as a legal interpretation of the law and should not be considered as such.
Page 17: Introduction Section
INTRODUCTION SECTION Introduction Section 2-1...
Page 18 INTRODUCTION This Box Blade is designed with care and built with quality materials by skilled workers. Proper assembly, maintenance, and operating practices, as described in this manual, will help the owner/operator get years of satisfactory service from the machine. The purpose of this manual is to familiarize and instruct. The Assembly Section instructs the owner/operator in the correct assembly of the Blade using standard and optional equipment.

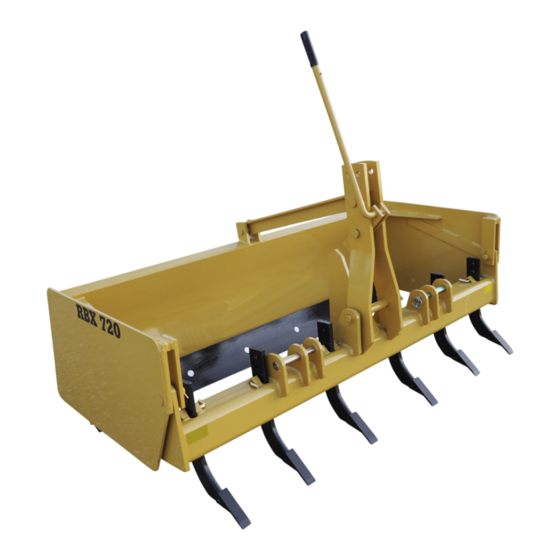

Page 19 Bush Hog’s RBX Series Retractable Shank Box Blades has the ability to lower or retract the shanks depending on the job. With the shanks down, the RBX becomes a scarifying machine able to penetrate hard ground much deeper than a standard box blade.
Page 20 NOTE: Warranties are honored only if completed “Owner Registration and Warranty” forms are received by Bush Hog within thirty days of delivery of the implement. 3. Record the Model and Serial Numbers on Warranty Page at the front of the Operator’s Manual. Keep this as part of the permanent maintenance file for the Implement.
Page 21 2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Bush Hog have been used in connection with the unit, if, in the sole judgement of Bush Hog such use affects its performance, stability or reliability.
Page 23: Operation Section
OPERATION SECTION Operation Section 3-1...
Page 24 OPERATION BOX BLADE OPERATION INSTRUCTIONS Your Box Blade should now be assembled and inspected for any evidence of defective or damaged parts before use. Any evidence of damage should be reported to your dealer immediately. After the Three-Point Hitch is attached, carefully remove safety blocks from Moldboard pivot Point. This section of the Operator’s Manual is designed to familiarize, instruct, and educate safe and proper blade use to the operator.
Page 25: Standard Equipment And Specifications
OPERATION Standard Equipment and Specifications RBX 720 RBX 780 RBX 840 Working Width 72” 78” 84” Overall Depth 35” 35” 35” Lower Hitch Pin Height 13-1/2” 13-1/2” 13-1/2” Number of Scarifiers Weight 829 lbs. 890 lbs. 957 lbs. Cutting Edge Reversible 1/2”...
Page 26: Operator Requirements
OPERATION 2. OPERATOR REQUIREMENTS Safe operation of the unit is the responsibility of a qualified operator. A qualified operator has read and understands the implement and tractor Operator’s Manuals and is experienced in implement and tractor operation and all associated safety practices. In addition to the safety messages contained in this manual, safety signs are affixed to the implement and tractor.
Page 27: Tractor Requirements
OPERATION 3. TRACTOR REQUIREMENTS Operating the blade with a tractor that does not meet the following requirements may cause tractor or blade damage and be a potential danger to the operator and passersby. Tractor Requirements and Capabilities • ASABE approved Roll-Over Protective Structure (ROPS) or ROPS cab and seat belt. •...
Page 28: Tractor 3-Point Hitch
OPERATION 3.3 Tractor 3-Point Hitch For the Box Blade, the tractor 3-point hitch must be rated to lift at least 829 lbs. for the 72”, 890 lbs for the 78”, and 957 lbs for the 84”. The Box Blade can attach to tractors with a CAT I or CAT II.
Page 29: Dismounting The Tractor
OPERATION Never allow children to operate, ride on, or come close to the Tractor or Implement. Usually, 16-17 year-old children who are mature and responsible can operate the implement with adult supervision, if they have read and understand the Operator’s Manuals, been trained in proper operation of the tractor and Implement, and are physically large enough to reach and operate the controls easily.
Page 30: Starting The Tractor
OPERATION 5. STARTING THE TRACTOR The operator must have a complete understanding of the placement, function, and operational use of all tractor controls before starting the tractor. Review the tractor operator’s manual and consult an authorized dealer for tractor operation instructions if needed. Essential Tractor Controls: •...
Page 31: Connecting The Blade
OPERATION 6.1 Connecting the Blade 1. The Box Blade should be on level ground. 2. Place the tractor rockshaft control in “Position Control” (non-floating) attaching detaching the box blade. “Draft Control” or “Position Control” can be used while operating. 3. Board the tractor and start the engine. Position the tractor to the blade with the 3-point lift arms positioned between the respective set of blade A-frame lift lugs.
Page 32: Pre-Operation Inspection And Service
OPERATION IMPORTANT: Scan this QR Code with your smart phone to link to the PAMI Safe Implement Hitching Manual for more information on correctly connecting agricultural tractors to implements. Or type in your internet browser the following web address: www.algqr.com/hme Ops-0008-MISC 7.
Page 33: Tractor Pre-Operation Inspection/Service
OPERATION 7.1 Tractor Pre-Operation Inspection/Service Refer to the tractor operator’s manual to ensure a complete pre-operation inspection and scheduled service performed according manufacturers recommendations. The following are some of the items that require daily service and inspection: • Tire condition/air pressure •...
Page 34: Blade Pre-Operation Inspection/Service
OPERATION 7.2 Blade Pre-Operation Inspection/Service Before each use, a complete inspection and service is required to ensure the blade is in good and safe working condition. Damaged and/or broken parts should be repaired and/or replaced immediately. To ensure the blade is ready for operation, conduct the following.
Page 35 OPERATION Tractor PRE-OPERATION Inspection Tractor ID#:________________________Make:________________________ Date:______________________________Shift:________________________ Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the implement is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 36 OPERATION Blade & Box Blade PRE-OPERATION Inspection Blade ID#:_______________________Make:__________________________ Date: ___________________________Shift:___________________________ Before conducting the inspection, make sure the tractor engine is off, all rotation has stopped and the tractor is in park with the parking brake engaged. Make sure the blade is resting on the ground or securely blocked up and all hydraulic pressure has been relieved.
Page 37: Driving The Tractor And Implement
OPERATION 8. DRIVING THE TRACTOR AND IMPLEMENT Safe tractor transport requires the operator possess a thorough knowledge of the model being operated and precautions to take while driving with an attached implement. Ensure the tractor has the capacity to handle the weight of the implement and the tractor operating controls are set for safe transport.
Page 38: Starting The Tractor
OPERATION 8.1 Starting the Tractor The procedure to start the tractor is model specific. Refer to the tractor operator’s manual for starting procedures for your particular tractor. Consult an authorized dealer if the starting procedure is unclear. Ensure the 3-point control lever is in the lowered position and the PTO is disengaged before starting the tractor.
Page 39: Driving The Tractor And Implement
OPERATION 9. DRIVING THE TRACTOR AND IMPLEMENT Start off driving at a slow speed and gradually increase your speed while maintaining complete control of the tractor and unit. Moving slowly at first will also prevent the tractor from rearing up and loss of steering control. The tractor should never be operated at speeds that cannot be safely handled or which will prevent the operator from stopping quickly during an emergency.
Page 40: Operating The Blade
OPERATION 10.1 Operating the Blade When operating the Box Scraper, a reasonable degree of care should be taken to avoid large obstacles that would create undue loads on both the blades and linkage which could result in damage to your scraper. Level the box blade from side to side and front to rear using adjustments on the tractor’s 3-point lift.
Page 41: Shutting Down The Implement
OPERATION Moving snow with the blade in backfill position is a very delicate operation and should be performed with extreme care and very slow speed. It is very easy to hit objects hidden in snow, or hit a snow bank that is too much material for your blade to move.
Page 42: Transporting The Tractor And Implement
OPERATION • Check the unit for worn and damaged parts. Perform repairs and make replacements immediately so that the unit will be ready for use at the start of the next season. • Store the unit in a clean, dry place resting securely on the level ground. •...
Page 43 OPERATION Transport only at speeds where you can maintain control of the equipment. Serious accidents and injuries can result from operating this equipment at high speeds. Understand the Tractor and Implement and how it handles before transporting on streets and highways. Make sure the Tractor steering and brakes are in good condition and operate properly.
Page 44: Transporting On Public Roadways
OPERATION Before transporting the tractor on a public roadway or boarding a trailer for transport, the tractor brake pedals should be locked together. Locking the pedals ensures that both wheels brake simultaneously while stopping, especially when making an emergency stop. Use extreme caution and avoid hard applications of the tractor brakes when towing heavy loads at road speeds.
Page 45 OPERATION The SMV (Slow-Moving Vehicle) emblem is universal symbol used to alert drivers of the presence of equipment traveling on roadways at a slow speed. SMV signs are a triangular bright orange with reflective red trim for both easy day and night visibility.
Page 46: Hauling The Tractor And Implement
OPERATION 14.2 Hauling the Tractor and Implement Before transporting a loaded tractor and implement, measure the height and width dimensions and gross weight of the complete loaded unit. Ensure that the load will be in compliance with the legal limits set for the areas that will be traveled through.
Page 47: Troubleshooting Guide
OPERATION 15. TROUBLESHOOTING GUIDE Problem Possible Cause Remedy Bent Moldboard Small curve is normal from weld pull Can be removed but will not affect operation Hitting hidden objects Know soil conditions, keep speed to a minimum. Blade will not penetrate soil Cutting edge dull Replace Cutting edge Blade set to straight...
Page 49: Maintenance Section
MAINTENANCE SECTION Maintenance Section 5-1...
Page 50: Replacing Scarifier Points
MAINTENANCE Replacing Scarifier Points Make certain that you wear gloves and safety glasses. Chips can fly off hammer or punch and cause eye damage, loss of eyesight, or other injury. Lower the blade as much as possible and securely support before making any adjustment. Worn scarifier tips may be removed from the shank by hammering at “A”...
Page 53 TO THE OWNER/OPERATOR/DEALER To keep your implement running efficiently and safely, read your manual thoroughly and follow these directions and the Safety Messages in this Manual. The Table of Contents clearly identifies each section where you can easily find the information you need. The OCCUPATIONAL SAFETY AND HEALTH ACT (1928.51 Subpart C) makes these minimum safety...
Page 54 RBX 720, 780, & 840 Box Blade RBX 720, 780, & 840-SOM-09/20 P/N 50037881 Printed U.S.A...
