User Manual

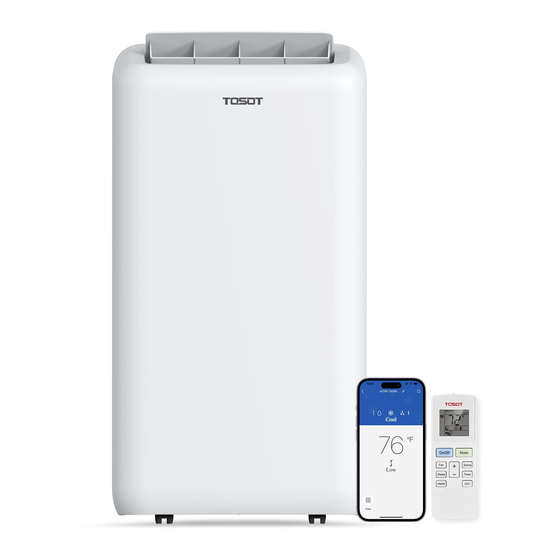

Portable Air Conditioner
Before using your TOSOT Portable Air Conditioner,
please read this user manual in its entirety.
MO DEL NUMBER
GPH10ARC-A6NNA1A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GPH10ARC-A6NNA1A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Tosot GPH10ARC-A6NNA1A

Summary of Contents for Tosot GPH10ARC-A6NNA1A

  • Page 1 User Manual Portable Air Conditioner Before using your TOSOT Portable Air Conditioner, please read this user manual in its entirety. MO DEL NUMBER GPH10ARC-A6NNA1A...
  • Page 2 Welcome to the TOSOT Direct Family! We’re extremely happy to welcome you as a new member of our family! Please read the tips below before using your product for the first time. Tips for First-Time Use Keep the original packaging material including packing foam, carton and printed material until you decide to keep the unit.

  • Page 3: Table Of Contents

    Table of Contents Safety and Instructions ------------------------------------------- Installation and Setup ------------------------------------------- Electrical Safety Warning --------------------------------------- Parts Description --------------------------------------------------- ------------------------------------------------------------ Operation Control Panel ----------------------------------------------------- Remote Control -------------------------------------------------- Combination Buttons -------------------------------------------- App Control ------------------------------------------------------- Replacing the Batteries ----------------------------------------- ----------------------------------------------------------- Installation Tools Required ---------------------------------------------------- Parts List ----------------------------------------------------------...

  • Page 4: Safety And Instructions

    This includes exposed wiring on a damaged cord or electrical plugin. All repairs and servicing must be performed by qualified service personnel. Use only authorized TOSOT factory OEM parts. ● Keep the product away from fire. Do not store or use flammable gases or materials near the appliance.

  • Page 5: Electrical Safety Warning

    Electrical Safety Warning ● If the power cable is damaged, it must be replaced by the manufacturer or an authorized technical service center in order to avoid all risk. ● Do not damage, alter, excessively bend, twist, pull or heat the power cord. ●...
  • Page 6 However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ●...
  • Page 7 Recommended Operating Environment ● The recommended operating temperature range for AC is 61°F-95°F (16°C-35°C), for heat pump the recommended temperature range is 50°F-95°F (10°C-35°C). ● The appliance is for indoor use only. ● The appliance must be positioned so that the plug is easily accessible. ●...

  • Page 8: Parts Description

    Parts Description Control Panel Airflow Louver Handels Filter Power Cord Hooks Manual Drainage Port Power Cord Wheels OPER On/Off Mode Swing Sleep Timer Health WiFi Remote Control...

  • Page 9: Operation

    Operation Control Panel WiFi Indicator Fan Button Swing Button +/- Button Timer Button Mode Button On/Off Button WiFi Indicator Indicates whether or not the air conditioner is ready to connect WiFi. Fan Button Pressing this button will cycle the fan speed through one of 3 fan modes, as shown below: low speed medium speed...
  • Page 10 Swing Button Press this button and the airflow louver will swing up & down automatically. Press it again to turn off the swing function. +/- Button ● Pressing this button will allow you to change the temperature setting. ● After pressing the timer button, the +/- buttons will adjust the timer setting from 0.5-24 hours in 0.5-hour increments.

  • Page 11: Remote Control

    Remote Control The max range of the remote control is 25 feet with no obstacles or interference from other devices, such as wireless phones or fluorescent lamps. The air conditioner will emit a beep sound if the signal from the remote has been received successfully.
  • Page 12 Auto Cool Only Heat a.Auto mode:The air conditioner will adjust the fan speed automatically to maintain the set temperature. In this case, set temperature cannot be adjusted. b.Cool mode: Standard cooling mode. The set temperature and fan speed can both be adjusted.

  • Page 13: Combination Buttons

    Sleep Button Press this button to enter the sleep operation mode. While in sleep mode, you can use the Cool or Heat modes. Timer Button Press this button to activate the timer button. Use the +/- buttons to adjust the length of the timer before the unit powers off.

  • Page 14: App Control

    App Control Install App 1. Scan the QR code or search for "GREE+" in the App Store or Google Play Store to download and install. 2. Open the "GREE+" App after installation. You can create a new account or log in with an existing account. Note: Please allow the app to use your location, network and Bluetooth.
  • Page 15 The available device icon will be displayed once discovered. (1) Tap the icon to enter the next step. Select your preferred Wi-Fi network (5GHz WiFi is not yet supported) , enter your WiFi password, then tap “Next” button. WIFI 1...
  • Page 16 (2) The App will start to search for new devices. Wait for 2 minutes or until the device is connected. The Device name can be customized. Tap “Done”. Once the device is added successfully, you will return back to the “My home” page.
  • Page 17 If no device is found, please manually add your device. (1) Tap the device category icon and follow the instruction to reset WiFi. For this model, Tap “Portable air conditioner” and then choose “Remote control (with WiFi button)”.
  • Page 18 (2) Tap “Add manually” and follow the instructions. Hold the remote control and direct it to the device. With the remote control powered off, press the “Mode” and “WiFi” buttons simultaneously for 3 seconds. Once you hear a beep sound, wait for 5 seconds and then remove the power plug.
  • Page 19 (3) Select your preferred Wi-Fi network (5GHz WiFi is not yet supported) ,enter the password, then tap the “Search device” button. Tap “Next” to connect your mobile phone WiFi to the hotspot “GR-AC-XXXX”, the password is 12345678. When the connection is successful, return to the App. WIFI 1 WIFI 1 WIFI 2...
  • Page 20 (4) The App will start to search for devices. Wait for 2 minutes or until the device is connected. The device name can be customized. Tap “Done”. Once the device is added successfully, you will return to “My home” page.
  • Page 21 My Home Scene ● This function allows you to activate all settings with one click. Home and Away are the two default scenes. ● Tap the scene button to edit your desired setting for the first use. Tap “Setting” to make your customizations then tap the “Save”...
  • Page 22 ● If you want to execute the preset modes , tap the scene button. The APP will pop-up a window to tell the setting is done.
  • Page 23 My appliances ● This screen shows the real time status of all your Devices. Tap the appliance icon to start control. Tap the power button to turn on the air conditioner.
  • Page 24 ● Long press the appliance icon delete appliance. Choose the unwanted device and tap “Delete” then confirm.
  • Page 25 Functions On/off Other function icon Device Name Mode Set Temperature Fan Speed Other functions Change the device name Press the pencil icon to edit the device name, then tap the “Save” button when complete.
  • Page 26 Mode setting Slide the icon to choose mode: cool, dry, fan, heat, auto. Temperature setting Slide the temperature display to adjust the set temperature. Fan setting Slide the fan icon to set fan speed: auto, low, medium, high. Other functions ●...
  • Page 27 ● Timer: Add a schedule by tapping the “+” button. Set the on/off time of your choice and tap the “Save” button. The new schedule will be saved. Toggle the slider to cancel the schedule. Repeat this step to set different timers. ●...
  • Page 28 NOTE: The button will turn blue and the icon will be shown at the top when the function is applied. Tap the button again to cancel setting. Device Management Tap the user icon to enter device management. Scene——Edit scene ● Tap the scene name to manage the setting. The current setting will be shown. Press “Execute”...
  • Page 30 Scene——Add scene Tap “+” to add a new scene. Customize the name and settings then save. Scene——Delete scene Tap “Delete” to delete scene. You can tap the scene name to see detailed settings. Choose the unwanted scene and tap “Delete” then confirm. Two default scenes can not be deleted.

  • Page 31: Replacing The Batteries

    Home management You can invite family member to control all the devices in the Family. For more information, please refer to the instructions in App. Amazon Alexa You can use Amazon Echo series speakers to control your device. For more information, please refer to the instructions in App.

  • Page 32: Parts List

    Parts List Accessory kit for window installation Window panel Adjustment panel Joint Exhaust Hose Rear Clip Exhaust cover Mounting Plate Insect Guard Screw x 4pcs Extension panel x 2pcs Fixed Clip Foam Seal A Foam Seal B Rain Guard Bracket x 2pcs (non adhesive) (adhesive type)

  • Page 33: Installing Your Ac

    Installing Your AC Here are the detailed instructions for installing the window panel into sliding sash or hung windows. For certain windows, such as a casement window, you will need to improvise several steps of the installation as each specific window will be different. 1.
  • Page 34 Insert the first groove 4. Optional: Install the Rain Guard over the Insect Guard to prevent rainwater from leaking into the exhaust hose. a. Insert the three projections on each Rain Guard into the holes in the Insect Guard. Side “A” should be at the top, as indicated in the diagram below. Double-hung sash window Sliding sash window Hole...
  • Page 35 5.Installing the Window Panel(s) This window installation kit comes with 3 panels to adjust to your exact window size. You may not need to use all three panels. To begin, please refer to the guide below: ● If your window is less than 28 inches long you only need the window panel. You may need to saw off part of the window panel if your window is smaller than the window panel length.
  • Page 36 a. Find the adjustment panel (with two grooves on each end), and a Fixed Clip and Mounting Plate. b. Insert the fixed clip into the groove of the adjustment panel. c. Slide the fixed clip into the groove of the window panel and slide the fixed clip until there is no gap between the two panels.
  • Page 37 6. Insert the window panel into the window sill and close the window securely against the Window panel. 7. Stuff Foam Seal A (non adhesive) between the glass and the window to prevent air and insects from getting into the room. Foam Seal A 8.

  • Page 38: Installing The Exhaust Hose

    Please note that the exhaust hose is REQUIRED to use for this portable air conditioner. This TOSOT portable air conditioner (like all air conditioners) must produce heat as a byproduct of producing cool air. If you don’t connect the exhaust hose your unit will exhaust this hot air into the room you are trying to cool.

  • Page 39: Removing Collected Water

    24 inchs Removing Collected Water TOSOT portable air conditioner comes with an auto-evaporation system. The unit automatically evaporates condensation. There is no need to empty the water except in humid conditions. It is recommended to use the bottom drainage port to drain water during Heat mode.

  • Page 40: Installing The Power Cord Hooks

    Installing the Power Cord Hooks Attach the two power cord hooks on the back of the unit using the included screws and wrap the power cord around the power cord hooks when not in use. Cleaning and Maintenance Precautions ● Before cleaning the air conditioner, please turn off the unit and disconnect power. Otherwise, it may cause electric shock.
  • Page 41 Cleaning outer case If there's dust on the surface of the outer case, please use a soft cloth to wipe it. You might need to use mild detergent to do the cleaning. Cleaning the filter 1. Remove the filter Press the clasp at the back of the unit and then remove the filter. 2.

  • Page 42: Troubleshooting

    Maintenance Checklists Offseason checklist 1. Make sure there's no accumulated water in the chassis. For detailed instruction, please refer to the “Removing Collected Water” part on page 36. 2. The exhaust hose is disassembled. 3. Pull out the plug and wrap the power cord. 4.
  • Page 43 Issues Self check Possible solutions Poor cooling Whether door and Close door and window. (heating) window are closed? Whether air outlet or Remove the obstructions and air inlet is blocked? clean the filter. Under heating mode, whether indoor The unit will stop blowing after temperature has reaching set temperature.
  • Page 44 “pop-pop” sound What is 3-Minute Compressor Protection? All TOSOT Air Conditioners have a 3-Minute Compressor Protection feature to help extend the lifespan of your unit. You may notice this happening when the unit is not blowing cold air or you can’t hear the sound of the compressor. Below are some situations where the 3-Minute Protection Mode will be activated: A.

  • Page 45: Malfunction Codes

    Malfunction Codes Error code Possible causes Trouble shooting F1, F2, F4, Please contact the Please contact the manufacture E6, L3, PU, manufacturer for help. or help. PL, PH 1. Check if the unit is under a high-temperature and high- humidity environment; restart the unit after the ambient temperature drops H3, E8...

  • Page 46: Warranty&Customer Support

    Warranty & Customer Support Warranty Information 1. 1-Year warranty: TOSOT Portable Air Conditioner comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing and material defects. Please visit https://tosotdirect.com/warranty for more details. 2. Additional 6-Month warranty extension: You can get a 6-month warranty extension by registering your new product at www.tosotdirect.com/extend.
