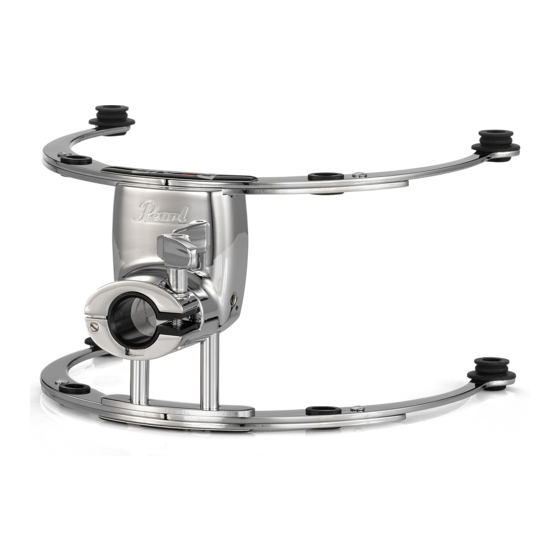

Pearl R2AS Instruction Manual

Air suspension system

PEARL R2 AIR SUSPENSION SYSTEM

To get optimum performance from your R2 Air Suspension System,

please read this Instruction Manual completely before attempting to assemble or install

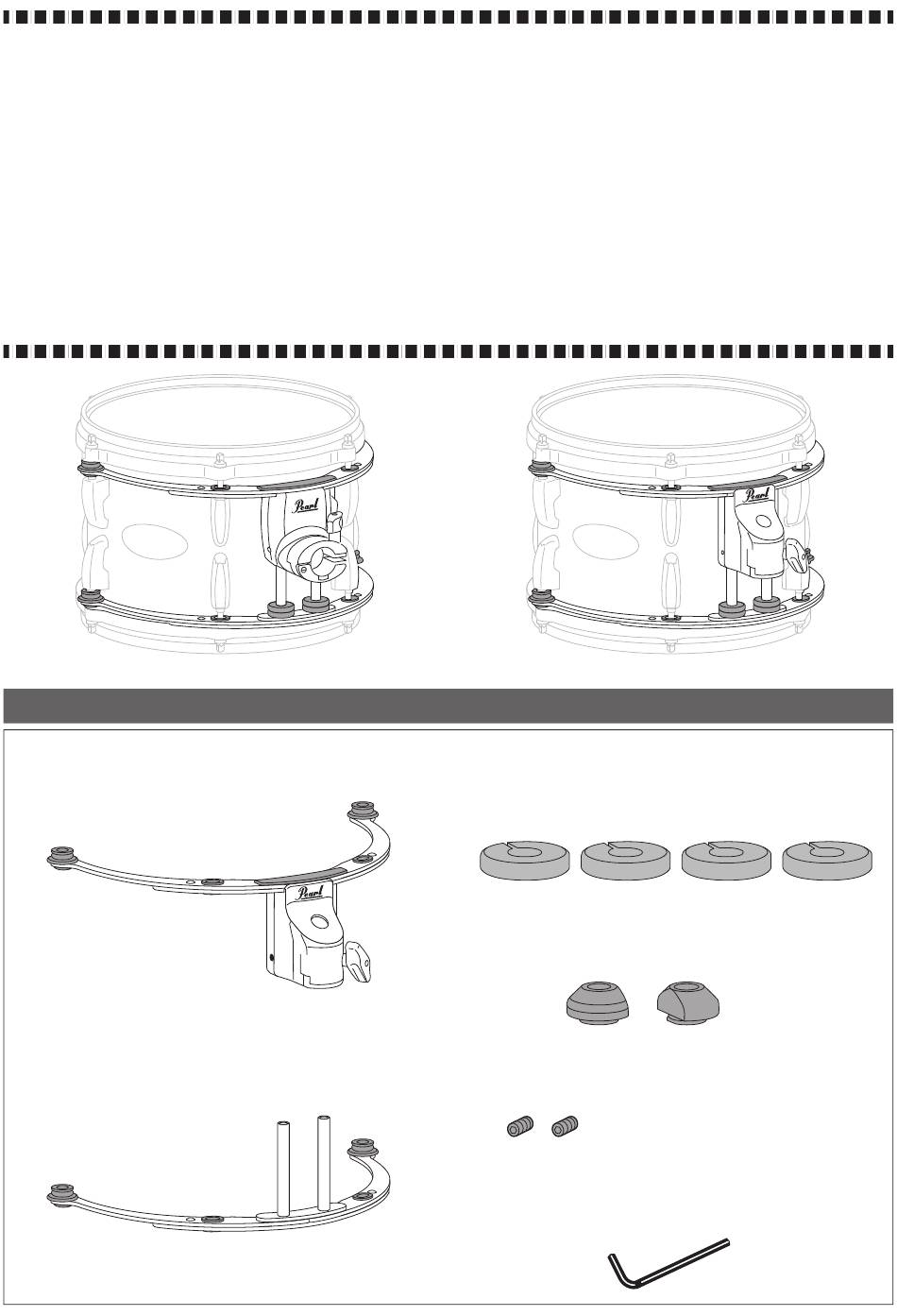

COMPONENTS INCLUDED

1. R2 Air Upper Section (x1)

2. R2 Air Lower Section (x1)

R2AS / R2AL

Instruction Manual

Congratulations on your purchase!

the Suspension System to your drum.

R2AS

(Illust : R2AL)

3. DamperDisk (x4)

(When installed, shorten the sustain, the more

used, the shorter the note.)

4. Flange Hoop Adapter (x2)

(Use with Flange Style Hoop Only)

5. Hex Set Screw (x2)

6. Hex Wrench (3mm) (x1)

R2AL

Table of Contents

Do you have a question about the R2AS and is the answer not in the manual?

Page 1 PEARL R2 AIR SUSPENSION SYSTEM R2AS / R2AL Instruction Manual Congratulations on your purchase! To get optimum performance from your R2 Air Suspension System, please read this Instruction Manual completely before attempting to assemble or install the Suspension System to your drum.
Page 2 2. How to install the R2 Air Suspension System Upper Installation Section to the batter side of the drum shell. First, place the drum shell on a flat surface with the batter side up. CAUTION Position the Tom Holder Receiver Body on the desired When installing the R2 Air Suspension System, always use a drum shell panel so that once the drum is placed within stable flat surface such as a floor or table.
Page 3 Ensure the flat side of the Flange Hoop Adapter faces 4. To set the depth of the R2 Air Suspension System correctly on your drum, start with the drum tuned and upside down, toward the head. with the bottom facing upward on a flat surface. Then adjust the bottom Radial Mount Plate downward so the ResoDisk lightly touches the top of the lug.
Page 4 5. Next, attach the drum to a tom holder and ensure it is HINT stable and secure and that all four ResoDisk support it If there's no need to adjust the correctly, as shown in (Fig.5). sustain, attach them to the bottom of the Slide Shaft for future use (Fig.6-A).
