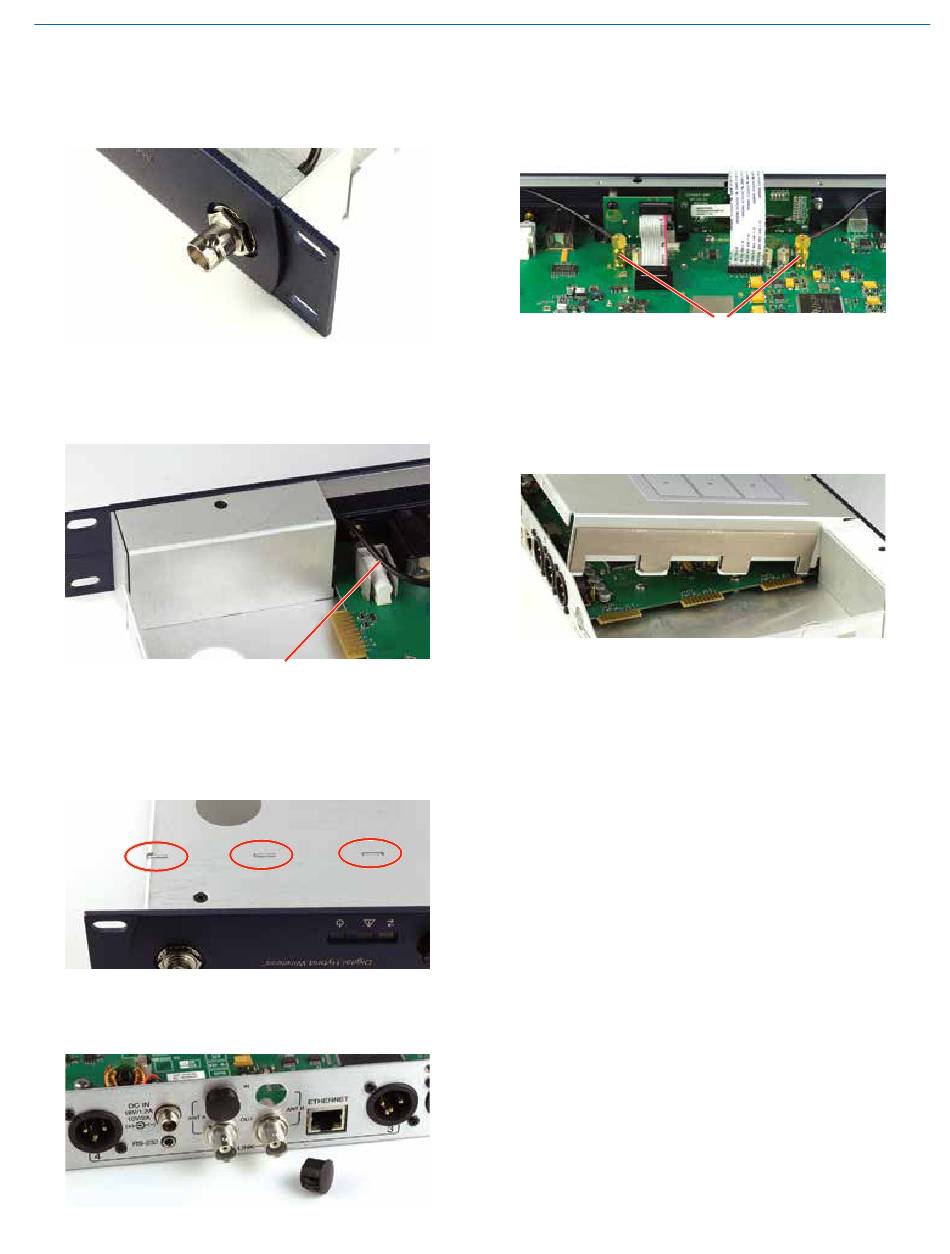

Step 5
Align the flats on the BNC connectors with the flats in
the holes in the front panel and secure them with the
lock washers and nuts.
Step 6
Route the coaxial cables underneath the front panel
jack covers, replace the covers and tighten the screws.
Step 7
Turn the receiver over and make sure the tabs on the
jack covers sit flush with the bottom of the receiver
chassis.
Step 8
Press the hole caps into the holes on the rear panel.
Rio Rancho, NM, USA
Coaxial cable
Digital Hybrid Wireless
Step 9
The coaxial cables should route toward the front of the
receiver as shown so the cable fits loosely under the
jack covers. Finger tighten the SMA connectors on the
circuit board.
SMA connectors
Step 10
Replace the chassis cover. Insert the tabs on the front
of the cover first, then gently press outward on the rear
panel to allow the cover to slip into place and tighten
the four screws securing the cover.
