Lectronics Venue 2 VRM2WBL Installation Manual page 19

SPECTRUM BACK LIGHT
LOCK PANEL
SCAN
TX AUDIO LF ROLLOFF
GAIN
SMART NR
PHASE

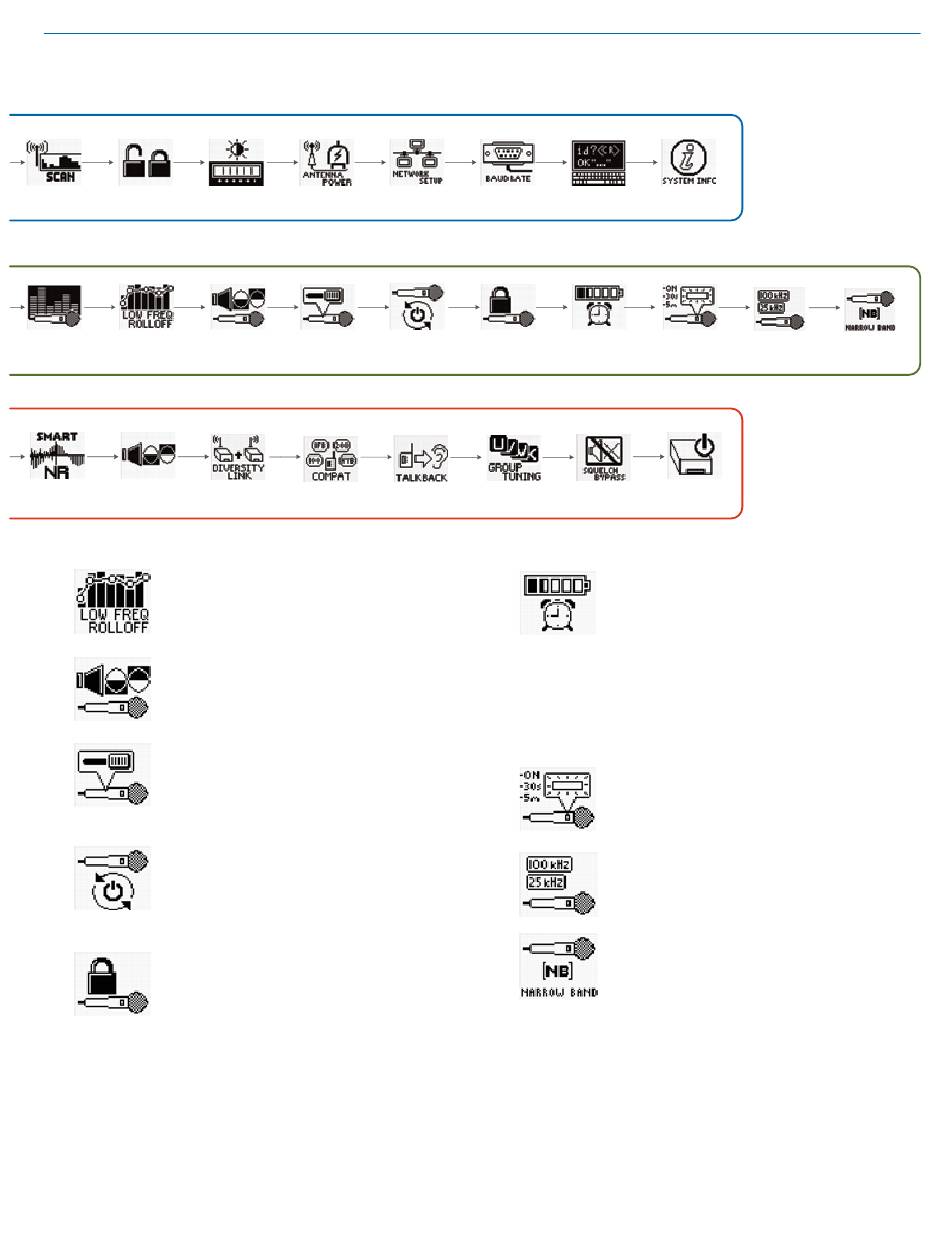

LF ROLLOFF adjusts the low frequency
roll-off point of each transmitter to suppress
subsonic noise or to suit individual prefer-
ences.
TX PHASE selects the polarity (phase) of
the audio signal in each transmitter.
PROG SWITCH defines the function of a
programmable switch present on some
Lectrosonics transmitter models. The
switch function can be configured as audio
mute, power on/off, talkback or no function.
AUTO ON enables the transmitter to turn
back on automatically when a battery is
replaced, eliminating the need to manually
turn it back on. The function can be en-
abled or disabled.
TX PANEL LOCK locks out the membrane
switch panel to prevent inadvertent chang-
es being made. In the locked mode, the
programmable switch (if available) is still
operational, so it can still be used to turn power off and
on. To unlock the panel, navigate to the Locked item in
the menu and select No.
Rio Rancho, NM, USA
ANTENNA NETWORK
POWER
TX PHASE PROG SWITCH AUTO ON
RX LINK COMPAT MODE TALKBACK
Digital Hybrid Wireless
RS232 SETUP COMMAND
SETUP
TX PANEL BATT TIMER
LOCK
GROUP SQUELCH BP
TUNING
voltage across the discharge cycle, so monitoring the
voltage drop provides only very short notice near the
end of life before the battery stops working. The best
way to monitor rechargeable batteries is to run a test
to determine how long it will run the transmitter, then
use the timer to assess the remaining time.
(see next page)
Modular Receiver System
®
SYSTEM INFO
VIEW
TX BACKLIGHT STEP SIZE
MODULE
POWER
BATT TIMER is a function in the receiver
that monitors the accumulated operating
time of each transmitter. Rechargeable
batteries maintain almost a constant
TX BACKLIGHT sets how long the back-
light on the transmitter LCD will stay turned
on. The options may vary between different
transmitter models.
STEP SIZE sets the increments for fre-
quency adjustment at 100 or 25 kHz.
NARROW BAND is used to restrict the
scanning and tuning adjustments on the
receiver to a single block when used with a
single block transmitter.
NARROW BAND
19
