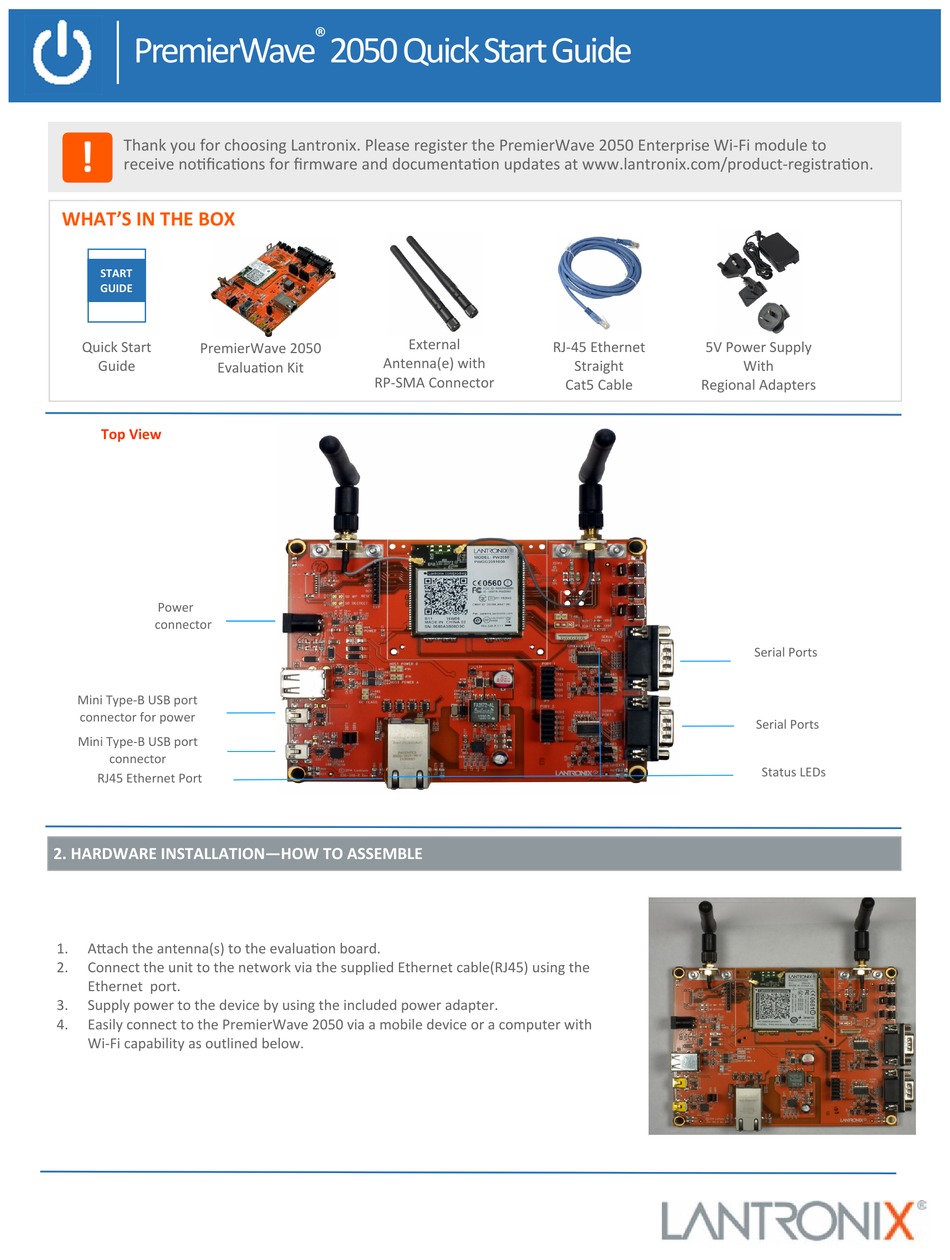

Lantronix PremierWave 2050 Quick Start Manual

PremierWave
! Thank you for choosing Lantronix. Please register the PremierWave 2050 Enterprise Wi‐Fi module to
receive no fica ons for firmware and documenta on updates at www.lantronix.com/product‐registra on.
WHAT'S IN THE BOX
START
GUIDE
Quick Start
PremierWave 2050
Guide

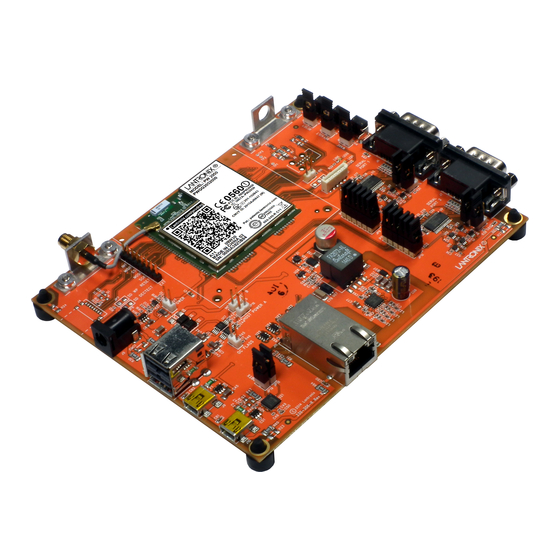

Evalua on Kit
Top View
Power
connector
Mini Type‐B USB port
connector for power
Mini Type‐B USB port
connector
RJ45 Ethernet Port
2. HARDWARE INSTALLATION—HOW TO ASSEMBLE
1. A ach the antenna(s) to the evalua on board.
2. Connect the unit to the network via the supplied Ethernet cable(RJ45) using the
Ethernet port.
3. Supply power to the device by using the included power adapter.
4. Easily connect to the PremierWave 2050 via a mobile device or a computer with
Wi‐Fi capability as outlined below.
®
2050 Quick Start Guide
External
Antenna(e) with
RP‐SMA Connector
RJ‐45 Ethernet 5V Power Supply
Straight
Cat5 Cable Regional Adapters
With
Serial Ports
Serial Ports
Status LEDs
