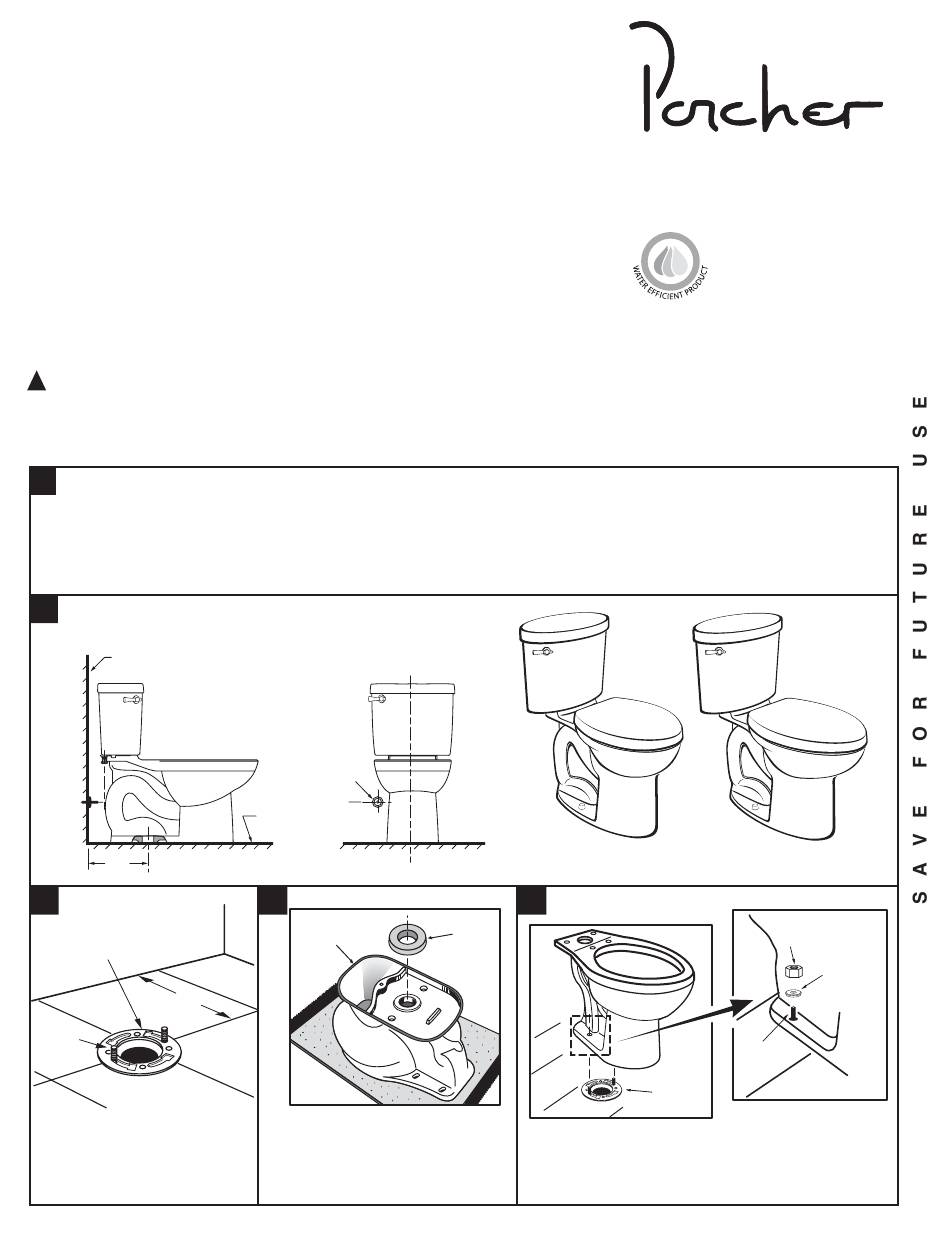

INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
OVALE™
OVALE™ - 1.6 GPF TWO-PIECE TOILET
Models 90850-60 ROUND FRONT
90750-60 ELONGATED
OVALE™ - 1.28 GPF TWO-PIECE TOILET
Models 90850-28 ROUND FRONT
90750-28 ELONGATED
Thank you for selecting Porcher. To ensure this product is installed properly, please read these instructions carefully before
you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife
Regular Screwdriver
Hacksaw
Wax Ring/Gasket
1
REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
2
ROUGHING-IN DIMENSIONS:
NOTE: Distance from wall to closet flange centerline must be maintained:
FINISHED WALL
12"
)
(305mm
3
CLOSET
FLANGE
A
CLOSET
BOLTS
INSTALL CLOSET BOLTS
Install closet bolts in flange
channel, turn 90 ° , and slide
into place 6" (152mm) apart
and parallel to wall.
Product names listed herein are trademarks of Porcher
© Porcher 2009
Adjustable Wrench
Flexible Supply Tube
SUPPLY
AS
REQ'D.
FINISHED
FLOOR
4
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent
damage), and install wax ring evenly
around waste flange (horn), with tapered
end of ring facing toilet. Apply a thin bead
of sealant around toilet base.
Sealant
Closet Bolts
ROUND FRONT
NOTE: Seat not included with fixture and must be ordered separately.
5
WAX
RING
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange
so bolts project through mounting holes.
b. Loosely install retainer washers and nuts. Side of washers
marked "THIS SIDE UP" must face up!
Tape Measure
Carpenters Level
ELONGATED
NUT
TAPERED
WASHER
CLOSET
BOLT
FLANGE
73 0 13 5 7 - 1 0 0 Re v. B
Advertisement
Table of Contents
Related Manuals for Porcher OVALE 90850-60
Summary of Contents for Porcher OVALE 90850-60
- Page 1 Models 90850-28 ROUND FRONT 90750-28 ELONGATED Thank you for selecting Porcher. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.
- Page 2 For Tanks/Bowls using Speed Connect System (Tank mounting bolts pre-installed). RUBBER TANK MTG. GASKET BOLTS PRE- BOLT CAP INSTALLED CLOSET FLANGE WASHER/ COMBO CLOSET BOLT WASHER INSTALL TANK a. Install large rubber gasket over threaded outlet on bottom of tank and lower tank INSTALL TOILET onto bowl so that tapered end of gasket fits evenly into bowl water inlet opening,...
- Page 3 ADJUSTMENTS REFILL NIPPLE TUBE a. Adjust water level. Water level should be adjusted to level indicated on tank TANK LEVER CRITICAL LEVEL by adjusting float cup. MARK ("C.L.") MUST BE 1" ABOVE OVERFLOW PIPE See Step 11 for water level adjustment FLOAT method FILL...
- Page 4 This warranty DOES NOT COVER any damage caused by the use of in-tank cleaners. 's option to repair or exchange the product under this warranty does not cover any labor or other costs of removal or installation, nor shall Porcher be...
