INSTALLATION INSTRUCTIONS
MARQUEE RECTANGULAR
UNDERCOUNTER SINKS
Rectangular
Thank you for selecting our Porcher product. To ensure that your installation proceeds smoothly, read these instructions carefully before
you begin. Also, review the recommended tools and materials section. Carefully unpack and examine your new plumbing fixture.
CAUTION: CHINA LAVATORIES MAY BE HEAVY AND ARE FRAGILE. USE EXTREME CARE WHEN HANDLING!
!
NOTE: Pictures may not exactly define contour of china and components.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES
Recommended Tools & Materials
Putty Knife
Plumbers' Putty
Silicone Adhesive
Tape
Measure
NOTE: More specialized tools may be necessary to install this sink to countertop materials other than wood or wood composites.

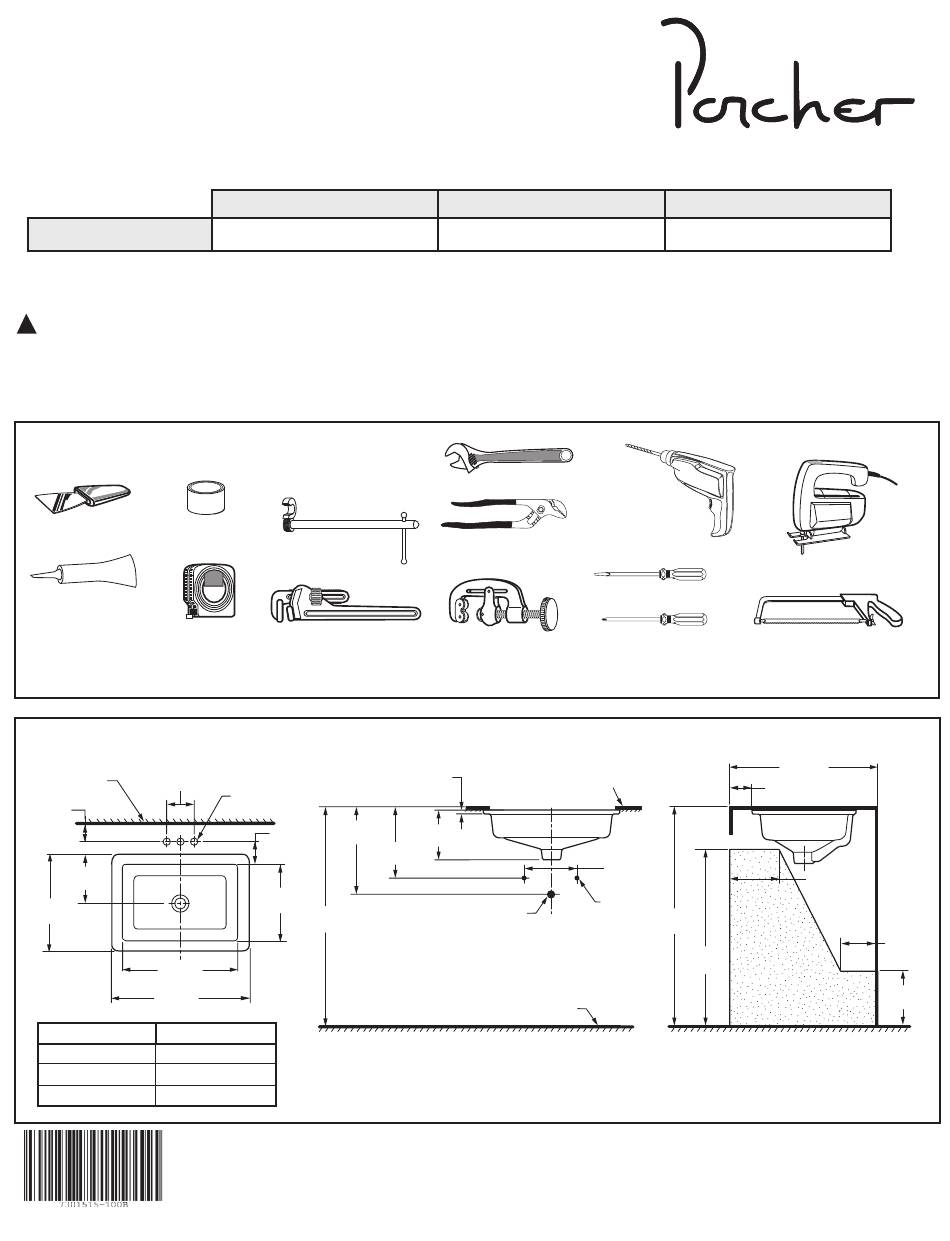

Rough-in: 12020 Marquee Grande Rectangular Undercounter Lavatory
FINISHED
WALL OR
B
SPLASHBACK
2" MIN.
(51mm)
8-3/8"
(211mm)
16-5/8"
(422mm)
20-1/2"
(520mm)
23-5/8"
(600mm)
A-Fitting Dia.
B-Fitting Spread
A
1-3/8"(35mm)
4"(102mm)
1-3/8"(35mm)
8"(203mm)
Product names listed herein are trademarks of Porcher
© Porcher 2011
Petite
12100
Basin Wrench
10'
Pipe Wrench
A
13-3/4"
2-5/8"
(349mm)
(66mm)
11-1/4"
(286mm)
13-1/2"
(342mm)
34"
(864mm)
B
Medium
12060
Adjustable Wrench
Channel Lock Pliers
Tubing Cutter
COUNTERTOP
5/8"
(BY OTHERS)
(15mm)
7-1/2"
(191mm)
1-1/4" O.D. WASTE
FINISHED FLOOR
Grande
12020
Drill
Regular Screwdriver
Phillips Screwdriver
(102mm)
8"
(203mm)
SUPPLIES
AS REQ'D.
34"
(864mm)
27" MIN.
(686mm)
BARRIER FREE
CLEARANCE
Saber Saw
Hacksaw
24"
(610mm)
4"
8" MIN.
(203mm)
6" MAX.
(152mm)
9" MIN.
(229mm)
7301515-100 Rev. B
