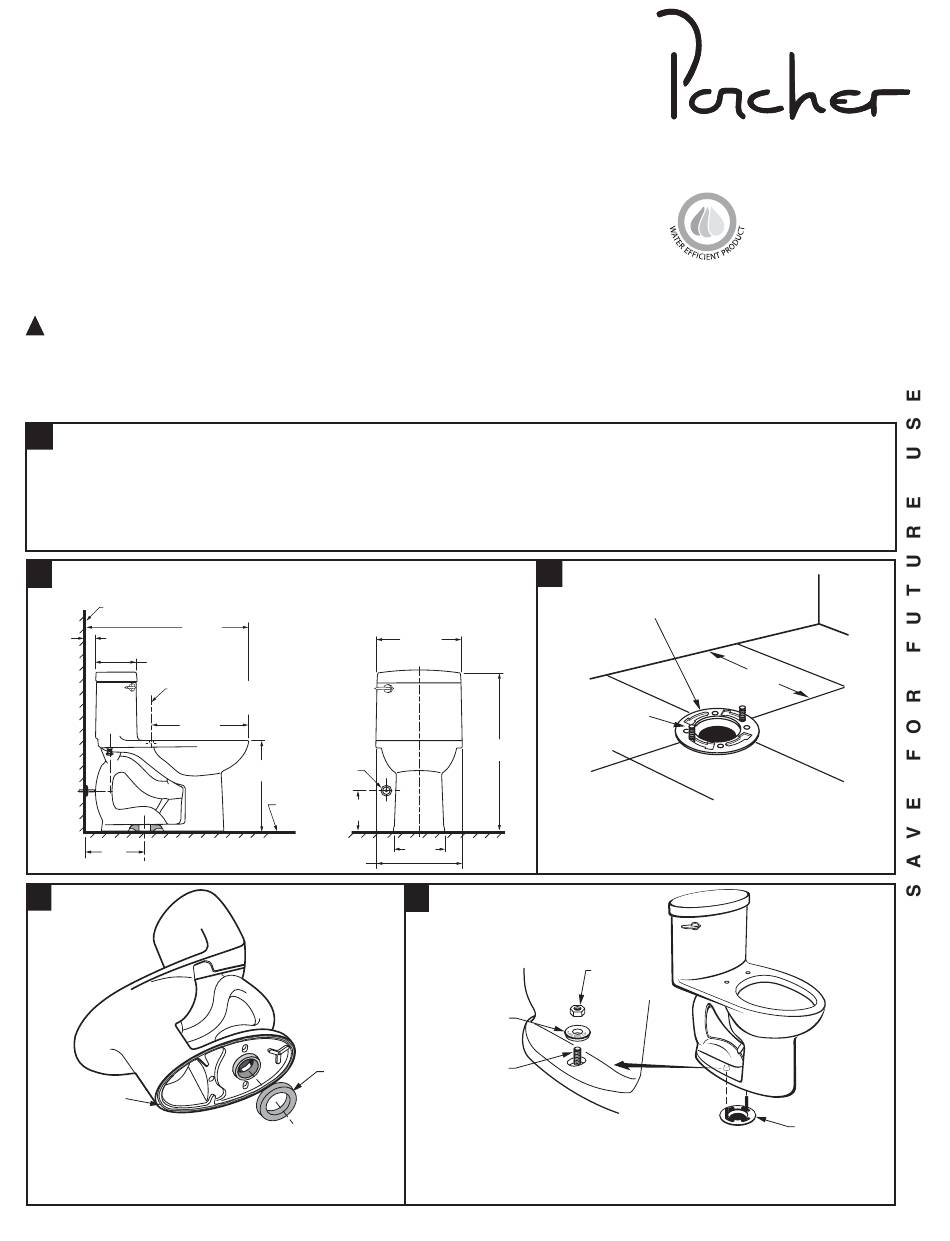

INSTALLATION INSTRUCTIONS
CARE AND MAINTENANCE
OVALE™
OVALE™ - 1.6 GPF ONE-PIECE TOILET
Model 97620-60
OVALE™ - 1.28 GPF ONE-PIECE TOILET
Model 97620-28
Thank you for selecting Porcher. To ensure this product is installed properly, please read these instructions carefully before you begin.
(Certain installations may require professional help.) Also be sure your installation conforms to local codes.
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
!
NOTE: Pictures may not exactly define contour of china and components.
RECOMMENDED TOOLS AND MATERIALS
Putty Knife
Regular Screwdriver
Hacksaw
Wax Ring/Gasket
1
REMOVE OLD TOILET
a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.
b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!
c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.
d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.
NOTE: Mounting surface must be clean and level before new toilet is installed!
ROUGHING-IN DIMENSIONS:
2
NOTE: Distance from wall to closet flange centerline must be as listed below:
FINISHED WALL
719mm
(28-3/8 )
20mm
(3/4 Min.)
191mm (7-1/2)
C/L OF SEAT POST
HOLES 140mm
(5-1/2) CENTERS
470mm
(18-1/2)
12"
(305mm)
4
SEALANT
INSTALL WAX SEAL
Invert toilet on floor (cushion to prevent damage), and
install wax ring evenly around waste flange (horn), with
tapered end of ring facing toilet. Apply a thin bead of
sealant around toilet base.
P r o d u c t n a m e s l i s t e d h e r e i n a r e t r a d e m a r k s o f P o r c h e r
© P o r c h e r , 2 0 0 9
Adjustable Wrench
Flexible Supply Tube
399mm
(15-3/4)
SUPPLY
419mm
AS
(16-1/2)
REQ'D.
140mm
FINISHED
(5-1/2)
FLOOR
236mm
(9-5/16)
400mm (15-3/4)
5
WAX RING
POSITION TOILET ON FLANGE
a. Unplug floor waste opening and install toilet on closet flange so bolts project
b. Loosely install retainer washers and nuts. Side of washers marked "THIS
Sealant
Closet Bolts
3
CLOSET BOLTS
729mm
(28-3/4)
INSTALL CLOSET BOLTS
Install closet bolts in flange channel, turn 90 ° , and slide
into place 6" (152 mm) apart and parallel to wall.
NUT
WASHER
BOLT
through mounting holes.
SIDE UP" must face up!
Tape Measure
Carpenters Level
CLOSET FLANGE
A
FLANGE
73 0 13 5 9 - 1 0 0 Re v. A
