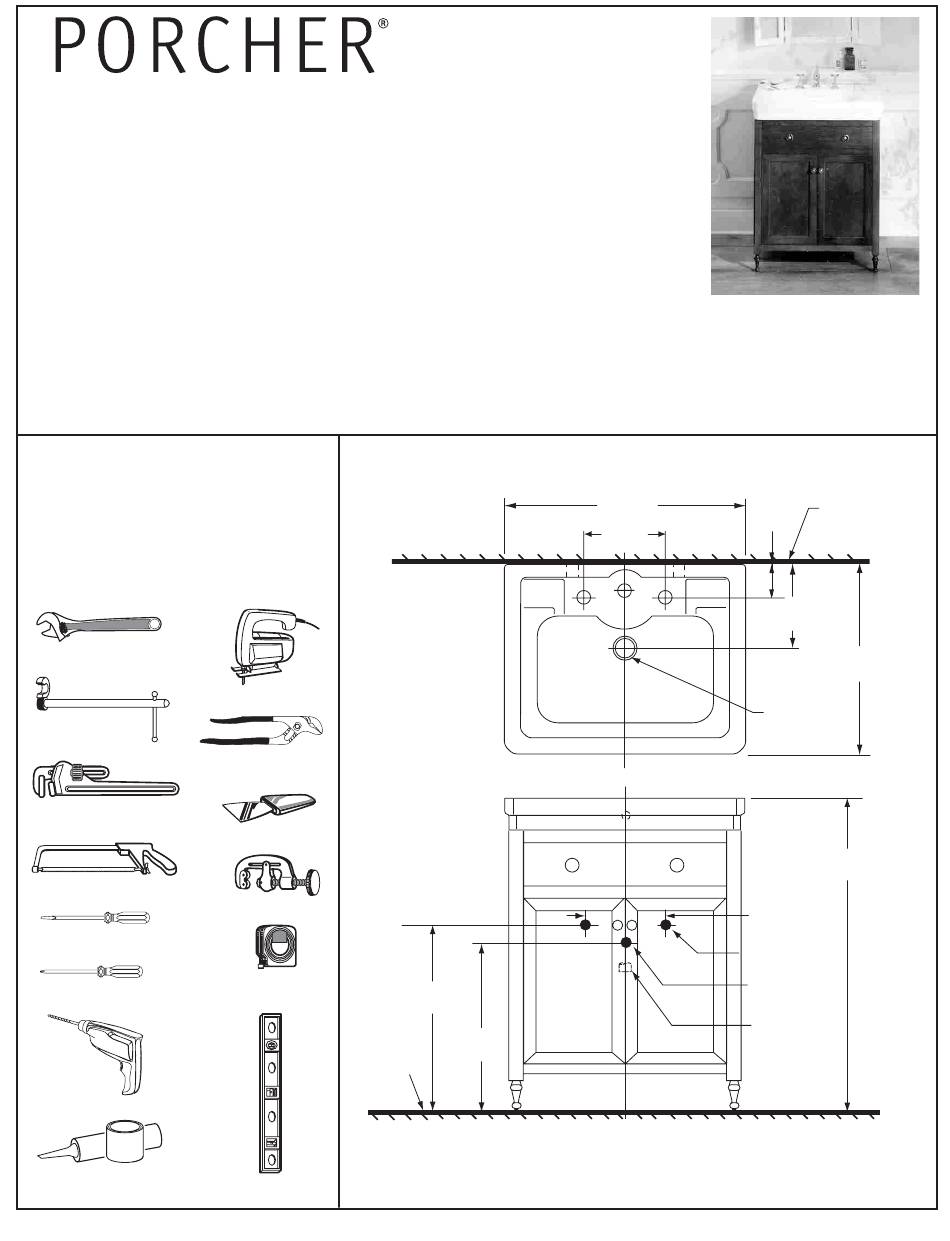

ASSEMBLY & INSTALLATION
INSTRUCTIONS
Lutezia 27" Cabinet 89060
Pomezia 27" Cabinet 04168
INTRODUCTION
Thank you for selecting our Porcher product. To ensure that your installation proceeds
smoothly, read these instructions carefully before you begin. Also, review the recommended
tools and materials section. Carefully unpack and examine your new plumbing fixture.
To maintain the beauty of the finish, avoid placing the furniture in direct sunlight, as sunlight causes fading. Also avoid
extreme changes in temperature by arranging furniture away from radiators, heat and air vents, and air conditioning
units. Avoid placing furniture directly under windows.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL
PLUMBING AND BUILDING CODES
Tools and Materials Required
Most of the procedures require the use
of common tools and materials, which
are available from hardware and
plumbing, supply stores. It is essential
that the tools and materials be on hand
before work is begun.
Adjustable Wrench
Basin Wrench
Pipe Wrench
Hacksaw
Regular Screwdriver
Phillips Screwdriver
Drill
Plumbers' Putty or
Caulking
© P o r c h e r 2 0 0 8
Saber Saw
Channel Locks
Putty Knife
Tubing Cutter
10'
Tape
Measure
FINISHED
FLOOR
Level
NOTE: •
Roughing-in Dimensions
★ 20"
(508mm)
★ 18"
(457mm)
DOORS SWING 90° CCW
DEPTH WITH DOORS OPEN = 31-1/2" (800mm)
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE SUGGESTED.
- 1 -
27-1/2"
3
(699mm)
(76mm)
8"
(203mm)
(203mm)
1-3/4" DIA.
STD. DRAIN
OUTLET
8"
(203mm)
SUPPLIES AS
REQUIRED
1-1/4" O.D.
WASTE
1-1/4" O.D.
TAILPIECE
FINISHED
WALL
8"
21-3/4"
(552mm)
36"
(914mm)
80 0 0 1 4 - 1 0 0 R e v. A
Advertisement
Table of Contents
Related Manuals for Porcher Lutezia
Summary of Contents for Porcher Lutezia
- Page 1 Pomezia 27" Cabinet 04168 INTRODUCTION Thank you for selecting our Porcher product. To ensure that your installation proceeds smoothly, read these instructions carefully before you begin. Also, review the recommended tools and materials section. Carefully unpack and examine your new plumbing fixture.
- Page 2 VANITY INSTALLATION C/L of 2 x 6 Suitable reinforcement is required for anchoring the Reinforcement vanity to the wall. Determine horizontal centerline location " " of support from fixture. (see Figure 1) FIGURE 1 Finished Floor If molding is present, either notch the molding to seat the vanity flush against the wall or provide suitable spacer.
- Page 3 Apply a 1/8" bead of silicone adhesive to the rim of the vanity as shown. Place the Lutezia/Pomezia top centered left to right on the vanity and with the back edge of the top even with the rear of the vanity. Clean up any excess silicone.
- Page 4 PORCHER FURNITURE LIMITED WARRANTY If inspection of this Porcher plumbing product, within one year after its initial purchase, confirms that it is defective in materials or workmanship, Porcher will repair or, at its option, exchange the product for a similar model. Variations in actual wood color and finishes which may result from natural characteristics of the wood, such as grain patterns, mineral streaks and the like, are not defects and are not covered by this warranty.
