INSTALLATION INSTRUCTIONS
L'EXPRESSION VANITY KIT
Model #89890-00
INTRODUCTION
Thank you for selecting our Porcher product. To ensure that your installation proceeds smoothly, read these instructions carefully before
you begin. Also, review the recommended tools and materials section. Carefully unpack and examine your new plumbing fixture.
To maintain the beauty of the finish, avoid placing the furniture in direct sunlight, as sunlight causes fading. Also avoid extreme
changes in temperature by arranging furniture away from radiators, heat and air vents, and air conditioning units. Avoid placing
furniture directly under windows.
ALL INSTALLATION PROCEDURES MUST COMPLY IN STRICT ACCORDANCE WITH APPLICABLE LOCAL PLUMBING
AND BUILDING CODES
!
CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!
NOTE: Pictures may not exactly define contour of china and components.
Recommended Tools & Materials
Adjustable Wrench
Basin Wrench
Tubing Cutter

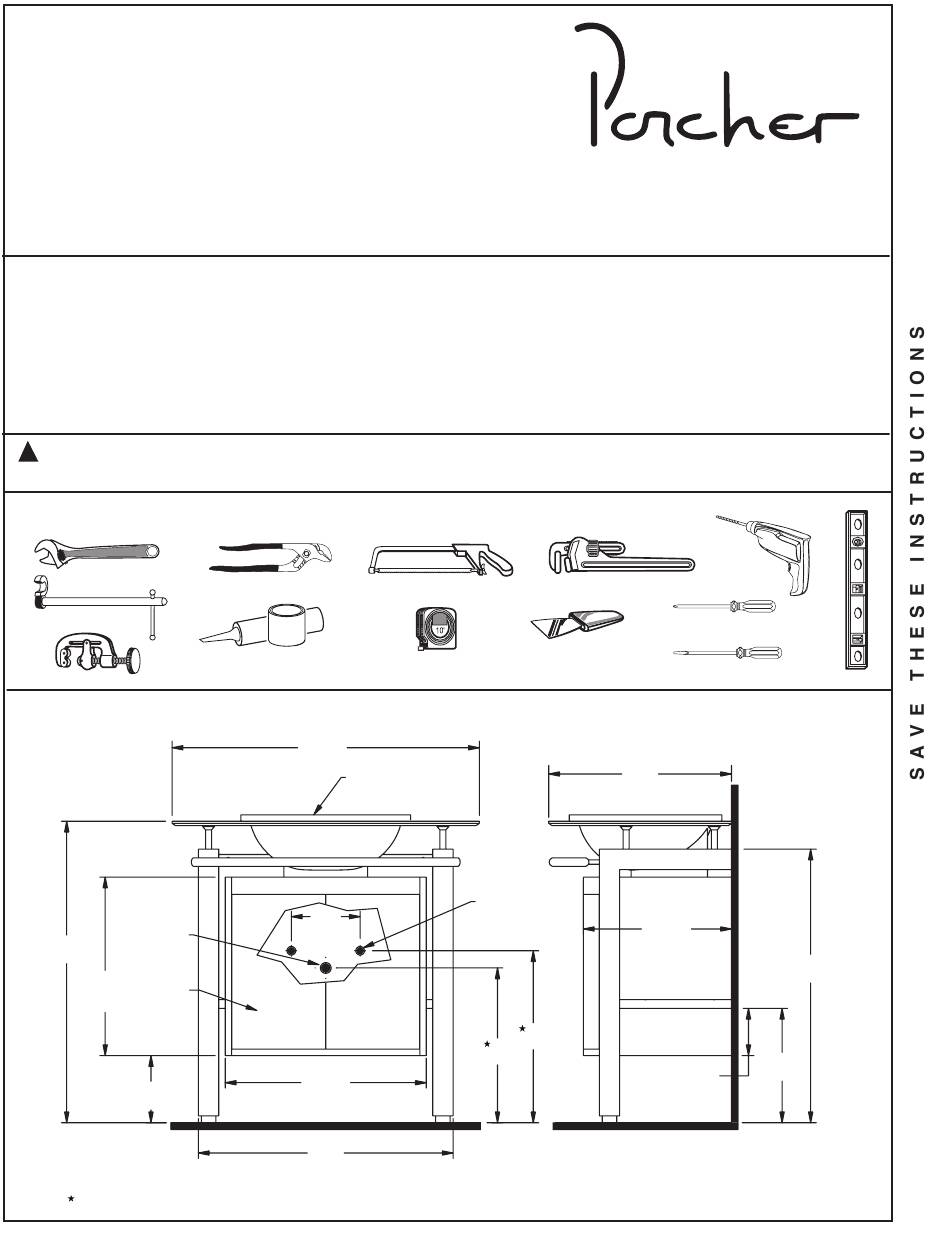

Roughing-in Dimensions | Vanity Kit 89890-00
FIGURE 1.0
Units : Inches (mm)
1-1/4" (31)
35 1/16
O.D. WASTE
(891)
20 3/4
TOUCH
(527)
LATCH
VANITY
DOORS
7 13/16
(198)
DIMENSIONS SHOWN FOR LOCATION OF SUPPLIES AND "P" TRAP ARE SUGGESTED
P rod uct names l is te d he r ei n ar e t r a d ema rks of Porc her
© Porc her 2009
Channel Locks
Plumbers' Putty or
Caulking
35 11/16
(907)
L'EXPRESSION
ROUND LAVATORY
8
(203)
23 3/8
(594)
VANITY
29 5/8
(752)
FRONT VIEW
Hacksaw
Putty Knife
Tape
Measure
SUPPLIES AS
REQUIRED
20
(508)
18
(457)
- 1 -
Drill
Pipe Wrench
Phillips Screwdriver
Regular Screwdriver
21 1/4
(540)
17 3/16
(437)
VANITY
13 5/16
(338)
5 1/2
(140)
SIDE VIEW
Level
31 13/16
(808)
77 0 02 0 -1 0 0
