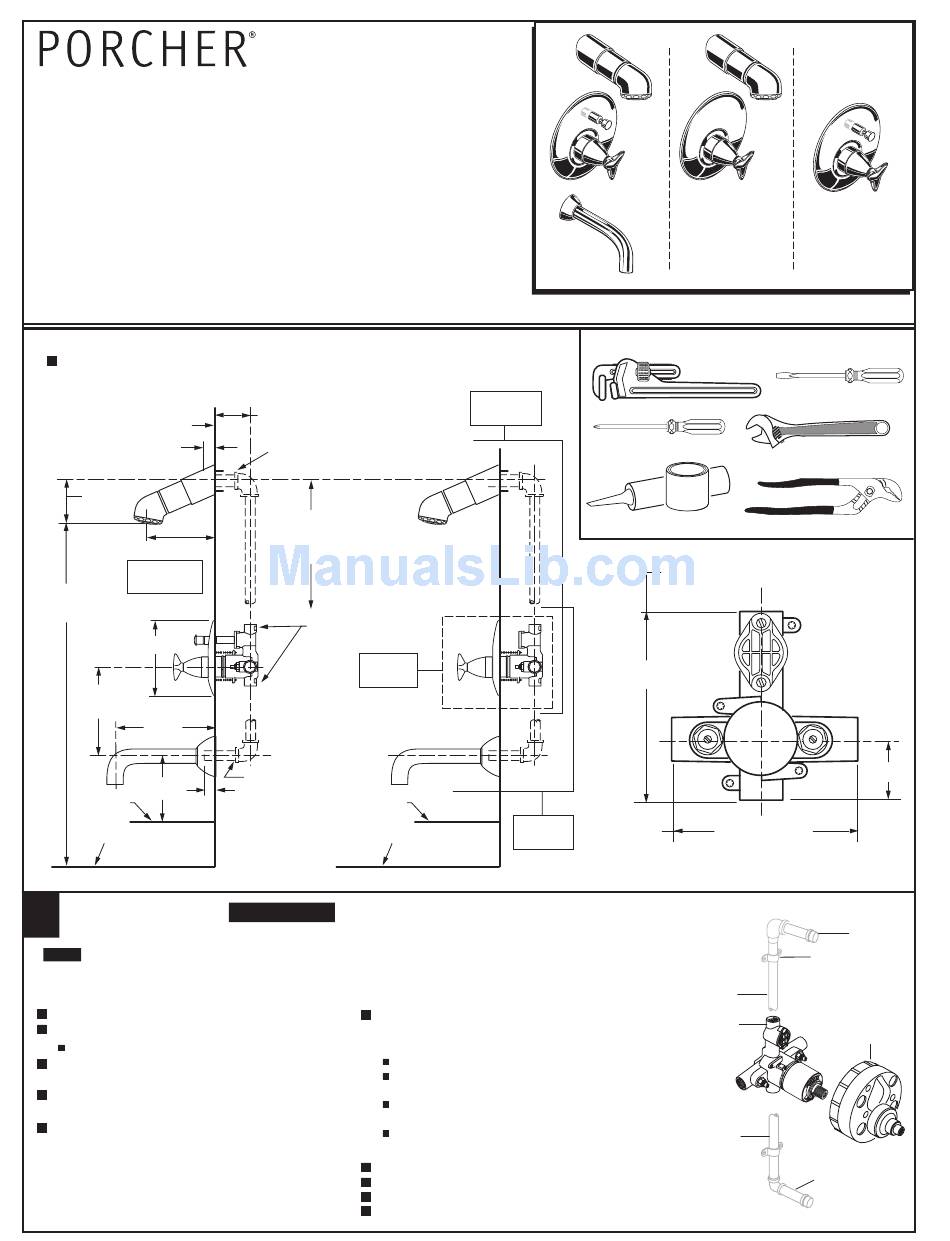

Porcher 5339 Series Installation Instructions

Advertisement

Quick Links

STEMMA
PRESSURE BALANCE
TEMPERATURE CONTROL VALVE
BATH/SHOWER WITH DIVERTER
SHOWER OR BATH FILLER ONLY
Thank you for selecting Porcher Products.
To ensure that your installation proceeds
smoothly--please read these instructions
carefully before you begin.
ROUGHING-IN DIMENSIONS
To assure proper positioning in relation to wall, note
roughing-in dimensions.
FINISHED WALL
1" (25mm)
2-7/8" REF.
(73mm)
8" REF.
(203mm)
B/S With
DIVERTER
74" FOR
HEAD CLEARANCE
(1880mm)
7-1/2"
(191mm)
18"
OPTIONAL
(457mm)
6-3/4"
(171mm)
4"
(102mm)
TOP OF
TUB RIM
BOTTOM OF
TUB
1
ROUGHING-IN
NOTE
When soldering, remove PLASTER GUARD, CARTRIDGES and CHECK STOPS. When finished soldering,
flush valve body, replace cartridges, check stops and plaster guard to continue installation. Use thread
sealant or Teflon tape on threaded connections.
See Roughing-in diagram before starting.
Connections are:
1/2" female NPT for threaded inlets
Connect RISER PIPE (1) to MANIFOLD (2)
top outlet marked "SHR".
Connect TUB FILLER PIPE (3) at bottom
outlet marked "TUB".
For proper positioning the finished wall
must be within side wall of PLASTER
GUARD (4).
Installation
Instructions
5339 Series
T339 Series
1-5/8" TO 3-1/4"
(41mm TO 83mm)
1/2" NPT (13mm)
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
65'' AND 78''
(1651 AND 2026mm)
NOTE: ALL DIMENSIONS
ARE TYPICAL TO B/S WITH
DIVERTER
"SEE ILLUSTRATION"
SHW
VALVE
ONLY
TUB
1/2" NPT (13mm)
1" (25mm)
TOP OF
TUB RIM
BOTTOM OF
TUB
CAUTION
Turn off water at main supply.
If the valve is installed on a fiberglass
or other thin wall application, the
PLASTER GUARD (4) can be used as a support.
Cut a 4" dia. hole in the shower stall.
Drill two additional 1" holes to allow access
to the stops.
Remove PLASTER GUARD (4), rotate 180˚
so that indicated screw holes fit MANIFOLD (2).
Push CAP on valve, place ESCUTCHEON on and
attach with screws.
Connect hot and cold water supplies.
Cap off shower pipe (5) and tub filler pipe (6).
For support, use pipe BRACES (7) secured to wooden braces.
With valve turned off, turn on water supplies. Check for leaks.
Certified to comply with ANSI A112.18.1
Recommended Tools
SHOWER
Pipe Wrench
SYSTEM
Phillips Screwdriver
Plumbers' Putty or Caulking
SHW
5-5/8"
(143mm)
TUB
BATH
INLETS
FILLER
1/2" NPT
(13mm)
M 9 6 8 4 5 4 A
Flat Blade Screwdriver
Adjustable Wrench
Channel Locks
OUTLETS 1/2" NPT (13mm)
5-5/8" (143mm)
THREADED INLETS (STOPS)
7
1
2
COLD
HOT
3
6
1-3/4"
(44mm)
5
4
