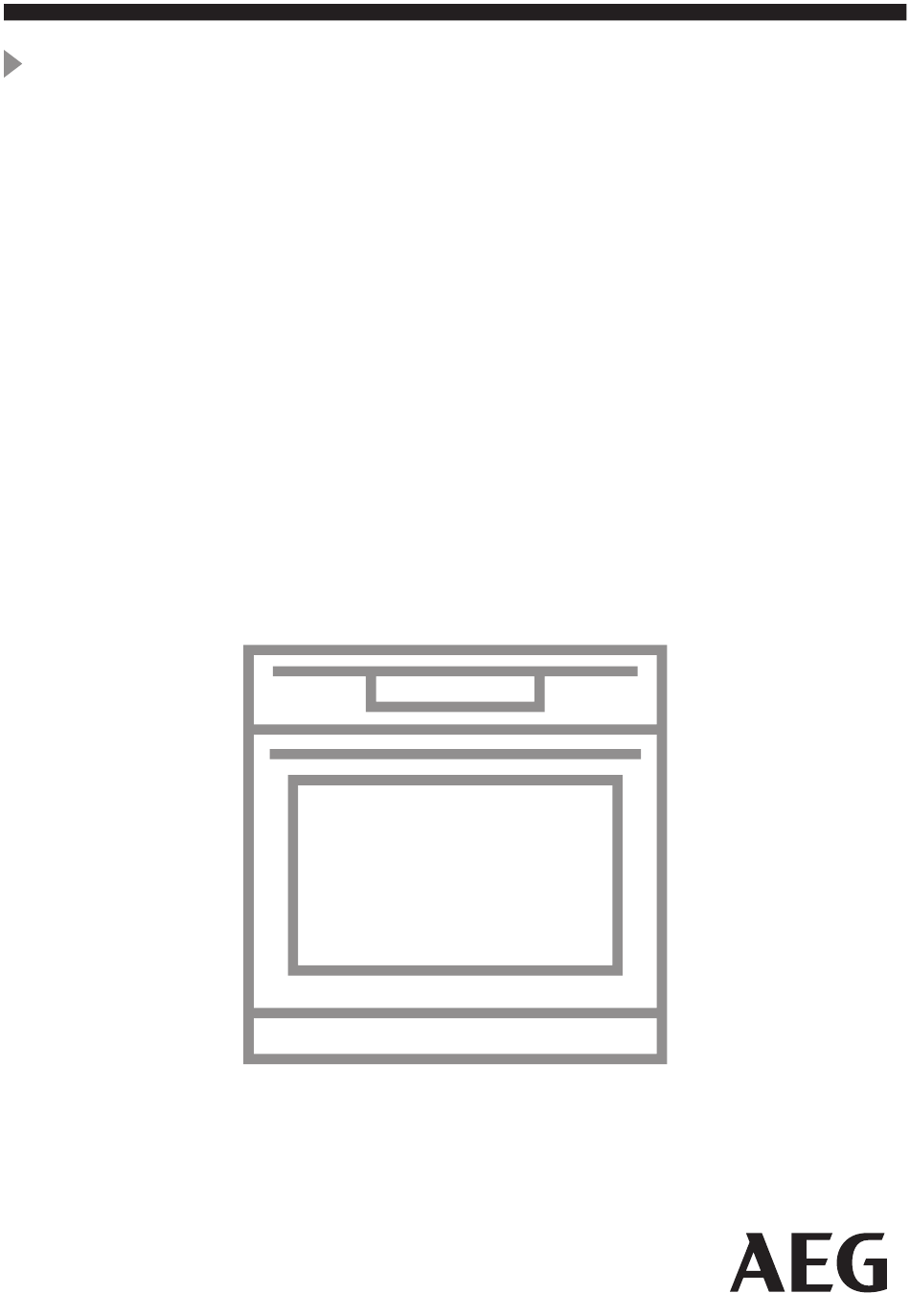

- Page 1 KSE792280M User Manual Steam oven KSK792280B KSK792280M USER MANUAL...
-
Page 2: Table Of Contents
FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler – features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it. -
Page 3: Safety Information
SAFETY INFORMATION 8.2 Food Sensor........24 11.11 How to remove and install: Door..35 9. ADDITIONAL FUNCTIONS....... 26 11.12 How to replace: Lamp....36 9.1 How to save: Favourites....26 12. TROUBLESHOOTING......37 9.2 Function lock........27 9.3 Automatic switch-off.......27 12.1 What to do if.........37 9.4 Cooling fan........27 12.2 How to manage: Error codes.. -
Page 4: General Safety
SAFETY INFORMATION persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised. Children should be supervised to ensure that they do not • play with the appliance. Keep all packaging away from children and dispose of it •... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS WARNING: The appliance and its accessible parts become • hot during use. Care should be taken to avoid touching heating elements. Always use oven gloves to remove or insert accessories or • ovenware. Use only the food sensor (core temperature sensor) •... -
Page 6: Electrical Connection
SAFETY INSTRUCTIONS Height of the front of the appliance 455 mm Height of the back of the appliance 440 mm Width of the front of the appliance 595 mm Width of the back of the appliance 559 mm Depth of the appliance 567 mm Built in depth of the appliance 546 mm... -
Page 7: Use
SAFETY INSTRUCTIONS • The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm. • This appliance is supplied with a main plug and a main cable. 2.3 Use WARNING! Risk of injury, burns and electric shock or explosion. -
Page 8: Steam Cooking
SAFETY INSTRUCTIONS • Replace immediately the door glass panels when they are damaged. Contact the Authorised Service Centre. • Be careful when you remove the door from the appliance. The door is heavy! • Clean regularly the appliance to prevent the deterioration of the surface material. •... -
Page 9: Product Description
PRODUCT DESCRIPTION 3. PRODUCT DESCRIPTION 3.1 General overview Control panel Display Water drawer Socket for the food sensor Heating element Lamp Descaling pipe outlet Shelf support, removable Shelf positions 3.2 Accessories Wire shelf For cookware, cake tins, roasts. Baking tray For cakes and biscuits. -
Page 10: How To Turn Oven On And Off
HOW TO TURN OVEN ON AND OFF Food sensor To measure the temperature inside food. Steam set One unperforated and one perforated food container. The steam set drains the condensing water away from the food during steam cooking. Use it to prepare vegetables, fish, chicken breast. -
Page 11: Display
HOW TO TURN OVEN ON AND OFF Press Move Press and hold Touch the surface with finger‐ Slide fingertip over the sur‐ Touch the surface for 3 sec‐ tip. face. onds. 4.2 Display After turning on, the display shows the main 12:30 12:30 screen with the heating function and the default... -
Page 12: Before First Use
BEFORE FIRST USE To go one To confirm the selection / set‐ To undo the To turn the options on and level back in ting. last action. off. the menu. Sound alarm function indicators - when the set time of cooking ends, the signal sounds. The function is on. -
Page 13: Daily Use
DAILY USE Step 1 Step 2 Step 3 Step 4 Put the test paper Shake the test paper After 1 min, check Set the water hardness into water for about to remove the excess water hardness with level: Menu / Settings / 1 sec. -
Page 14: Water Drawer
DAILY USE Step 2 Press the symbol of the heating function to enter the submenu. Step 3 Select the heating function and press: . The display shows: temperature. Step 4 Set: temperature. Press: Step 5 Press: Food Sensor - you can plug the sensor at any time before or during cooking. - press to turn off the heating function. -
Page 15: How To Use: Water Drawer
DAILY USE 6.3 How to use: Water drawer Step 1 Push the front cover of the water draw‐ Step 2 Fill the water drawer up to the maximum level. You can do it in two ways: A: Leave the water drawer inside the B: Remove the water drawer from the oven and pour the water from a contain‐... - Page 16 DAILY USE Steam for Steaming For steaming vegetables, grains, legumes, seafood, 50 - 100 °C terrines and spoon desserts. Steam for Stewing For cooking stewed and braised meat or fish, bread 105 - 130 °C and poultry, as well as cheesecakes and casseroles. Steam for Gentle Crisping For meat, casseroles, stuffed vegetables, fish and 135 - 150 °C...
-
Page 17: How To Set: Sousvide Cooking
DAILY USE Step 12 Empty the water drawer after cooking ends. Step 13 Residual water can condensate in the cavity. After cooking, carefully open the oven door. When the oven is cold, dry the cavity with a soft cloth. Take a shortcut! 6.5 How to set: SousVide Cooking Step 1 Turn on the oven. -
Page 18: Heating Functions
DAILY USE • Weight Automatic • Food Sensor The degree to which a dish is cooked: • Rare or Less • Medium • Well done or More Step 1 Turn on the oven. Step 2 Press: Step 3 Press: . Enter: Assisted Cooking. Step 4 Choose a dish or a food type. - Page 19 DAILY USE Heating function Application To make convenience food (e.g., french fries, potato wedges or spring rolls) crispy. Frozen Foods To bake and roast food on one shelf position. Conventional Cooking To bake pizza. To make intensive browning and a crispy bottom. Pizza Function To bake cakes with crispy bottom and to preserve food.
- Page 20 DAILY USE Heating function Application For dishes such as lasagna or potato gratin. To make gratins and to brown. Au Gratin To prepare tender, succulent roasts. Slow Cooking To keep food warm. Keep Warm This function is designed to save energy during cooking. When you use this function, the temperature in the cavity may differ from the set temper‐...
-
Page 21: Notes On: Moist Fan Baking
CLOCK FUNCTIONS Heating function Application To speed up the rising of the yeast dough. It prevents dough surface from drying and keeps the dough elastic. Dough Proving For steaming vegetables, side dishes, fish Full Steam The function is suitable for cooking delicate dishes like custards, flans, ter‐ rines and fish. -
Page 22: How To Set: Clock Functions
CLOCK FUNCTIONS Clock function Application Time extension To extend cooking time. Reminder To set a countdown. Maximum is 23 h 59 min. This function has no ef‐ fect on the operation of the oven. Uptimer Monitors how long the function operates. Uptimer - you can turn it on and off. - Page 23 CLOCK FUNCTIONS How to choose end option Step 4 Press: Step 5 Press: End action. Step 6 Choose the preferred: End action. Step 7 Press: . Repeat the action until the display shows the main screen. How to delay start of cooking Step 1 Set the heating function and the temperature.
-
Page 24: How To Use: Accessories
HOW TO USE: ACCESSORIES How to change timer settings You can change the set time during cooking at any time. 8. HOW TO USE: ACCESSORIES 8.1 Inserting accessories A small indentation at the top increases safety. The indentations are also anti-tip devices. The high rim around the shelf prevents cookware from slipping of the shelf. - Page 25 HOW TO USE: ACCESSORIES There are two temperatures to be set: The oven temperature: minimum 120 °C. The core temperature. For the best cooking results: Ingredients should be at Do not use it for liquid During cooking it must remain in room temperature.
-
Page 26: Additional Functions
ADDITIONAL FUNCTIONS Step 5 - press to set the core temperature of the sensor. Step 6 - press to set the preferred option: • Sound alarm - when food reaches the core temperature, the signal sounds. • Sound alarm and stop cooking - when food reaches the core temperature, the sig‐ nal sounds and the oven stops. -
Page 27: Function Lock
ADDITIONAL FUNCTIONS - press to reset the setting. - press to cancel the setting. 9.2 Function lock This function prevents an accidental change of the heating function. Step 1 Turn on the oven. Step 2 Set a heating function. Step 3 - press at the same time to turn on the function. -
Page 28: Hints And Tips
HINTS AND TIPS 10. HINTS AND TIPS 10.1 Cooking recommendations The temperature and cooking times in the tables are guidelines only. They depend on the recipes and the quality and quantity of the ingredients used. Your oven may bake or roast differently to the oven you had before. The hints below show recom‐ mended settings for temperature, cooking time and shelf position for specific types of the food. -
Page 29: Moist Fan Baking - Recommended Accessories
HINTS AND TIPS (°C) (min) Short crust bis‐ baking tray or dripping 25 - 35 cuits, 20 pieces Tartlets, 8 pieces baking tray or dripping 15 - 25 Vegetables, baking tray or dripping 30 - 40 poached, 0.4 kg 10.3 Moist Fan Baking - recommended accessories Use the dark and non-reflective tins and containers. -
Page 30: Care And Cleaning
CARE AND CLEANING Use the function: Full Steam. Use the second shelf position. Put the baking tray on the first shelf position. STEAM FUNCTION Container (Gastro‐ (kg) (min) norm) Broccoli, preheat the 1 x 2/3 perforated max. 10 - 11 empty oven Peas, frozen 1 x 2/3 perforated... -
Page 31: How To Remove: Shelf Supports
CARE AND CLEANING Clean all accessories after each use and let them dry. Use a soft cloth with warm water and a mild detergent. Do not clean the accessories in a dishwash‐ Do not clean the non-stick accessories using abrasive cleaner or sharp-edged Accessories objects. -
Page 32: Cleaning Reminder
CARE AND CLEANING Step 3 Press . Follow the instruction on the display. The signal sounds when the cleaning ends. Step 4 Press any symbol to turn off the signal. When this function works, the lamp is off. When the cleaning ends: Turn off the oven. -
Page 33: How To Use: Descaling
CARE AND CLEANING Step 5 Reassemble the water drawer. Step 6 Snap in the wave-breaker. Push it into the drawer body. Step 7 Assemble the lid. First insert the front snap and then push it against the drawer body. Step 8 Insert the water drawer. -
Page 34: Descaling Reminder
CARE AND CLEANING When descaling ends: Turn off the oven. When the oven is cold, dry the Leave the oven door open and cavity with a soft cloth. wait until the cavity is dry. Remove the remaining water from the water drawer. If some limestone residue remains in the oven after descaling, the display prompts to repeat the procedure. -
Page 35: How To Use: Drying
CARE AND CLEANING Press YES to dry the oven. 11.10 How to use: Drying Use it after cooking with a steam heating function or steam cleaning to dry the cavity. Step 1 Make sure the oven is cold. Step 2 Remove all accessories. -
Page 36: How To Replace: Lamp
CARE AND CLEANING Step 4 Hold the door trim (B) on the top edge of the door at the two sides and push inwards to release the clip seal. Step 5 Pull the door trim to the front to remove it. Step 6 Hold the door glass panels on their top edge one by one and... -
Page 37: Troubleshooting
TROUBLESHOOTING Top lamp Step 1 Turn the glass cover to remove it. Step 2 Remove the metal ring and clean the glass cover. Step 3 Replace the lamp with a suitable 300 °C heat-resistant lamp. Step 4 Attach the metal ring to the glass cover and install it. 12. - Page 38 TROUBLESHOOTING Components Description Remedy The lamp is burnt out. Replace the lamp, for details refer to "Care and Cleaning" chapter, How to replace: Lamp. Water drawer does not work properly Description Possible cause Remedy The oven does not retain the You did not fully press the wa‐...
-
Page 39: How To Manage: Error Codes
TROUBLESHOOTING Problems with cleaning procedure Description Possible cause Remedy There is too much water on You put too much detergent in Next time evenly spread the the bottom of the cavity after the oven before you started thin layer of a detergent on cleaning. -
Page 40: Service Data
Product number (PNC) ......... Serial number (S.N.) ......... 13. ENERGY EFFICIENCY 13.1 Product Information and Product Information Sheet* Supplier's name KSE792280M 944004939 Model identification KSK792280B 944004908 KSK792280M 944004907 Energy Efficiency Index 61.6 Energy efficiency class Energy consumption with a standard load, conventional 0.89 kWh/cycle... -
Page 41: Energy Saving
ENERGY EFFICIENCY Number of cavities Heat source Electricity Volume 43 l Type of oven Built-In Oven KSE792280M 36.6 kg Mass KSK792280B 36.6 kg KSK792280M 35.7 kg * For European Union according to EU Regulations 65/2014 and 66/2014. For Republic of Belarus according to STB 2478-2017, Appendix G; STB 2477-2017, Annexes A and B. -
Page 42: Menu Structure
MENU STRUCTURE Moist Fan Baking Function designed to save energy during cooking. When you use this function the lamp automatically turns off after 30 sec. You may turn on the lamp again but this action will reduce the expected energy savings. 14. -
Page 43: Submenu For: Options
MENU STRUCTURE 14.3 Submenu for: Options Submenu Application Light Turns the lamp on and off. Child Lock Prevents accidental activation of the oven. When the option is on, the text "Child Lock" appears on the display when you turn on the oven. To enable the oven use, choose the code letters in the alphabetical order. -
Page 44: Submenu For: Service
IT'S EASY! 14.5 Submenu for: Service Submenu Description Demo mode Activation / deactivation code: 2468 Software version Information about software version. Reset all settings Restores factory settings. 15. IT'S EASY! Before the first use you have to set: Display Buzzer vol‐ Water hard‐... - Page 45 IT'S EASY! Start cooking - press to turn - select the heat‐ - set the temper‐ - press to con‐ - press to start on the oven. ing function. ature. firm. cooking. Steam cooking - Steamify Set the temperature. Type of the steam heating function depends on the set temperature. Steam for Gentle Steam for Baking Steam for Steaming...
-
Page 46: Take A Shortcut
IT'S EASY! Clean the oven with Steam cleaning Rinsing For rinsing and cleaning the steam generation circuit after fre‐ quent use of the steam functions. 16. TAKE A SHORTCUT! Here you can see all the useful shortcuts. You can also find them in the dedicated chapters in the user manual. -
Page 47: Environmental Concerns
TAKE A SHORTCUT! How to cancel: Set Timer How to use: Food Sensor 17. ENVIRONMENTAL CONCERNS Recycle materials with the symbol . Put the packaging in relevant containers to recycle it. Help protect the environment and human health by recycling waste of electrical and electronic appliances. - Page 48 www.aeg.com/shop...
