DesignMax DM2C-LP

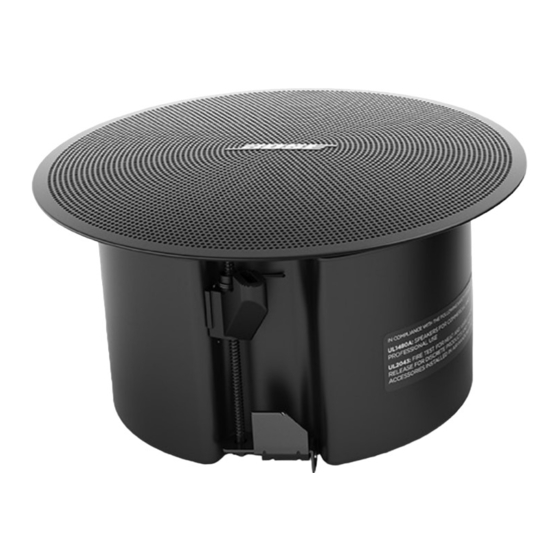

In-ceiling Loudspeaker
Monteringsveiledning . . . . . . . . . . . . . . . . . . 44
Instrukcja montażu . . . . . . . . . . . . . . . . . . . . .51
安装指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
安裝指南 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
設置ガイド . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72
79
دليل التركيب
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bose Professional DesignMax DM2C-LP
Summary of Contents for Bose Professional DesignMax DM2C-LP
- Page 1 DesignMax DM2C-LP In-ceiling Loudspeaker Installation Guide . . . . . . . . . . . . . . . . . . . . . . . 2 Monteringsveiledning .
- Page 2 Do not attempt to service this product yourself. Refer all servicing to authorized service centers, 2016 and all other applicable UK regulations. The complete declaration of installers, technicians, dealers or distributors. To contact Bose Professional or to find a dealer or conformity can be found at: www.Bose.com/compliance distributor near you, visit PRO.BOSE.COM.
-
Page 3: Product Dimensions
Technical Specifications Important Installation Information It is the installer’s responsibility to ensure installation of For additional specifications, see the DesignMax DM2C-LP the loudspeakers and mounting system is performed in technical data sheet at PRO.BOSE.COM. accordance with all applicable codes, including local building codes and regulations. -
Page 4: Installation Options
Use the side knockout when there is limited space above the ceiling. Both Knockouts Use both knockouts when an independent signal-in and signal-out wiring scheme is required and there is available space above the ceiling. 4 • English DesignMax DM2C-LP • Installation Guide... -
Page 5: Wiring The Loudspeaker
Setup PRO.BOSE.COM Wiring the Loudspeaker Wire Gauge The DesignMax DM2C-LP loudspeaker is designed to work with 18 AWG (0.8 mm ) to 14 AWG (2.1 mm ) size wire only. Connection Diagrams Expose six millimeters (1/4 inch) of bare wire to attach to the terminals. - Page 6 Installing the Tile Bridge Place the assembled tile bridge across the ceiling grid. If necessary, adjust the tile bridge so the rails rest on the ceiling grid. Replace the tile in the ceiling. 6 • English DesignMax DM2C-LP • Installation Guide...
-
Page 7: Mounting The Loudspeaker
Tighten the anchor arm screws to secure the loudspeaker. If using a power drill, set to a low torque setting. WARNING: Over-tightening the screws may result in damage to the anchor attachment point or the ceiling, which could lead to a falling hazard. Installation Guide • DesignMax DM2C-LP English • 7... -
Page 8: Attaching The Grille
The grille secures to the loudspeaker magnetically. Safety and Regulatory Compliance The Bose DesignMax DM2C-LP loudspeaker has passed testing and complies with the following specifications and uses: Listed to ANSI/UL 1480A-2016, Speakers for Commercial & Safety Professional Use General-Purpose Use - UL Category UEAY, File Number S 5591 Control Number 3N89 UL-2043, 2013, Fire Test and Visible Smoke Release for Discrete Products and their Accessories Installed in Air Handling Spaces. - Page 9 ©2021 Bose Corporation, All rights reserved. Framingham, MA 01701-9168 USA PRO.BOSE.COM AM813563 Rev. 03 November 2021...
