- Page 1 24CH IVR Quick Start Guide 1. Packing........P.1 2. Hard Disk Installation....P.3 3. DVD-RW Installation....P.4 4. Front Panel Controls....P.8 5. Rear Panel Connectors....P.10 IVR Quick Start Guide V1.0 P.1...
-
Page 2: Quick Start
1. IVR 2. Quick Start 3. IR Remote Control Pressed "DVR1" Button before use 4. Battery 5. CD 6. Hard Disk Mount 7. Screws 8. Power Cord 9. SATA Cord Note: Standard shipping products do not include HDD IVR Quick Start Guide V1.0 P.2... - Page 3 Step 1) Fix the HDD to rack mount with the screws as indicated. Step 2) Remove all screws and remove the machine cover in accordance with the direction of the arrow. IVR Quick Start Guide V1.0 P.3...
- Page 4 Step 3) Place the HDD on the HDD plate and screw it as indicated. Step 4) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual “Storage Setup” for reference. IVR Quick Start Guide V1.0 P.4...
-
Page 5: Dvd-Rw Installation
DVD-RW Installation Standard shipping products do not include HDD and DVD-RW) Step 1) Remove the riser of DVR-RW. Remove the riser of DVD-RW Step 2) Fix the DVD-RW to rack mount with the screws as indicated IVR Quick Start Guide V1.0 P.5... - Page 6 Step 3) Remove all screws and remove the machine cover in accordance with the direction of the arrow. Step 4) Fix the DVD-RW rack mount with the screws into to housing as indicated IVR Quick Start Guide V1.0 P.6...
- Page 7 Step 5) Connect the power and the SATA cables as indicated. IVR Quick Start Guide V1.0 P.7...

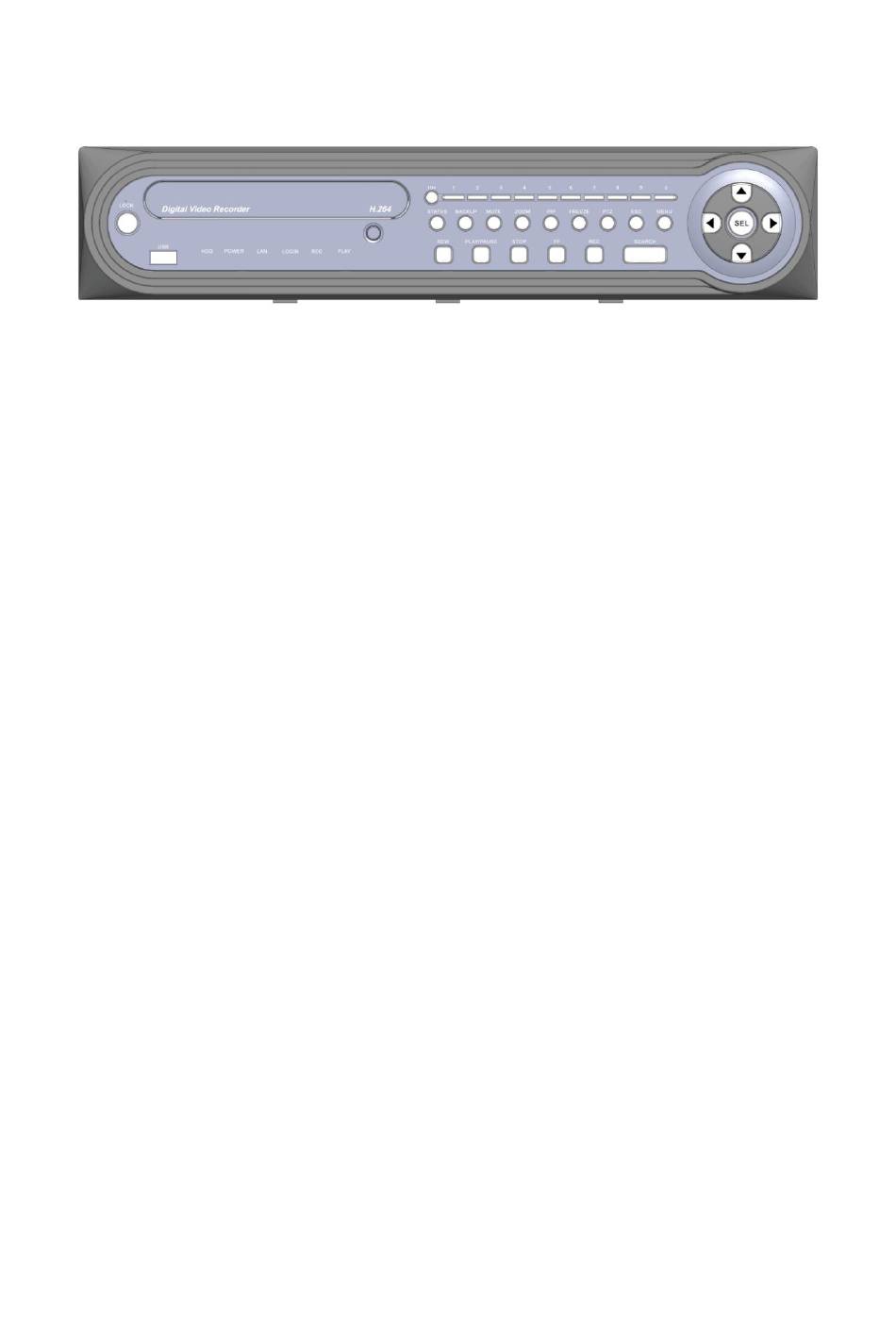

- Page 8 ⑪ ⑩ ⑨ ⑧ ⑦ ① ② ③ ④ ⑤ ⑥ ① LOCK On / Off Key Lock in live mode. ② USB 2.0 USB port ③ Input sensor for the remote control IR Sensor HDD：Hard disk drive Power： Power is on ④...
- Page 9 ⑩ PTZ Display PTZ Menu. ⑩ ESC In SETUP mode, Exit / Return to previous setup menu ⑩ MENU In LIVE mode, press to display menu. ⑪ Optional DVD-RW backup device. (Option) DVD Writer IVR Quick Start Guide V1.0 P.9...
-
Page 10: Rear Panel
Rear Panel 1. eSATA eSATA 2. EXTERNAL I/O External I/O port. 3. AC-in AC 100~240V 4. AUDIO OUT RCA output port for audio signal. 5. AUDIO IN RCA input port for audio signal. 6. WAN Connect Router or Internet 7. VGA VGA Port 8.
