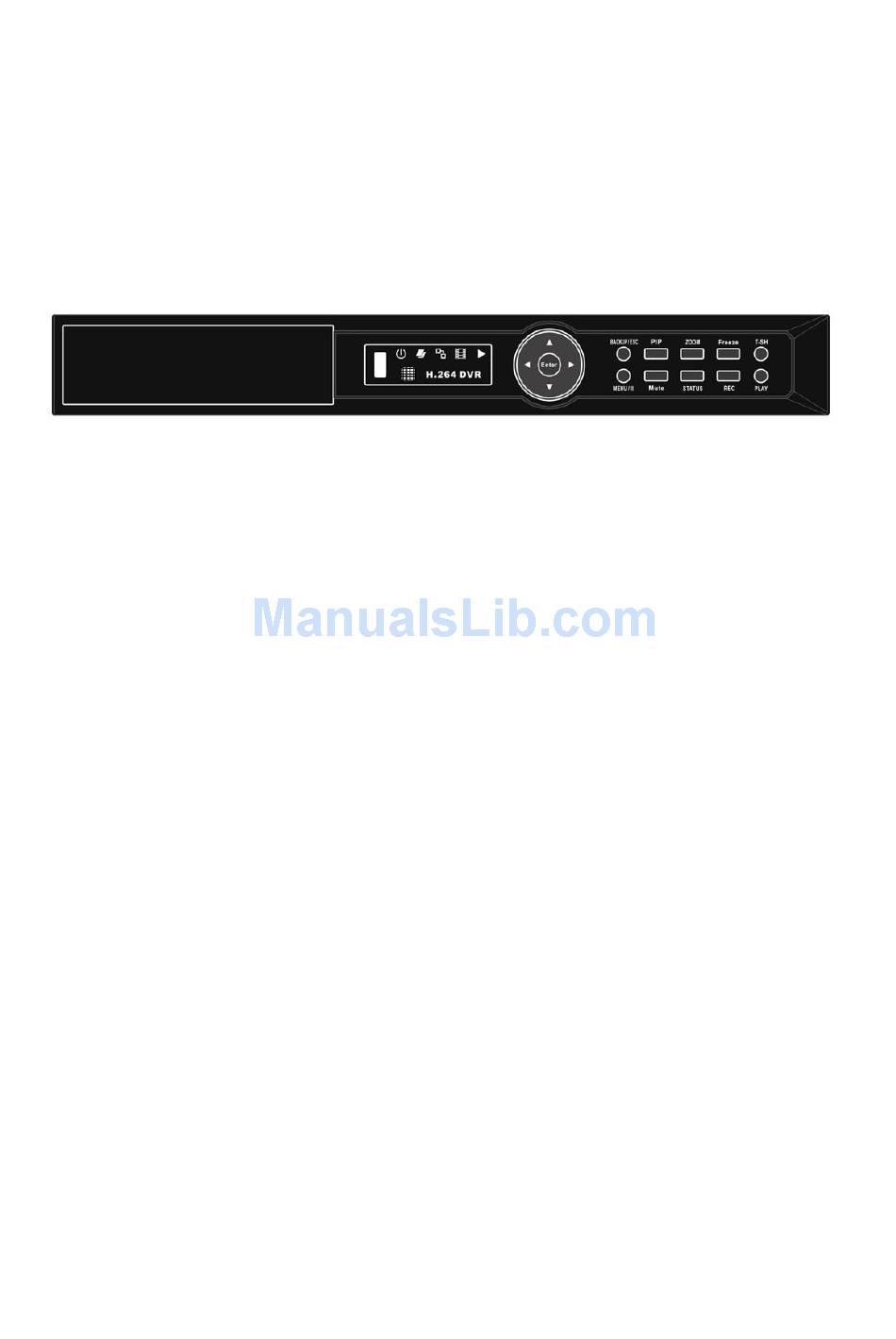

411ZA/811ZA/611Z/611ZA
Quick Start Guide
1. Packing........................................P2
2. Hard Disk Installation.................P3
3. DVD-RW Installation....................P4
3. Front Panel Controls...................P5
4. Rear Panel Connectors...............P6
5. Live Operations...........................P8
6. Playback Operations.................P11
7. PTZ Operations.........................P12
2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.1
(N04)
Advertisement
Related Manuals for iCatch 411ZA
Summary of Contents for iCatch 411ZA
-
Page 1: Quick Start Guide
411ZA/811ZA/611Z/611ZA (N04) Quick Start Guide 1. Packing........P2 2. Hard Disk Installation....P3 3. DVD-RW Installation....P4 3. Front Panel Controls....P5 4. Rear Panel Connectors....P6 5. Live Operations......P8 6. Playback Operations....P11 7. PTZ Operations……....P12 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.1... - Page 2 3. IR Remote Control ＊16CH: Pressed "DVR1" Button before use 4. Battery 5. CD 6. Hard Disk Mount (411ZA / 811ZA / 611Z / 611ZA only) 7. Screws 8. Power Adaptor 9. Power Cord (411ZA / 811ZA / 611Z / 611ZA only) 10.
- Page 3 Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed information, please check out User Manual 4-9 System Tools for reference. 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.3...
- Page 4 Step 2: Put the DVD-RW into the unit as indicated. Step 3: Put DVR bottom up, screw to fix the DVD-RW as indicated. Step 4: Connect the power and the flat cables as indicated. 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.4...
- Page 5 In LIVE mode, press to display menu. In PLAYBACK mode, press to pause MENU playback. ○ Enable / Disable Key Tone. MUTE ⑭ Show DVR Status. STATUS ⑮ Start or stop recording. ⑯ PLAY Play back in normal speed. 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.5...
-
Page 6: 16Ch Rear Panel Connectors
⑭ DC 12V Socket for a DC 12V input. External SATA hard disks port for expanding recording space. ⑮ e-SATA (ZA series only) ⑯ HDMI HDMI port. ⑰ VGA2 VGA port. (depends on model) 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.6... -
Page 7: 8Ch Rear Panel Connectors
BNC port for the main monitor. You can switch to SPOT ⑪ MAIN monitor monitor by GUI setting. ⑫ USB USB port(Device USB Mouse) ⑬ EXTERNAL I/O EXTERNAL I/O port (see below for pin definition) DB 25 DEFINITION 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.7... -
Page 8: 4Ch Rear Panel Connectors
BNC port for the main monitor. You can switch to SPOT ⑪ MAIN monitor monitor by GUI setting. ⑫ USB USB port(Device USB Mouse) ⑬ EXTERNAL I/O EXTERNAL I/O port (see below for pin definition) DB 25 DEFINITION 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.8... - Page 9 Start/Stop recording. PLAY Start playing back the most recently recorded segment. ENTER/MODE Switch to full screen or multi split display. MENU/ II Enable/ Disable setup Menu. BK-UP Enable/ Disable backup menu. Return last menu. 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.9...
- Page 10 Resting the cursor on this icon will bring up the following five display icons. FREEZE. ZOOM, double the screen size AUTO-sequence LOCK, activate the key lock. Full screen display. Quad display. 9 display 16-channel display 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.10...
- Page 11 (99% mean used 99%, remain 1%) Lower right of each CH will show the current time Icon Description Image quality (High/Low) Full screen Record Record and snap shot file saving path setup Enable / Disable Shortcut Toolbar 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.11...
- Page 12 Playback channel by channel with snap shot display Full screen display Quad display 9 screen display 16-channel display Zoom-in display If you want to monitor single channel, please choose a channel and click left butt on of mouse two times. 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.12...
- Page 13 Please check user manual of your PTZ for more detail. AUX 1~8,「AUTO」Key ＋ Number key「1~8」 「Backup」, Customized function。 ＊ PTZ communication protocols from different brands aren’t compatible 100% sometimes. Therefore, some of these functions may be unavailable. 2011.01.19 411ZA/811ZA/611ZA Quick Start Guide V1.0(N04)- P.13...
