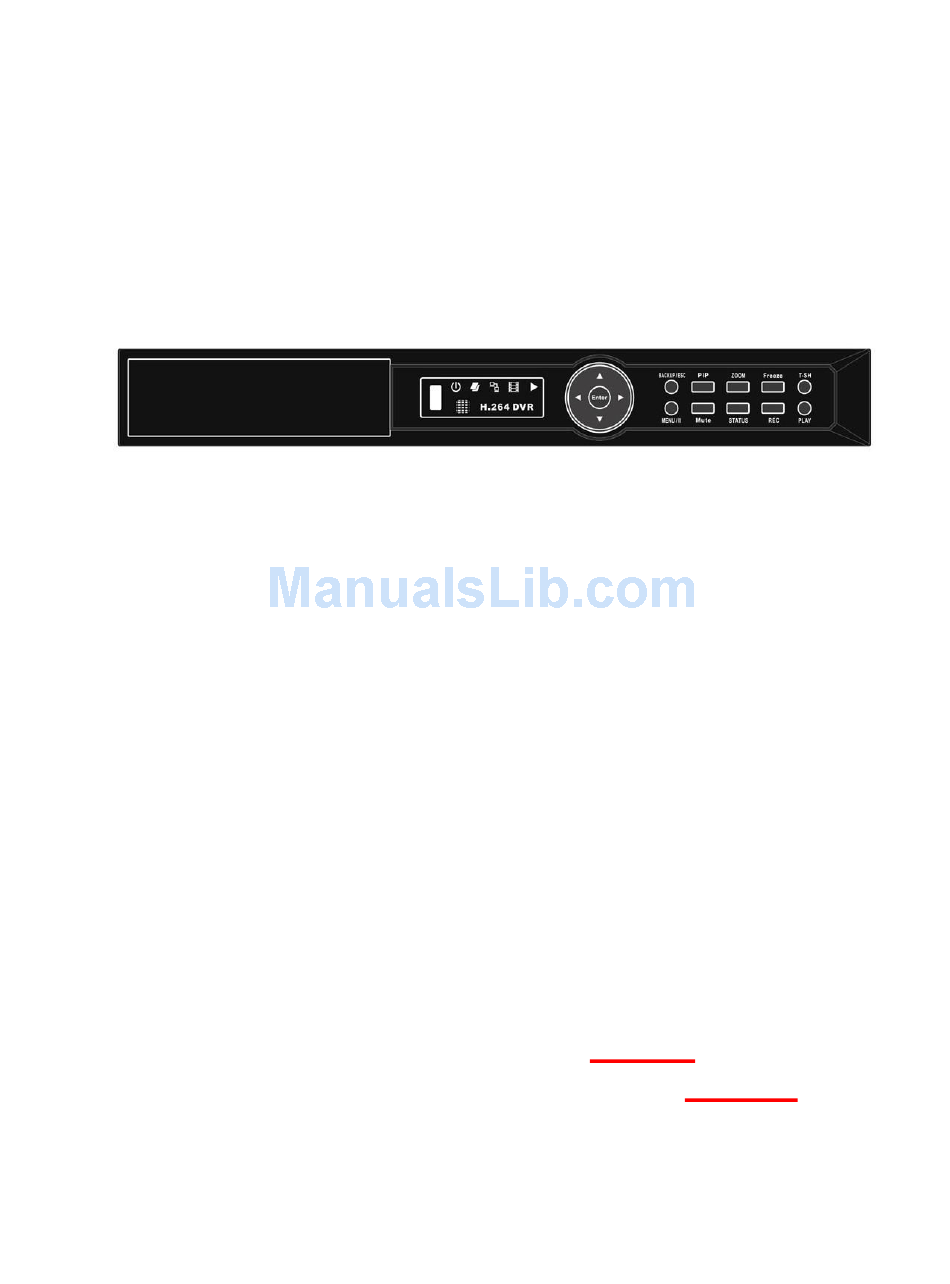

US916Z/US916ZD
RVH9000Z/9000ZD
Hybrid HD DVR
1. Packing........................................P2
2. Hard Disk Installation.................P3
3. DVD-RW Installation....................P4
3. Front Panel Controls...................P5
4. Rear Panel Connectors...............P6
I-Phone & Android
Default Username is
Default Admin Lock password is
Note: Please see CD included for complete User
manual quick start guide CMS software and
Quick Start
much more
9CH DVR Quick Start Guide V1.0(N04)- P.1
(IWatch
DVR)
Admin
123456
Advertisement
Related Manuals for iCatch US916Z
Summary of Contents for iCatch US916Z
-
Page 1: Quick Start
US916Z/US916ZD RVH9000Z/9000ZD Hybrid HD DVR Quick Start 1. Packing........P2 2. Hard Disk Installation....P3 3. DVD-RW Installation....P4 3. Front Panel Controls....P5 4. Rear Panel Connectors....P6 I-Phone & Android (IWatch DVR) Default Username is Admin Default Admin Lock password is 123456 Note: Please see CD included for complete User... - Page 2 1. DVR 2. Quick Start 3. IR Remote Control 4. Battery 5. CD 6. Hard Disk Mount 7. Screws 8. Power Adaptor and Cable 10. SATA Cord Note: Standard shipping products do not include Hard Drive unless you had Ordered your DVR with Hard Drive. All Hard Drives if ordered comes preinstalled and ready to use.
- Page 3 Step 1) Fix the HDD to rack mount with the screws as indicated. Left side Right side Step 2) Place the HDD on the HDD plate and screw it as indicated. Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record.
- Page 4 Step 1: Remove the front cover from DVR. Step 2: Put the DVD-RW into the unit as indicated. Step 3: Put DVR bottom up, screw to fix the DVD-RW as indicated. Step 4: Connect the power and the flat cables as indicated. 9CH DVR Quick Start Guide V1.0(N04)- P.4...
- Page 5 ① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ Control Keys Description Optional DVD-RW backup device. ○ DVD Writer Port for USB external devices (USB flash drive devices use, the mouse ○ USB 2.0 Port behind the back of the USB ports installed).. Power: Power is on.
- Page 6 REAR PANEL CONNECTORS ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ① MAIN monitor BNC port for the main monitor. ② HD VIDEO IN SDI input port for HD camera. ③ VIDEO IN BNC input ports for cameras, 8 in total.
- Page 7 ⑯ HDMI HDMI port. You can monitor all the channels, listen to audio signal and have some related operations under LIVE mode. This paragraph describes the IR remote control, mouse operation and on screen graphical icons under LIVE mode. Table 6-1.1 Functions of remote control under LIVE mode Button Description Start/Stop recording.
- Page 8 Table 6-1.2 Graphical icons that will display after right-clicking your mouse under LIVE mode. Icon Description Resting the cursor on this icon will bring up the following four menu icons. Main menu. Search menu. Backup menu. PTZ mode. Turn on/off recording. Playback.
- Page 9 Table 6-1.3 Description of on screen graphical icons in LIVE mode Icon Description Recording is on Schedule Recording is on Live Audio is on Live Audio is off Motion detected on the channel Video loss detected on the channel USB device detected Connected to the LAN cable.
- Page 10 Switch to PLAYBACK mode by pressing “PLAY” under the LIVE mode, the graphical icon will show up on the upper center of the screen and the operation panel ( see below picture) will show up at right lower corner of the screen. You can drag the panel by mouse to place it on any location of your screen.
- Page 11 5 channel display Zoom-in display If you want to monitor single channel, please choose a channel and click left but ton of mouse two times. 9CH DVR Quick Start Guide V1.0(N04)- P.11...
- Page 12 Switch to the PTZ mode by pressing “PTZ” button under the LIVE mode. The PTZ ico will appear on upper left side of screen and the control panel will appear on th e down right side of screen. Table 8-1 Mouse operation under the PTZ mode Icon Description Leave PTZ Mode，back to the LIVE mode...
