16CH IVR
Quick Start Guide
1. Packing........................................P.2
2. Hard Disk Installation................P.3
3. DVD-RW Installation...................P.4
4. Front Panel Controls..................P.6
5. Rear Panel Connectors..............P.7
P.1
Advertisement
Related Manuals for iCatch IVR-1680E-N03
Summary of Contents for iCatch IVR-1680E-N03

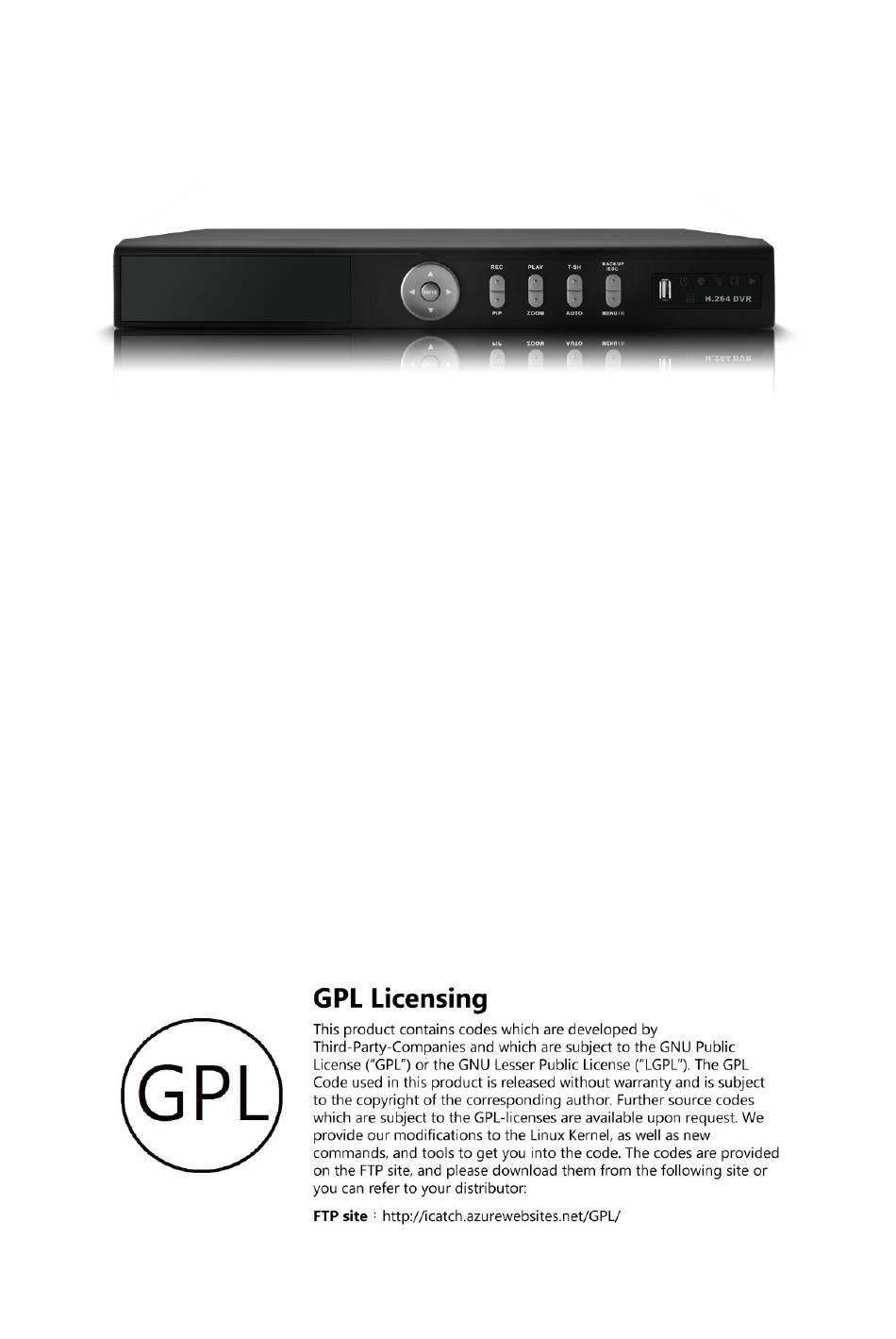

- Page 1 16CH IVR Quick Start Guide 1. Packing........P.2 2. Hard Disk Installation....P.3 3. DVD-RW Installation....P.4 4. Front Panel Controls....P.6 5. Rear Panel Connectors....P.7...
- Page 2 1. DVR 2. Quick Start 3. Battery 4. CD 5. Hard Disk Mount 6. Screws 7. Power Cord 8. SATA Cord Note: Standard shipping products do not include HDD...
- Page 3 Step 1) Fix the HDD to rack mount with the screws as indicated. Step 2) Place the HDD on the HDD plate and screw it as indicated. Step 3) Connect the power and the SATA cables as indicated. Note: After installation, please initialize Hard Disk before starting to record.
- Page 4 DVD-RW Installation Standard shipping products do no t include HDD and DVD-RW) Step 1:Remove the front cover from DVR. Step 2:Put the DVD-RW into the unit as indicated.
- Page 5 Step 3:Put DVR bottom up, screw to fix the DVD-RW as indicated. Step 4:Connect the power and the flat cables as indicated.
- Page 6 Control Keys Description 1. DVD Writer Optional DVD-RW backup device. ▼ / ▓ In SETUP mode, press to move cursor down. In PLAYBACK mode, press to stop playing back. ▲ / SLOW In SETUP mode, press to move cursor up. In PLAYBACK mode, press to slow down.
- Page 7 1. AUDIO OUT RCA output port for audio signal. 2. EXTERNAL I/O External I/O port. 3. eSATA eSATA 4. DC-in DC 12V input 5. AUDIO IN RCA input port for audio signal. 6. WAN Connect Router or Internet 7. VGA VGA Port 8.
