- Page 1 8CH IVR Quick Start Guide 1. Packing........P.2 2. Hard Disk Installation....P.3 3. Front Panel Controls....P.6 4. Rear Panel Connectors....P.7...
- Page 2 1. IVR 2. Quick Start 3. Battery 4. CD 5. Screws 6. Power Adapter 7. SATA Cord Note: Standard shipping products do not include HDD Quick Start Guide P.2...
- Page 3 Step１) Take out the screws as pictures show. Back panel 3 screws Step 2) Open the cover follow the arrow direction. Quick Start Guide P.3...
- Page 4 Step３) Connect SATA & Power wire to Hard Disk and put it on the rack mount. Fix HDD screw Quick Start Guide P.4...
- Page 5 Step 4) Put the cover back and fix it with the 3 screws as Step 1 indicated. Note: After installation, please initialize Hard Disk before starting to record. For more detailed Please check out User Manual Utility Setup for reference. Quick Start Guide P.5...

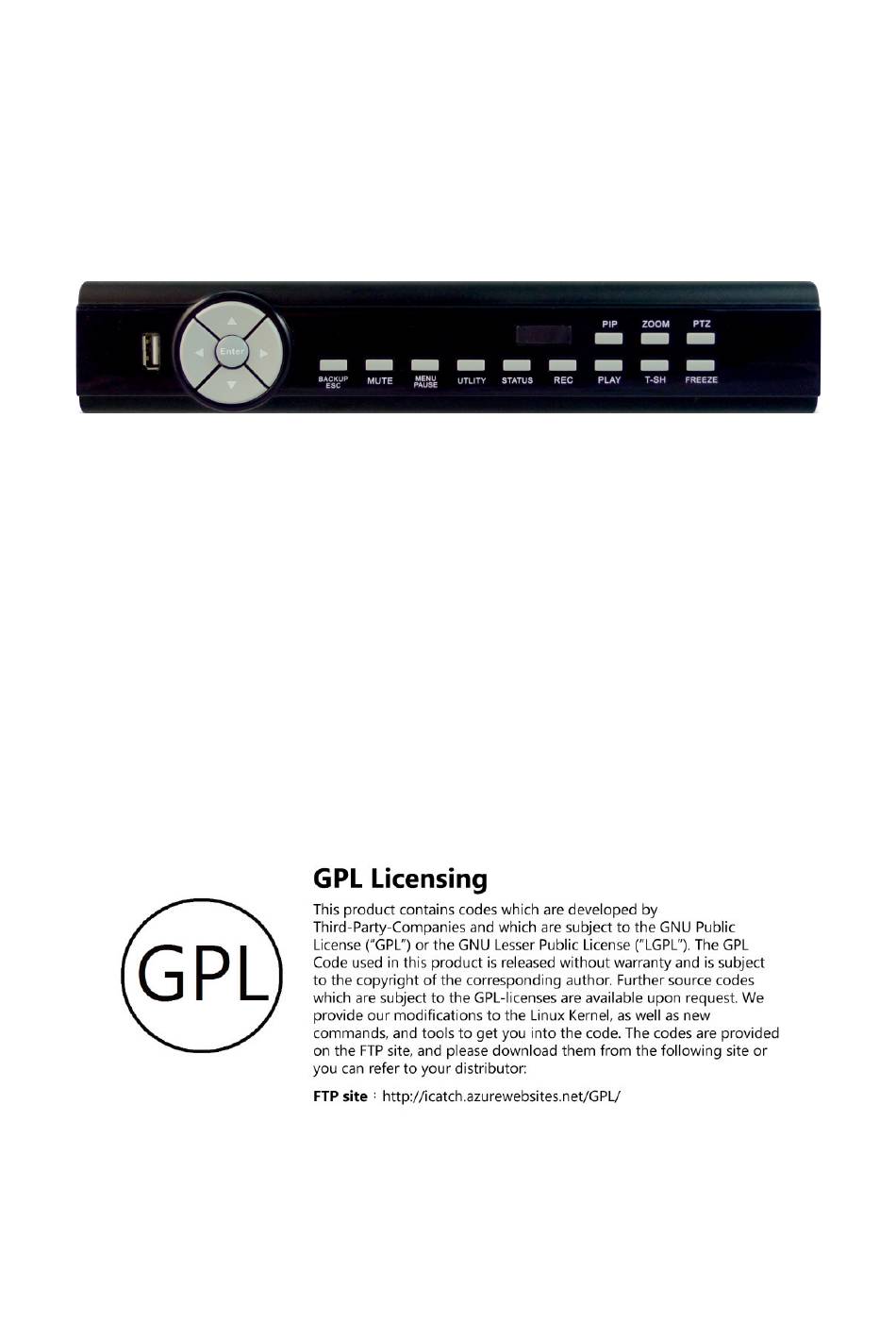

- Page 6 In SETUP mode, press to enter sub menu. In Live mode, switch to ENTER full screen display. In LIVE mode, press to display the BACKUP menu. In SETUP BACKUP/ESC mode, press to return to previous page. Enable / Disable key tone. MUTE In LIVE mode, press to display menu.
-
Page 7: 8Ch Rear Panel Connectors
8CH REAR PANEL CONNECTORS 1. DC 12V Socket for a DC 12V input. 2. AUDIO OUT RCA output port for audio signal. Port for USB mouse device (Front port for USB external 3. USB devices) 4. HDMI HDMI port. 5. VGA VGA port.
