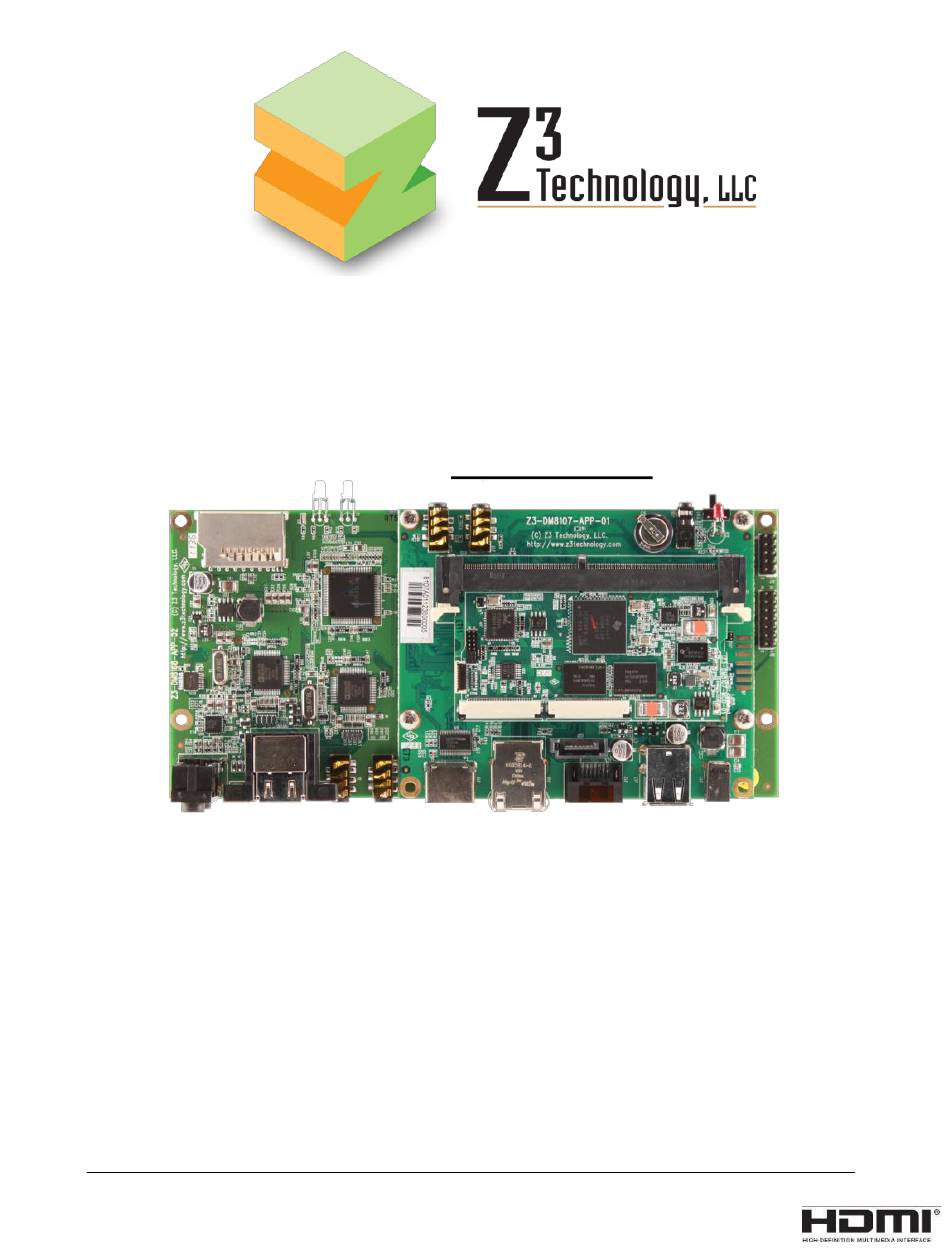

User's Guide
Multi-channel H.264 HD Multimedia System
High Definition Video Processor Module

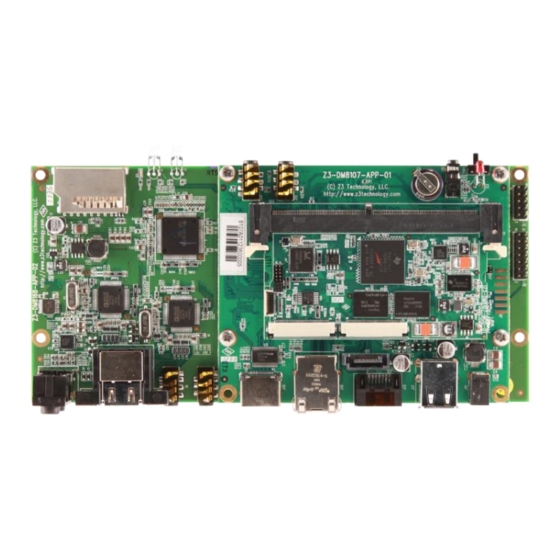

DM8107 Multichannel Rapid Prototyping System
Z3-DM8107-RPS
Model Name:
DOC-USR-0012-08
Manual Version 2.01.08b
Software Version 2.01.08
October 6, 2014
Before attempting to connect or operate this product, please read these instructions carefully and save the
manual for future use.
This document contains proprietary and confidential information of Z3 Technology, LLC ("Z3"). This document may
not be used, reproduced, disclosed, or disseminated to anyone without the prior written approval of an authorized
representative of Z3.
Z3 Technology, LLC incorporates HDMI® technology. The terms of HDMI and HDMI High-Definition Multimedia Interface, and
the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
