- Page 1 ZM-4 Series User’s Manual...
-
Page 2: Table Of Contents
ZM-4 Series Table of Contents Before Use ......................3 Introduction .....................3 Safety Precautions ..................4 Parts ....................... 5 ZM-4B/T ..................... 5 Definition of Parts ................6 Operation ....................Assembly ....................8 Setting Up ....................Focusing ....................Using the Trinocular Port ..............Attaching a Camera ................ -
Page 3: Before Use
Congratulations on the purchase of your new AmScope microscope! This manual is designed for the ZM-4 series microscopes (ZM-4B, ZM-4T, and all their variants). The two base models of this series differ in that the -B models are binocular (two eyepiece ocular tubes), while the -T models are trinocular (two eyepiece ocular tubes with a third port on top for a microscope camera). -
Page 4: Safety Precautions
ZM-4 Series Before Use Safety Precautions 1. As the microscope is a precision instrument, always handle it with care, avoiding impact or abrupt movement during transportation. Do not shake the package. 2. Do not place the microscope in direct sunlight or in high heat. Keep it indoors in a dry and clean place with temperatures between 32-100 degrees F (0-40 degrees C), and in maximum relative humidity of 85%. -
Page 5: Parts

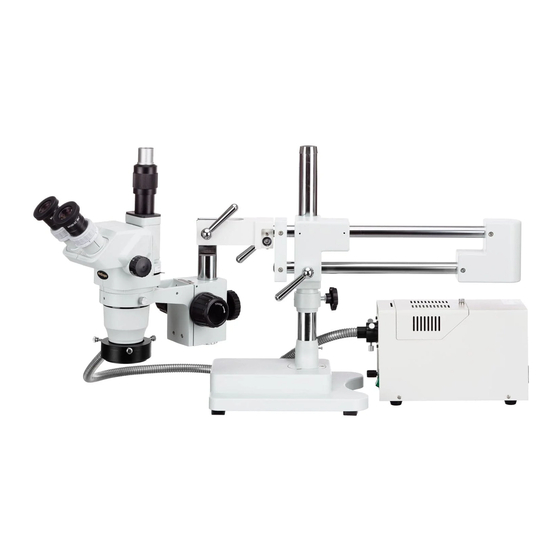

ZM-4 Series Parts ZM-4B/T Trinocular Port (ZM-4T Only) Drop Arm Lock Eyepieces Double Arm Stand Magnification Knob Boom Lock Ocular Tubes Interpupillary Adjusters Vertical Lock Focusing Rack Objective Protective Collar Focusing Knob Base... -
Page 6: Definition Of Parts
ZM-4 Series Parts Definition of Parts Adjustable Trinocular Port Threaded port with adjustable length of attachment of digital or video camera Boom Stand Stand for the microscope that allows the head to be moved in physical space in various directions... - Page 7 ZM-4 Series Parts Magnification Knob Changes the magnification of the lenses on a continuous zoom microscope Microscope Head Contains the objective lens, eyepiece ocular tubes, and prisms used to magnify Ocular Tube Tube designed to hold the eyepieces or camera in place...
-
Page 8: Operation
2. Check the packing list to ensure that you’re received all items. Please note that this can vary depending on which model you’ve purchased, and is generally listed on www.amscope.com at the items’ details page for your specific model. - Page 9 ZM-4 Series Operation Fig. 3a Fig. 3b Fig. 3c 4.4 Take the focusing rack pole from the box (Fig. 3a). Remove the lock knob① (Fig.3b). 4.5 Put the focusing rack pole into the horizontal rack as indicated in Fig.3c. 4.6 Use the included hex spanner to tighten the screw as Fig.3d.
- Page 10 ZM-4 Series Operation 4.7 Remove the cap① and loosen the screw② on focusing rack. Insert the focusing rack as Fig. 5 and hold it with hand. 4.8 Screw the focusing rack pole cap①. Tighten screw ②. Fig. 5 4.9 Put the head into focusing rack. Tighten the lock screw①.
-
Page 11: Setting Up
ZM-4 Series Operation Setting Up 1. Once you have placed your sample on the table or base below the objective, center the sample as best as possible. A slide is neither needed nor required for a stereo microscope, although they can be used if desired. -
Page 12: Using The Trinocular Port
You do not need an adapter to attach your AmScope camera to the trinocular port, however you may need one if you have a non-AmScope camera. Our photo port is a 23mm size. -
Page 13: Adjusting Focusing Tension
Doing so will void your warranty unless by advisement of one of our technicians to do so. - After use, cover the microscope with the provided dust cover. - Keep your AmScope microscope in a dry, clean location in order to prevent rust or other damages. -
Page 14: Specifications
ZM-4 Series Specifications ZM-4 Series Specifications • Head: 45-degree inclined 360-degree swiveling trinocular • Eyepiece: 30mm extreme widefield WH10X/22 • Objective: 0.67-4.5X • Zoom Ratio: 6.7:1 • Working Distance: 4" (100mm) • Field of View: 1-3/8" (35mm) • Diopter Adjustment: +/- 5dp •... -
Page 15: Specifications
ZM-4 Series Specifications Optional Accessories Parts Description Model # Purpose Eyepieces EP20X30 For obtaining higher magnification powers EP25X30 For obtaining higher magnification powers 10x w/ Pointer EP10X30P For easier identifying of objects 10x w/ Reticle EP10X30R For measuring objects 0.5X... -
Page 16: Technical Terms & Concepts
ZM-4 Series Technical Parameters Technical Terms & Concepts Total Magnification Total magnification of a microscope is calculated by the magnification of the objective multiplied by the mag- nification of the eyepieces. -Ex: (10x Eyepieces) x (4x Objective) = 40x Total Magnification... -
Page 17: Troubleshooting
ZM-4 Series Troubleshooting Common Issues (Optical) Symptom Cause Remedy OPTICAL ISSUES Stains, dust, or dirt has accumulated on the speci- Clean the slide or use a new specimen if sample is Obstructions are observed in the field destroyed of view... -
Page 18: Common Issues (Mechanical)
ZM-4 Series Troubleshooting Common Issues (Mechanical) Symptom Cause Remedy MECHANICAL ISSUES Focus knob does not turn The tension knob is too tight Loosen it by adjusting the tension by grabbing both knobs on the focusing rack and twisting them in opposite directions.
