R2

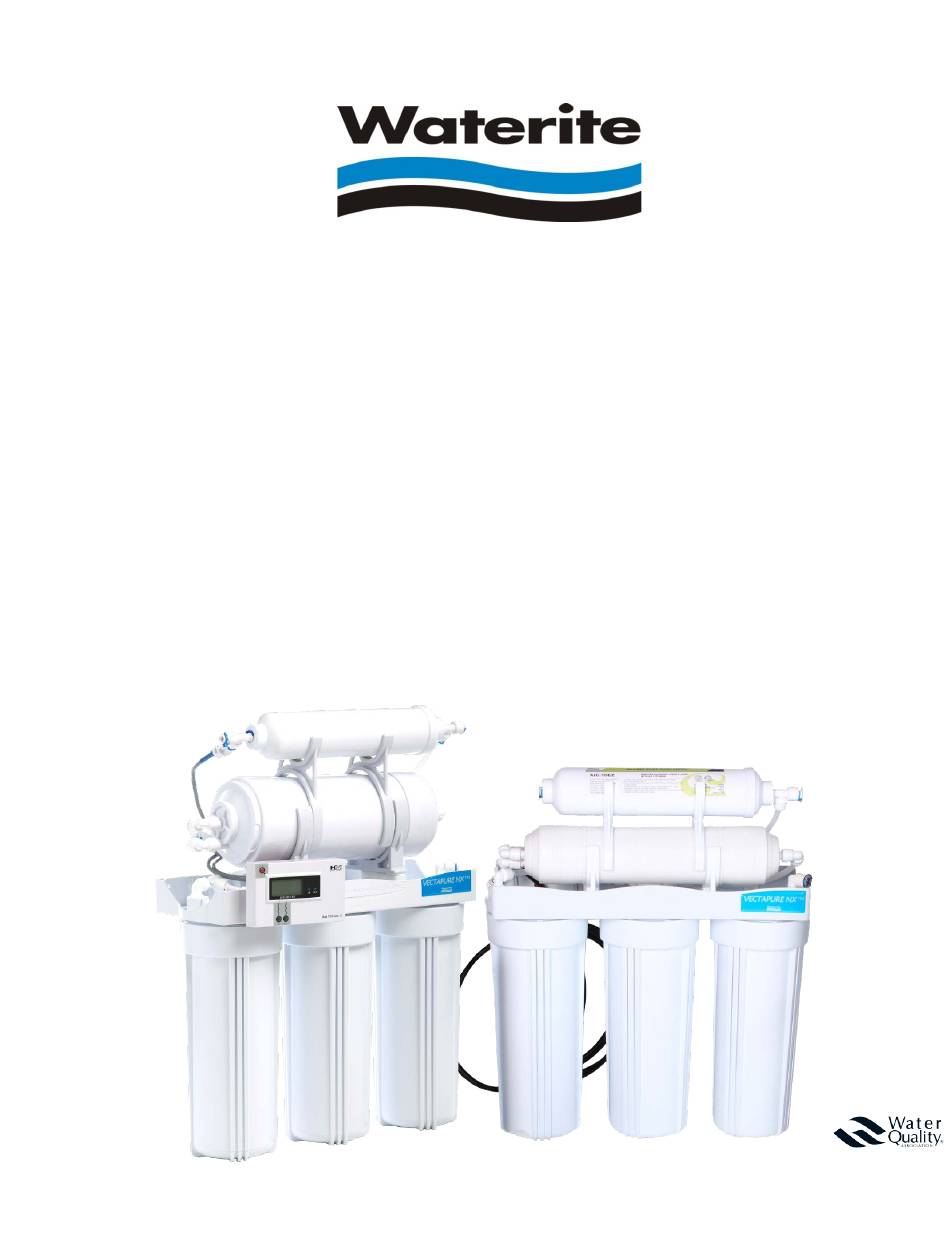

VECTAPURE NX™
Residential Reverse Osmosis Water System
INSTALLATION AND OWNER'S MANUAL
FOR MODELS RO4053HNX, RO405400TNX AND
RO405400NX
THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR
REFERENCE PURPOSES AND TECHNICAL GUIDANCE.
IT IS STRONGLY
RECOMMENDED
THAT
QUALIFIED
DEALER
SERVICE
PERSONNEL
BE
CONTACTED IN THE EVENT OF AN UNKNOWN INTERRUPTION OF SERVICE OR
APPARENT
PRODUCT
MALFUNCTION.
AN
ANNUAL
PREVENTATIVE
MAINTENANCE INSPECTION BY A WATER PROFESSIONAL IS RECOMMENDED
TO ENSURE TROUBLE-FREE AND CONTINUOUS OPERATION.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Waterite VECTAPURE NX RO4053HNX
Summary of Contents for Waterite VECTAPURE NX RO4053HNX
- Page 1 VECTAPURE NX™ Residential Reverse Osmosis Water System INSTALLATION AND OWNER’S MANUAL FOR MODELS RO4053HNX, RO405400TNX AND RO405400NX THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR REFERENCE PURPOSES AND TECHNICAL GUIDANCE. IT IS STRONGLY RECOMMENDED THAT QUALIFIED DEALER SERVICE...
-
Page 2: Section 1. Frequently Asked Questions
Section 1. Frequently Asked Questions Before getting started, take the time to familiarize yourself with your new Waterite system by reading some FAQs listed below. Call us or ask your dealer if you have any other questions about your system’s operation. - Page 3 WATERBORNE MICROBIOLOGICAL OR TOXIC CHEMICAL CONTAMINATION. WHERE THESE CONDITIONS MAY EXIST CONSULT A WATER PROFESSIONAL TO ENSURE SUFFICIENT RAW WATER PRE-TREATMENT AND DISINFECTION. WATERITE RO SYSTEMS ARE TO BE OPERATED ONLY WITH A SAFE, CHLORINATED RAW WATER SOURCE. THIS IS NECESSARY TO PERIODICALLY PURGE AND FLUSH...
- Page 4 Q: Can the Vectapure NX™ system be connected to an extra faucet? Yes. Many installations will include an optional ¼” line to refrigerator icemakers or additional sink faucets. See your dealer for advice and parts. Q: What factors affect the quantity and the quality of the water produced? 1.
-
Page 5: Section 2. Unpacking And Installation
Section 2. Unpacking and Installation Your system includes: Carton Contents The main 5 stage RO/filter unit assembly; One encapsulated membrane (pre-installed), one sediment filter cartridge, two block carbon filter cartridges; One drain fitting and clamp with push-on tube fitting; ... - Page 6 Keep in mind that you may install a tube tee on the line to the faucet to connect icemakers or other faucets to the system. If you locate your system farther than 20 feet from the faucet, you will need to use 3/8” tubing or install a pressure booster pump to your line. See your dealer for parts and details.
- Page 7 7. Connect the white ¼” tube to the water supply adapter by inserting the tube firmly and pushing until the tube end contacts the stop. Gently tug the tube backwards to assure a secure connection. Do NOT connect the other end of the tube to the RO system water inlet at this time.
- Page 8 Step 5. Install the Drain Saddle Assembly 1. Select the location to install the drain saddle assembly. This is usually on the sink drainpipe and needs to always be located above the “S” trap. 2. Position the drain saddle assembly in the selected location and mark the spot through the threaded outlet with a pencil or marker 3.
- Page 9 Step 8. Connect the System Tubing READ THIS SECTION CAREFULLY. MOST SYSTEM LEAKS ARE CAUSED FROM IMPROPERLY COMPLETED PUSH-ON JOINTS. Making and securing a push on connection is simple. First, the tubing should be cut square and any burrs or rough edges removed.
- Page 10 Step 9. Filling the System THOROUGHLY WASH HANDS BEFORE LOADING CARTRIDGES AND MEMBRANE ELEMENTS. Remove the PRE-FILTER housing bowl by turning counter clockwise with the housing wrench supplied. Remove all protective wrapping from the filter cartridges. Insert the white 5-micron sediment filter cartridge in the housing and reassemble housing.
-
Page 11: Section 3: Operation And Maintenance
TDS readings in the product water begin to rise. Total Dissolved Solids may be measured by a professional or by use of a simple hand-held TDS monitor. These are available from your dealer or from Waterite’s Online Store at www.waterite.com (the RO405400TNX comes with a TDS meter preinstalled). -
Page 12: Section 4: Troubleshooting Guide
The membrane element life will range from 1 to 5 years, depending on the quality of the raw water. Soft water free from iron is ideal. Hardness, iron, chlorine and infrequently changed filter cartridges are the membrane’s greatest enemies. To change the membrane element, start by closing the cold water supply valve. Open the faucet and completely drain until the flow of water stops. - Page 13 VECTAPURE NX™ RESIDENTIAL REVERSE OSMOSIS SYSTEM PARTS LIST *not shown Vectapure NX PART DESCRIPTION PART NUMBER COMMENT DESCRIPTION COMMENT NUMBER Filter housing HA10W Post carbon filter AIC10EZ Cartridge 5 mic sediment PP1005 Check valve A4CV4 Cartridge, Carbon CBC5CTO3 4-way shutoff valve ROS002 Mounting bracket RO4053M...
- Page 14 VECTAPURE NX™ RESIDENTIAL REVERSE OSMOSIS SYSTEM FLOW LAYOUT...
- Page 15 THIS PAGE HAS BEEN LEFT INTENTIONALLY BLANK...
- Page 16 VISIT THE WATERITE TECHNOLOGIES WEBSITE FOR INFORMATION, CONSUMER ONLINE REPLACEMENT PARTS AND PRODUCT UPDATES AT: www.waterite.com WATERITE, INC Winnipeg, Manitoba Canada www.waterite.com...
