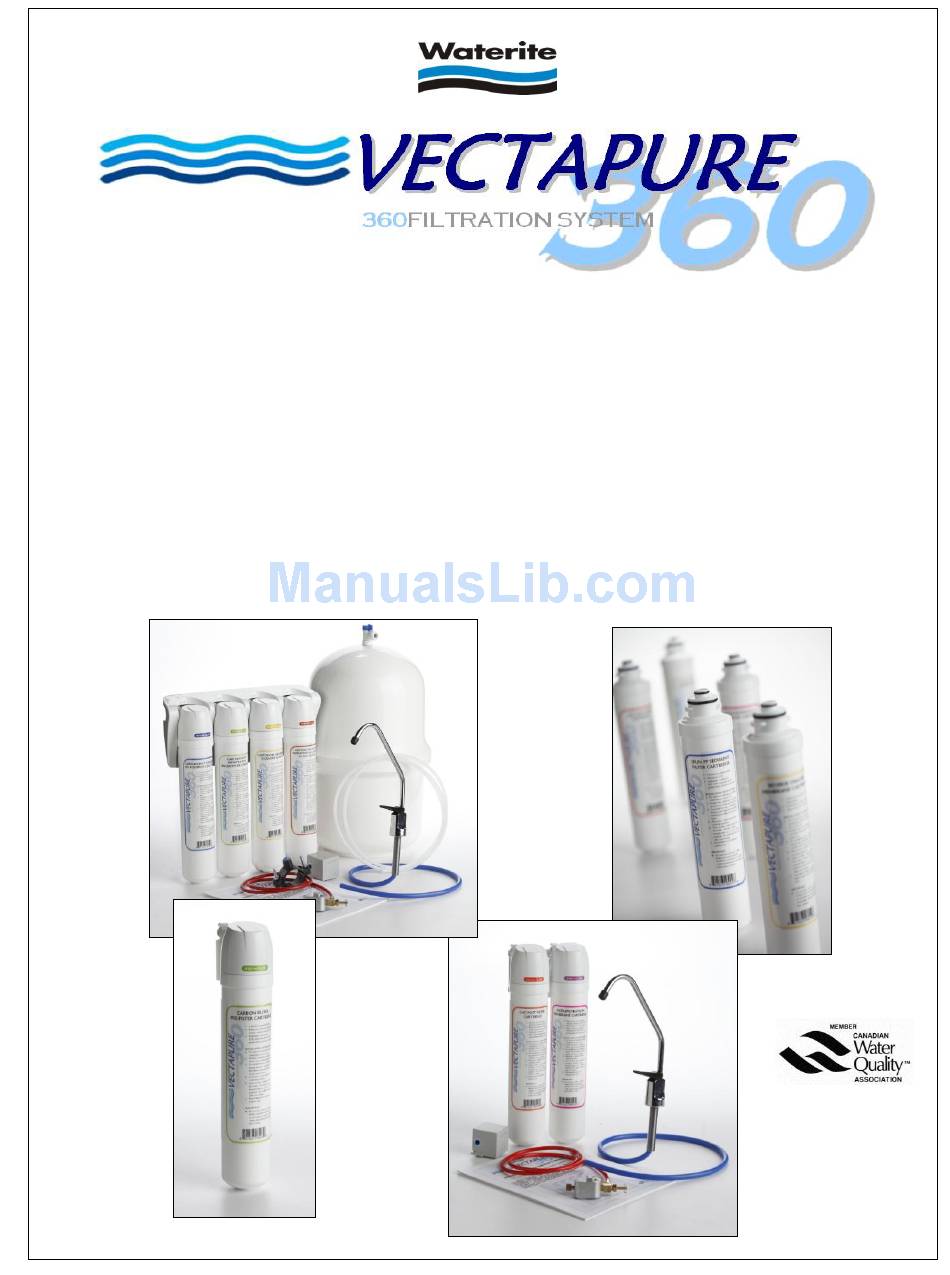

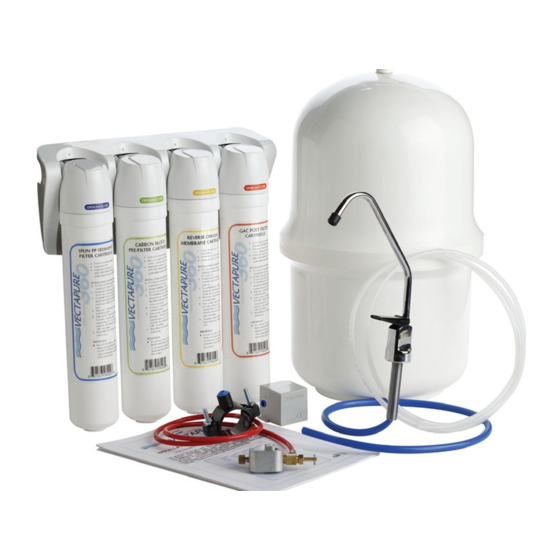

INSTALLATION AND OWNER'S MANUAL
VECTAPURE 360
For
Drinking Water Systems
™
THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR
REFERENCE PURPOSES AND TECHNICAL GUIDANCE.
IT IS STRONGLY
RECOMMENDED
THAT
QUALIFIED
DEALER
SERVICE
PERSONNEL
BE
CONTACTED IN THE EVENT OF AN UNKNOWN INTERRUPTION OF SERVICE OR
APPARENT
PRODUCT
MALFUNCTION.
AN
ANNUAL
PREVENTATIVE
MAINTENANCE INSPECTION BY A WATER PROFESSIONAL IS RECOMMENDED TO
ENSURE TROUBLE-FREE AND CONTINUOUS OPERATION.
R2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Waterite VECTAPURE 360
Summary of Contents for Waterite VECTAPURE 360
- Page 1 INSTALLATION AND OWNER’S MANUAL VECTAPURE 360 Drinking Water Systems ™ THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR REFERENCE PURPOSES AND TECHNICAL GUIDANCE. IT IS STRONGLY RECOMMENDED THAT QUALIFIED DEALER SERVICE PERSONNEL CONTACTED IN THE EVENT OF AN UNKNOWN INTERRUPTION OF SERVICE OR...
- Page 2 Please read this entire manual before attempting installation and operation. Section 1. Frequently Asked Questions Before getting started, take the time to familiarize yourself with your new Waterite VECTAPURE 360 system by reading some FAQs listed below. Call us or ask your dealer if you have any other questions about your system’s operation.
- Page 3 - see the enclosed Extended Warranty Program information sheet and enrolment form included in your package. Call your dealer or go to www.waterite.com to apply. Normal filter cartridge replacement is excluded from your warranty. VECTAPURE 360 ™...
- Page 4 One only 1-meter length (clear) of tube for connecting the filtration system to the faucet; One Owner’s package including owner’s manual, warranty certificate, Extended Warranty Plan enrolment form, Waterite Parts Program enrolment form. Also included with 4-Stage RO System: ...
- Page 5 Keep in mind that you may install a tube tee on the line to the faucet to connect icemakers or other faucets to the system. If you locate your system farther than 20 feet from the faucet, you will need to add a pressure booster pump to your system. See your dealer for parts and details.
- Page 6 Step 4. Install the Sink Faucet Tools required for this step: An electric drill, a 5/8” carbide bit, a small adjustable wrench, a center punch, a pencil, a rat-tail file. Your dealer will be able to supply a variety of designer faucets and finishes to suit your particular installation, if you wish.
- Page 7 Step 5. Install the Drain Saddle Assembly (V360 RO System only) 1. Select the location to install the drain saddle assembly. This is usually on the sink drainpipe and needs to always be located above the “S” trap. 2. Position the drain saddle assembly in the selected location and mark the spot through the outlet with a pencil or marker.
- Page 8 Step 7. Mounting the Filtration Unit 1. While holding the V360 system in its intended mounting position, mark the holes for the wall screws with the pencil. Using a 1/8” bit, drill the pilot holes for the screws. 2. (For V360 Single Filter systems) Position the bracket and screw in the mounting screws until snug.
- Page 9 RO membranes, TDS readings in the product water begin to rise. Total Dissolved Solids may be measured by a water professional or by use of a simple hand-held TDS meter. These are available from your dealer or from Waterite’s Online Store at www.waterite.com.
- Page 10 Keep your bill of sale and your warranty certificate, included in this kit. This is needed to claim any parts or repair service during the warranty period. Read the document completely for warranty claim instructions. VECTAPURE 360 BE SURE TO RETURN THE WARRANTY CARD LOCATED IN YOUR...
- Page 11 Section 4: Troubleshooting Guide Trouble Shooting Guide Possible Cause Solution Low Water or No Water Water supply valve closed or RO tank valve closed. Open valves Low home water pressure Must exceed 40 PSI. If lower, install booster pump – see dealer Crimped poly tube Repair or replace...
- Page 12 (From the chart below) .5094 X 75 gallons = 38.2 gallons (145 litres) per day. 38.2 gallons/24 hours = 1.6 gallons (6.0 litres) per hour production rate VISIT THE WATERITE TECHNOLOGIES WEBSITE FOR INFORMATION, CONSUMER ONLINE REPLACEMENT PARTS AND PRODUCT UPDATES AT:...
- Page 14 PAGE LEFT INTENTIONALLY BLANK...
- Page 15 PAGE LEFT INTENTIONALLY BLANK...
- Page 16 Waterite Technologies, Inc. 3-75 Meridian Drive Winnipeg, Manitoba Canada R2R 2V9 (204) 786-1604 (204) 783-1599 fax www.waterite.com...
