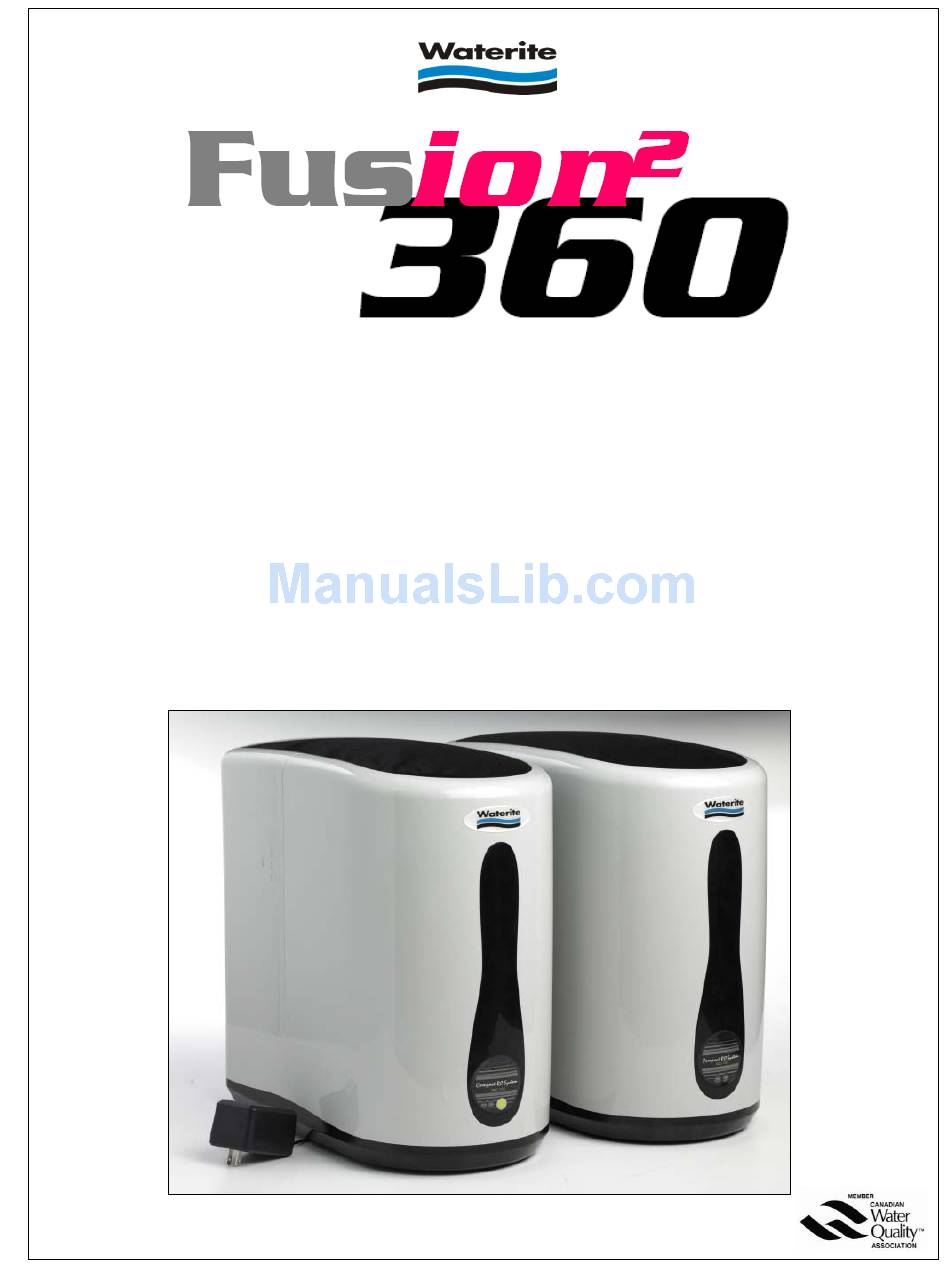

INSTALLATION AND OWNER'S MANUAL
For FUSION 360™ Residential Reverse Osmosis
Drinking Water Systems
THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR
REFERENCE PURPOSES AND TECHNICAL GUIDANCE.
IT IS STRONGLY
RECOMMENDED
THAT
QUALIFIED
DEALER
SERVICE
PERSONNEL
BE
CONTACTED IN THE EVENT OF AN UNKNOWN INTERRUPTION OF SERVICE OR
APPARENT
PRODUCT
MALFUNCTION.
AN
ANNUAL
PREVENTATIVE
MAINTENANCE INSPECTION BY A WATER TREATMENT PROFESSIONAL IS
RECOMMENDED TO ENSURE TROUBLE-FREE AND CONTINUOUS OPERATION.

Advertisement

loading
Need help?

Need help?

Do you have a question about the Fusion 360 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Waterite Fusion 360

Summary of Contents for Waterite Fusion 360

  • Page 1 INSTALLATION AND OWNER’S MANUAL For FUSION 360™ Residential Reverse Osmosis Drinking Water Systems THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR REFERENCE PURPOSES AND TECHNICAL GUIDANCE. IT IS STRONGLY RECOMMENDED THAT QUALIFIED DEALER SERVICE PERSONNEL...

  • Page 2: Section 1. Frequently Asked Questions

    360 system by reading some FAQs listed below. Call us or ask your dealer if you have any other questions about your system’s operation. Q: How does your Fusion 360 ™ Drinking Water System differ from an ordinary water filter? Ordinary water filters or drinking water system have exposed housings, tubing and water storage tanks..
  • Page 3 Q: How much water does the Fusion 360™ system produce? A Fusion 360 RO system will nominally produce 100 US gallons (380 litres) of product water per day. This output will be affected by household water pressure, concentration of dissolved salts in the raw water, raw water temperature and other local factors.

  • Page 4: Section 2. Unpacking And Installation

    One waste water pipe saddle and a length of black tube to attach the drain line (included in RO hardware kit); One reverse osmosis membrane element; One Owner’s package including owner’s manual, warranty certificate, Extended Warranty Plan enrolment form, Waterite Parts Program enrolment form. Figure 1. RO cabinet Detachable cover...
  • Page 5 Phillips-head screwdriver, a rat-tail file, a center punch. Always wear eye protection when using an electric drill. 4. If you have purchased the booster pump model (Waterite model number ROC101E) then you must have a 120V household electrical plug available where the RO cabinet will be installed.
  • Page 6 3. You may now turn the water supply to your home ON. Check for leaks around the saddle. Tighten, reseat or reinstall if necessary. Step 4. Install the Sink Faucet Tools required for this step: An electric drill, a 5/8” carbide bit, a small adjustable wrench, a center punch, a pencil, a rat-tail file.
  • Page 7 Step 5. Install the Drain Saddle Assembly 1. Select the location to install the drain saddle assembly. This is usually on the sink drainpipe and needs to always be located above the “S” trap. 2. Position the drain saddle assembly in the selected location and mark the spot through the outlet with a pencil or marker.
  • Page 8 Figure 5a. Figure 5b. Cabinet tube connections 1. See Figure 5b above. This rear view of the cabinet shows the three water connections that must be made to the cabinet. When cutting the tube lengths, be sure to allow enough tube for the cabinet to be placed in its final position and then to be pulled out for easy maintenance access, once the installation is complete.
  • Page 9 Step 7. Starting Up the Fusion 360 Filtration System 1. See Figure 5a above. Using the Phillips-head screwdriver, remove the screw as shown. This will allow you to slide off the cabinet cowling from the rear. The top detachable cover may also be removed by sliding it out towards the rear.

  • Page 10: Section 3: Operation And Maintenance

    RO cabinet into its final installation position. Section 3: Operation and Maintenance Operation of your Fusion 360 RO System is simple and easy. This appliance is fully automatic and can be enjoyed without complicated operating procedures. Be sure to follow the cartridge replacement schedule to ensure peak performance and long membrane element life.
  • Page 11 Keep your bill of sale and your warranty certificate, included in this kit. This is needed to claim any parts or repair service during the warranty period. Read the document completely for warranty claim instructions. BE SURE TO RETURN THE FUSION 360 WARRANTY CARD LOCATED IN YOUR LITERATURE KIT. THIS IS NECESSARY TO VALIDATE YOUR PRODUCT WARRANTY.

  • Page 12: Section 4: Troubleshooting Guide

    Section 4: Troubleshooting Guide Trouble Shooting Guide Possible Cause Solution Low Water or No Water Water supply valve closed or RO tank valve closed. Open valves Low home water pressure Must exceed 40 PSI. If lower, install booster pump – see dealer Crimped poly tube Repair or replace...
  • Page 13 The Pressure and temperature chart following will help you determine what daily output you can expect from your Fusion 360 RO System. Your RO system is rated to produce 100 US gallons per day, or approximately 380 litres per day. Membranes are nominally rated at about 77°F (23°C) and 65 PSI (4.5 bar).
  • Page 15 PAGE LEFT INTENTIONALLY BLANK...
  • Page 16 PAGE LEFT INTENTIONALLY BLANK Waterite Technologies, Inc. 3-75 Meridian Drive Winnipeg, Manitoba Canada R2R 2V9 (204) 786-1604 (204) 783-1599 fax www.waterite.com...
