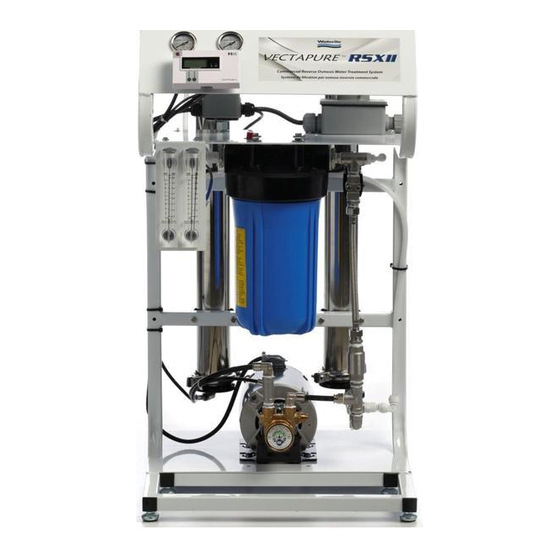

Waterite VECTAPURE RSX II Operator's Manual

Advanced reverse osmosis system, for all commercial ro systems
Hide thumbs

Advertisement

Table of Contents

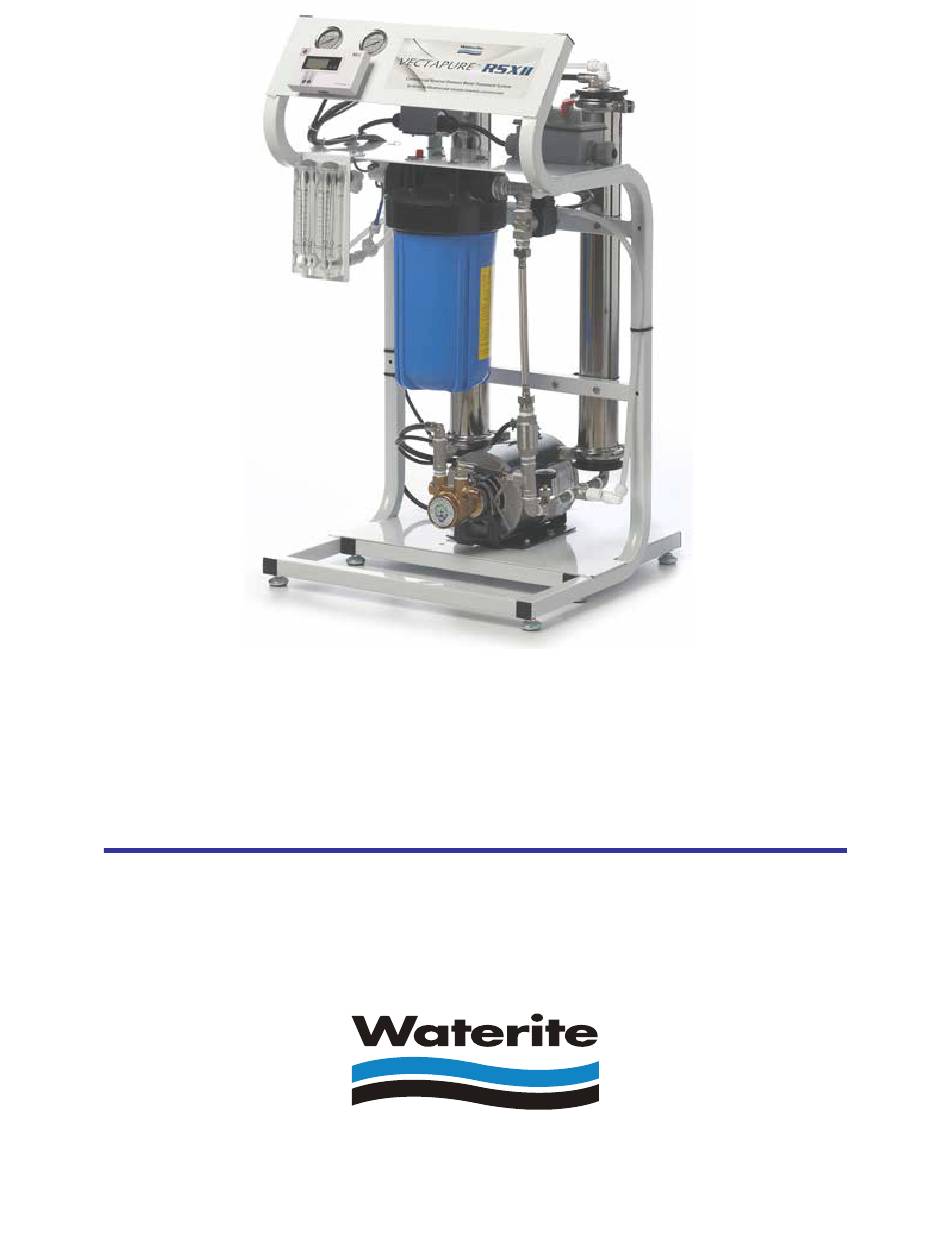

VECTAPURE™ RSX
VERSION II
Advanced Reverse Osmosis System
OPERATOR'S MANUAL
FOR ALL VECTAPURE™ RSX II COMMERCIAL RO SYSTEMS
THIS MANUAL IS TO BE LEFT WITH THE OWNER OF THE EQUIPMENT FOR REFERENCE
PURPOSES AND TECHNICAL GUIDANCE.
IT IS STRONGLY RECOMMENDED THAT
QUALIFIED DEALER SERVICE PERSONNEL BE CONTACTED IN THE EVENT OF AN
UNKNOWN INTERRUPTION OF SERVICE OR APPARENT PRODUCT MALFUNCTION. AN
ANNUAL PREVENTATIVE MAINTENANCE INSPECTION BY A WATER PROFESSIONAL
IS RECOMMENDED TO ENSURE TROUBLE-FREE AND CONTINUOUS OPERATION.
www.waterite.com
Waterite, Inc. ■ Winnipeg, MB Canada
R6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VECTAPURE RSX II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Waterite VECTAPURE RSX II

Summary of Contents for Waterite VECTAPURE RSX II

  • Page 1 QUALIFIED DEALER SERVICE PERSONNEL BE CONTACTED IN THE EVENT OF AN UNKNOWN INTERRUPTION OF SERVICE OR APPARENT PRODUCT MALFUNCTION. AN ANNUAL PREVENTATIVE MAINTENANCE INSPECTION BY A WATER PROFESSIONAL IS RECOMMENDED TO ENSURE TROUBLE-FREE AND CONTINUOUS OPERATION. www.waterite.com Waterite, Inc. ■ Winnipeg, MB Canada...

  • Page 2: Section 1. Frequently Asked Questions

    Section 1. Frequently Asked Questions Before getting started, take the time to familiarize yourself with your new Waterite system by reading some FAQs listed below. Call us or ask your dealer if you have any other questions about your system’s operation.
  • Page 3 Please contact your dealer or Waterite for information on special application or nanofiltration membranes. 4. TDS: The higher the Total Dissolved Solids in the raw water, the lower the rate of output of product water.

  • Page 4: Section 2. Designing Your Installation

    Q: Can the amount of total water produced be increased? Once the system has been set for optimal operation, the overall water available for consumption over a set period of time will be increased by increasing the storage capacity. This will increase the time available for the unit to produce water in off-peak hours (instead of standing idle), and more storage capacity to be available in peak hours when water usage may exceed production capacity, for short intervals.
  • Page 5 combination softener (for iron concentrations < 2 ppm); otherwise premature membrane and system equipment failure through iron deposit fouling will result. Manganese: Manganese is a commonly occurring mineral found in ground water. Manganese will √ leave black, scaly deposits and will eventually foul membranes in concentrations greater than .05 ppm.
  • Page 6 √ Turbidity: This is the term to describe suspended particulate in the raw water. Turbidity is treated by the sediment cartridges that your RO system has been equipped with. Reduction of turbidity is necessary to avoid fouling your membrane and damaging your drive pump. Make sure that your prefilters are changed regularly and that quality Excelpure 5-micron cartridges are used as replacements.
  • Page 7 Pre-Treatment Summary Chart Recommended Potential Waterite Feed Water Pre-Treatment Solution Effect Models Range Replace water source Reduced production rate RSL or Higher Pressure Reverse < 1500 ppm Increased salt passage RSLHP Osmosis System A Series T. Hardness Scaling of membrane surface Fusion²...
  • Page 8 ALSO APPLIES TO NEW RESIN BED INSTALLATIONS. COLOUR THROW FROM NEW RESIN BEDS MAY DAMAGE OR FOUL RO MEMBRANES. WATERITE DOES NOT RECOMMEND THE USE OF A GRANULAR/BLOCK CARBON CARTRIDGE IN THE PRE-TREATMENT FILTER HOUSINGS SUPPLIED, FOR THE PRIMARY REDUCTION OF CHLORINE.

  • Page 9: Section 3. Installation

    This will ensure that backpressure from the tank will not damage the membrane(s). To eliminate this problem, install the bulkhead fitting above the level switch. Consult your Waterite Commercial RO Systems Price List for information and availability on a wide variety of water system components including storage tanks, repressurization pumps, bulkheads, tube, pipe, pressure switches, fittings, UV disinfection systems and float valves.
  • Page 10 Pressure Gauges On/Off Switch TDS Monitor (Optional) Low Pressure Switch Inlet Solenoid Waste & Permeate Flow Meters (Optional) Membrane Housing Pre-Filter Housing DLFC Drive Pump Concentrate Valve Figure 1 Leveling Feet A Note on Fittings Your RO system has been equipped with quality push on fittings throughout. Check that all fittings are snug, as they may have loosened in transit.
  • Page 11 2. Remove the wrapping from the membrane element(s). Lightly lubricate the membrane brine seal and all o-rings located in the membrane housing caps with a good quality, silicone o-ring lubricant (do not use petroleum-based lubricants). Disconnect the connections on the membrane housing’s top end cap.
  • Page 12 4. Make sure the feed water source is a reliable one and will constantly deliver feed water between 40 psi and 80 psi maximum. Your RO system has been equipped with an low pressure shut-off, In the event that the line pressure to your RO inlet falls below 20 psi., this switch will open breaking the electrical connection.

  • Page 13: Section 4: System Set-Up

    Step 9. Complete the Electrical Connection VectaPure RSX II systems operate using a 120V 15A service and a grounded receptacle. Insure that the power source is rated to the necessary amperage (see page 8) and that the connection meets the local electrical code.
  • Page 14 Low Pressure Shut Off Switch Inlet Solenoid Recirculation Valve Figure 5 5. Next, begin to close the recirculation valve slowly until the operating pressure gauge registers 150 psi (10.3 bar). The system is designed to normally operate at 130 psi. At this pressure, the proper waste/production ratio is established.

  • Page 15: Section 5: System Maintenance

    This will allow you to see any developing performance trends or alert you to system changes that will require you to intervene. It will also be helpful for your dealer or Waterite technical personnel to have this information available to help troubleshoot your system, should it become necessary.
  • Page 16 It is the purchaser’s responsibility to immediately notify Waterite in the event that defects are detected. Seller shall not be liable for any special, incidental or consequential damages and will at its option repair or replace any defective components.

  • Page 17: Section 6: Trouble Shooting Guide

    Section 6: Trouble Shooting Guide Problem Possible Cause Solution Water supply valve closed Open valve Crimped poly product line Repair or replace tube Consult dealer – may need pre- Raw water TDS too high treatment Pre-treatment cartridges plugged Replace cartridges Low or Declining Clean or replace membrane Membranes fouled...

  • Page 18: Section 7: Common Replacement Parts

    Drive Motor, 1/3 HP, 115VAC 4FRG42 Drive Motor, 1/2 HP, 115VAC 4FRG44 DLFC-3/8” 0.13 GPM Yellow 5865011 DLFC-3/8” 0.26 GPM Pink 5865031 DLFC-3/8” 0.50 GPM Black 5865051 DLFC-3/8” 0.79 GPM Purple 5865071 DLFC-3/8” 0.92 GPM Blue 5865081 You can order replacement parts at www.waterite.com...

  • Page 19: Section 8: Feed Water Requirements

    Section 8: Feed Water Requirements RSX II 350: 2.0 USGPM minimum includes 20% safety factor RSX II 700: 3.0USGPM minimum on 1000 TDS feed water. Feed water must be available at a minimum of 40 psi and a maximum of 80 psi at the specified flow rate.

  • Page 20: Section 10: Vectapure Rsx Ii Performance Log

    Section 10: Vectapure RSX II Performance Log Line System Permeate Feed Water Pre-Filter Fast Permeate Waste Date Pressure Pressure Change Flush Flow Meter Flow Meter...
  • Page 21 WATERITE TECHNOLOGIES, INC. Unit 3 – 75 Meridian Drive, Winnipeg, Manitoba Canada R2R 2V9 204.786.1604 Fax: 204.7863.1599 waterite@waterite.com www.waterite.com Vectapure RSX II Feed Water Quality Owner: Contact: Installation Date: Phone # Serial # Dealer: Model # CATIONS ANIONS Barium Bromide...
  • Page 22 REGISTER YOUR PRODUCT ONLINE AT WATERITE.COM OR FILL OUT THE INCLUDED PRE-PAID, SELF ADDRESSED POSTCARD.
  • Page 23 REGISTER YOUR PRODUCT ONLINE AT WATERITE.COM OR FILL OUT THE INCLUDED PRE-PAID, SELF ADDRESSED POSTCARD.
  • Page 24 Waterite, Inc. Winnipeg, Manitoba Canada www.waterite.com...
