HOBO® Pro v2 (U23-00x) Manual

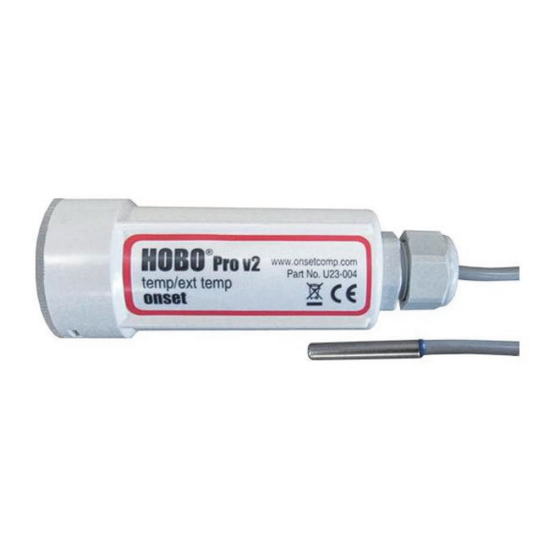

HOBO Pro v2 U23-004 shown
HOBO Pro v2 Logger
Models: U23-001A
U23-002A
U23-003
U23-004
Included Items:
• Clamp and mounting screws
• UV protective cap
Required Items:
• Coupler (COUPLER2-E) with
USB Optic Base Station (BASE-
U-4) or HOBO Waterproof
Shuttle (U-DTW-1)
• HOBOware Pro 3.7.19 or later
(download at
www.onsetcomp.com/
hoboware-free-download)
Accessory:
• Replacement UV protective
caps (U23-CAP)
10694-Q
The HOBO Pro v2 logger's environmentally rugged case is designed for years of reliable use
in outdoor applications. It has enough memory to record over 42,000 12-bit measurements.
The logger uses an optical USB communications interface (via a compatible shuttle or base
station) for launching and reading out the logger. The optical interface allows the logger to
be offloaded without compromising the electronics. The USB compatibility allows for easy
setup and fast downloads.

Specifications

Temperature Sensor
Operation Range
Accuracy
Resolution
Response Time
(Typical to 90%)
Drift
Relative Humidity Sensor (U23-001A, U23-002A only)
Operation Range
Accuracy
Resolution
Response Time
(Typical to 90%)
Drift
Logger
Operation Range
Real-time Clock
Battery Life (Typical Use)
Memory (Non-Volatile)
Materials
U23-001A internal sensor: -40 to 70°C (-40 to 158°F)
U23-002A external temperature sensor: -40 to 70°C (-40 to 158°F)
U23-003 and U23-004 external sensors: -40 to 100°C (-40 to
212°F), with tip and cable immersion in fresh water up to 50°C
(122°F) for one year
U23-001A and U23-002A: ±0.25°C from -40 to 0°C (±0.45 from -40
to 32°F), ±0.2°C from 0 to 70°C (±0.36 from 32 to 158°F)
U23-003 and U23-004: ±0.21°C from 0° to 50°C (±0.38°F from 32°
to 122°F); see Plot A
U23-001A and U23-002A: 0.04°C (0.072°F)
U23-003 and U23-004: 0.02°C at 25°C (0.04°F at 77°F); see Plot A
U23-001A internal sensor: 10 minutes in air moving 1 m/sec
U23-002A external temperature sensor: 3 minutes, 45 seconds in
air moving 1 m/sec
U23-003 and U23-004 external sensors: 3 minutes in air moving
1 m/sec; 30 seconds in stirred water
U23-001A and U23-002A: <0.01°C (0.018°F) per year
U23-003 and U23-004: <0.1°C (0.18°F) per year
0 to 100% RH, -40° to 70°C (-40° to 158°F)
Exposure to conditions below -20°C (-4°F) or above 95% RH may
temporarily increase the maximum RH sensor error by an
additional 1%
±2.5% from 10% to 90% RH typical to a maximum of ±3.5%
including hysteresis at 25°C (77°F); below 10% and above 90% ±5%
typical
0.05%
U23-001A: 40 minutes in air moving 1 m/sec with protective cap
U23-002A: 15 seconds in air moving 1 m/sec
<1% per year typical
-40° to 70°C (-40° to 158°F)
±1 minute per month 0° to 50°C (32° to 122°F)
1/2 AA, 3.6 Volt lithium, user-replaceable (HP-B)
3 years with 1 minute or greater logging interval
64K bytes memory (approx. 21,000 temperature and RH
measurements)
All models: ASA styrene polymer housing and mounting clamp;
polypropylene protective cap; Buna-N o-ring(s); U23-001A,
U23-002A only: ASA styrene polymer RH sensor cap; modified
hydrophobic polyethersulfone membrane

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro v2 U23-001A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hobo Pro v2 U23-001A

  • Page 1 HOBO® Pro v2 (U23-00x) Manual The HOBO Pro v2 logger’s environmentally rugged case is designed for years of reliable use in outdoor applications. It has enough memory to record over 42,000 12-bit measurements. The logger uses an optical USB communications interface (via a compatible shuttle or base station) for launching and reading out the logger.
  • Page 2 Operation 5. If you are using the HOBO Waterproof Shuttle, briefly press A light (LED) in the communications window of the logger the coupler lever to put the shuttle into base station mode.
  • Page 3 HOBO Pro v2 (U23-00x) Manual • If there are chewing rodents or other cable hazards present, Sample and Event Logging the sensor cable should be protected in conduit. The logger can record two types of data: samples and events. • Periodically inspect the three desiccant packs located in the Samples are the sensor measurements recorded at each logging logger cap.
  • Page 4 Dispose of the battery according to local regulations for lithium batteries. © 2010–2020 Onset Computer Corporation. All rights reserved. Onset, HOBO, and HOBOware are trademarks or registered trademarks of Onset Computer Corporation. 1-800-LOGGERS (564-4377) • 508-759-9500...
