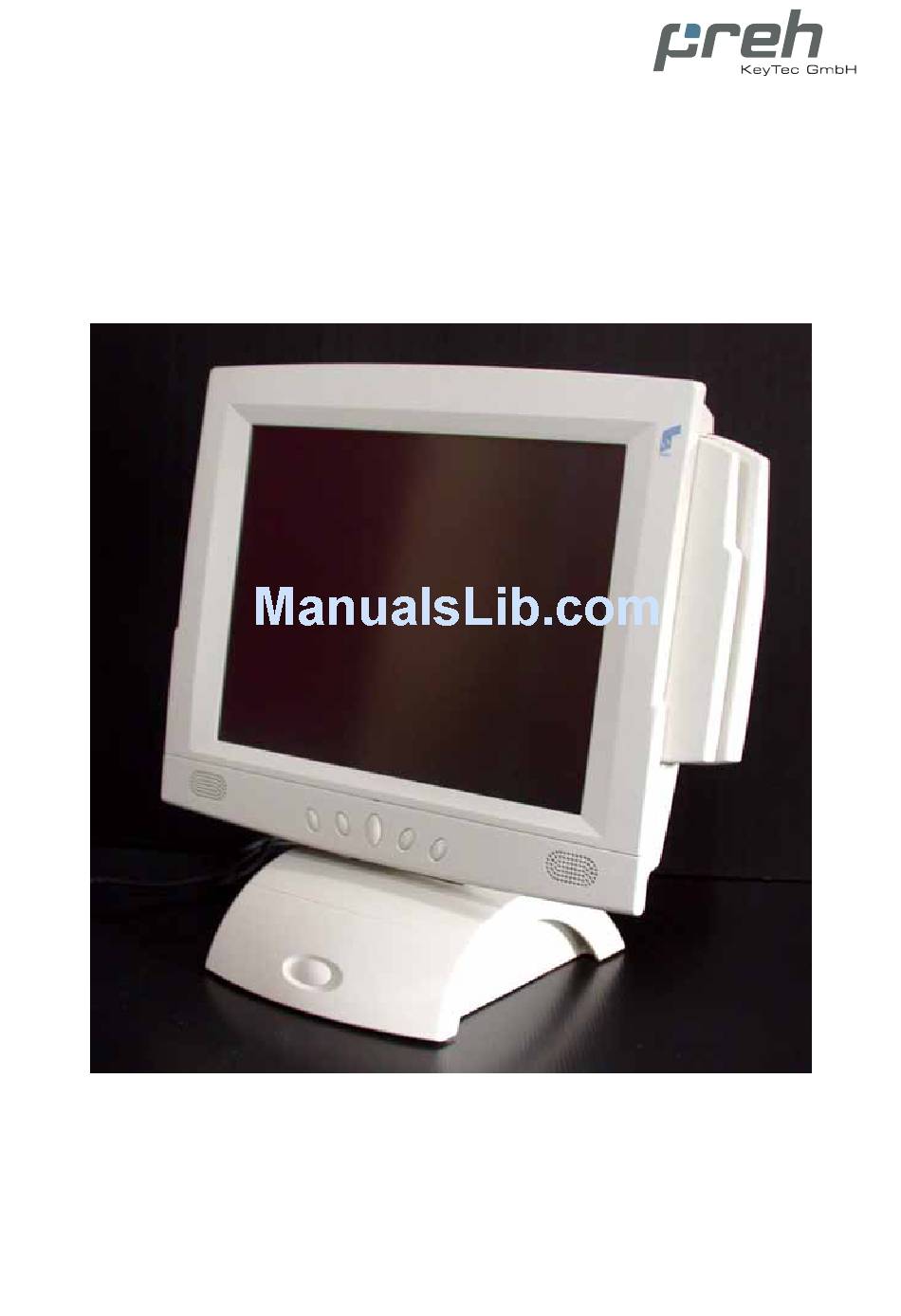

- Page 1 Preh Touch Commander Preh Screen Commander User Manual and Technical Data MC15T5...
-
Page 2: Table Of Contents
8. Safety issues ___________________________________________________ 19 9. Further Information ______________________________________________ 20 10. Warranty ______________________________________________________ 20 11. Statement of Confirmation _______________________________________ 20 12. FCC Warning Statement _________________________________________ 21 Table of Contents subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com 05.2004... -
Page 3: I. Model With Multimedia Base
Pict. 1: front view Pict. 2: rear view Pict. 3: bottom view supply voltage connector (main power) VGA connector audio cable subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com serial connector RS 232 (touch controller) MSR PS/2 Cable 05.2004... -
Page 4: Model With Multimedia Base
Pict. 5: rear view II (bracketry) LC-Display (15”) with touch surface or monitor glass + Plus - Minus subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com MSR PS/2 VGA connector (15 pol.) Power Supply (jack bush) serial connector RS 232... -
Page 5: Model Number Define
GM power cord power supply + UK power cord power supply + US power cord 1) Multimedia type, 15” LCD monitor, MC15T5xM3Myy (x=R (Resistive type for GS, CB), x=G (glass type for CB only); yy=A-Z, 0-9 or blank for marketing purposes) 2) Wallmount type, 15”... -
Page 6: General Points
Touch Censor will control the position of the cursor on the screen. The Preh Screen Commander is without a touch surface. Instead of a touch sensor, you will have an anti-reflective, protective glass. In this case you do not have a touch function on the screen. -
Page 7: Contents Of Packing
The Preh Touch / Screen Commander can also be used with optional VESA bracketry for wall mount hardware. Pict. 6: Example for adjustable Wall mount solution 2. Contents of packing Prior to operating your Preh Touch / Screen Commander, please check whether the... -
Page 8: Installation Of Touchscreen
3. Installation of Touchscreen Please read the following instructions prior to starting to use the Preh Touch / Screen Commander! The following steps are necessary for a correct function of the device: 1 Adjust your computer for the proper video resolution [1024x768 / 60 Hz] and switch it off, connect Touch / Screen Commander, switch on computer and Touch / Screen Commander (see chapter 3.2). -
Page 9: On Screen Display (Osd)
Pressing this button turns the display system power on or off. When the power switch are switch on, this LED lights in green. The LED indicates the different power status with altered LED colors when monitor operates in different modes 2. -
Page 10: Osd Control
Most video cards differ in regard to their video signals output. For this reason, the MC15 series monitor may need to be readjusted after connecting it to a computer. The factory setting of the monitor is set to produce the best results with a variety of industry standard video cards. - Page 11 + 50 - OSD H-POSITION (OSD HORIZONTAL POSITION) Pressing + moves the OSD image to the right; Pressing - moves the OSD image to the left. OSD H-Position + 50 subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com 05.2004...
-
Page 12: Exit And Save
Adjust the values of blue color gain using + and - button. Blue Color + 50 - EXIT AND SAVE Pressing the + button to save changed value and exit. Exit And Save + Yes - No subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com 05.2004... -
Page 13: Factory Reset
- No 3.4 Mechanical Adjustment of the LCD Position The LCD position on a VESA Mount Preh Touch / Screen Commander cannot be changed directly at the Product. The adjustment (tilting or swinging) of the Touch Screen Commander depends on the pole or wall mount hardware used. -
Page 14: Driver Installation
6.1 General Points Attention: The Preh Touch / Screen Commander does not contain any electronic components that can be replaced or repaired by the user. Consequently you should not try to do your own repair work. Moreover, you would lose all warranty claims for this product. Activating the touch sensor surface must not be done with a sharp object, such as credit card, long finger nails, ring, etc. -
Page 15: Troubleshooting List
Calibrating program states error when called up 6.3 Additional help If you have problems with the connection and the installation of the Preh Touch / Screen Commander, please contact your dealer. You can contact Preh Technical Support at: Germany /world wide: Email: support@preh-keytec.de... -
Page 16: Technical Data
-10℃ - 60℃ (-4℉ - 140℉) Multimedia / Wall Mount Option / RS232 Interface Option / Three tracks UL,CUL, FCC, TUV/GS, CE subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com XGA 1024x768 350:1 250 cd/m 6/17 ms 262,144 60∘... -
Page 17: Electronics
0 to 50℃ -40℃ to 80℃ 95% at 60℃ RS232 No parity, 8 data bit, 1 stop bit, 9600 baud (N, 8, 1, 9600) Max. 160 points/sec Max. 35ms subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com 05.2004... -
Page 18: Msr (Option)
KB Interface. Right Side scan. 5V DC ±5% Less than 20mA 500,000 cycle. ISO7811 1.5mm 10 ~ 120 cm/sec(4-50inch/sec) TDA7496L 2W/Ch. 12V/25mA PWM Adjust. 20 ~ 20KHz 1.000 cycles typical subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com 05.2004... -
Page 19: Environmental Conditions
• the operation of the screen complies to suitable working place illumination environment • the screen shall not be placed in front of a window or direct light 0°C...50°C -20°C...60°C 10%...90% (at max. 35°C) 700hPa...1060hPa subject to change without prior notice Preh KeyTec GmbH, www.preh-keytec.com 05.2004... -
Page 20: Further Information
This applies especially to unprofessional repair and maintenance jobs. Any claims for damages against the Preh works – no matter for which legal reason – are excluded if no intention and gross negligence can be proved. Above limitation do not apply to claims for damages out of the product liability law. -
Page 21: Fcc Warning Statement
Published from Preh KeyTec GmbH All rights reserved. Reproduction in any manner, in whole or in part, is strictly prohibited without the written permissin of Preh KeyTec GmbH. The Information in this document is subject to change without prior notification for the sake of improving reability, design and function.
