- Page 1 Preh Touch Commander User Manual and Technical Data MC15...
-
Page 2: Table Of Contents
i. Model with multimedia base_________________________________________ 3 ii. Model number define: _____________________________________________ 4 1. General Points ___________________________________________________ 5 2. Contents of packing_______________________________________________ 5 3. Installation of Touchscreen_________________________________________ 6 3.1 Operating Conditions for the System___________________________ 6 3.2 Cable Installation and System Settings _________________________ 6 3.3 On Screen Display (OSD) _________________________________________ 7 3.3.1 OSD Control _________________________________________ 8 3.3.2 Key lock Function ___________________________________ 12... -
Page 3: Model With Multimedia Base

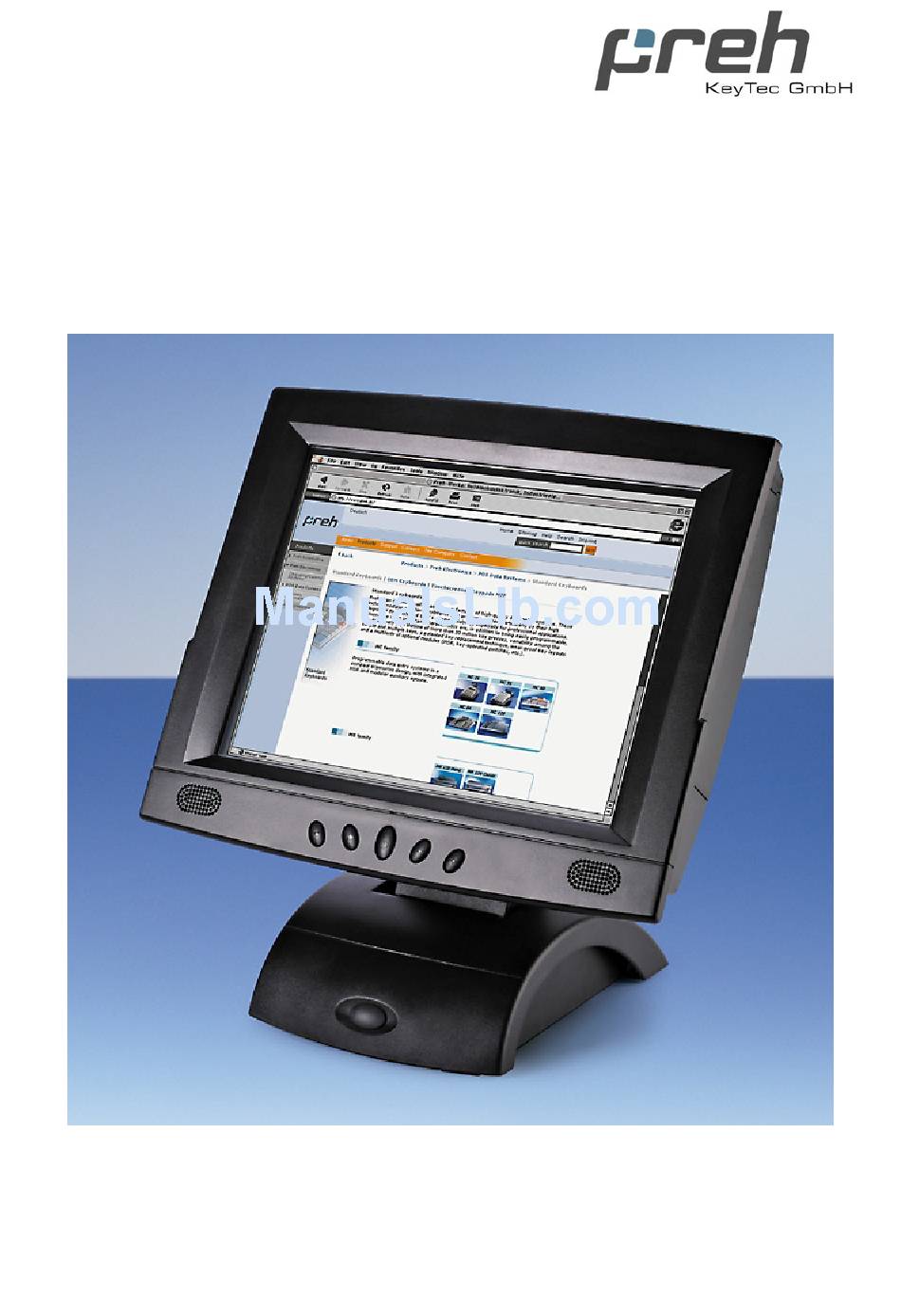

i. Model with multimedia base LC-Display (15”) with touch interface swinging direction loudspeaker ON/OFF switch Pict. 1: front view Pict. 2: rear view Pict. 3: bottom view serial connector RS 232 (touch controller) supply voltage connector (main power) VGA connector audio cable MSR PS/2 Cable 3.2005... -
Page 4: Model Number Define
ii. Model number define: LCD - Größe 15,1“ LCD - Type LVDS + Touchkit LVDS + ELO (TFT) Touch resistiv seriell technology Multimedia (incl. Power Supply and Speaker) Version Adapter plate (wall-mount) Kartenmodul MSR Spur 1+2+3 (seitlich) weiß = white Colour schwarz = black Accessorier VGA- cable... -
Page 5: General Points
1. General Points The Preh Touch Commander serves as graphical input device which makes the screen of the computer react immediately on touching graphical operating characters (symbols, keys, printings etc.). In this way the touchscreen allows simple, interactive handling of a computer even for the PC-inexperienced user. -
Page 6: Installation Of Touchscreen
(see chapter 4). 3.1 Operating Conditions for the System The Preh Touch Commander has been developed for the use with PC graphic adapters in SVGA-setting with 1024x768 pixels of resolution. As an operating system it is necessary to have either a DOS version 3.3 (or higher), Windows 3.1x, Windows 9x, Windows NT, Windows 2000 Windows XP or OS/2. -
Page 7: On Screen Display (Osd)
Pressing this button turns the display system power on or off. When the power switch are switch on, this LED lights in green. The LED indicates the different power status with altered LED colors when monitor operates in different modes 2. -
Page 8: Osd Control
3.3.1 OSD Control The LCD monitor can easily adjust the features of displayed image and the buttons in the front of the LCD monitor can do the adjustments. When using these controls, OSD menu will display the changed on the screen. - Page 9 ‧ BRIGHTNESS Adjust the value using ‧ CONTRAST Adjust the value using ‧ CLOCK Adjust the value using ‧ PHASE Adjust the value using ‧ H-POSITION Pressing moves the display image to the right; pressing to the left. buttons. buttons. buttons.
-
Page 10: Osd H-Position
‧ V-POSITION Pressing moves the display image to the upward; Pressing image to the downward. ‧ OSD H-POSITION Pressing moves the OSD image to the right; pressing the left. ‧ OSD V-POSITION Pressing moves the OSD image to the upward; pressing the downward. - Page 11 ‧ RED COLOR Adjust the value using ‧ GREEN COLOR Adjust the value using ‧ BLUE COLOR Adjust the value using ‧ Reset Pressing the button to Reset. ‧ EXIT AND SAVE Pressing the button to save changed value and exit. buttons.
-
Page 12: Key Lock Function
3.3.2 Key lock Function ‧ Key lock Press and hold the button (first) and ‧ Key unlock Press and hold the button (first) and 3.3.3 Hotkey Function This function will only be activated when the OSD function is not started yet. Pressing the button and button for 6 sec to activate the Key lock. -
Page 13: Mechanical Adjustment Of The Lcd Position
3.4 Mechanical Adjustment of the LCD Position The LCD of the Preh Touch Commander is swingable and tillable. According to the usage the LCD position can be changed. The below picture shows the model with the multimedia base. Pict. 6: adjusting screws on rear side The infinitely variable adjustment of the tilting force can be made with two adjusting screws located on the rear of the monitor. -
Page 14: Driver Installation
4. Driver Installation Important Note: A new calibration is always necessary if another touchscreen was connected to the computer or if the screen resolution was changed. This means that the calibration between touchscreen and computer is adjusted to the mechanical features of the particular touchscreen which was connected to the computer at that time. -
Page 15: Care
6.1 General Points Attention: The Preh Touch Commander does not contain any electronic components that can be replaced or repaired by the user. Consequently you should not try to do your own repair work. Moreover, you would lose all warranty claims for this product. Activating the touch sensor surface must not be done with a sharp object, such as credit card, long finger nails, ring, etc. -
Page 16: Troubleshooting List
6.3 Troubleshooting list A lot of malfunctions can be traced back to incorrect or loose cable connection. So please make sure that all plug connections are correct and secured. Fault LED on Touch Commander remains dark LED on Touch Commander lights up red and no picture appears The display shows only... -
Page 17: Additional Help
6.4 Additional help If you have problems with the connection and the installation of the Preh Touch Commander, please contact your dealer. You can contact Preh KeyTec Technical Support at: Germany/World wide: Email: support@preh-keytec.com fax: +49 (9771) 92-152 USA/America: EMail: Techsupport@preh.com... -
Page 18: Technical Data
7. Technical Data 7.1 Product Specification Configuration LCD Display Display Size Pixel Pitch Max. Resolution Contrast Ratio Brightness Response Time Display Color Viewing Angle Swivelling Tilt PC Interface Video Sync. Display Mode Signal Connector Front Control Plug & Play Speaker Power Operating Temperature... -
Page 19: Electronics
7.2 Electronics: Following specifications are for the multimedia model only: Line voltage: Power consumption 7.3 Touch: Interface: Technology: Resolution: Surface: Transmission: Durability 7.4 Touch Controller Controller: Power Requirement: Operating Temperature: Storage Temperature: Relative Humidity: Interface: Protocol: 7.5 MSR (Option) Interface: Track: Decode: Scan direction:... -
Page 20: Audio
7.6 Audio Amplifier Controller: Output: Power: Control Method: Frequency: 7.7 ESD and EMC compliance CE-sign (see also Statement of confirmation) Radiated Emissions: EN55022, class B FCC part 15, class B Susceptibility Compliance: 1. electrostatic discharge according to EN 61000-4-2 (hardness air +,-8KV and contact +,- 4KV) 2. -
Page 21: Safety Issues
8. Safety issues Please read these instructions carefully before connecting the unit to any AC-mains and keep the instructions also for later use. The multimedia type is belong to Class I type and the wall mount type is belong to Class III type for power consuming configuration. -
Page 22: Further Information
This applies especially to unprofessional repair and maintenance jobs. Any claims for damages against the Preh works – no matter for which legal reason – are excluded if no intention and gross negligence can be proved. Above limitation do not apply to claims for damages out of the product liability law. -
Page 23: Fcc Warning Statement
Published by Preh KeyTec GmbH All rights reserved. Reproduction in any manner, in whole or in part, is strictly prohibited without the written permissin of Preh KeyTec GmbH. The Information in this document is subject to change without prior notification for the sake of improving reability, design and function.
