MC15 MSR Setting Utility Manual
1. Starting

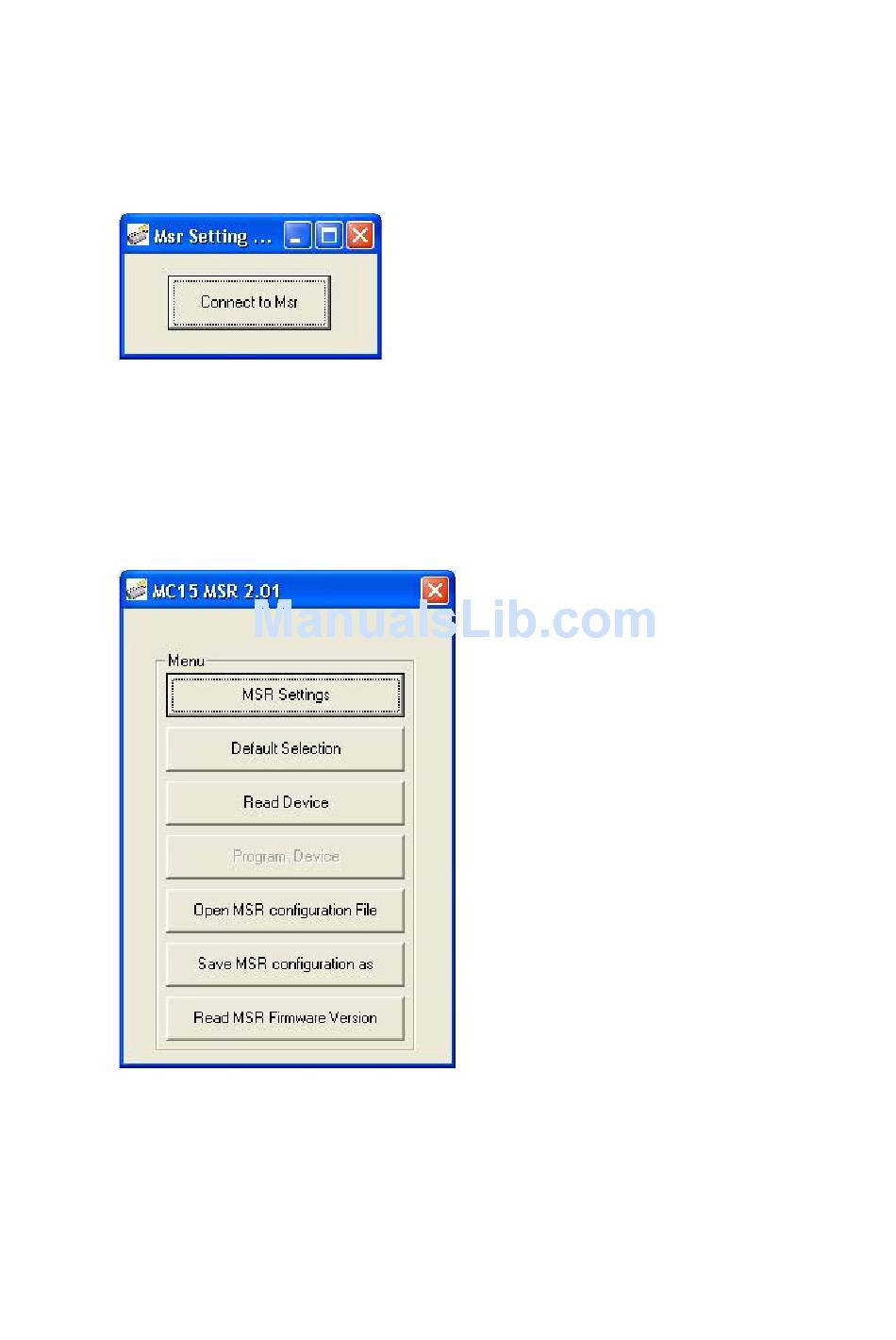

Click the "Connect to MSR", the utility will communicate with the MSR to detect
the Firmware version, and lead to the corresponding setting screen.
This document is for the MSR of Firmware Version 2.01.
The setting screen for Version 2.01 is shown below.
