USER MANUAL
NI 9759
NI Powertrain Controls Electronic Throttle Driver Module
Contents
Introduction .............................................................................................................................. 1
Pinout........................................................................................................................................ 2
Hardware .................................................................................................................................. 2
Powering the Module................................................................................................................ 3
Platform Compatibility ............................................................................................................. 3
H-Bridge Drivers ...................................................................................................................... 4
Analog Inputs ........................................................................................................................... 5
Throttle Control ........................................................................................................................ 7
Compliance and Certifications ................................................................................................. 9
Physical Specifications and Characteristics ............................................................................. 11
Introduction

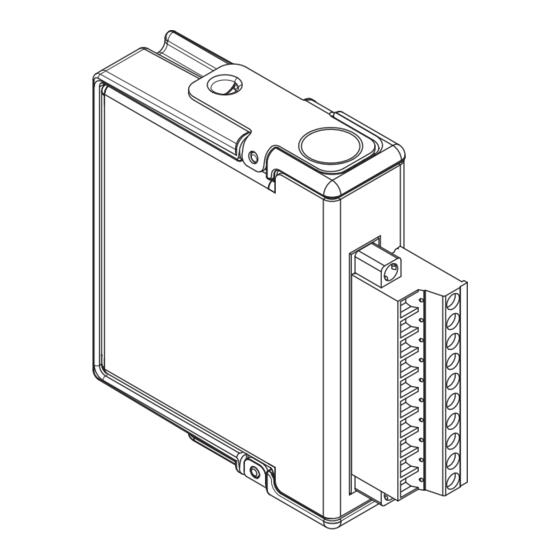

The National Instruments 9759 Electronic Throttle Driver Module includes a CompactRIO
(cRIO) module for driving passenger car electronic throttle bodies up to 70 mm in diameter. A
typical example of electronic throttle bodies which this module is capable of driving is the
Bosch DV-E5 series which range from 32 mm to 68 mm in diameter. The module is capable of
driving most other electronic throttle bodies within that size range.
Advertisement
Table of Contents
Related Manuals for National Instruments NI 9759
Summary of Contents for National Instruments NI 9759
-
Page 1: Table Of Contents
Physical Specifications and Characteristics ................11 Introduction The National Instruments 9759 Electronic Throttle Driver Module includes a CompactRIO (cRIO) module for driving passenger car electronic throttle bodies up to 70 mm in diameter. A typical example of electronic throttle bodies which this module is capable of driving is the Bosch DV-E5 series which range from 32 mm to 68 mm in diameter. -
Page 2: Pinout
External power supply of 7 V to 32 V (See Powering the Module) Pinout Figure 1. NI 9759 Pin Assignments BATT 5 V OUT Hardware The NI 9759 includes two H-Bridge drivers and analog position feedback in a NI CompactRIO module. 2 | ni.com | NI 9759 User Manual... -
Page 3: Powering The Module
The external screw-terminal connector has terminals labeled BATT (0) and GND (9). Typical power sources will be from automotive 12 V or 24 V battery systems. The NI 9759 can accept power from a range of 7 V to 32 V. However, the H-bridge power stages have a minimum voltage requirement of 11 V. -
Page 4: H-Bridge Drivers
70 mm in diameter. A typical example of electronic throttle bodies which the NI 9759 is capable of driving, is the Bosch DV-E5 series which range from 32 mm to 68 mm in diameter. The NI 9759 is capable of driving most other electronic throttle bodies within that size range. -
Page 5: Analog Inputs
Analog Inputs The NI 9759 provides two external analog inputs for accepting 0 V to 5 V signals. The primary purpose of these inputs is for measuring potentiometer voltages. A regulated 5 V output and ground terminal is provided for powering the potentiometer(s) of an electronic throttle body. - Page 6 H1A - Motor – H2B - Motor + H2A - Motor – 5 V Out - Position Ref. High AN1 - Position Signal 1 AN2 - Position Signal 2 GND - Position Ground 6 | ni.com | NI 9759 User Manual...
-
Page 7: Throttle Control
NI 9759. Throttle Control NI provides a flexible throttle position control algorithm with the NI 9759. Follow the throttle control example included in the driver package for implementing throttle control in your engine control application. Perform throttle control at a rate of 100 to 200 Hz, even if your engine control algorithms require execution at another rate, a separate timed loop can be created to implement throttle control. - Page 8 If this VI is used for position, a filter is not required. Begin control calibration with zero for all Lead/Lag, PID and compensation calibration parameters. Begin tuning PID gains for angles above ThetaLH. 8 | ni.com | NI 9759 User Manual...
-
Page 9: Compliance And Certifications
When operating this product, use shielded cables and accessories. Caution CE Compliance This product meets the essential requirements of applicable European Directives as follows: • 2006/95/EC; Low-Voltage Directive (safety) • 2004/108/EC; Electromagnetic Compatibility Directive (EMC) NI 9759 User Manual | © National Instruments | 9... - Page 10 At the end of the product life cycle, all products must be sent to EU Customers a WEEE recycling center. For more information about WEEE recycling centers, National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste and Electronic Equipment, visit ni.com/environment/...
-
Page 11: Physical Specifications And Characteristics
For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National Instruments Patents Notice at ni.com/patents. You can find information about end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product.
