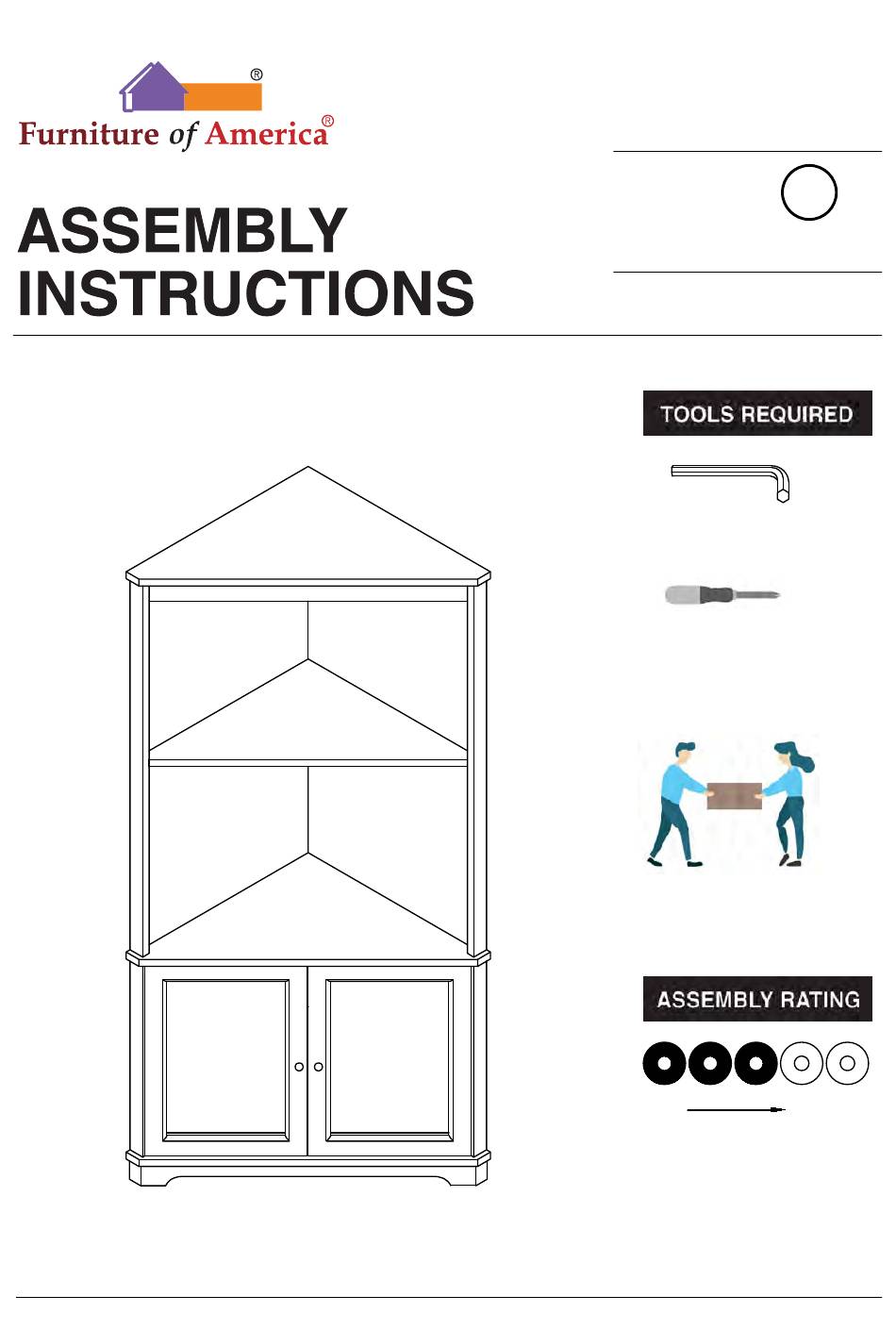

VERSION # 21-07-09
1 / 16
MODEL #
CM-AC807
Questions?
GIVE US A CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PT)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
VN
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM-AC807
Summary of Contents for Furniture of America CM-AC807
- Page 1 MODEL # CM-AC807 Questions? GIVE US A CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PT) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / 16...
- Page 5 CAM LOCK FASTENER ASSEMBLY INSTRUCTIONS Note : Every cam lock bolt must have a cam lock connector in order to fasten the cam bolt parts together. cam lock screwdriver Screw the cam Insert the cam bolt into the bolt into panel. bolt hole of joint panel.
- Page 6 BOOKCASE CM-AC807 #1 1pc #2 1pc #3 1pc Upper Left Side Panel Upper Right Top panel Side Panel #4 1pc #5 1pc #6 1pc Divider shelf Divider panel Lower Left Side Panel #7 1pc #8 1pc #9 1pc Lower Right...
- Page 7 #A 25pcs #B 25pcs #C 2pcs Handle Cam-bolt Ø8mm Cam-lock Ø15mm #D 2pcs #E 12pcs #F 2pcs Handle bolt Ø5/32" x 1" Screws #3 x 12mm Magnet #H 24pcs #I 1pc #G 4pcs Screws 3 x 15mm Wood dowel Ø8 x 30mm Allen Wrench 4mm #J 1set Anti-Tip Skit...
-
Page 8: Exploded View
Exploded View 8 / 16... - Page 9 ASSEMBLY INSTRUCTIONS Attach cam bolts (#A) to top (#1). Part #1 x 1pc Part #10 x 1pc Hardware #A x 8pcs Attach cam bolts (#A) to bottom (#10). Part #5 x 1pc Attach cam bolts (#A) onto both sides of Hardware #A x 8pcs divider panel (#5).
- Page 10 ASSEMBLY INSTRUCTIONS Align and secure magnets (#F) onto divider (#5) by using screws (#G). Hardware #F x 2pcs Hardware #G x 4pcs Attach cam bolts (#A) to side panels (#2,3,7). Part #2 x 1pc Part #3 x 1pc Part #7 x 1pc Hardware #A x 9pcs 10 / 16...
- Page 11 ASSEMBLY INSTRUCTIONS Part #2 x 1pc Part #4 x 1pc Insert dowels (#H) to side panel (#2), Hardware #B x 2pcs then align shelf (#4) to the side panel Hardware #H x 2pcs (#2). Secure by using cam locks (#B). Insert dowels (#H) to side panel (#3), then align side panel with shelf (#2) to Part...
- Page 12 ASSEMBLY INSTRUCTIONS Insert dowels (#H) to side panel (#7), then align side panels (#6,7) together. Part #6 x 1pc Secure by using cam locks (#B). Part #7 x 1pc Hardware #B x 2pcs Hardware #H x 2pcs Insert dowels (#H) to divider (#5) and bottom (#10), then align divider and bottom to side panels Part...
- Page 13 ASSEMBLY INSTRUCTIONS Insert dowels (#H) to divider panel (#5), then align side panels (#2,3) to the divider panel (#5). Secure by using cam locks (#B). Hardware #B x 4pcs Hardware #H x 4pcs Insert dowels (#H) to side panels (#2,3), then attach top panel (#1) to the side panels (#2,3).
- Page 14 ASSEMBLY INSTRUCTIONS Align doors (#8,9) evenly to the unit. When securing with screws (#E), please make sure to keep the Part #8 x 1pc screws loose before tightening Part according to the even alignment of #9 x 1pc the doors. Hardware #E x 12pcs Hardware...
- Page 15 ASSEMBLY INSTRUCTIONS Hardware #J x 1set WALL 15 / 16...
- Page 16 16 / 16...
