TD4 Advanced | 29

Twist bracket

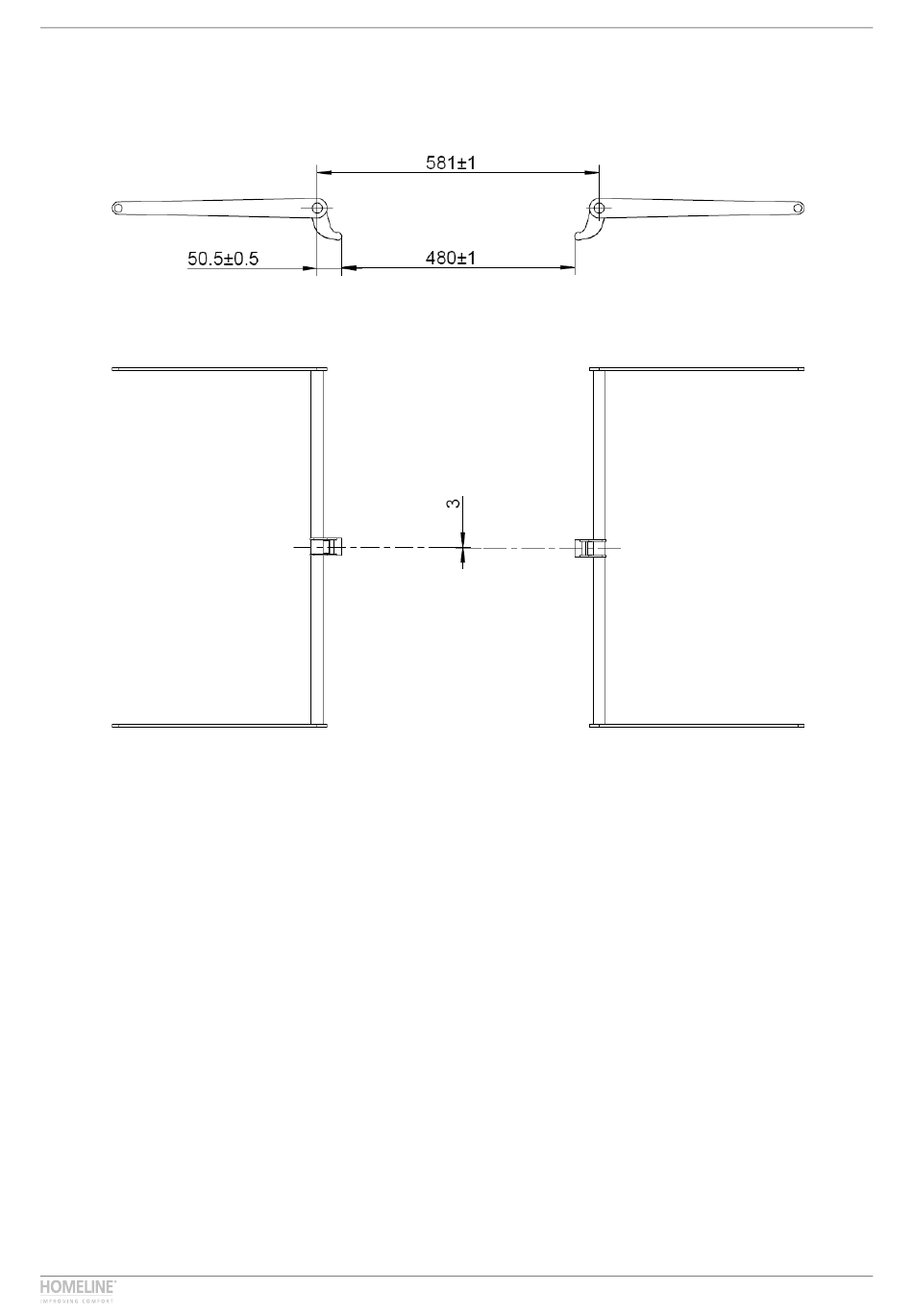

Mounting instructions and parallel tolerance

When bed is horizontal (starting position):
The shaft diameter must be Ø25�2 mm +0�3 mm/-0�2 mm
