Combining the TWINDRIVE Advanced and the CBD6DC HOMELINE

Combining the TWINDRIVE Advanced with the Control Box CBD6DC HOMELINE makes it possible to create
a bed design with up to 5 motor in the system� The CBD6DC HOMELINE is connected to the TWINDRIVE
Advanced with a serial cable and a 2-poled DC cable for communication and power supply in between the
products� For CBD6DC HOMELINE connection descriptions�
Do not pack the CBD6DC in heat insulating material�
Place the CBD6DC so it can emit heat through its surface to the surroundings�

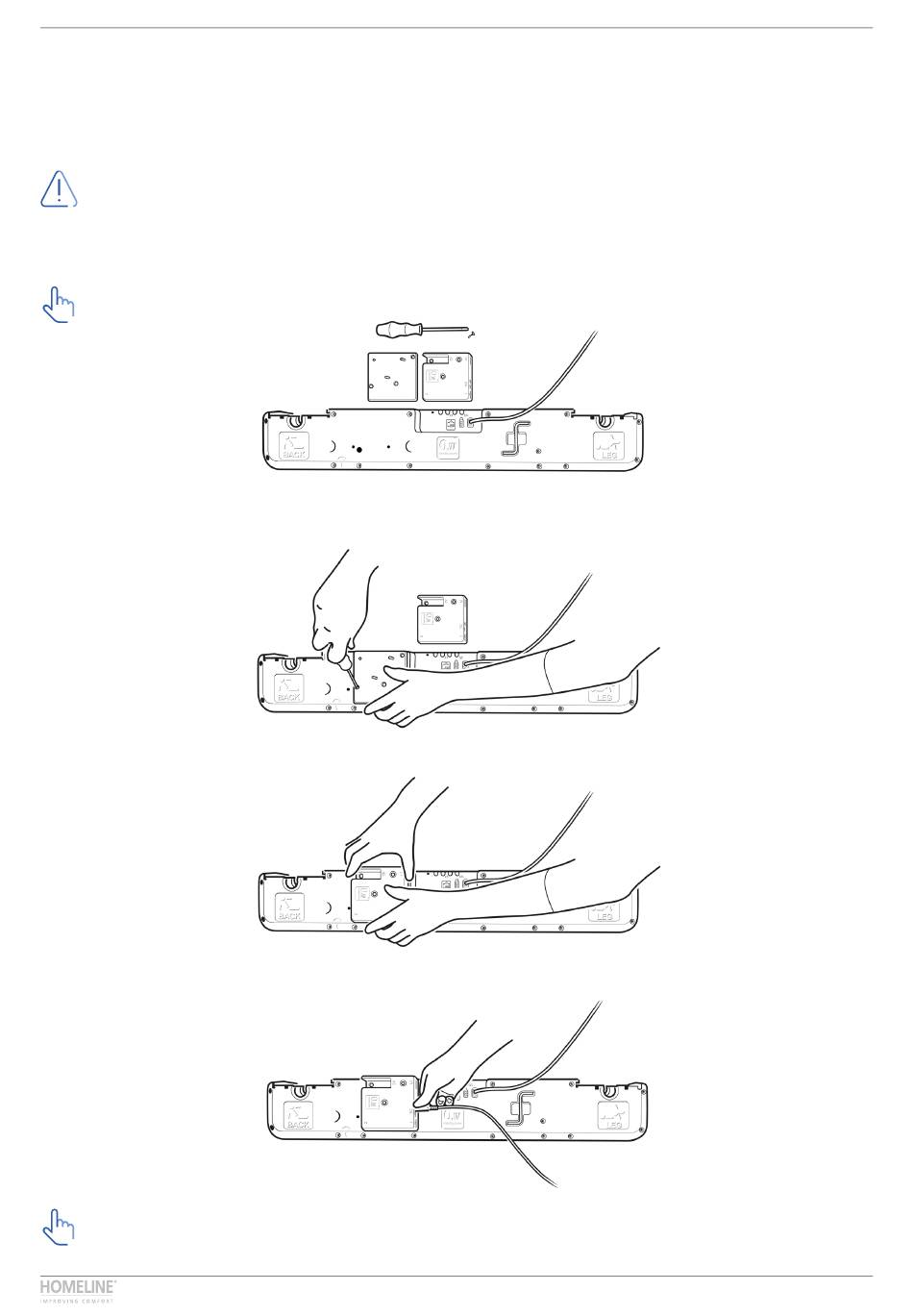

Mounting the CBD6DC on the TWINDRIVE Advanced
1� The CBD6DC can be mounted directly on a TWINDRIVE by means of the bracket and one screw�
The bracket and the screw must be ordered separately��
2� The bracket fits into the existing screw holes in the TWINDRIVE� Place the bracket on the TWINDRIVE
and fasten the screw�
3� Place the CBD6DC on the bracket� Push down until it is clicked onto the bracket�
4� Plug the cables into the CBD6DC and the TWINDRIVE�
It is important to fix the cables to the bed frame to ensure that the cables are not stressed when the
bed is adjusted�
TD4 Advanced | 28
